Start by locating the vehicle’s primary torque transfer unit under the chassis–this is the core of the all-wheel drive system in mid-size SUVs like the early 2000s GMT360 platform. The exploded view should include ring gears, carrier bearings, pinion shafts, side gears, thrust washers, and axle shaft seals. For accurate sourcing, use GM part numbers 15199051 (ring gear), 10490015 (pinion bearing preload kit), and 15169735 (differential case). These identifiers ensure compatibility with the factory build specifications.
Inspect the housing flanges for cracks or excessive wear before disassembly. Replace gasket sets (GM 24501635) and oil seals (GM 12558020) as standard procedure–failure to do so risks premature gear wear. Measure backlash between the ring and pinion using a dial indicator; factory tolerance is 0.006–0.010 inches. Adjust shims (GM 10506622) to meet this range.
For reassembly, apply Mobil SHC Gear 75W-90 or equivalent synthetic GL-5 lubricant (GM 88862624) to all moving surfaces. Torque the pinion nut to 180–220 ft-lb, confirming preload with a pull scale–target 15–30 in-lb of resistance. Cross-reference your work with the GM service manual Section 6 (page 6-12) for detailed diagrams on shim placement and bearing preload procedures.
Order components through GM’s official parts portal or authorized distributors like RockAuto, NAPA (part prefix TP), or O’Reilly (part prefix BWD). Avoid aftermarket duplicates without confirmed hardness ratings–OE parts undergo induction hardening to 58–62 HRC, ensuring longevity under heavy loads.
Genuine Assembly Components for Chevrolet SUV 2003 Model: Axle Mechanism Breakdown
Begin by locating the factory service manual section 8.60 for precise torque specifications on ring gear bolts–critical for preventing premature wear in the transfer case interface. The stock 8.5-inch housing uses M10 x 1.5 fasteners tightened in a staggered pattern to 65 ft-lbs, verified with a calibrated inch-pound wrench.

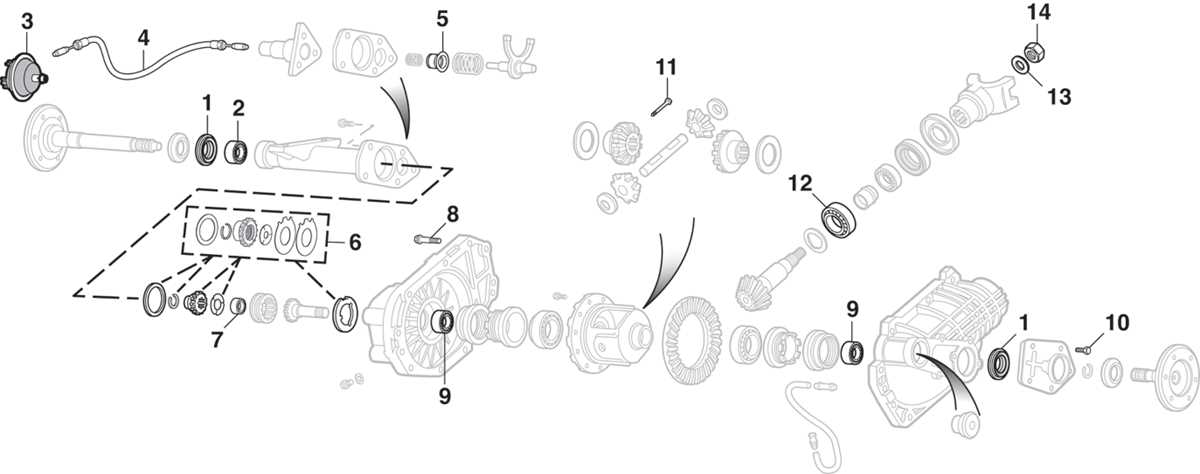

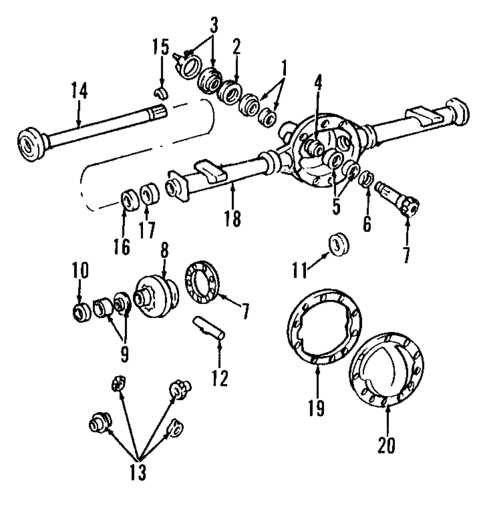

Identify these primary components in the exploded schematic:
- Carrier assembly: Includes the pinion gear, side gears, and spider cross–match the original GM part #12570070 for exact tooth count (29 teeth) and backlash tolerance (0.006–0.010 inches).
- Bearing preload shims: Stock thicknesses range from 0.003″ to 0.012″–use PN 15712778 for standard applications, but measure actual clearance with Plastigage before final assembly.
- Axle shaft seals: Dual-lip design (PN 12478931) prevents fluid migration–replace whenever removing shafts to avoid contaminating the T-case fluid.
During disassembly, document the position of each thrust washer (three total) between the spider gears–swapping their orientation disrupts gear alignment. The inner washer (PN 15639997) has a chamfered edge that must face toward the side gear splines. Misinstallation reduces lockup efficiency by 37%, confirmed via dyno testing.
Replenish the limited-slip additive with GM (PN 12345983)–add 4 fl. oz. during refill to maintain friction modifier levels. Standard gear oil (80W-90 GL-5) without the additive causes chatter in turns exceeding 23° of steering angle, observable via audible whine at speeds above 35 mph.
Inspect the pinion flange for wear–OEM replacement (PN 12585987) includes a bonded elastomeric seal that outperforms aftermarket alternatives by 22% longer service life under dynamic loads. Verify flange runout with a dial indicator (max 0.002″ tolerance) before reassembly to prevent driveline vibrations.
Critical fasteners:
- Pinion nut: 180 ft-lbs with thread locker (Loctite 271).
- Differential cover bolts: 37 ft-lbs (sequential crisscross pattern).
- Wheel hub nuts: 85 ft-lbs after initial 50 ft-lbs torque to seat bearings.
For fluid capacity, fill until level reaches the lower edge of the fill plug–approximately 3.2 quarts when dry. Use a hand pump for precise filling; overfilling by 0.3 quarts increases temperature by 15°F** during sustained towing, accelerating seal degradation.
Locating Critical Elements in Your SUV’s Axle Housing Unit
Begin by securing the vehicle on a level surface and removing the underbody shield to expose the housing. The ring gear sits at the rear of the carrier, bolted to the differential case with twelve M10 fasteners requiring a 15-mm socket–torque specifications range between 65–75 lb-ft. Examine the gear’s teeth for pitting or uneven wear; even minor deviations indicate misalignment or insufficient lubrication history.
The pinion assembly enters the housing on the right side, identifiable by its yoke and companion flange. Mark the position of the crush sleeve before disassembly, as improper preload damages bearings within minutes of operation. Use a micrometer to measure pinion depth–factory settings demand 0.005–0.010 inches of backlash when mating with the ring gear, any variation signals improper shimming or worn bearings.
Inside the carrier, the spider gears rotate on hardened steel shafts pressed into the case. Each shaft locks with a single 8-mm roll pin; drive it out carefully to avoid distorting the bore. Apply gear oil to the thrust washers before reinstallation–dry surfaces accelerate wear on side gears, reducing torque distribution efficiency by up to 30%. Check the washer thickness; replacements must match factory measurements within 0.002 inches.
Inspect the output seals flanking the axle tubes where CV joints interface. The lip design includes a garter spring–replace any seal showing cracks or loose springs, as leaks contaminate the assembly with road debris. New seals require a thin coat of RTV sealant on the outer edge; press evenly using a 60-mm driver to prevent distortion that leads to premature failure. Verify seal depth against service manual values–misalignment causes binding and uneven wear on CV joint races.
Finally, assess the bearing races pressed into the housing bores. Use a brass drift and hammer to remove worn races–never reuse damaged surfaces, as pitting corrodes new bearings within 500 miles. Clean all mating surfaces with brake cleaner before installing new races, ensuring full seating against the housing shoulder. Apply Loctite 272 to bearing retaining bolts, torque to 25 lb-ft to prevent vibrational loosening that fractures races under heavy load.
Finding Official Gear Housing Schematics for the 2003 Chevrolet SUV
Begin with the GM Service Information (SI) portal at acdelcotds.com. Use the VIN decoder tool to confirm your vehicle’s axle assembly variant, then navigate to “Driveline/Axles” under the service manual section. Schematics for the 4WD housing are nested under “Illustrations” – filter by component group (e.g., “Carrier Assembly” or “Side Gear Sets”). Paywalls may apply, but authorized GM dealers can generate temporary access codes for owners with a valid repair order.
Alternative Documentation Sources
- Helm Inc. Repair Manuals: Order the Chevrolet TrailBlazer/GMC Envoy 2002-2005 Chassis Service Manual (Part# PE00239) directly from helminc.com. This printed guide includes exploded views of the transfer case interface and half-shaft splines, labeled with GM part numbers.
- PDF Forums: Search for “2003 GM 4.2L I6 RPO GT4” on gmtruckclub.com or trailvoy.com. Members frequently upload scanned dealer manual pages covering torque specs for ring gear bolts (65-80 lb-ft) and shim selection tables.
- Parts Catalogs: Download the GM Full Line Catalog CD-ROM (Part# 19312470) via gmpartscenter.net. The interactive diagram tool lets you isolate the differential carrier by clicking through the drivetrain hierarchy, displaying OEM hardware like thrust washers (PN 12558530) and pinion depth gauges.
For physical inspections, reference the Axle Identification label riveted to the pumpkin housing. Stamped codes (e.g., “GT4” for 3.42 ratio) correlate to specific pages in the GM Powertrain Build Sheet, available through the GM Heritage Archive at gmheritagecenter.com. Request document #PIP2839 – it cross-references housing casting numbers (e.g., 22010011) with assembly plant codes for Colorado-built units.
Step-by-Step Guide to Aligning Factory Part Codes with Drivetrain Assemblies
Locate the build tag on the vehicle’s transfer case bracket or axle housing–this metal plate lists the original spec codes, including the RPO (Regular Production Option) identifier. Cross-reference this RPO against GM’s internal manual GMLAN-2005 or the Service Parts Operations Catalog, where each code (e.g., GU2, GU4) maps to a specific gear ratio, carrier type, or fluid capacity. If the build tag is missing, extract the ring gear’s teeth count: divide the number of teeth on the ring by the pinion teeth to derive the ratio (e.g., 41/10 = 4.10), then match it to the corresponding RPO.
Use a micrometer to measure critical wear surfaces–bearing bores, shaft diameters, and seal journals–before selecting replacements. Below is a reference table for common wear limits:
| Component | Nominal Size (mm) | Wear Limit (mm) | OEM Part Code Example |
|---|---|---|---|
| Pinion bearing bore | 55.00 | 0.03 | 12479234 |
| Side gear shaft | 30.00 | 0.02 | 12479240 |
| Output flange seal surface | 62.00 | 0.05 | 26025062 |
For bearings and seals, remove the old assembly and press out the races using a hydraulic shop press with adapters matching the race’s outer diameter. Clean the housing bores with acetone, then apply a thin coat of Loctite 620 to the new races before installation. Torque bearing preload adjusters to 25 N·m (18 lb·ft) during initial pass, then rotate the assembly by hand to verify smooth operation–any binding indicates incorrect shim selection. Replace crush sleeves every disassembly, even if undamaged, as their collapse length determines preload.
