Begin by locating the impeller housing–this is where water force drives rotation. Most residential units use a closed-vane design for optimal efficiency, though commercial models often feature an open-vane configuration for handling larger debris. Verify the O-ring seal around the housing; even minor wear here causes performance drops up to 30% due to pressure loss. Replace it immediately if grooves appear–standard nitrile seals last 12-18 months under normal usage, while silicone variants extend lifespan to 3 years.
Check the diffuser next–a critical component often overlooked. Its primary function is converting kinetic energy into pressure, boosting water flow to the filter. Cracks here reduce output by 20-40%. The volute case surrounds the impeller, channeling water outward; inspect for calcium buildup, which restricts movement. For maintenance, soak parts in a 1:10 muriatic acid solution for 10 minutes–this dissolves mineral deposits without damaging thermoplastic components.
Examine the shaft and mechanical seal. Misalignment here creates friction, leading to motor burnout. The seal’s carbon-ceramic interface requires proper lubrication; dry operation destroys it within hours. Apply silicone grease sparingly–excess attracts dirt. The motor coupling connects the drive assembly; verify it’s secured with a stainless steel set screw. Loose fittings introduce vibration, a precursor to premature bearing failure.
Inspect the strainer basket–its mesh size determines debris capture efficiency. Standard baskets use 3/16-inch openings, while premium models feature 1/8-inch grids for finer filtration. A clogged basket increases strain on the system by 25%. Clean it weekly; neglect leads to backpressure, forcing the motor to work harder. For optimal performance, pair a high-flow basket with a variable-speed drive–this combination reduces energy consumption by 60% while maintaining circulation.
Visual Guide to Circulation System Components
Identify the strainer basket first–its transparent lid allows quick debris checks without disassembly. Upgrade to a model with a reinforced handle if your system handles heavy leaf loads weekly.
Critical Wear Elements
| Component | Lifespan (hrs) | Failure Signs |
|---|---|---|
| Motor bearings | 5,000-8,000 | Grinding noise, excessive vibration |
| Impeller vanes | 3,000-6,000 | Reduced water flow, uneven pressure |
| Shaft seal | 2,000-4,000 | Water dripping behind motor face |
Before ordering replacement seals, match the motor frame size–most residential units use NEMA 56C, while commercial models often require 143TC or 145TC. Lubricate new seals with manufacturer-approved silicone grease to prevent premature failure.
Check the diffusers yearly–cracks reduce efficiency by up to 30%. Install a pressure gauge on the discharge line: readings above 20 PSI indicate clogged filters, while drops below 10 PSI suggest impeller damage or suction leaks.

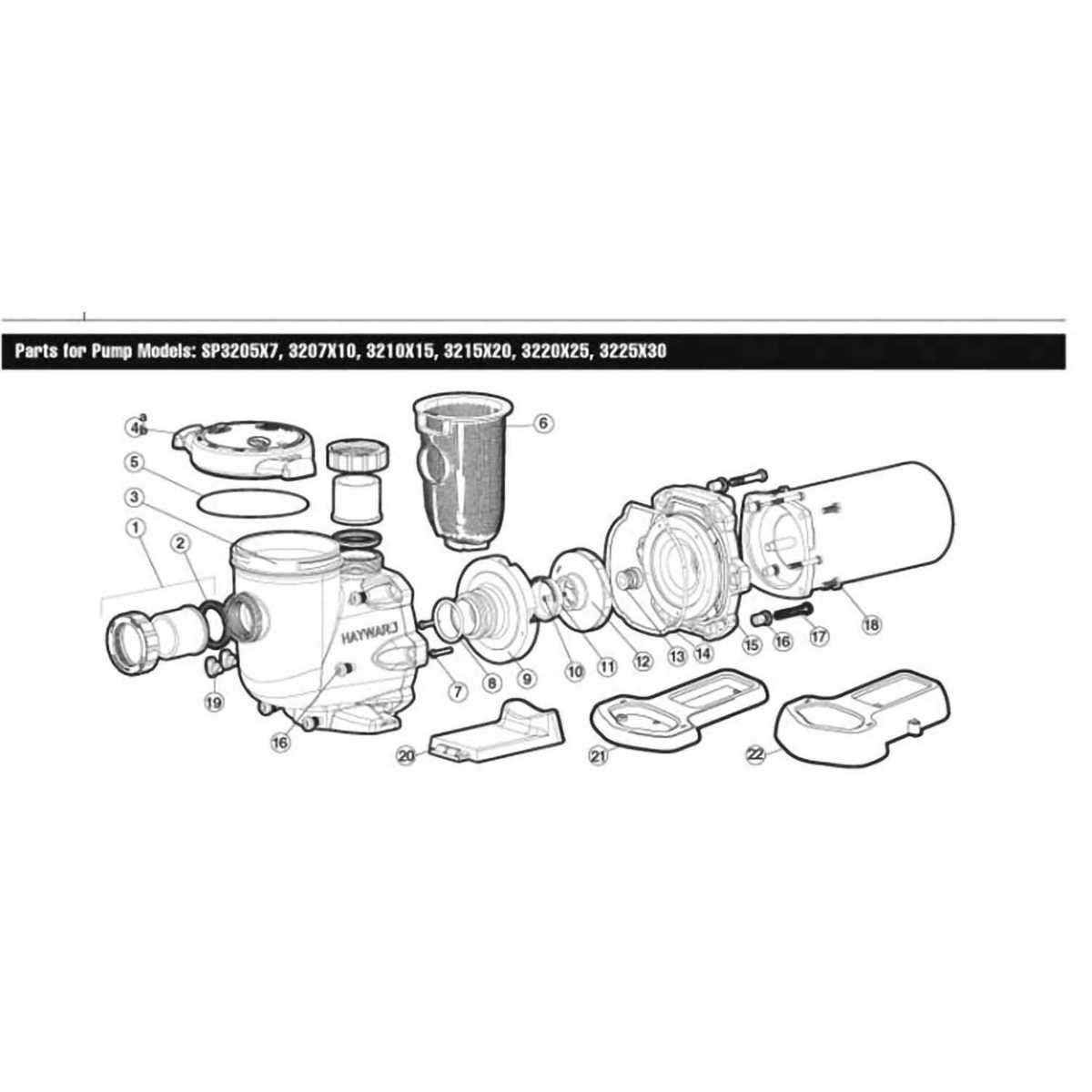

How to Pinpoint Critical Elements in a Filtration Device Breakdown Schematic
Examine the motor housing first–typically positioned at the base of the exploded view. Look for a cylindrical or square enclosure with ventilation slots; this is the driving force behind water circulation. Check for labeling such as “HP” (horsepower) to confirm its role. If the schematic includes an O-ring near the housing seam, it prevents leaks where the motor meets the volute.
Locate the Wet End Components
Trace the volute (the curved casing) immediately above the motor. It should connect to an impeller–identifiable by its vaned, fan-like structure–which propels liquid through the system. Adjacent to it, find the diffuser: a stationary ring with angled passages that direct flow outward. Nearby, a basket strainer or pre-filter (often labeled “skimmer basket”) captures debris before it reaches the impeller. Verify seals like gaskets or faceplates between these elements to spot potential failure points.
Inspect electrical connections next. The thermal overload protector (a small, disk-shaped device) mounts on or near the motor and shuts off the system if overheating occurs. Wiring harnesses should show clear entry points into the motor housing, often secured by a junction box with conduit fittings. If the schematic includes a capacitor–cylindrical with two prongs–note its position; incorrect installation can disrupt startup torque.
Compare the schematic’s shaft assembly with physical components. The drive shaft links the impeller to the motor, passing through a mechanical seal composed of carbon and ceramic faces. Look for spring-loaded parts in this area; misalignment here causes premature wear. For variable-speed models, identify the control board (rectangular with circuit paths) and ensure it matches the labeled input voltage in the diagram–mismatches risk damage.
Step-by-Step Guide to Labeling a Water Circulation Unit Impeller Assembly
Begin by disassembling the front housing to expose the rotor component. Place the housing on a stable surface with the intake side facing upward to prevent small elements from rolling away. Use a permanent marker to etch a unique identifier–such as “A1” or a numerical sequence–directly onto the impeller’s hub before removing it. If the material is non-porous, apply a strip of labeled masking tape instead to avoid damaging the finish.
- Secure the shaft with locking pliers to prevent rotation while loosening the retaining nut. A counterclockwise turn removes most standard fasteners, but verify the thread direction in your model’s manual.
- Slide the impeller off the shaft, noting the orientation of the vanes–curved edge typically faces the inlet. Label this side with “IN” and the opposite with “OUT” to simplify reassembly.
- Inspect the diffuser ring around the impeller cavity. Mark its position relative to the housing with two aligned dots (one on the ring, one on the casing) to ensure proper alignment during reinstallation.
For the seal plate behind the impeller, trace its outline lightly with a pencil on the housing interior. Add directional arrows indicating the original position–critical for maintaining proper gasket compression. If the system includes wear rings, label them “INTAKE” and “DISCHARGE” to match their respective ports, using color-coded stickers if working with multiple similar components. Reassemble in reverse order, verifying each label aligns with its documented position before final tightening.
Key Components Prone to Deterioration in Circulation Systems
Replace the impeller every 12–18 months, especially if you notice reduced water flow or unusual grinding noises. Located behind the motor assembly, this rotating element spins at 3,450 RPM and suffers from abrasive debris like sand or calcium deposits. Check for cracked blades or worn edges–these indicate immediate replacement to prevent motor strain.
The shaft seal, positioned between the impeller and motor, fails from prolonged heat and exposure to chemicals. A failing seal causes leaks near the motor housing; look for water droplets or white mineral buildup. Install a new seal every 2–3 years, ensuring compatibility with your system’s horsepower–mismatched seals crack under torque.
Bearings inside the motor deteriorate from moisture ingress or insufficient lubrication. Signs include screeching sounds or excessive vibration during operation. Lubricate sealed bearings annually with waterproof grease, but replace them entirely if corrosion appears. Avoid over-tightening the end bell–this misaligns shafts and accelerates wear.
Gaskets and O-Rings: Silent Failures
Inspect the lid gasket quarterly for cracks or compression loss. A brittle gasket allows air leaks, reducing suction and causing cavitation. Use a 1/4-inch cross-section silicone variant rated for chlorinated water–neoprene alternatives degrade faster. Clean mating surfaces before installation to prevent bypass.
The diffuser gasket, typically a rubber ring pressed against the impeller housing, splits from UV exposure or chloramine attacks. A damaged gasket drops system pressure; measure for flatness using calipers–any deformation warrants replacement. Apply FDA-approved silicone lubricant to new gaskets to extend lifespan by 30%.
Electrical and Housing Concerns
Thermal overload protectors trip from overheating, often due to restricted airflow around the motor. Clean debris from ventilation slots monthly and ensure a minimum 6-inch clearance on all sides. Test continuity with a multimeter–if readings exceed 3 ohms, the protector is failing and requires replacement.
The strainer basket’s lateral slits clog with fine particles, starving the impeller of water. Check monthly and hose off accumulated debris; failure to clean leads to premature impeller erosion. Use a stainless-steel mesh basket for high-debris environments–plastic versions warp under prolonged heat cycles.
Essential Equipment for Servicing Your Filtration System
Begin by equipping yourself with a screwdriver set–both flathead and Phillips–sized #2 and #1 for housing screws and impeller access. Include a nut driver (typically ¼” or 5/16”) for seal plate fasteners, as standard wrenches risk damaging hexagonal bolts. Teflon tape and silicone-based lubricant prevent leaks during reassembly; apply the latter sparingly to gaskets to avoid interference with sealing surfaces.
A soft-bristle brush and non-abrasive cloth remove debris from the volute without scratching surfaces, while a plastic scraper (not metal) clears hardened calcium deposits from inlet/outlet ports. For electrical components, use a multimeter to verify capacitor charge (typically 20–40 µF) and motor winding resistance (2–5 ohms between windings). Keep a container with labeled compartments to organize fasteners–confusion between impeller screws and seal plate bolts causes misalignment.
Include needle-nose pliers for retrieving dropped screws in tight spaces and a torque wrench (8–12 ft-lbs) to secure the impeller without cracking the shaft. If working with a two-piece housing, a rubber mallet helps separate stubborn components without deformation. Replace worn bearings only if noise levels exceed 50 dB–spare bearings should match the original specs (e.g., 6203-2RS for most models).
