Begin repairs or maintenance by locating the crankshaft pulley–it’s your primary reference point. The flywheel cover (typically secured with three bolts) must be removed first; use a 12mm socket to avoid stripping threads. Beneath it, you’ll find the magneto assembly, critical for ignition timing. Misalignment here can reduce output by 15-20%; verify the air gap with a feeler gauge (.010–.012 inches).
For carburetor disassembly, detach the fuel bowl (14mm nut) and inspect the float needle. Sediment buildup in the inlet screen is a common failure point; clean it with compressed air, not solvents, to prevent damage to the viton seal. The main jet (marked #125) should be removed and checked for debris–even a 0.5mm obstruction reduces fuel flow by 8%.
When servicing the valve train, prioritize the rocker arms. Remove the valve cover (four 10mm bolts) and measure lobe lift with a dial indicator–intake should be .305″, exhaust .295″. Adjust clearance using shims if readings deviate by ±.002″. The camshaft runs on bronze bushings; replace them if oil clearance exceeds .003″ to prevent premature wear. Use Klubersynth UH1 6-460 grease during reassembly–it resists shear under 2,400 RPM loads.
For electrical diagnostics, probe the stator leads with a multimeter. AC voltage should read 28-32V at idle; values below 25V indicate a failing coil. The voltage regulator (mounted near the blower housing) often fails under sustained loads–replace it if the voltage fluctuates more than ±2V during acceleration tests.
Reassembly requires torque precision: cylinder head bolts (18 ft-lbs, cross-pattern), connecting rod cap (22 ft-lbs). Use Loctite 242 on threads prone to vibration–especially the flywheel nut (90 ft-lbs). After startup, monitor oil pressure; 10-15 PSI at idle confirms proper bearing preload. If pressure drops below 8 PSI within 60 seconds, inspect the oil pump screen for metal contaminants–a sign of imminent journal failure.
Comprehensive Breakdown of 27 Horsepower Powerplant Component Layouts
Start by locating the air cleaner assembly–typically mounted on the upper left side near the carburetor intake. For the 27 hp model, verify the filtration system includes both a primary paper element and a secondary foam pre-filter to prevent debris ingress during operation. Replace these components every 100 operating hours or sooner if debris accumulation exceeds 3mm thickness.
Refer to the crankcase ventilation schematic when servicing the valve train. The breather tube connects to the rocker arm cover via a 6mm hose; ensure this pathway remains unobstructed to maintain proper crankcase pressure. Over-tightening the cover bolts can distort the gasket–torque specifications require 8-10 Nm, verified with a calibrated wrench.
Critical Component Alignment for Optimal Performance
Inspect the flywheel magneto gap as part of routine maintenance; the air gap should measure 0.3–0.4mm between the ignition armature and flywheel magnets. Use non-ferrous feeler gauges to avoid inaccurate readings. The starter motor engages the flywheel ring gear through a Bendix drive–replace the drive immediately if teeth show wear exceeding 20% of original height.
The cooling fin arrangement on this power unit demands meticulous cleaning–use compressed air at 90 psi directed parallel to fins to avoid bending. For liquid-cooled variants, check the coolant bypass valve opening pressure at 1.1 bar before disassembling the radiator core. Replace the thermostat if hysteresis exceeds 5°C or if valve opening occurs outside the 82–88°C range.
Finding the Authorized 27 HP Power Unit Schematic Online
Begin your search at the manufacturer’s dedicated support portal: https://support.kohler.com. Enter the model stamp–usually found on a metal plate near the valve cover–into the search field. The system returns an exploded-view drawing with exact part numbers, torque specs, and compatibility notes. Bookmark the page directly; third-party sites often omit critical revisions.
If the official portal returns no results, check the “Product Manuals” archive under “Small Engines.” Filter by horsepower rating (27 HP) and displacement (typically 674cc or 747cc). Schematics here include layered PDFs: select the “Interactive Parts Catalog” option to toggle between assembly stages without scrolling through dense pages.
For vintage units (pre-2010), dig into the Parts Lookup Tool. Input the serial number prefix (e.g., “CH” for Command, “CV” for Courage) to pull up a scrollable schematic. Each component links to a detail page listing current availability, superseded numbers, and cross-reference data for aftermarket suppliers.
| Prefix | Series | Production Years | Displacement (cc) |
|---|---|---|---|
| CH | Command | 1995–2012 | 674 |
| CV | Courage | 2003–2020 | 747 |
| CHD | Command PRO | 2008–current | 747 |
Dealers maintain a separate dealer-only portal (dealer.kohler.com), accessible with a reseller ID. While gated, some dealers offer one-time access to customers upon request–email a scanned copy of your registration document for temporary credentials. The dealer schematic includes tool recommendations and service interval overrides not found in public versions.
When links expire or redirect, decode the URL structure: schematics follow /media/#####/pdf/ where “#####” is a 5-digit document ID. Plugging the ID into Internet Archive often retrieves an older snapshot if the original page is down. Avoid cached images–they lack zoomable layers.
Niche Forums Host Hidden PDFs
Master craftsmen forums like IGRazY and Heavy Equipment Forums store member-uploaded schematics. Search threads tagged “[Model Stamp] diagram” or “[Model Stamp] parts breakdown.” Members frequently attach raw factory PDFs, saved before portal reorganizations. Verify file names against the table above–files named generically (e.g., “manual.pdf”) are usually generic.
Aftermarket Aggregators–Use Sparingly
Sites like PartsTree and Jack’s Small Engines mirror parts lists but occasionally mix superseded numbers. Cross-check their exploded views with the official PDF–discrepancies often appear in gasket kits and carburetor jets. Download their mobile apps; some include OCR search for pinpointing components in large schematics.
For offline access, request a USB data pack through the manufacturer’s customer service. Include the serial number, model prefix, and shipping address. The packet arrives within 10 business days, containing DVDs with 300+ DPI schematics, service bulletins, and wiring harness diagrams. Cost ranges $15–$25–cheaper than sourcing individual prints, and includes future updates for your specific build.

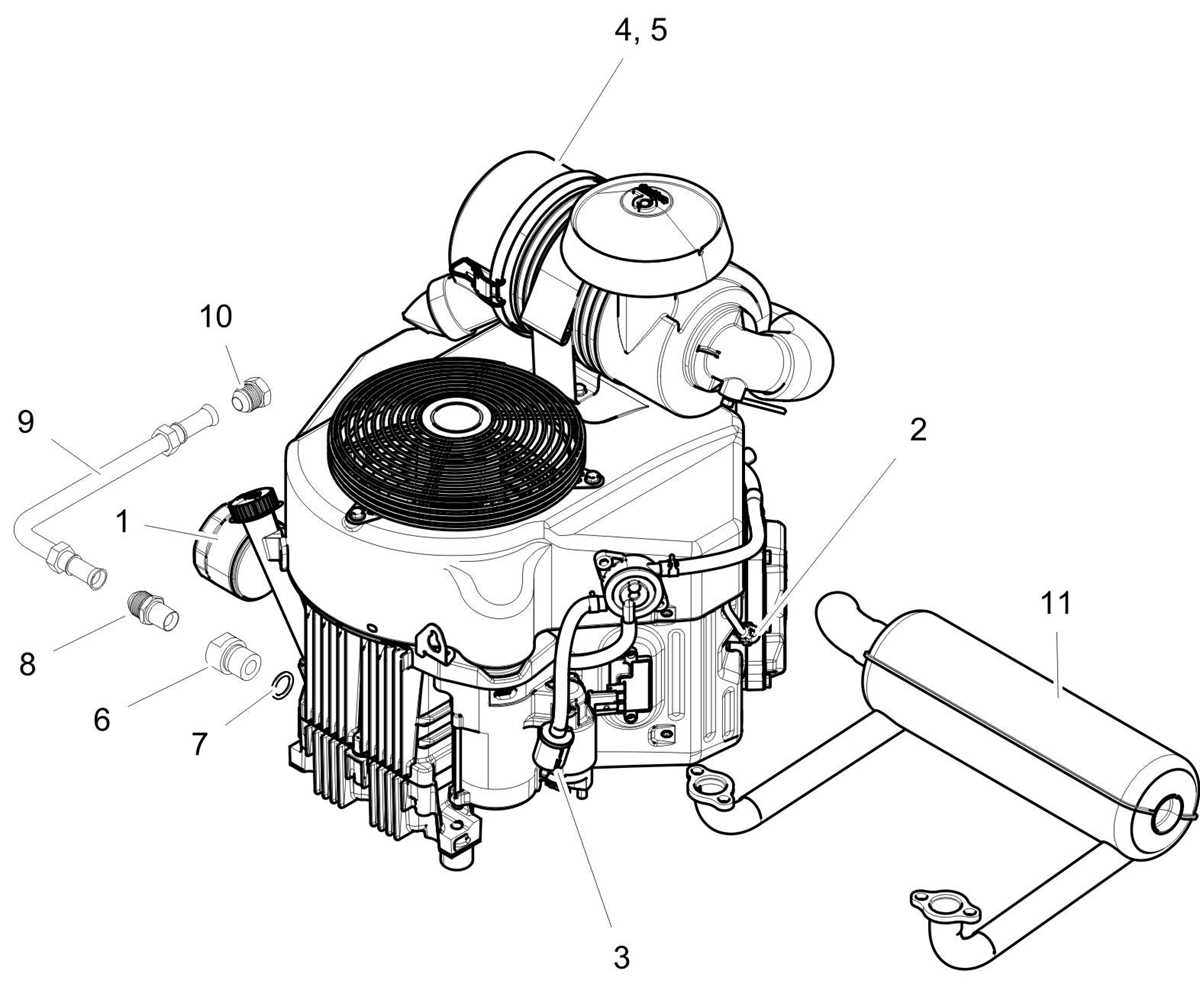

Locating Critical Elements in the 27 Horsepower Powerplant Breakdown Illustration
Begin by isolating the ignition module–located near the flywheel–where the primary electrical pulse originates. Verify its alignment with the crankshaft position sensor; misalignment by even 0.5 mm can disrupt timing, causing hard starts or erratic idle. The module’s mounting plate should sit flush with no gaps; corrosion here often signals moisture ingress, a precursor to failure.
Trace the fuel delivery route next. The carburetor or throttle body sits atop the intake manifold, typically secured with four bolts torqued to 8–10 Nm. Inspect the gasket for deformation; a warped surface leaks air, leaning the mixture. Below, the fuel pump (if mechanical) attaches to the camshaft lobe; its diaphragm must flex freely–stiffness indicates nearing replacement. For models with electronic injection, probe the fuel rail pressure: 3.5–4.0 bar at idle confirms pump and regulator health.
- Cylinder head bolts: tighten in three stages (20 Nm, 40 Nm, final angle 90°) to prevent distortion.
- Piston rings: end gaps should measure 0.3–0.5 mm; wider gaps reduce compression.
- Valves: stem-to-guide clearance must not exceed 0.12 mm; excessive wear allows oil consumption.
- Oil cooler: fins must be debris-free; blocked airflow drops efficiency by 15%.
Examine the cooling system last. The impeller, driven by the crankshaft, pushes coolant through the block; blades must have sharp edges–rounded tips reduce flow by 30%. The thermostat should open at 87–90°C; delays cause overheating under load. Visually confirm the radiator cap’s seal holds 0.9–1.1 bar; weak seals allow coolant loss at cruising RPMs.
How to Interpret Your 27 Horsepower Powerplant Component Breakdown
Locate the assembly numbers at the top of each section before examining individual pieces. These alphanumeric codes–typically formatted as XX-XXX-XX–correspond to specific sub-assemblies like the carburetor cluster, crankshaft group, or valve train. Cross-reference these with the index at the document’s start; most manuals group related components in descending order of disassembly complexity, ensuring critical systems appear first. For example, if repairing fuel delivery issues, prioritize sections marked “Fuel Pump” or “Injector Nozzle” over peripheral elements like covers or gaskets.
Study the exploded-view illustrations adjacent to each list entry. Dashed lines between items indicate assembly order–follow these sequentially from left to right or top to bottom. Pay special attention to shaded areas in the schematics; these highlight wear-prone elements like piston rings (OEM #25 050 03-S) or camshaft lobes (OEM #27 121 12-T) requiring periodic inspection. Note torque specifications embedded near fasteners; a “37 Nm” near a cylinder head bolt, for instance, mandates a calibrated wrench for re-installation.
Distinguish between “serviceable” and “sealed” units. Components like oil filters (OEM #52 050 01-S) or spark plugs (OEM #25 132 01) include replacement intervals in the footer, while sealed assemblies–for example, the flywheel magneto (OEM #27 070 08)–often lack this data. Document discrepancies between the parts list and your unit’s serial plate; post-2018 models use revised crankcase venting valves (OEM #27 161 09) not listed in earlier revisions.
Print or save a copy of only the pages relevant to your repair–focus on the first page’s revision date (e.g., “Rev. C – 2021”) to confirm compatibility. Manufacturers silently update tolerances: a 2020 model’s connecting rod (OEM #25 071 05) may tolerate ±0.02mm clearance, while the 2023 version specifies ±0.01mm. Tally quantities for consumables like seals (OEM #52 080 07) or O-rings (OEM #52 090 12); purchasing extras avoids delays from supplier lead times of 3-5 business days.
