Begin by identifying the cylinder block–the foundational structure that houses the core operating elements. A cast-iron or aluminum alloy construction ensures durability under extreme thermal and mechanical stress. Verify the precision machining of the cylinder bores, as deviations exceeding 0.02 mm in diameter compromise compression efficiency and increase oil consumption.
Examine the piston assembly next. Forged aluminum pistons with two compression rings and one oil control ring maintain optimal sealing against combustion gases and lubricant regulation. Check ring gaps: standard clearance ranges between 0.2%–0.4% of the bore diameter. Deviations lead to blow-by or excessive oil burning.
Inspect the crankshaft–the power transmission hub. Journal diameters must adhere to a tolerance of ±0.01 mm, with surface hardness (typically HRC 55–65) ensuring resistance to wear. Counterweights balance inertial forces, reducing vibration at speeds above 3,000 RPM. Misalignment accelerates bearing failure.
The valvetrain dictates timing accuracy. Hydraulic lifters compensate for thermal expansion, but solid-lifter setups demand 0.002–0.006 inches of lash depending on operating conditions. Camshaft profiles determine valve duration and lift; aggressive lobes increase power at high RPM but sacrifice low-end torque. Verify lobe separation angles: 108°–114° is typical for street applications.
Lubrication relies on the oil pump and gallery passages. Gear-driven pumps deliver 30–80 PSI at operating temperature, with relief valves preventing system damage. Oil flow through journals and bearings must sustain a hydrodynamic layer ≥0.0005 inches thick to prevent metal-to-metal contact. Insufficient pressure leads to rapid crankshaft journal wear.
Cooling systems–whether liquid or air-cooled–must maintain cylinder head temperatures below 230°C (446°F) to prevent detonation. Thermostat-controlled liquid circuits open at 82°C–96°C, directing coolant through the radiator. Air-cooled fins increase surface area by 300%–500%, requiring precise airflow management via shrouds.

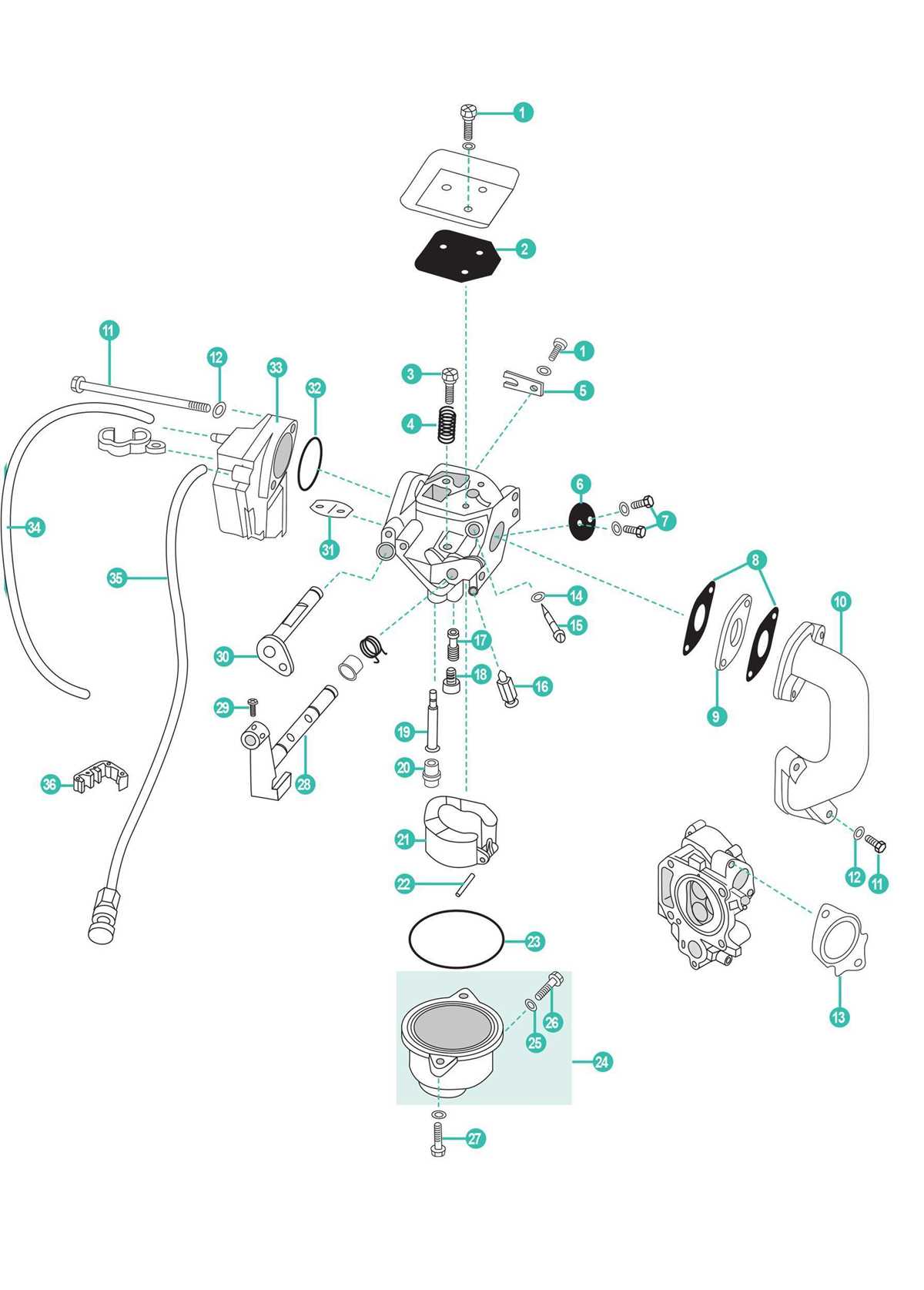

Fuel delivery demands precise calibration. Multi-point injection systems spray 50–100 microns droplets for optimal atomization, while carburetors rely on venturi effect sizing (typically 28–36 mm for performance applications). AFR (air-fuel ratio) of 14.7:1 balances efficiency and emissions, but enriched mixtures (12:1–13:1) optimize power under load.
Ignition timing advances between 6°–36° BTDC, depending on RPM and load. Knock sensors detect pre-ignition, retarding timing to prevent damage. Spark plug heat ranges must match combustion chamber conditions: cold plugs for forced induction, hot plugs for naturally aspirated lean-burn setups.
Understanding the Core Components of a Four-Cycle Powerplant
Check the intake valve clearance first–it should measure between 0.20 and 0.30 mm for most standard automotive designs. Adjustments outside this range lead to inefficient air-fuel mixing, causing rough idling or misfires. Use a feeler gauge and turn the crankshaft until the cam lobe points away from the valve stem for precise measurement.
Inspect the crankshaft journals every 50,000 kilometers. Look for scoring or discoloration, which signals insufficient lubrication. A micrometer reading 0.05 mm under manufacturer specs means the shaft requires immediate regrinding or replacement to prevent catastrophic failure. Always apply Plastigauge during reassembly to verify bearing clearance.
Critical Filters and Lubrication Paths
Replace the oil filter element every 10,000 kilometers, even if the bypass valve isn’t clogged. A saturated filter reduces flow to the hydraulic lifters, accelerating wear on the camshaft lobes. Use only filters with a burst pressure rating of at least 900 kPa–cheaper alternatives collapse under extended high-RPM operation, starving critical components.
The piston rings seal combustion pressure, but their effectiveness depends on honing patterns. A crosshatch angle of 45 degrees ensures proper oil retention; steeper angles (>60 degrees) scrape too much lubricant, leading to dry starts. After installation, perform a compression test–readings below 120 psi indicate worn rings or improper seating.
Timing and Combustion Precision
Verify ignition timing with a strobe light. Most naturally aspirated units require 8–12 degrees BTDC at idle. Advancing beyond this range causes pinging under load, while retarding reduces power output. The harmonic balancer’s pulley often slips; mark the reference point with paint for accurate future adjustments.
Exhaust valves endure extreme heat cycles, so their stems require thermal-resistant coatings. Measure stem wear with a dial indicator–any deviation over 0.02 mm necessitates replacement. Always lap valves after reinstallation using fine grinding paste; improper seating creates hot spots that burn through the valve face within 15,000 kilometers.
Key Components Visible in a 4-Cycle Powerplant Cross-Section

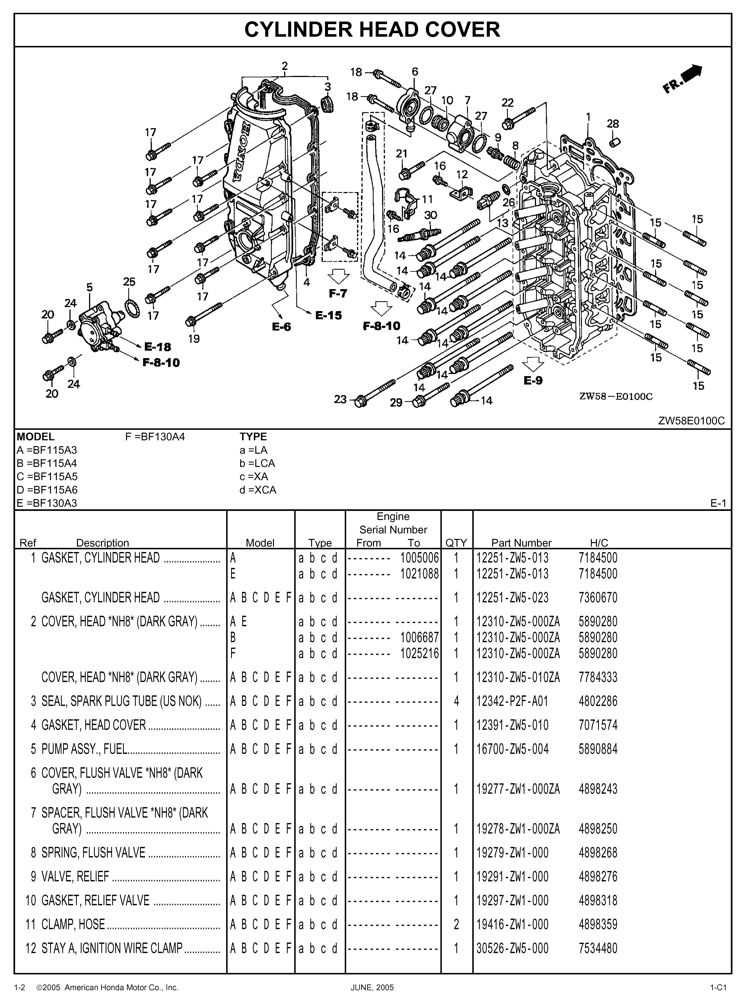

Examine the cylinder head first–its intake and exhaust valves must seal tightly under 200+ bar combustion pressures. Multi-angle valve seats in modern aluminum heads prevent pitting from hot gases; replace them if wear exceeds 0.05mm. A dual overhead cam (DOHC) setup with shim-adjusted buckets offers 0.01mm precision, reducing valvetrain noise by 30% compared to rocker arms.
Pistons demand scrutiny: forged aluminum alloys with ceramic-coated skirts endure 3,000°C flame fronts but expand predictably–clearance should be 0.001″ per inch of bore diameter. Oil galleries surrounding the piston pin deliver 10W-40 lubricant at 3-5 bar; clogged passages trigger scuffing within 200 operating hours. For turbocharged applications, anodized ring grooves prevent micro-welding at the top compression ring.
Crankshaft balancing tolerances are non-negotiable–0.5g imbalance at 6,000 RPM generates 5,000N destructive forces. Nitride-hardened journals resist wear better than induction-hardened ones by 40%, while oil passages must maintain ≥0.3mm diameter to sustain hydrodynamic lubrication. Counterweights should align within 0.2° of the centerline to prevent harmonics that fatigue main bearings prematurely.
Recognizing Phases in a Four-Cycle Mechanism

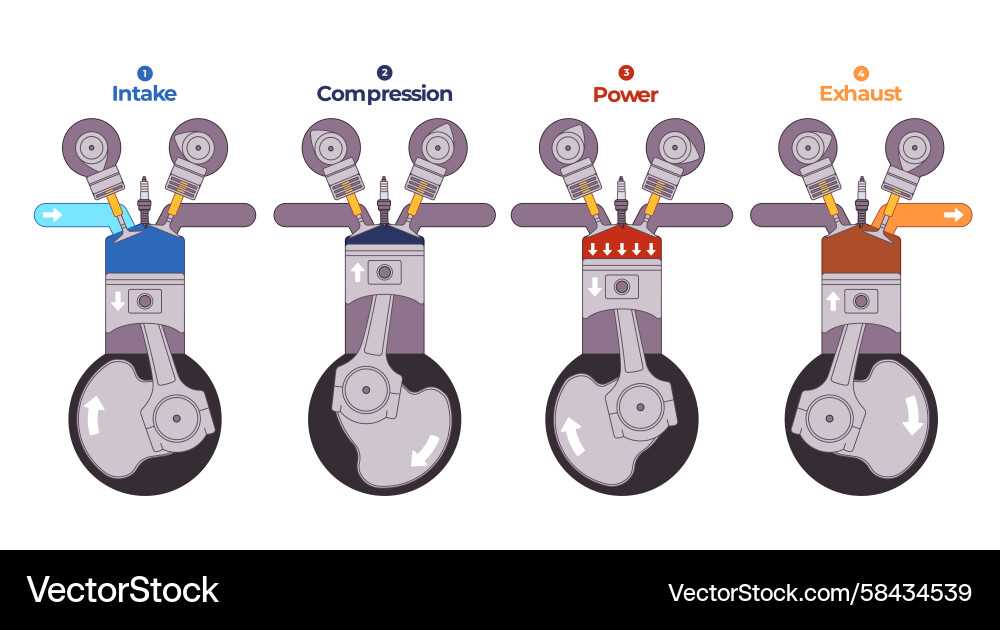

Locate the piston’s position relative to the crankshaft rotation–intake phase begins when the piston descends from top dead center (TDC) with the intake valve open and exhaust valve closed. Air-fuel mixture enters the cylinder as the crankshaft rotates approximately 180 degrees. Marked by downward piston movement, this stage is the first critical stage in the sequence.
Observe the compression phase next: both valves remain shut as the piston ascends toward TDC, compressing the trapped mixture. Crankshaft completes another 180-degree turn, raising pressure and temperature inside the chamber. Identify this stage by the upward piston motion without valve activity–distinct from the preceding intake and following power phases.
Key Visual Indicators
- Intake: Downward piston, intake valve open, exhaust valve shut
- Compression: Upward piston, both valves closed
- Power: Spark plug ignites mixture, piston forced downward
- Exhaust: Piston rises, exhaust valve open, intake valve closed
During the power phase, ignition triggers combustion, driving the piston downward while both valves stay sealed. Crankshaft again rotates 180 degrees, converting thermal energy into mechanical force. Exhaust follows: the piston ascends, pushing burnt gases out through the open exhaust valve, completing the 720-degree cycle. Verify each phase by tracking piston direction and valve states–no two stages share identical configurations.
Step-by-Step Breakdown of the Crankshaft and Piston Dynamics
Begin by examining the crankshaft’s rotational axis alignment–critical tolerances for main journals should not exceed 0.001 inches of radial runout. Misalignment introduces harmonic vibrations, accelerating bearing wear. Secure the crankshaft in a precision lathe before final balancing to eliminate micro-imbalances, particularly at high RPM ranges where centrifugal forces dominate.
Observe the piston’s downward travel during the power phase: combustion forces peak at 2,000–3,000 psi, translating to approximately 1,200–1,500 ft-lbs of torque on the crankpin. The connecting rod, typically forged from 4340 steel, must withstand these loads without deformation–ensure the small-end bushings are honed to 0.0005 inches of clearance for proper oil wedge formation.
The crankshaft’s counterweights counteract piston inertia, reducing torsional oscillations. For a V8 configuration, each counterweight balances roughly 60% of its adjacent piston’s mass, including the connecting rod’s reciprocating portion. Dynamic balancers should simulate full-load conditions (4,000+ RPM) to verify balance precision, as even a 1-gram discrepancy at these speeds generates destructive resonances.
Piston ring sealing relies on cylinder wall honing patterns–plateau finishes with crosshatch angles between 22°–32° optimize oil retention and blow-by control. Intake and exhaust cycles create pressure differentials: intake vacuum reaches −14 psi, while exhaust backpressure peaks at 3–5 psi. Proper ring gap spacing (0.003–0.004 inches per inch of bore) prevents seizure during thermal expansion.
Crankshaft throw geometry dictates piston travel duration: a longer throw (e.g., 4.00 inches) increases torque but demands stronger rod materials to resist buckling. During assembly, torque crankshaft bolts in three progressive steps (10–30–60 ft-lbs) to evenly distribute clamp load, avoiding stress risers near fillet radii where failure commonly initiates.
Lubrication pathways require pressurized oil flow at 10–20 psi to the crankpin journals; drill priority passages into the crankshaft webs to ensure oil reaches big-end bearings within 0.3 seconds of startup. Dry-start scenarios accelerate wear exponentially–install an accumulator or pre-lube pump for engines operating in high-friction environments.
