Start by locating the GM Turbo Hydra-Matic 4-speed rear-wheel-drive transmission schematic–essential for identifying wear-prone areas before disassembly. Prioritize inspecting the torque converter, planetary gear sets, and valve body first; these handle 60% of common failure points in high-mileage units (100K+ miles). Use a labeled exploded view to cross-reference OEM part numbers–aftermarket solenoids (e.g., Shift Solenoid A/B) often lack durability under heavy throttle.
Focus on the input and output shafts–mismatched splines or scored surfaces indicate immediate replacement needs. The pump assembly (specifically the stator support) should align within 0.002″ tolerance to prevent fluid bypass; use a feeler gauge during reassembly. Avoid generic rebuild kits–opt for Raybestos friction plates or Sonax steel clutch packs for consistent shift engagement under load. Document each step with torque specs: valve body bolts (8-10 ft-lbs), pan bolts (12-15 ft-lbs), and bellhousing bolts (25-30 ft-lbs).
Reverse-engineer the transmission by tracing fluid flow paths in the hydraulic circuit diagram. The accumulator pistons (1-2 and 2-3) control shift firmness–replace seals if leakage exceeds 3cc during bench testing. For electrical diagnostics, use a multimeter to verify resistance across solenoid connectors (10-30 ohms typical). Post-installation, conduct a road test with an OBD-II scanner monitoring PID data for shift solenoid codes (P0751-P0758) and adaptive pressure values.
Understanding Your Transmission Assembly: A Hands-On Reference

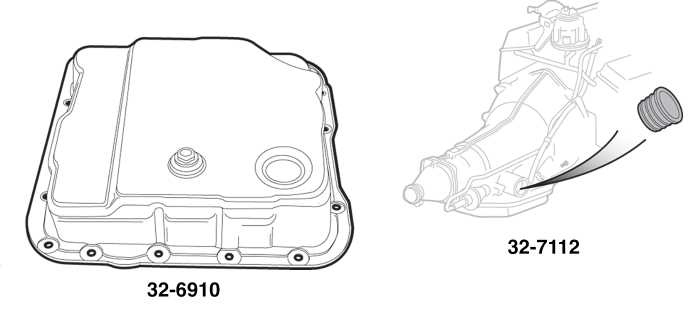

Locate the valve body first–it’s the control hub for fluid routing and gear shifts. Remove the pan (usually 16 bolts, M8 thread) to access it, but drain the fluid beforehand to avoid spills. Use a torque wrench set to 12-15 Nm when reinstalling bolts; overtightening warps the pan or strips threads. The separator plate sits between the valve body and case–align it precisely using the original gasket as a guide, or fluid leaks will disrupt shift timing. Check the TCC solenoid while the valve body is off; resistance should read 10-25 ohms–replace if readings drift outside this range.
| Component | Torque Spec (Nm) | Inspection Tip |
|---|---|---|
| Valve body bolts | 8-10 | Check for stripped threads before reassembly |
| Pan bolts | 12-15 | Replace crush washers if reusing bolts |
| Extension housing | 30-35 | Inspect bushing wear; replace if clearances exceed 0.005″ |
| Pump cover | 20-22 | Ensure O-ring seats fully to prevent leaks |
Examine the planetary gearset next–look for polished, chipped, or missing teeth on the rings and pinions. The sun shell should spin freely without binding; seize-up here kills forward gears instantly. Replace the input drum if friction material thickness drops below 1.5mm–thinner linings cause delayed engagement and burn up clutches. The 3-4 clutch pack uses dual-piston seals; coat new seals with fresh fluid before assembly to prevent leaks that trigger erratic shifts. When reinstalling the pump, rotate it slowly while pressing down to seat the stator support–misalignment here destroys vanes and housing clearances.
Key Internal Elements in an Automatic Gear Assembly Breakdown
Begin by locating the torque converter at the front of the unit–its three distinct vanes and stator must align precisely with the input shaft. Misalignment here causes slippage, evidenced by RPM spikes without corresponding vehicle movement.
The input housing, often mistaken for a minor carrier, houses critical friction plates and steel separators. Inspect the depth of the engagement grooves; wear exceeding 0.010 inches indicates imminent failure. Replace both the housing and matching reaction sun gear as a set to prevent premature stress on the planetary assembly.
Trace the planetary gear set–identify the long pinion gears first, then verify their meshing with the ring gear. Each pinion should rotate freely without lateral play; tightness suggests debris or overheating damage. Note the differential-sized gears: the smaller inner set handles lower ratios, while the larger outer set manages overdrive engagement.
Hydraulic Control Network: Valve Body and Solenoids

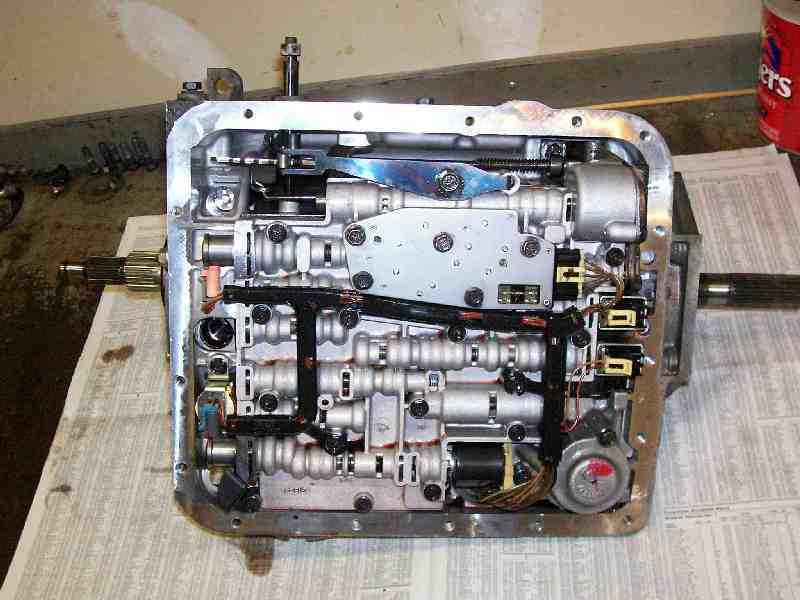

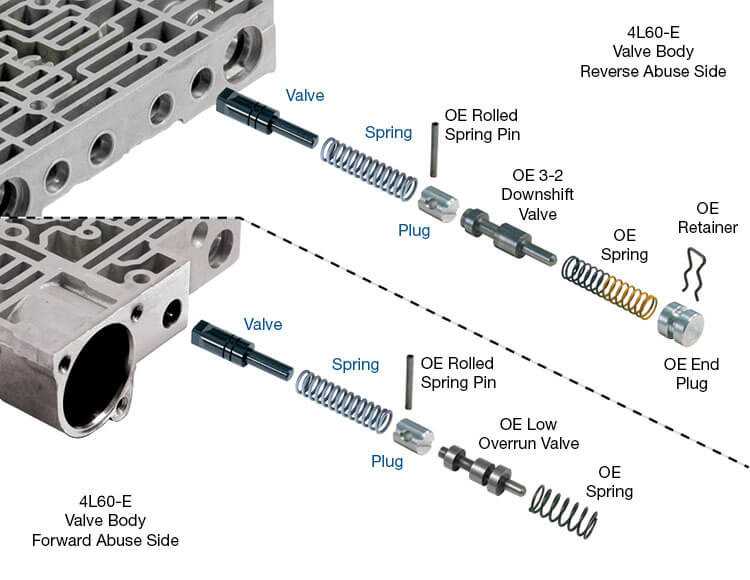

Flip the valve body upside down to examine the spool valves. Use a micrometer to measure bore diameters–standard tolerances are 0.374 to 0.375 inches. Even microscopic scoring warps shifting patterns, requiring full replacement rather than cleaning. Pay special attention to the TCC valve; wear here mimics torque converter lockup failure.
The electronic solenoids (typically two PWM and one EPC) must register resistance between 19-31 ohms. Variances indicate internal corrosion or burnt wiring–both demand immediate attention. Test fluid flow at idle: 1-2 psi for the 1-2 shift solenoid, 15-18 psi for the pressure control unit. Deviations exceeding 3 psi signal blocked passages or damaged springs.
Check the accumulator assembly pistons for cracked seals. The 2-3 accumulator bore should be perfectly smooth–any pitting or discoloration necessitates honing or replacing the entire case. Ensure piston springs have consistent tension; uneven pressure causes harsh downshifts or delayed engagement.
Structural and Support Components
Inspect the output shaft bushing–a worn bushing produces a telltale whine at highway speeds. Measure clearance: maximum allowable is 0.002 inches. Install a new bushing alongside the matching rear planetary gear set to prevent accelerated wear. The extension housing should show no fluid leakage around the rear seal; replace it if grooves deeper than 0.005 inches are present.
The pump assembly (gerotor or crescent type) must maintain 60-80 psi at idle. Use a vacuum gauge to test suction: values below 5 inches Hg identify worn gears or excessive clearance between the housing and rotor. Always replace both gears simultaneously–mixing old and new components disrupts hydrodynamic balance, leading to cavitation and premature failure.
Precision Reassembly Guide: Leveraging a Transmission Component Chart
Begin with the pump assembly–ensure the stator support ring is seated flush against the case bore before inserting the pump gears. Misalignment here causes premature wear on the inner and outer gears, detectable by uneven scoring on the housing walls. Verify torque specs for the pump cover bolts: 18-22 ft-lbs–overtightening distorts the gasket surface, leading to fluid bypass.
- Lay out all friction plates, steels, and reaction plates in sequential order from the rebuild kit. Note orientation: grooved friction plates face the piston, while flat steels face outward. Swap any plates thinner than 0.078″–measure mic’ed surfaces against the factory spec sheet.
- Install the input drum snap ring last, ensuring it snaps fully into its groove. A loose ring shears under load, scattering debris into the planetary gearset.
- Pre-lube piston seals with fresh ATF before assembly. Dry seals roll or tear during engagement, causing delayed shifts.
Position the planetary gearset by aligning the long output shaft splines with the internal teeth. The sun gear should spin freely by hand–binding indicates incorrect spacer ring placement. Use red Loctite on the hold-down bolt (26-32 ft-lbs); vibration loosens untreated threads, allowing the assembly to walk rearward.

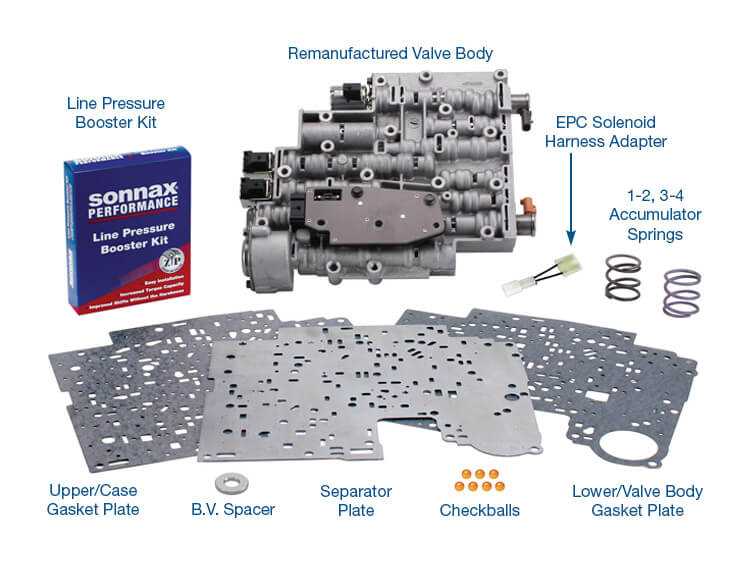

Torque the valve body bolts in a spiral pattern (8-10 ft-lbs) to prevent warping. Plug solenoid connectors with dielectric grease to block moisture ingress–corrosion here mimics mechanical failure. Install the accumulator pistons dry-side down; reversed seals leak pressure into the cooler circuit, overheating the transmission.
Bench-test the torque converter by spinning the turbine hub while holding the pump shell. Resistance should be smooth and uniform. Weld cracks or chipped fins disrupt fluid flow, detected by a dull metallic rattle under load. Secure the bellhousing bolts in stages (cross-pattern) to 35-40 ft-lbs–uneven clamping distorts the flexplate, causing harmonic vibration at 1800-2200 RPM.
Critical Friction Zones in Automatic Transmission Overhauls
Begin by inspecting the torque converter’s stator clutch. Its one-way sprag bearing often fails under 120,000–150,000 miles, leading to delayed shifts or slippage in third gear. Replace with OEM-spec units–aftermarket versions frequently use lighter materials prone to premature cracking. Clean the stator hub mating surface with 400-grit sandpaper before reassembly; even microscopic debris creates uneven load distribution, accelerating wear.
Planetary Gearset and Sun Shell Failures
- Examine the sun shell’s thrust surfaces for pitting or grooves–depths exceeding 0.002” mandate replacement.
- Check planetary pinion gears for needle bearing wear; radial play should not exceed 0.001”. If exceeded, replace the entire carrier assembly–individual bearings are press-fit and cannot be serviced separately.
- Inspect the reverse input drum’s snap ring groove for deformation. A worn groove (width over 0.125”) will disengage the snap ring during high-torque maneuvers, dumping fluid pressure instantly.
Focus on the valve body’s separator plate gasket. Oil passages clog with clutch material after 80,000 miles–sonic clean all channels to prevent 3-4 clutch burnout. Replace every solenoid; stiction increases exponentially beyond 100,000 miles, causing harsh 2-3 shifts. Use a torque wrench for valve body bolts: overtightening by even 4 ft-lbs distorts the plate, misaligning regulator valves. Replace the input speed sensor’s reluctor wheel if teeth are chipped–that generates false misfire codes during gear changes.
