Start with the bolt assembly–locate the extractor claw first, marked by a serrated edge near the chamber. This component secures the spent shell during cycling but wears faster than others. Replace it every 2,000 rounds or if you notice brass failing to eject cleanly. The ejector sits opposite, a hardened steel arm driven by the bolt’s rearward motion; cracks here compromise reliability.
Examine the gas system next. The piston fits into the magazine tube cap, sealed by an O-ring under 65 lbs of pressure. A torn ring allows excess gas to vent, reducing recoil impulse by 18-22%. The operating rod slides within the tube, transferring energy to the bolt carrier–align its notches with the bolt’s rear lugs during reassembly or feeding malfunctions increase.
The trigger group houses the hammer, sear, and disconnector. Filing the sear’s engagement surface by more than 0.003 inches risks light strikes. The mainspring tension should measure 14-16 lbs–use a fishing scale for verification. Replace both springs if shot counts exceed 7,500; fatigue reduces strike force below reliable ignition thresholds.
Check the barrel extension–cracks radiating from the locking block indicate stress fractures, often from +P loads. The chamber throat should remain pristine; pitting here doubles fouling buildup within 300 rounds. Use a bore light angled at 45 degrees to inspect the forcing cone–sharp edges here fragment shot patterns by 14%.
Store the fore-end tube vertically. Over-torquing the magazine cap distorts threads, binding the follower spring. The action bars must slide freely–clean with Hoppes No. 9, then a dry rag. Any lateral play beyond 0.015 inches requires replacing the slide assembly; wear here accelerates magazine tube ovaling.

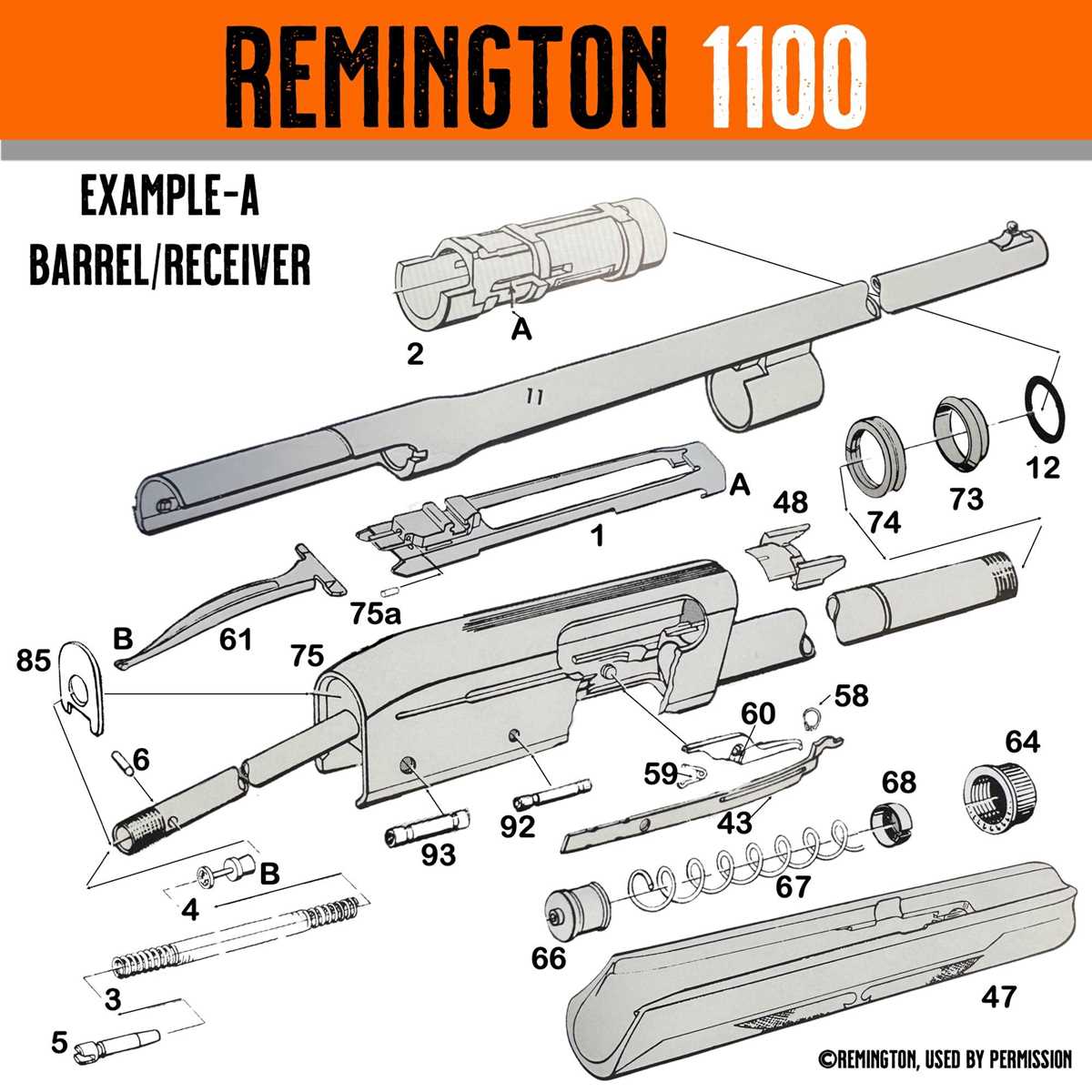

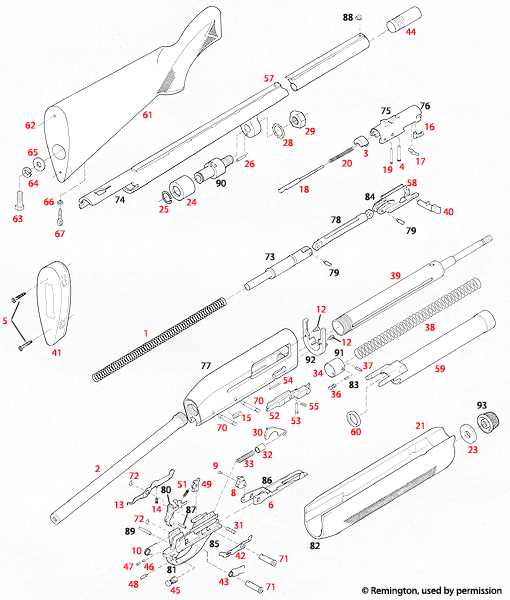

Exploded View Guide for the Classic Autoloading Shotgun
Begin by locating the bolt assembly near the rear of the receiver, identifiable by its dual locking lugs–critical for ensuring proper lockup. Remove the firing pin retainer using a 3/32-inch punch; failure to align it precisely can lead to inconsistent primer strikes. The ejector pivots on a pinned axis; check for wear if brass frequently stalls mid-ejection.
The gas piston operates within a three-ring system, each orifice sized differently: the rear (0.093″), middle (0.125″), and front (0.187″). Clean these ports sequentially–rear to front–or risk erratic cycling under light loads. The forearm cap houses a spring-loaded detent; depress it fully when reinstalling the tube to prevent thread cross-binding.
- Carrier dog: Inspect for cracked ears–replace if lateral play exceeds 0.015″.
- Extraction cam: Polish the ramp with 600-grit wet/dry paper to reduce brass drag.
- Shell stop: File the hook edge in 0.010″ increments until cartridges seat without bouncing.
Receiver Disassembly Sequence
Unscrew the barrel nut counterclockwise with a 17mm socket, applying upward pressure to avoid damaging the recoil spring seat. The action bars mate via interlocking hooks; disengage the rear hook first, then lift the rearward bar to release the bolt assembly. Washers behind the trigger group typically measure 0.062″, 0.125″, and 0.187″–stack them in this exact order.
The sear engagement surface must hold a 0.018″ protrusion; stoning beyond this risks doubling. Magazine tube cap torque is 35 ft-lbs–over-tightening will warp the tube threads. Below the follower button sits a coil detent spring; stretch it to 0.312″ length before reinstallation to maintain consistent lift force.
- Remove the trigger guard–lever it downward at the muzzle end.
- Rotate the hammer to full cock and depress the disconnect link release.
- Slide the trigger group rearward until the front pivot pin clears the receiver.
Barrel and Tube Details
Gas ports align at 45° inside the chamber–the front port vents at 1,200 psi nominal. Polish the chamber with a clamshell hone in eight smooth passes to reduce extraction force. The magazine spring free length is 9.75″; anything shorter risks follower tilt. Replace the carrier buffer if compressed thickness drops below 0.090″.
Interchangeability notes: bolt release levers differ between 12- and 20-gauge variants–identify via part number suffix (-A12 vs. -A20). Trigger adjustment screws govern pull weight: clockwise reduces tension; turn in 1/8-turn increments between test fires.
Identifying Critical Elements in the Semi-Automatic Shotgun Blueprint
Begin by isolating the gas system near the magazine tube–this assembly includes the piston, cylinder, and action bars. The piston sits directly over the magazine spring, identifiable by its annular grooves and chrome-plated finish. Align the cylinder parallel to the barrel, ensuring its ports match the gas block cutouts; misalignment here causes short-stroking or failure to cycle.
Trace the bolt carrier group rearward from the chamber. The bolt itself locks into the extension with dual locking lugs, while the extractor claw grips the rim at the 9 o’clock position. The firing pin retainer must move freely within its channel; any binding suggests a bent pin or obstructed follower. The carrier’s weight is critical–aftermarket versions outside the 12–14 oz range disrupt recoil impulse.
Action Assembly and Trigger Group
Disengage the trigger plate by removing the two screws at the stock inlet. Inside, the disconnector hooks onto the hammer’s full-cock notch under spring tension; excessive wear here results in slam-fires. The sear pivot should have a sharp edge–rounding from use demands replacement to prevent light primer strikes. Check the safety detent for lateral play; a loose fit allows accidental engagement during recoil.
The recoil spring sits atop the action bars, compressed between the bolt buffer and the receiver tunnel. A two-stage spring (heavy rear, lighter front coil) is standard; single-rate springs increase felt recoil. Measure free length: less than 6.5 inches indicates fatigue. The buffer’s synthetic pad absorbs impact–cracking or hardening signals the need for OEM replacement.
Locate the forend cap at the barrel’s muzzle. The cap threads onto the magazine tube, securing the barrel via a set screw at the 12 o’clock position. Stripped threads here cause barrel wobble, affecting pattern density. The magazine tube’s follower spring must maintain 8–10 lbs of tension when compressed to feed shells reliably. Aftermarket followers with incorrect taper angles cause double-feeds.
Inspect the ejector port’s edge–peening or deformation here accelerates brass fatigue during extraction. The chamber throat dimensions should match SAAMI specs: .729″ diameter, 2.75″ length. Even slight deviations alter pressure curves. Polish the chamber with 400-grit stones if fouling buildup exceeds .002″.
Barrel and Choke Interface
The choke’s internal threading engages the barrel’s external grooves; cross-threading damages the lead-in taper. A gap larger than .010″ between the barrel crown and choke face disrupts shot stringing. Use a go/no-go gauge to verify thread alignment before torquing to 35 ft-lbs. The barrel’s forcing cone angle (2–3°) dictates pellet transition–steeper angles increase recoil and reduce pattern efficiency.
Identifying Bolt Assembly Components and Their Roles
Start by securing the firing pin retainer screw–it’s the smallest but most critical element holding the striker in place. A quarter-turn past snug prevents over-tightening, which can distort the retainer’s spring seat or strip the threads. Use a hollow-ground screwdriver matched to the slot width; even slight misalignment increases cam-out risk and future slippage.
The extractor claw’s tension dictates shell retention. Insert a feeler gauge (.015″–.020″) between the claw and chamber rim–the tension should resist pull but yield to moderate force. If the gauge slides freely, replace the extractor immediately; weak tension invites stovepipes. Clean debris from the claw’s underside with a brass pick, avoiding steel tools that scratch the gas sealing surface.
Gas System Interaction
- Piston cup: Inspect for radial cracks or deep pits–these disrupt gas ring seating. A copper-soaked rag cleans fouling without damaging the nitride finish.
- Locking lugs: Measure lug wear with digital calipers. Lug depth below .320″ from the bolt face mandates replacement; reduced contact area causes unlocking shear forces.
- Firing pin hole: Swab with carbon solvent using a bronze brush; enlarged or bell-mouthed holes accelerate striker breakage. A .070″–.075″ diameter is nominal–any oversize exceeds spec.
Rotate the cam pin 360° while observing the bolt’s rearward travel–binding at any point indicates misalignment. Lubricate the cam’s beveled faces with molybdenum disulfide grease; dry-film lubricants flake under gas-system heat. Check the pin’s shoulder for galling–this often precedes bolt stoppage during cycling.
Critical Tolerances and Repair Benchmarks
- Headspace gauge fitting: A .300″–.302″ gauged depth confirms proper locking interface. Overlength causes short-stroking; underlength risks case head separation.
- Ejector spring preload: Compress the spring fully–release should produce an audible “snap.” Weak tension (below 8–10 lbs) demands replacement; delayed ejection fouls the follower.
- Bolt face recess: Measure depth at 0.050″–0.055″. Shallow recesses fail to center primers, leading to misfires.
During reassembly, apply torque specifications uniformly: firing pin retainer (12–15 in-lbs), extractor plunger (18–22 in-lbs), and cam pin nut (25–30 in-lbs). Overtightening distorts the bolt’s bearing surfaces, increasing friction during the unlocking cycle. Stake the nut’s edges with a center punch to prevent backing out. Recheck all clearances after final torquing–even minute shifts alter cycling consistency.
