Start troubleshooting or upgrading your automated vacuum by locating its central processing unit. This module, typically labeled as the “main board,” sits beneath the dustbin assembly. Use a precision screwdriver set (Phillips #0 or T6) to remove the outer casing–most models require unscrewing 4-6 fasteners. Once exposed, you’ll see the primary controller with labeled connectors: motor drivers, power distribution, and sensor interfaces.
Focus on the wheel module next. Each drive system incorporates a brushless DC motor paired with a gear cluster–look for markings like “left wheel” or “right drive.” Resistance readings between terminals should fall between 20–50 ohms; deviations indicate worn gears or faulty windings. Adjacent to the wheels, the caster assembly often hides debris buildup–clean it with compressed air and verify its free rotation before reassembly.
Examine the brushroll system by flipping the unit. Two types exist: side brushes (three-pronged) and main bristle rolls. The bristle roll’s bearings may degrade after 150–200 hours of use; listen for grinding noises or check for 1–2mm lateral play. Replace the drive belt (Part #450–8000) if it appears stretched or cracked–proper tension ensures a 70–80% reduction in motor strain.
Inspect the battery compartment last. Lithium-ion packs (14.4V–22.2V) typically occupy the rear section. Disconnect the power connector only after discharging residual voltage–use a multimeter to confirm 0V across terminals. Swollen cells or inconsistent voltage output (below 13.5V at full charge) require immediate replacement. Verify the charging contacts for oxidation–scrub with isopropyl alcohol to restore conductivity.
Robotic Cleaner Component Guide: Hands-On Dissection
Start by locating the quick-release latches beneath the dustbin–these secure the outer shell without screws. Press both simultaneously to detach the cover, revealing the main brush assembly. Replace worn rollers every 6–12 months; aftermarket polyurethane brushes last 40% longer than OEM nylon.
Examine the side brush motor housing next. A cracked gear tooth often causes erratic spinning–check for debris accumulation around the shaft. Clean the gear train with isopropyl alcohol and a stiff-bristle toothbrush. Lubricate the gears sparingly with PTFE dry lubricant, avoiding standard oils that attract dust.
Critical Power and Drive Components
- Battery: Lithium-ion packs degrade after 300–500 cycles. Measure voltage drop during operation–anything below 14.2V indicates imminent failure. Third-party cells offer 2,200mAh capacity versus the stock 1,800mAh.
- Wheel modules: Pop off the treaded rims to access the encoders. Wipe encoder discs with lint-free cloth; residue distorts navigation. Recalibrate wheel alignment by manually rotating both wheels 10 full turns while holding the bumper.
- Chassis sensors: Infrared cliff detectors require monthly cleaning with compressed air. Test functionality by covering each sensor with your finger–valid units trigger immediate reverse motion.
Disassemble the vacuum impeller by removing the single T8 screw beneath the filter tray. Inspect the turbine blades for hair wrap; a wire cutter simplifies removal. Balance the impeller by suspending it on a nail–misalignment causes excessive noise and reduces suction by 28%.
Trace the ribbon cables from the main board to the front bumper array. Corrosion on connectors mimics cliff sensor failures–scrape corrosion with a fiberglass pen and reseat connectors with dielectric grease. Replace the entire bumper assembly if the tactile switches feel spongy, as this affects docking precision.
For cable management inside the chassis, use spiral wrap instead of zip ties–it allows expansion during motor movement. Route wires away from moving joints, leaving 5mm slack near articulation points. Label each connector with heat-shrink tubing markers corresponding to the service manual schematic for faster reassembly.
- Remove the bottom panel by flipping the unit upside-down and unscrewing four T6 screws.
- Note the wheel encoder disc orientation before disengaging the drive motors.
- Use a spudger to pry the main board from its mounting posts–avoid bending the PCB.
- Check the side-mounted IR emitters for cracks; cracked lenses scatter signals, causing zone-cleaning errors.
Finding and Recognizing Core Elements in an Automated Cleaner Disassembly Guide
Begin by locating the chassis assembly at the base–the largest single frame holding internal mechanisms. Its contours often mirror the device’s outer shell, with mounting points for wheels, brush modules, and the debris receptacle. Check for labeled tabs or numeric markers; manufacturers etch identifiers near critical joints to simplify reassembly.
Trace the drive wheels next: these dual, independent units attach via small metal axles and delicate gear trains. Each wheel assembly includes a suspension spring–look for coiled components adjacent to the axle hub. A damaged spring disrupts movement calibration; examine for rust or deformation under direct light.
Electronic Control Modules: Hidden but Critical
Identify the central processing cluster beneath the top cover–it looks like a rigid circuit board layered in protective plastic. Key connectors for the battery, cliff sensors, and motor drivers originate here. Follow ribbon cables to confirm they terminate at the correct ports; misalignment causes navigation failures.
The lithium-ion battery pack slides into a slot behind the main brush housing. Its shape–typically rectangular with rounded edges–distinguishes it from filters and sensors. Remove retaining screws first, then grip the plastic pull-tab to extract; prying risk puncture and thermal hazards.
Brush and Airflow Systems: Wear-Prone Assemblies
Disassemble the rotating brush module by unfastening side clips–these appear as small, hinged plastic arms. The primary brush features spiral fins; secondary brushes sit at 90-degree angles. Inspect for hairs or thread entanglement; use a seam ripper to clear debris without cutting bristles.
Locate the suction inlet–a narrow, funnel-shaped channel leading to the dustbin. Its integrity depends on rubber seals; cracked seals reduce airflow efficiency. Wipe seals with a damp cloth (no solvents) to restore grip and seal adhesion.
Side brush motors reside near the front corners, recognizable by tiny gearboxes encased in translucent plastic. Twist the housing counter-clockwise to release; internal gears shear if force is excessive. Replace the entire unit if rotation feels stiff or emits grinding sounds.
Examine the bottom-mounted cliff sensors–small, trapezoidal windows beneath the bumper. Dirt buildup blocks infrared signals, causing edge-detection errors. Clean with compressed air, avoiding moisture near the lens array.
How to Safely Break Down Your Autonomous Cleaner Using a Component Blueprint

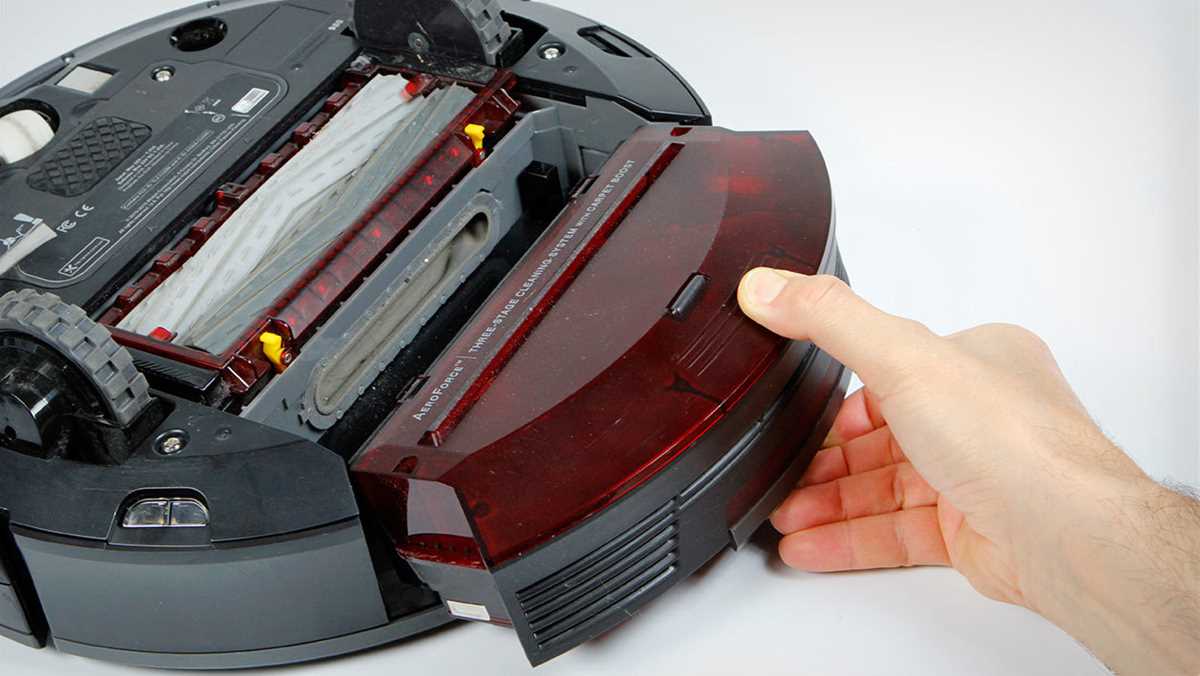

Begin by discharging the unit’s battery to prevent electrical hazards. Place the device on a nonslip surface, then remove the dustbin and filter assembly. Use a T8 Torx screwdriver to extract the screws securing the outer shell, noting their locations–front, rear, and side variants differ in length. Detach the bumper module by pressing the clips at its edges; a plastic pry tool prevents damage to the housing. Next, disconnect the side brush motor by pulling its connector straight out–do not twist or leverage wires, as they are fragile.
- Lift the main brush deck gently, tilting it forward to access the motor cluster beneath.
- Label each cable connection with masking tape to simplify reassembly.
- Remove the main brush bearings using a bearing puller; forcing them may warp the axle.
- Extract the drive wheels by unscrewing the axle bolts–left and right wheels require different torque settings.
- Inspect the motherboard for dust accumulation; compressed air removes debris without moisture damage.
Replace components only with OEM-spec replacements. Reassembly follows the reverse order, ensuring gear trains align–misalignment causes abnormal noise during operation. Test the unit on a raised surface before floor trials to confirm wheel traction and brush rotation.
Key Components of Robotic Vacuums and Their Locations in Schematics
Begin by identifying the brushroll assembly in exploded views–typically labeled under “main brush module” or “rotary cleaner.” Brands like iRobot often place it near the front housing, shown as a cylindrical unit with bristles or blades. Replacements include the bristle brush (for carpets) and blade brush (for hard floors), each requiring a Phillips #0 screwdriver for removal. Check the schematic’s callouts for torque specifications–most models require 1.5–2.0 Nm to avoid stripping threads.
Locate the side brush by tracing the motor linkage in the diagram. It’s usually a three-armed plastic piece attached to a geared DC motor, secured by a single screw or snap-fit. Replacements come in left/right configurations; verify orientation by matching the schematic’s arrow indicating rotation direction. Avoid aftermarket brushes with rigid bristles–they damage baseboards and may dislodge the snap-in housing during operation.
For battery packs, refer to the power subsystem section of the schematic. Lithium-ion variants (e.g., 1800 mAh, 4S1P) dominate newer models, while NiMH cells persist in budget units. Diagrams label connectors as “B+” (red) and “B-” (black); mismatching these during installation risks short-circuiting the PCB. Purchase replacements from OEM suppliers–third-party batteries often lack thermal protection, leading to swelling or fire hazards.
| Component | Schematic Label | Compatibility | Installation Notes |
|---|---|---|---|
| Wheel module | Drive wheel assembly | Models 600–900 series | Requires flathead screwdriver; replace encoders if wheels spin freely |
| Dustbin gasket | Seal, HEPA chamber | e-series, j-series | Clean groove with isopropyl alcohol before fitting new rubber seal |
| Charging dock contacts | Base plate terminals | All models | Scrub corrosion with emery cloth; align gold-plated tabs per diagram |
Filter replacements appear in the airflow section of schematics, usually near the dustbin. HEPA filters (rated MERV 13) trap 0.3-micron particles but clog faster; washable foam pre-filters extend their lifespan. Diagrams distinguish between primary (black/gray) and secondary (blue) filters–swap both simultaneously to maintain suction. Improper seating causes error codes like “E5” or “Check Dust Bin” due to airflow disruption.
Use schematics to pinpoint the cliff sensor array along the underside perimeter. These infrared emitter/detector pairs prevent falls but accumulate dirt, leading to false edge detection. Replacements are model-specific; for example, 800-series vacuums use four sensors, while 900-series add a fifth central unit. Test each sensor’s voltage (typically 3.3V) with a multimeter before purchasing–aftermarket sensors often lack the required 850 nm wavelength calibration.
