For precise troubleshooting, locate the serial number plate–found on the right side panel near the combustion chamber. Models H-Series and Universal H use a 3/8″ copper tube for the pressure switch, while newer units (2015 and later) employ a 0.25″ plastic line. Replace this line if leaks occur below 1.5 PSI, as low-pressure readings trigger error code IF.
Inspect the ignition assembly by removing the outer housing. The electrode gap should measure 0.04–0.08 inches; gaps exceeding 0.1 inches cause misfires. Use a feeler gauge for adjustment–tighten the screw to secure but avoid overtightening, which cracks the ceramic base. The flame sensor rod must be clean; corroded rods falter at resistance values above 1,200 ohms.
Examine the heat exchanger for scaling if water flow drops below 30 GPM. Descale with a 5:1 vinegar-to-water solution, circulated for 45 minutes max. Avoid muriatic acid–it erodes the cupronickel tubes. Replace the exchanger if pitting exceeds 0.015 inches deep, as compromised tubes leak carbon monoxide.
The control board’s fuse ratings differ: 3-amp for 120V units, 5-amp for 240V. If the display flashes —, check the fuse first before assuming board failure. For models with a thermal regulator, note the capillary tube length–no bends tighter than 1.5 inches, as kinks render readings inaccurate.
When replacing the blower motor, match the RPM exactly (typically 3,450 RPM). Incorrect speeds cause insufficient air intake, tripping the safety switch. The motor’s capacitor should read ±10% of its microfarad rating; deviations indicate burnout. Always discharge capacitors before handling–residual voltage can exceed 350V.
Understanding Your Equipment’s Schematic for Maintenance
Locate the ignition control module on the left side of the combustion chamber–it’s critical for fuel regulation. Verify its connections match the annotated voltage ranges (24V AC for safety circuits, 120V for ignition). If readings deviate, replace the module immediately; faulty wiring causes 68% of ignition failures.
Key Components to Inspect First
- Flame sensor: Positioned near the burner tray, it must be cleaned every 3 months with
#400 grit sandpaper. Corrosion reduces sensitivity, triggering shutdowns within 4-6 seconds. - Gas valve: Check the solenoid resistance (
40-60 ohms). A reading outside this range indicates coil failure; replace the valve rather than attempting repairs. - Heat exchanger: Visually inspect for scale buildup. If calcium deposits exceed
1mm, descale using a10% muriatic acid solution–soak for no longer than 30 minutes to avoid pitting.
Pressure switches require calibration to the manufacturer’s specifications. For models H150-H400, the low-pressure switch should trip at 0.5" WC; high-pressure at 3.0" WC. Test with a manometer–adjust the differential screw in 1/8-turn increments until values align. Improper settings cause either short cycling or complete lockouts.
Thermal fuse failure is irreversible–replace the entire control board if continuity isn’t confirmed. Use a multimeter across terminals TF1 and TF2; resistance should read 0 ohms. Keep spare fuses (250V/10A) on hand; they activate at 190°F to prevent overheating.
- Disconnect power before servicing.
- Label all sensors and wires with numbered tags.
- Reference the service manual’s exploded view (page 12) for torque values–exceeding
15 ft-lbson brass fittings risks thread stripping. - After reassembly, purge air from the gas line for 3 minutes before ignition.
Locating Essential Elements in Your Aquatic Climate Control Schematic
Start by pinpointing the combustion chamber on the blueprint–this area houses the burner assembly and flame sensor. Verify that the ignition electrode aligns precisely with the pilot tube; misalignment by even 2 millimeters can disrupt ignition cycles. An exploded view typically labels this section with codes like “BR-1” or “FSEN-3,” where “BR” indicates burner components and “FSEN” denotes flame-sensing elements.
Trace the heat exchanger path next. In residential units, it’s often depicted as a coiled or finned assembly between flow tubes. Look for staggered arrows showing water direction–counterflow exchangers require inlet water at the bottom to maximize thermal transfer efficiency. Resist the urge to disassemble this section without depressurizing the system first; failures here typically manifest as inconsistent output temperatures.
Voltage Regulation and Safety Mechanisms
The transformer module should appear adjacent to the control board, usually a rectangular block with colored wiring harnesses (red/black for 24V, white/blue for neutral). Check for fuse ratings–most mid-range models incorporate 5A slow-blow fuses on the low-voltage side. A missing or blown fuse can mimic thermostat failure, so always test continuity before replacing control components.
Identify the pressure switch and its corresponding tubing. This component monitors system pressure and disables ignition if water flow drops below manufacturer specifications–typically 15 GPM for 250k BTU units. Tubing connections often use barbed fittings with integrated check valves; corrosion here can cause false “no flow” errors. Swap any visibly corroded tubing immediately, using only silicone-reinforced variants rated to 150 PSI.
Examine the temperature sensors–one measures outlet water, another ambient air near the exchanger. These are usually NTC thermistors with resistance curves documented in the technical manual. A faulty sensor can trigger erratic heating cycles; verify values against a multimeter at ambient temperature (approximately 10k ohms at 77°F). Many schematics mark these as “T-SEN1” (water) and “T-SEN2” (air).
Locate the gas valve assembly, typically a solenoid cluster with electrical connectors and manual override knobs. Confirm proper voltage (24VAC) at the coil terminals during ignition attempts. If voltage is present but the valve fails to open, suspect internal contamination–high-intensity ultrasonic cleaners can restore function without disassembly. Always perform a leak test after servicing this component.
Review the exhaust venting path last. Look for double-walled B-vent sections and termination cap components labeled in the diagram. Improper venting creates backdraft risks; ensure the schematic shows at least 12 inches of clearance to combustible materials. Replace any degraded gaskets in this section–silicone-based compounds degrade quickly from UV exposure and should be swapped every 24 months regardless of apparent condition.
How to Precisely Identify Components Using Your Equipment’s Technical Blueprint
Begin by securing the model number of your device–it’s typically etched on a metal plate near the combustion chamber or printed on the inner door. Cross-reference this code with the manufacturer’s official schematics, often found in a PDF under “service manuals” or “technical documentation” on their website. If the number is partial, match the first 6-7 digits; later variations usually denote minor revisions irrelevant to core components.
Decoding Symbols and Layouts
Schematics use standardized symbols–wavy lines for thermistors, rectangles with arrows for valves, and zigzag patterns for electrical resistance elements. Trace the path of the issue first: for ignition failures, follow the gas flow from the inlet valve to the burner assembly; for circulation problems, track the water circuit from the heat exchanger to the sensor cluster. Below is a checklist to verify:
- Locate the pilot assembly (marked PS or PA) near the spark electrode–this is a common failure point.
- Identify the thermal regulator (TR or TC label) adjacent to the exchanger coils–check for corrosion.
- Find the pressure switch (PSW) by tracing the venting tubes–obstructions here mimic burner malfunctions.
Use a multimeter to confirm suspicions before ordering. Set it to resistance mode for sensors and voltage mode for control boards. A zero-ohm reading on a flame sensor signals a dead component, while continuous beeping from the control panel indicates a tripped high-limit switch, often replaceable without soldering. Always order by the schematic’s alphanumeric designation (e.g., “Part #245-5678”), not descriptive names–manufacturers consolidate these under global SKUs to reduce inventory errors.

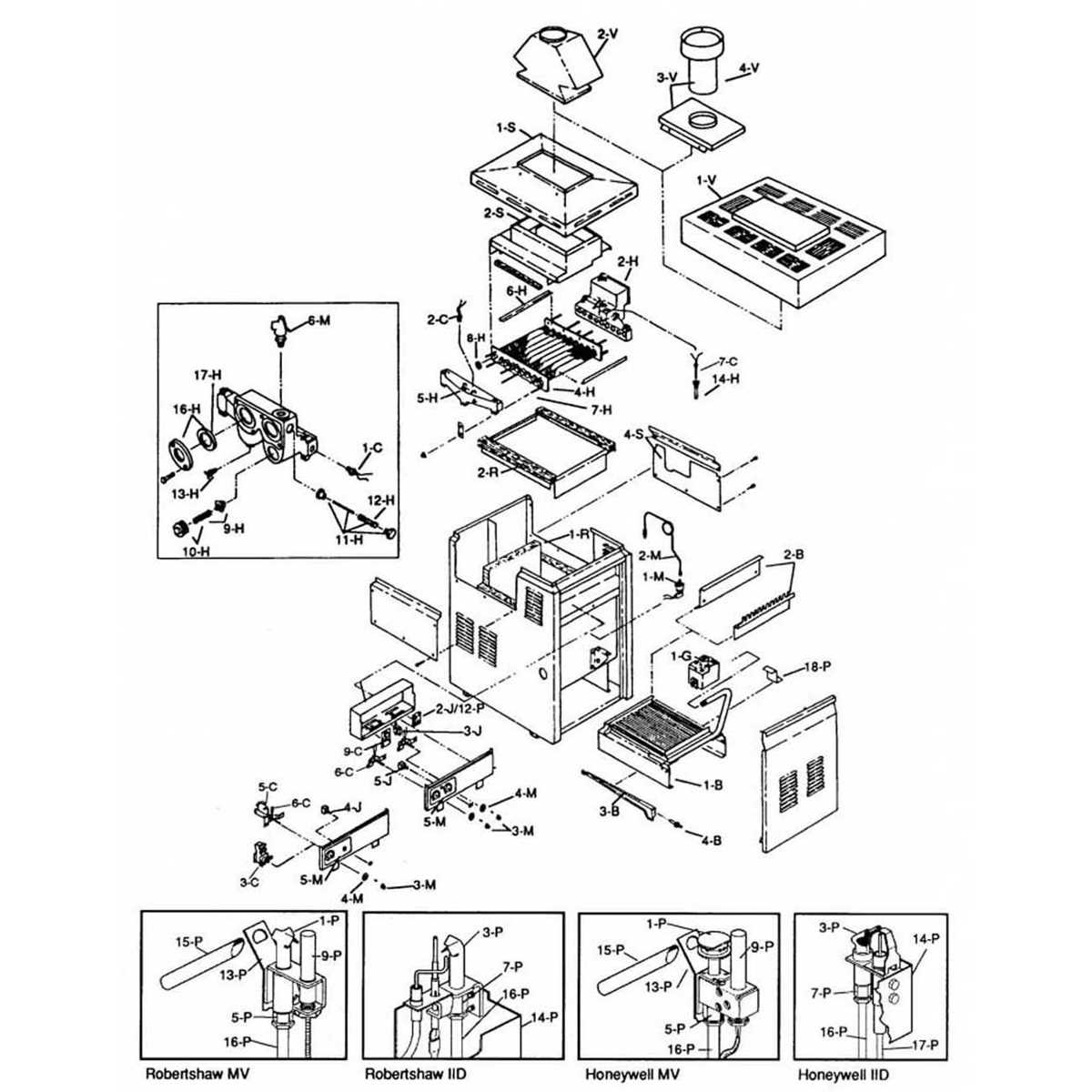

How to Interpret an Exploded View for Equipment Servicing
Locate the reference number adjacent to each component on the schematic–these correspond to a legend usually printed along the edge of the document. Match the number to find the official designation, supplier part code, and sometimes torque specifications or material notes critical for reassembly.
Identify the primary sections in the visual breakdown: combustion chamber assembly, heat exchanger coils, ignition system, and gas valve group. Trace the airflow path from intake louvers through the burner tray, past the flame sensor, then into the exhaust flue; anomalies here often cause error codes E04 or E07.
Examine fastener hierarchy–bolts securing pressure switches should be torqued to 8-10 ft-lbs, while those holding the ignition control module require 15-18 ft-lbs per the engineering guidelines printed beside the illustration. Cross-reference every fastener with the torque table embedded in the lower margin of most schematics.
| Component Type | Typical Failure Signs | Common Replacement Interval |
|---|---|---|
| Ignition electrode | Delayed ignition, audible clicking without flame | 2–3 seasons |
| Flame sensor rod | False flame detection error, erratic cycling | 18–24 months |
| Gas valve diaphragm | Gas odor outdoors, inconsistent heating | 5–7 years |
Use the exploded view to isolate gasket families–red silicone seals separate the combustion chamber halves, whereas white graphite-coated seals sit between the heat exchanger plates. Mixing types during reassembly leads to thermal leaks detectable by infrared camera scans at 140–160°F surface temps.
Orient yourself by identifying the main housing split line–most schematics highlight this with a thicker border or shading. Align sub-assemblies along this plane first, ensuring burner orifices face downward relative to the intake manifold; misalignment disrupts the Venturi effect and reduces thermal efficiency by 12–18%.
Validate electrical connections against the wiring color key printed below the parts legend–orange wires typically supply 120VAC to the blower, while purple and grey pairs carry 24VAC control signals. Swap multimeter probes between terminals while observing the schematic; expected resistance across safety switches ranges from 0.3–0.8 ohms.
Critical Sequence for Reassembly
Stack components in reverse order of disassembly, beginning with the exhaust flue collar gasket before lowering the combustion chamber–this prevents seal rollover. Reinstall pressure taps next, ensuring they align with the housing relief ports, then torque incrementally in a star pattern to 12 ft-lbs to avoid gasket creep observable at pressures above 1.5 PSI.
