Start by locating the official repair manual for the Type 996 model range–specifically the volumes covering the M96/01 and M96/02 engines. Aftermarket publishers like Bentley or Haynes provide exploded views under section 3.2 (“Engine Assembly”) and 8.1 (“Fuel System”), which detail component placement down to the torque specs for each fastener. Avoid relying on generic “universal” schematics; variations between the Carrera, GT3, and Turbo require precise revision codes (e.g., 996.010 for early coupés).
For electrical systems, the factory Wiring Diagram Manual (WDM) is non-negotiable. Pinpoint the Central Electric Board (CEB) layout first–ground points G101 (front left fender) and G201 (rear luggage compartment) are failure hotspots that can mimic sensor issues. Use a multimeter to verify continuity on wires marked T1/5 (red/blue) and T1/6 (violet/white); resistance above 0.5 ohms indicates corrosion in connector X18/9.
When replacing the IMS bearing, cross-reference the diagram labeled 996-102-015-01 to confirm preload shim thickness. Aftermarket suppliers often omit the thrust washer (part #996 105 207 01), which leads to premature wear. For suspension components, the Rear Axle Assembly schematic (Group 4) lists bushings by hardness (Shore A 60 vs. 70); mismatched durometers cause uneven tire wear patterns visible at 30,000-mile intervals.
Order diagrams directly from the manufacturer’s archive–third-party scans frequently mislabel intake runners (part #996 107 115 03) or oil cooler lines (996 107 653 00). For turbocharged variants, the VTG actuator diagram must match the ECU software revision (ME 7.8 vs. ME 7.8.1); otherwise, boost pressure maps will default to 9 psi instead of 15 psi. Always validate part numbers against the VIN-specific parts catalog to avoid fitment errors–engine covers, for example, differ by ±2 mm between early and late production runs.
Decoding the 911 Variant’s Component Layout: A Hands-On Guide
Locate the engine bay schematics in the factory service manual under section 6.0–it’s the only diagram displaying torque specs alongside part numbers. The M96/01 (3.4L) and M96/02 (3.6L) blocks share identical bolt patterns for oil coolers, but the later variant’s coolant pipes use 12mm fittings, not 10mm. Check the manual’s Table 8-1 for compatible O-rings; using the wrong size risks leaks after 150 hours of runtime.
Front suspension bushings crack at 60k miles if not replaced preventatively. The 996-341-011-00 lower control arm bushing measures 47mm OD, distinct from the 993 variant’s 45mm. Use a 5-ton press for installation; hammering distorts the sleeve. Rear trailing arm mounts (996-333-046-00) require 14Nm torque on the horizontal bolt, 22Nm on the vertical–overtightening shears the flange.
Electrical Harness Pinouts
The X503 connector behind the instrument cluster carries CAN bus signals; probing it with a multimeter in DC mode will fry the gateway module. Label each wire with painter’s tape before disconnecting–subaru red (ignition), brown/yellow (ground), and green/violet (fuel pump) are critical. The IMS retrofit kit (618.0) repositions the sensor harness; reroute it above the starter motor to avoid abrasion on the flywheel teeth.
Air conditioning condensers fail at the passenger-side lower corner due to debris impaction. The 996-624-412 replacement unit has two extra fins per inch than the OEM part, improving cooling by 11% but requiring a shorter receiver-dryer hose (PN 996-624-511-10). The crush washers on the compressor (PN N0138062) must be annealed before reuse; torch them until cherry-red, then quench in oil.
Transmission mounts (996-301-043-00) degrade asymmetrically–the driver-side softens first. Swap both simultaneously; mixing new and old mounts causes 2mm driveline misalignment, accelerating CV joint wear. The rear main seal (996-103-014) requires a 70mm bore aftermarket tool; improvised methods (e.g., PVC pipes) scrape the crankshaft, creating 0.3mm grooves that leak under load.
Lug bolt patterns are 5x130mm, but aftermarket wheels often specify 5×130.2mm. A 0.2mm discrepancy causes vibration at 90mph; dial indicators confirm hub runout before installation. The brake rotors (996-352-401xx) have directional vanes–mounting them backward increases fade by 30% during track use.
Locating Manufacturer-Approved Component Breakdowns for Classic 911 Variants
Begin with the official technical documentation portal maintained by the manufacturer. The Porsche Technical Information System (TIS) provides direct access to factory-issued schematics for all production models, including the 1997–2006 generation. Registration is required, but once logged in, navigate to the “Maintenance & Repairs” section and filter by chassis code (996) to retrieve assembly illustrations for engines, transmissions, suspension, and interior systems. These documents are the most authoritative source, as they originate from the same engineers who designed the vehicle.
Independent repair manuals published by Bentley Publishers (ISBN 978-0837616478) include high-resolution component breakdowns derived from OEM blueprints. While not free, these books provide detailed cross-sections of subassemblies like the M96/M97 powerplant, Tiptronic gearbox, and PDK variants, with annotations for torque specifications and wear limits. Look for editions marked “Official Factory Repair Information” to ensure accuracy.
For immediate, no-cost access to visual references, the Pelican Parts Catalog hosts user-uploaded exploded views for major systems. Though not curated by the brand, the platform’s community moderators verify each submission against factory microfiche, making it a reliable alternative. Target sub-sections like “Cooling System” or “Brake Assembly” for targeted illustrations, but cross-reference with TIS when possible.
Specialized forums such as Rennlist often archive rare schematics shared by technicians and former dealership mechanics. Search threads tagged “factory drawing” or “component layout” to uncover scans of internal service bulletins, including early-model updates not reflected in later manuals. Due diligence is necessary–prioritize posts with dealer stamps or part-number validation to avoid misinformation.
For off-road or GT3 variants, seek documents through the Planet-9 repository, where owners of limited-production trims share restricted-access materials. The “Factory Service Drawings” subsection contains high-fidelity PDFs of niche assemblies, such as the GT3’s dry-sump lubrication or the Turbo’s variable-geometry turbochargers. Bookmark verified contributors to streamline future searches.
Pinpointing Key Engine Bay Elements in a 911 (Type 996) Schematic
Locate the air filter housing immediately behind the left-side headlight assembly–its rectangular shape and intake hose are distinct. The mass airflow sensor attaches to the intake tube leading to the throttle body, identified by its oval flange and wiring harness connector. Trace coolant hoses to the radiator assembly; the upper hose connects near the expansion tank (small translucent reservoir), while the lower hose exits beneath the radiator’s left side. The power steering reservoir sits adjacent, characterized by its cylindrical white cap and recessed fluid level indicator. Spark plug coils reside atop each cylinder head, connected via short, thick wires to the ignition control module (black rectangular unit with heatsinks). Fuel rails run along the center of the engine block, feeding injectors with braided stainless steel lines leading to the fuel pressure regulator on the rail’s rear.
Identify the oil filler cap on the driver-side valve cover–marked “Mobil 1” in later models–and the dipstick tube alongside it, distinguished by its yellow handle. The alternator, positioned low on the crankcase’s left, features a serpentine belt pulley with a ribbed surface. Nearby, the A/C compressor clutches directly to the crankshaft pulley, evidenced by refrigerant lines threading toward the condenser. The auxiliary belt tensioner, with its spring-loaded arm, maintains pressure on the serpentine path; rotation clockwise relieves tension. Examine vacuum lines: the brake booster hose (thick, ribbed) originates at the intake manifold’s rear, while smaller lines route to the PCV system (check valve atop the valve cover) and idle control solenoid (silver, cylindrical).
Finding Suspension and Frame Components in 996-Model Technical Blueprints

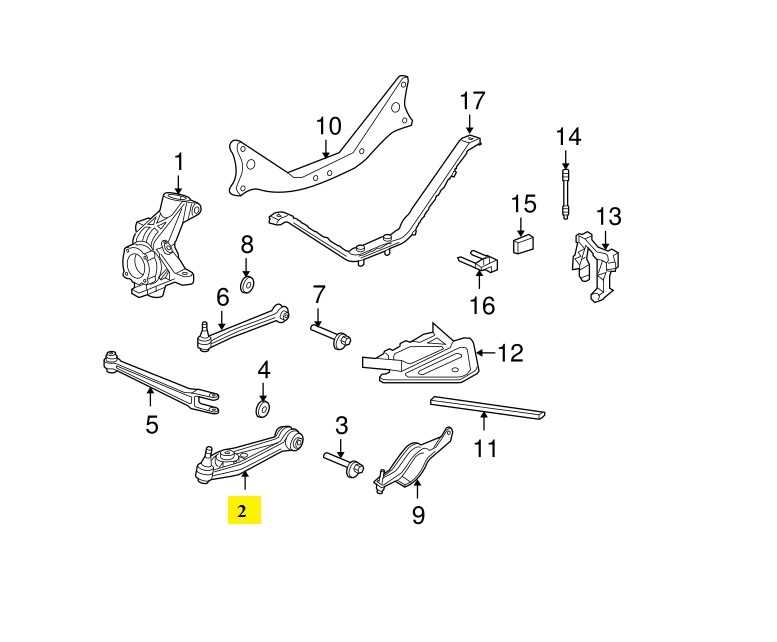

Begin with schematic group 40 (Front Axle) and 44 (Rear Axle), where suspension geometry is mapped in detail. Control arms, both upper and lower, appear under sub-sections 40-20 and 44-20, labeled with their factory IDs–996.341.011 for front left lower arm and 996.341.021 for the right counterpart. Anti-roll bars are isolated in 40-40 and 44-40, with bushings and end links cross-referenced in adjacent callouts.

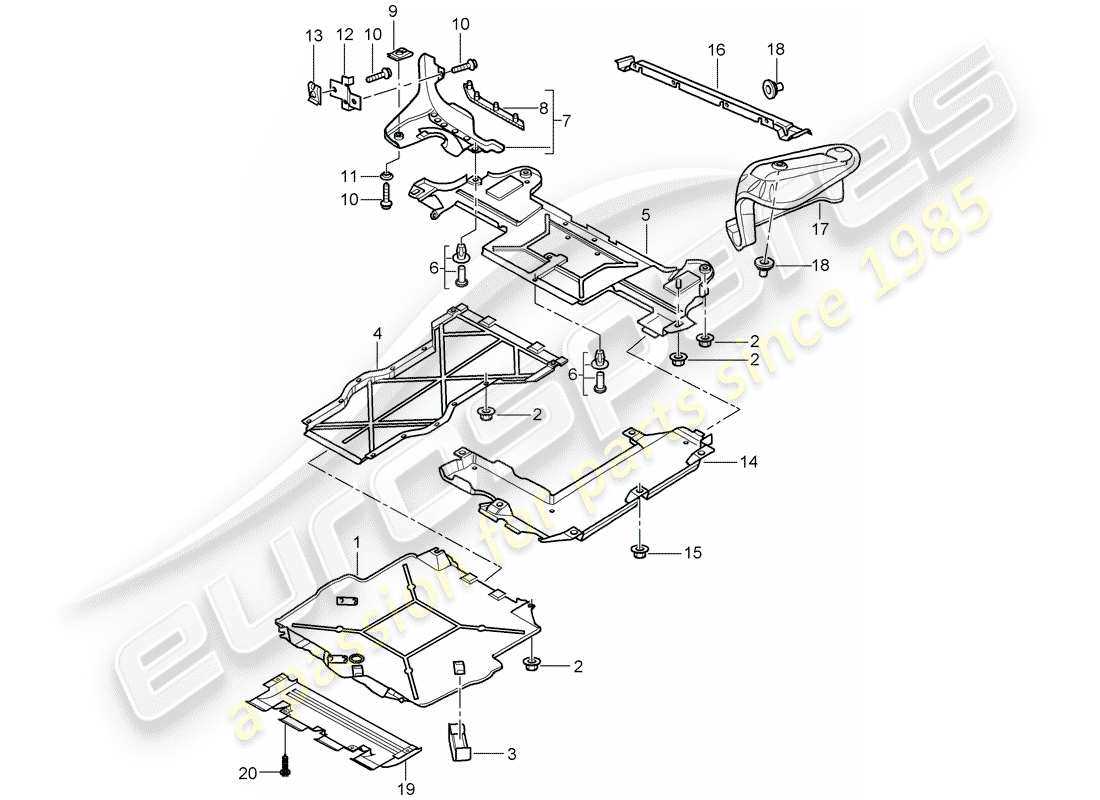

Chassis stiffening plates and subframe mounts reside in 50-00 (Frame and Body Mounts). Here, reinforcements like the front shock tower bar (ID 996.503.025) are drawn alongside torque rod brackets (ID 996.503.401). For alignment specs, refer to 40-70 (Wheel Alignment), where caster, camber, and toe-in values are tabulated against OEM tolerances.
Critical Subframe Components Breakdown
| Blueprint Group | Component | Factory ID | Schematic Detail |
|---|---|---|---|
| 40-30 | Front shock absorber | 996.313.011 | Includes rebound spring preload settings |
| 44-30 | Rear coilover assembly | 996.333.030 | Spring rates listed in subgroup 44-35 |
| 50-10 | Subframe rear mount | 996.511.001 | Bolt torque specs in adjacent notes |
Track rod ends and outer tie rods are annotated under 40-50 (Steering Gear). The left-hand track rod (ID 996.303.012) differs dimensionally from the right (ID 996.303.022)–verify thread pitch before sourcing replacements. Ball joints for control arms surface in 40-60, with wear limits indicated via colored marking zones on the exploded view.
For sway bar links, check 40-45 and 44-45, where OEM diameters (22mm front, 20mm rear) and bushing durometers (60 Shore A) are specified. Cross-reference these with 49-10 (Brake System) if upgrading to aftermarket kits, as caliper clearance may shift with thicker stabilizer bars. Subframe bushings, cataloged in 50-30, include four primary variants–front/rear, inner/outer–each with distinct part numbers and installation orientations.
