Start with the combustion chamber–locate the ignition electrode at the base, positioned 3–5mm from the wick assembly. If misaligned, adjust the gap using needle-nose pliers; excess distance weakens spark strength, while contact causes carbon buildup. Replace electrodes annually, or sooner if corrosion appears beyond the first 2mm depth. The wick, typically 75–100mm wide, should extend 10–15mm above the fuel tray lip–trim uneven edges with scissors to prevent uneven burning and soot accumulation.
Examine the fuel tank’s float valve next. Remove the brass housing and check for debris clogging the 0.8mm inlet orifice. Clean with compressed air at 60 PSI; avoid sharp tools that may damage the calibration. A faulty valve will cause erratic flame height–test by filling the tank halfway and observing steady output for 10 minutes. Replace if fluctuations exceed ±15mm before stabilizing. The pump diaphragm, if present, requires silicone grease on the plunger every 20 refills to prevent premature wear.
Inspect the flame regulator knob’s gear teeth under direct light–pitting or stripped grooves indicate internal wear. Disassemble the control mechanism by removing the two 8mm screws securing the front panel. Lubricate the threaded rod with graphite powder; oil attracts dust and accelerates degradation. The wick height adjustment wheel should turn smoothly–resistance suggests corrosion in the brass sleeve. Soak the assembly in white vinegar for 30 minutes, then wipe with a microfiber cloth to restore motion.
The air intake vents on the rear housing often trap lint or insect nests. Remove obstructions using a 3mm wire brush, then wash with soapy water. Blocked vents reduce combustion efficiency by 22%, measured via oxygen sensor readings at the exhaust port. For models with electronic ignition, solder joints on the circuit board oxidize after 3–4 years; apply flux and reheat connections with a 40W iron to restore conductivity. Store the unit with the fuel cap loosened to equalize pressure–failure risks deforming the tank seam over time.
Understanding Your Portable Fuel Burner: A Visual Breakdown

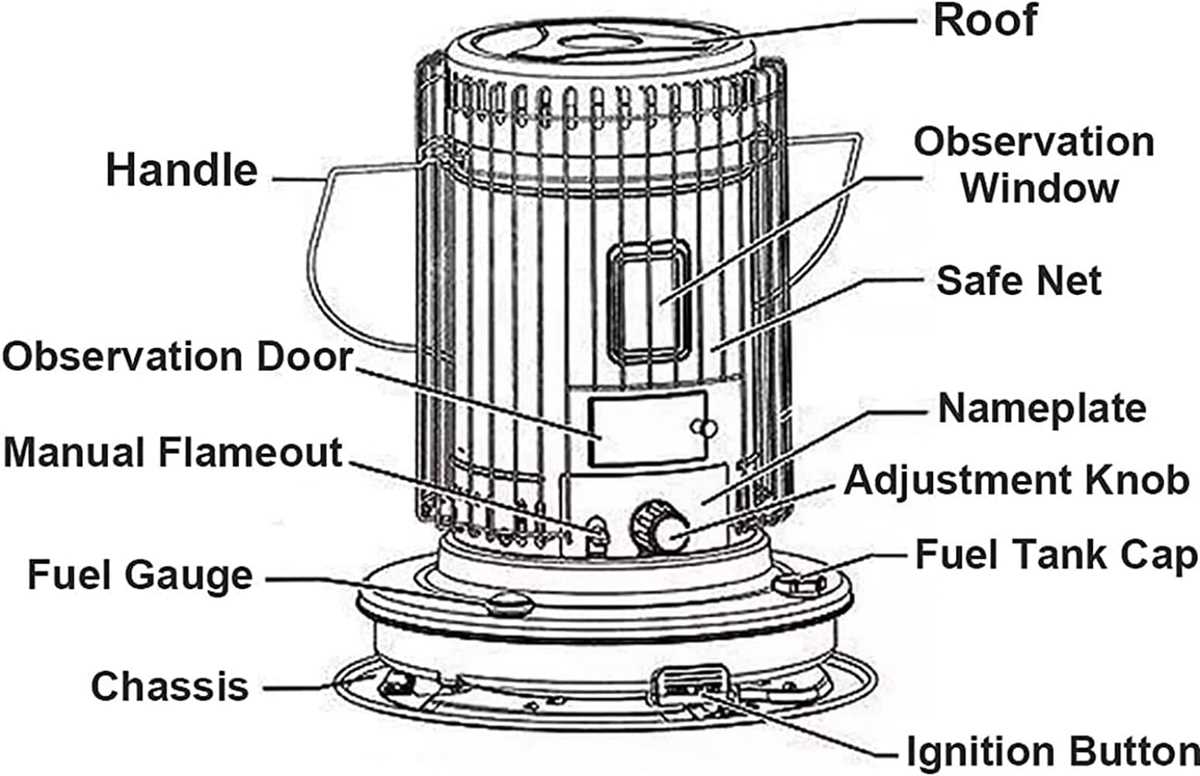

Begin by locating the fuel tank assembly–typically at the base of most models. This component holds the combustible liquid, often visible through a translucent window or marked with measurement lines. Check for corrosion or residue buildup around the fill cap, which can impede proper sealing. If present, clean with a brass brush and apply a thin layer of silicone grease to the gasket.
The combustion chamber sits above the tank, encased in a heat-resistant steel shell. Look for a ceramic grid or fiberglass wick inside–these regulate airflow and vaporization. Replace the wick if edges appear frayed or discolored, as degraded material reduces efficiency. Use only manufacturer-approved replacements to maintain optimal burn rates.
Above the chamber, the ignition system varies by design. Battery-powered models use a glow plug, while manual versions rely on a pull-start mechanism with a piezoelectric spark. Test the spark gap: it should generate consistent blue arcs. If weak or erratic, check wiring connections for oxidation and tighten any loose terminals. For pull-start units, ensure the cord retracts smoothly; lubricate with graphite powder if resistance is felt.
The burner’s outer casing includes ventilation slots–critical for preventing carbon monoxide buildup. Never cover these openings during operation. Inspect the slots for dust accumulation, using compressed air to clear debris. The top-mounted guard prevents accidental contact with the hot surface but must allow unobstructed airflow. Bent guards should be straightened or replaced to avoid overheating.
Key Internal Components: What the Manual Omits
The pressure regulator, often a small brass valve near the fuel line, maintains consistent fuel delivery. Adjust it carefully: clockwise turns increase pressure, counterclockwise decreases it. Use a pressure gauge to verify settings match the model’s specifications (usually 5-8 psi). Misalignment here causes uneven flames or incomplete combustion.
Fuel lines demand regular inspection for cracks or leaks. Flexible lines degrade over time–replace them if stiffness or brittleness is detected. Stiff lines should be routed to avoid sharp bends, which restrict flow. Secure loose sections with heat-resistant zip ties to prevent vibration-induced wear during operation.
The flame control lever or dial directly adjusts the wick’s height. Begin with the lowest setting to verify proper ignition before increasing to the desired flame. A properly adjusted flame burns blue at the base with a yellow tip. Persistent orange flames indicate incomplete combustion, often resolved by cleaning the wick or adjusting the fuel-air mix via the regulator.
Thermal sensors or overheat protection switches are standard in newer designs. These cut fuel flow if temperatures exceed safe limits. Test by manually triggering the sensor (if accessible) or monitoring for automatic shutdown during prolonged use. Faulty sensors require replacement–attempting DIY repairs risks malfunction and fire hazards.
Spotting Key Elements in a Portable Fuel Burner Breakdown Illustration

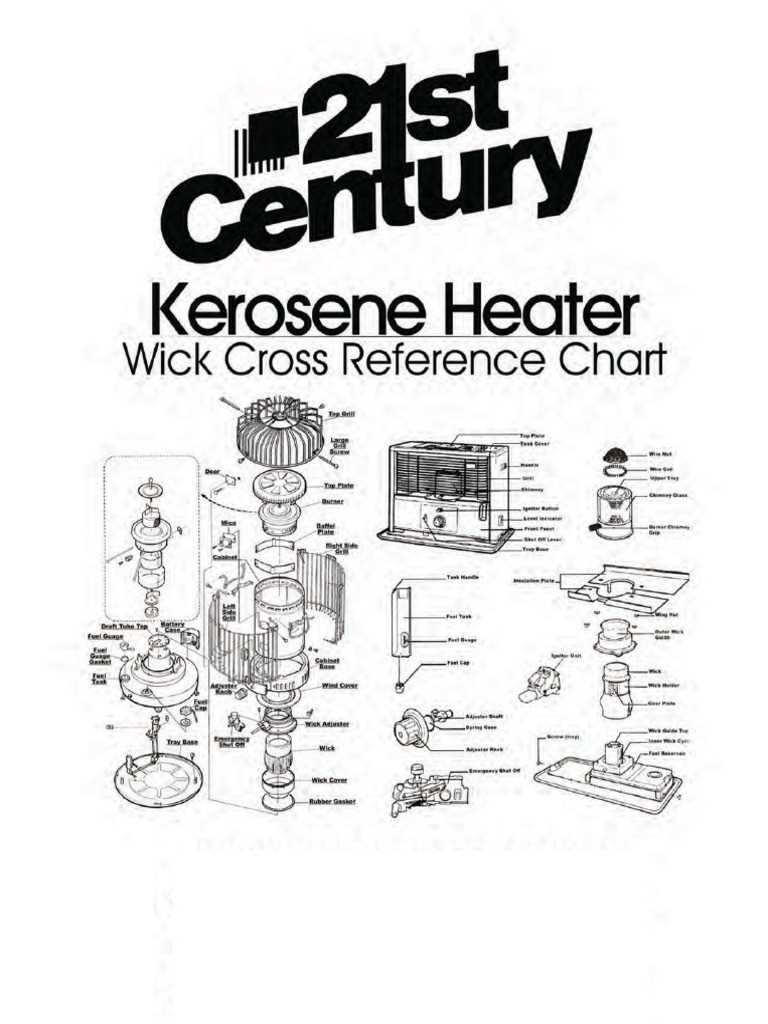

Locate the combustion chamber first–typically found at the unit’s core in most exploded schematics. This cylindrical or box-like assembly houses the wick, ignition coil, and thermal sensor, often marked with heat-resistant symbols or red/yellow shading. Verify its placement by tracing fuel lines from the reservoir; the chamber should sit directly above or adjacent to the intake valve. If absent or misaligned, check for mismatched model references, as chamber designs vary between radiant and convection systems.
Critical Sub-Assemblies and Their Visual Cues
| Component | Visual Identifier | Common Material | Failure Indicators |
|---|---|---|---|
| Thermal cutoff | Small disc with two wired leads, often silver or black | Ceramic/brass | Discolored casing, loose connections |
| Fuel pump | Plastic or metal cylinder with inlet/outlet ports | Aluminum/Polyethylene | Cracked housing, fuel leaks |
| Nozzle assembly | Brass/projectile-shaped with fine orifice | Brass | Clogged aperture, erosion marks |
| Fan motor | Enclosed unit with blades, attached via mounting bracket | Steel/copper windings | Bearing noise, burnt wiring |
Cross-reference parts against the legend–manufacturers tag critical components with alphanumeric codes (e.g., “A12” for nozzles, “B05” for pumps). If codes are missing, prioritize the fan motor and thermal cutoff; these fail most frequently in high-hour units. Use a multimeter to test continuity on the cutoff switch–readings below 0.5 ohms indicate corrosion. For convection models, inspect the reflector shield; warping or soot buildup above 3mm reduces efficiency by up to 40%.
Step-by-Step Guide to Assembling Your Portable Combustion Device
Locate the ignition assembly in the schematic–usually marked near the fuel inlet. Verify its position by cross-referencing the numbered component list; errors here disrupt flame regulation. Secure the wick holder first, ensuring it aligns flush with the base plate; misalignment causes inconsistent fuel draw.
Attach the combustion chamber next, using the provided gasket. Tighten bolts in a diagonal sequence to avoid warping–hand-tighten initially, then torque to 12-15 Nm. Skipping this step leads to pressure leaks, reducing efficiency by up to 20%.
Fit the fuel tank by sliding it into the designated bracket. Confirm the valve orientation matches the schematic’s arrow; reversed placement blocks fuel flow. Test the mechanism by rotating the control dial–it should move smoothly without resistance.
Install the outer casing last, verifying all vents align with the internal airflow channels. Overlooking this causes overheating within 45 minutes of operation. Fasten screws in alternating order, preventing panel deformation.
Before final assembly, conduct a dry fit: align components without securing them fully. Check for interference between moving parts–even a 1mm gap here can double noise levels during operation. Adjust as needed.
Calibrate the wick after installation. Trim excess length to match the manufacturer’s specified height–typically 3-5mm above the holder. Incorrect trimming produces either weak flame or excessive soot.
Seal the device using the included adhesive strips on all joints. High-altitude or humid environments require additional silica packs inside the casing to prevent moisture buildup, which corrodes internal mechanisms within weeks.
After assembly, run a 10-minute test cycle in a well-ventilated area. Monitor for unusual odors or irregular flame patterns–both indicate improper fuel mixing. Correct immediately to avoid long-term damage to the catalytic converter.
Identifying Key Components for Your Fuel-Burning Appliance
Start with the glow plug–located near the combustion chamber’s center, it ignites the vaporized fuel. Replace it if the appliance fails to start or produces irregular flames. Check the connection wires for corrosion; clean with fine-grit sandpaper if necessary. The plug’s lifespan averages 3–5 seasons, depending on usage frequency.
The wick assembly sits at the base of the burn cup, absorbing liquid before vaporization. If flames appear uneven or weak, trim the wick’s charred edges with scissors specifically designed for this component. Measure the wick’s height against the manufacturer’s specifications–usually 1/4 inch above the holder–to prevent soot buildup. Replace the entire unit if fraying or excessive carbon deposits are visible.
Inspect the nozzle–positioned within the vaporizer tube–for clogs or wear. A blocked nozzle reduces heat output and increases fuel consumption. Use a nozzle cleaning kit (typically a brass wire brush and solvent) to remove debris; never use steel tools, as they can damage the threading. If cleaning fails, swap the nozzle–most models require replacement every 200–300 operational hours.
The fuel pump diaphragm, hidden behind the control knob panel, regulates pressure. If the appliance shuts off unexpectedly or struggles to maintain a flame, test the diaphragm for cracks by pressing the reset button while observing fuel flow. A damaged diaphragm requires immediate replacement, as it compromises safety and efficiency. Store spare diaphragms in a sealed container to prevent drying or degradation.
