Replace the door latch assembly (part #5220FR2099B) if the machine fails to start despite power being confirmed. The latch mechanism includes a microswitch that signals the control board; test continuity with a multimeter before ordering. If readings exceed 1.5 ohms, the part requires replacement. Common failure points–springs wear, plastic hooks crack–can mimic motor issues, so isolate the problem before disassembly.
Inspect the drum support spider (part #4581ER1005E) if metallic grinding persists during spin cycles. This cast-aluminum component connects the drum to the rear bearing; corrosion or uneven wear creates imbalance and noise. Remove the rear panel and rotate the drum manually–play greater than 2mm indicates spider degradation. Replace bearings (kit #4280FR4048K) simultaneously to avoid repeat repairs, as bearing failure accelerates spider damage.
Clean or replace the drain pump (part #5220FR2002G) if error code OE displays. Disconnect power, tilt the washer back, and access the pump through the bottom panel. Check for debris–coins, buttons, or lint–in the impeller before assuming electrical failure. The pump’s 9-ohm resistance should register on a multimeter; no reading confirms a faulty unit. Always verify inlet water pressure (minimum 15 psi) when addressing drainage issues.
Test the main control board (part #6871ER0787B) if cycles abort unexpectedly or error codes dE, LE, or FE appear. Remove the top panel for access, then inspect for burnt capacitors or corrosion on connectors. Replace the board if voltage checks reveal irregularities; resoldering rarely provides a permanent fix. Note that firmware updates (via USB) may resolve intermittent errors before resorting to hardware replacement.
For pressure switch failures (part #6301ER1002D), verify tube integrity–cracks or clogs mimic sensor malfunctions. The switch should click at ~3 psi; no response indicates a faulty unit. Clean the air dome bladder and tubing before replacing the switch, as trapped moisture causes false readings. Replace both the switch and its corresponding 4-wire harness if corrosion is visible on contacts.
LG Front-Load Washer Component Breakdown: Actionable Repair Insights
Start by unplugging the appliance and removing the top panel–secure the two screws on the rear edge before sliding it backward. Use a 10mm socket for the screws; failing to release them first risks damaging the plastic retaining clips.
- Drum assembly replacement requires disconnecting the shock absorbers (located beneath the tub) and the suspension springs (attached to the frame’s upper corners). Label wires before unclipping the door lock sensor–its connector is brittle and prone to cracking.
- Main control board sits behind the front panel (remove the detergent tray first). Four screws hold the panel; two are hidden under the rubber door boot.
- Motor coupling connects to the drive shaft–a common failure point. Check for frayed belts or burnt-smelling grease; replace both the belt and coupling simultaneously to avoid misalignment.
For the drain pump, tilt the machine forward 30 degrees–access the bottom cover via three Phillips screws. The pump’s impeller often collects coins or lint; clear debris with needle-nose pliers while holding the impeller steady with a flathead screwdriver.
Tools Checklist Before Disassembly
- 6mm, 8mm, and 10mm sockets (deep well for rear screws).
- Phillips #2 and flathead screwdrivers (magnetic tip preferred).
- Tongue-and-groove pliers for hose clamps.
- Multimeter (test continuity across motor windings; resistance should read 10-15 ohms).
- Teflon tape (for reassembling water inlet valves).
Door boot replacement demands removing the entire front panel. Peel back the boot’s outer clamp with a flathead–work clockwise to avoid stretching the seal. The inner clamp secures with a spring-loaded clip; pry it gently with a pick tool to avoid tearing the boot’s lip.
Lint filter housing sits adjacent to the drain pump. Detach the two screws securing the housing, then rotate it counterclockwise to release. Scrape accumulated residue with a plastic scraper–metal tools will damage the plastic fins. Reattach by aligning the arrow marks on the housing and frame.
Cold water inlet valve screen clogs are a frequent fault. Shut off water supply, disconnect the hose, and inspect the mesh filter inside the valve inlet. Soak the filter in white vinegar for 20 minutes if calcified; reinstall by ensuring the O-ring sits flush–misalignment causes leaks.
When reassembling, hand-tighten all screws first to confirm alignment. Torque rear panel screws to 8-10 Nm to avoid cracking the plastic. Test the door latch before fully securing the front panel–misalignment triggers error codes FE or dE.
Identifying Key Components in the LG Front-Load Washer Assembly Breakdown
Start by locating the tub assembly at the center of the exploded schematic–this is the core structure holding the drum and bearings. The outer tub (part #AEX72949001) connects via four suspension rods; inspect these for wear before assuming motor issues, as degraded mounts mimic faulty drive symptoms.
Check the drive system components grouped near the rear panel. The motor rotor (ENE69378701) mounts directly to the tub, while the stator (MFS70968702) fastens to the base frame. Resistance across stator windings should read 6-12 ohms–deviations point to coil failure, not controller problems. Replace the entire stator assembly if readings are inconsistent; partial fixes rarely last.
| Component | Location | Failure Symptoms | Verification Method |
|---|---|---|---|
| Drain pump (PDQ61234503) | Front lower right | Slow draining, error OE | Check impeller spin by hand with power off |
| Water inlet valves (EPL48270001) | Rear upper left | No fill, IE error | Test for 500-1500 ohms across coils |
| Main control board (EBR76401701) | Top panel beneath cover | Random errors, failed cycles | Inspect for burnt traces using magnifier |
Examine door components in the front assembly. The door boot (SEB46214509) creates a watertight seal; tears here cause leaks that confuse operators into suspecting tub cracks. The door latch (KFL42998401) must engage audibly–if silent, test with multimeter for continuity during the locked state, typically 120-240 ohms.
Critical Fasteners Often Overlooked
The counterweight bolts (part #4280FR4380B) secure two 12 lb concrete blocks preventing tub vibration. Loose bolts create excessive noise mistaken for bearing failure–the required torque is 18-22 ft-lbs. Replace bolts if threads strip; standard hardware store replacements won’t withstand vibration.
Inspect the detergent dispenser assembly (part #AGS55136801) for clogs when diagnosing rinse agent issues. The bleach compartment has separate tubing–if fabric softener leaks, clear the entire pathway with a pipe cleaner, focusing on the siphon cap valve where debris accumulates.
Suspension components include springs (ADN78236908) and shock absorbers (383EER4001D). Springs stretch over time, lowering tub height; measure free length (8 inches)–shorter springs reduce drum capacity noticeably. Shock absorbers should resist compression–easy push indicates failure, requiring replacement of the entire unit, not just seals.
The heating element (MHF90838901) wraps around the tub’s outer circumference. At 220VAC, resistance should measure 30 ohms ±10%. Check insulation between element terminals and the tub with a megger–readings below 1M ohm indicate imminent short, risking thermal fuse failure (part #EF456ST6005) that trips around 185°F.
How to Identify Key Components in Your Washer’s Schematic
Begin by locating the control panel assembly at the top rear of the unit–marked as “A1” on most blueprints. This cluster houses the electronic board, wiring harness, and user interface. Remove the back cover first to access mounting screws; avoid forcing plastic clips as they snap easily under lateral pressure.
For the door latch and strike mechanism (usually near the front rim), reference the exploded view section labeled “B3.” The latch includes a microswitch and solenoid–test both with a multimeter for continuity if the cycle doesn’t advance. Replace the entire assembly if resistance readings exceed 20 ohms.
The drain pump sits at the bottom left, often labeled “C7.” Disconnect power before removing the lower access panel; residual water may spill even if the tub was recently emptied. Check for foreign objects lodged in the impeller blades–this pump typically fails due to debris rather than electrical faults.
To find the drive motor, look for “D2” in the lower center. The motor couples directly to the drum pulley via a belt–inspect belt tension first if spinning is weak. Remove the rear panel and motor mounting bracket to access brushes or bearings, which wear faster than windings in high-load cycles.
Heater elements appear as “E5,” positioned behind the outer tub. Isolate wires before testing resistance–values below 15 ohms indicate failure. calcium buildup on the element reduces efficiency; soak it in vinegar before reinstalling to extend lifespan.
Suspension rods and shock absorbers (“F4”) connect the tub to the frame. Replace all four simultaneously if one fails, as uneven wear causes excessive vibration. Use a socket wrench to remove the upper mounting bolts; pivot the rod downward to detach from the tub bracket.

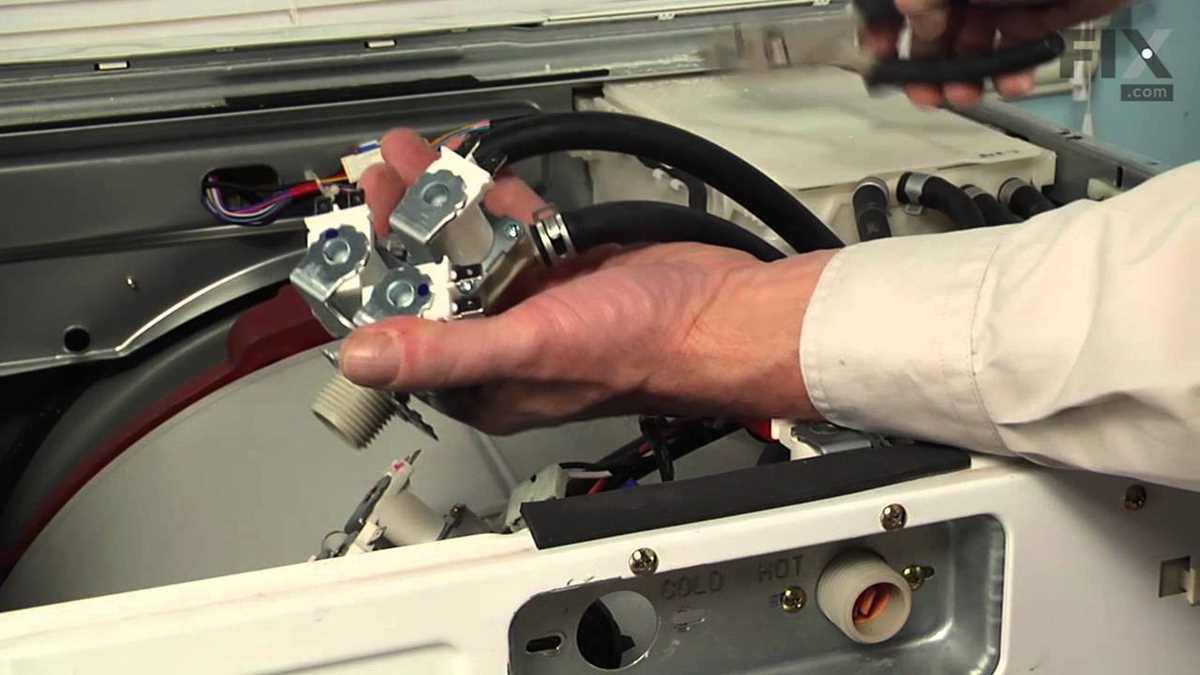

Inlet valves sit behind the detergent drawer, labeled “G9.” Each valve controls hot or cold flow–test solenoids with 120VAC; a hum without water flow signals a defective coil. Clean valve screens weekly to prevent sediment blockage, which mimics solenoid failure.
For tub bearings (“H1”), locate the outer tub seal first–it protects bearings from water intrusion. Press bearings evenly using a circular driver to avoid race damage. Pack grease around the new seal lip to prevent premature wear during high-speed cycles.
