Begin by locating the upper receiver assembly–this segment houses critical firing mechanisms and optic interfaces. The barrel, typically 16 to 20 inches for standard models, determines velocity and accuracy. Attached via the handguard, heat dispersion becomes manageable during sustained fire. Examine the bolt carrier group (BCG)–chrome-lined components resist corrosion, while a properly staked gas key prevents gas leakage.
Next, focus on the lower receiver–here, the trigger assembly dictates firing behavior. A mil-spec trigger averages 6-8 lbs pull weight, while match-grade variants lower resistance to 3-4 lbs for precision shooting. The buffer tube secures the recoil spring, affecting cycling reliability; carbine-length tubes suit shorter builds, while rifle-length tubes reduce felt recoil. Ensure the pistol grip angles at 20-30 degrees–ergonomics directly impact rapid target acquisition.
Gas systems vary by length: pistol (4″), carbine (7″), mid-length (9″), and rifle (12″). Mid-length setups balance recoil impulse and parts longevity. Verify muzzle device compatibility–flash hiders like the A2 reduce signature, while compensators mitigate muzzle rise. Magazine selection matters: PMAGs offer polymer durability, but GI aluminum types ensure military-spec reliability.
Disassembly begins by separating the upper and lower at the take-down pins. Drift punches remove pins, allowing access to the fire control group for cleaning. Lubricate rails with CLP or similar–avoid excess oil on bolt faces to prevent carbon fouling. Reassemble with the charging handle aligned to the left side, ensuring the BCG’s gas rings remain evenly spaced to avoid short-stroking.

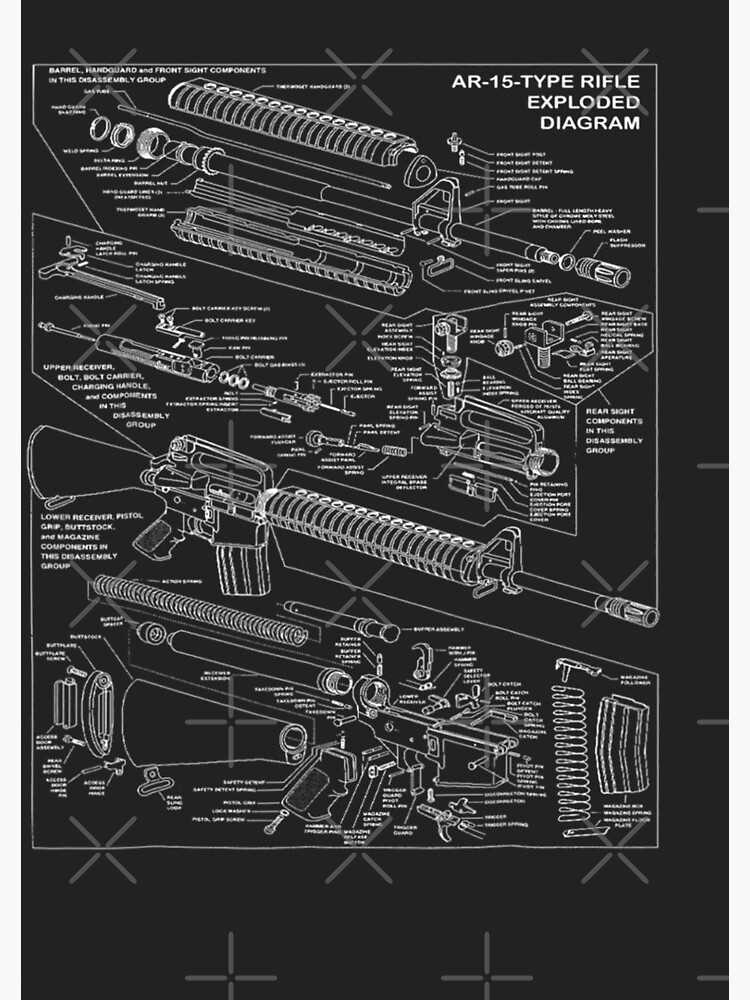

Understanding Core Components of AR-15 Schematics
Begin disassembly by separating upper and lower receivers–this reveals key assemblies without tools. Press the rear takedown pin (1/4″ diameter) fully left, then pivot the upper off at a 45° angle. This exposes the bolt carrier group, charging handle, and buffer tube interface. Verify pin retention; loose fit indicates worn spring (PN# BCM-QD-700BLK) or stripped threads (replace with grade-8 hardware).
Examine bolt face markings–the last two digits of the serial (e.g., “15”) denote manufacturer (Colt, Daniel Defense) while letters “MPI” confirm magnetic particle inspection. Carbon buildup here indicates subsonic round use; clean with bronze bore brush dipped in Militec-1. Gas rings (6-8 coils) should compress evenly under thumb pressure; replace if spacing exceeds .010″.
Buffer weights alter recoil impulse–H (2.9 oz) for 5.56 NATO, H2 (3.8 oz) for suppressed setups. Match buffer spring length (12.25″-13.5″) to weight; mismatches cause bolt bounce or failure to feed. Carrier key screws (Torx T20) must be staked; check for shear marks indicating previous over-torque (re-torque to 25 in-lbs).
Handguard mounting demands precise indexing–low-profile gas blocks sit 0.125″ below barrel centerline. Delta ring spring tension should require 10-15 lbs force to rotate; weaker springs cause muzzle rise. Stock adjuster detents (0.055″ diameter) wear faster with collapsible models–carry spare (Magpul #MAG518).
Extract silencer-ready threads using 1/2×28 or 5/8×24 pitch gauge–cross-threading risks catastrophic failure. Flash hider alignment affects grouping; A2 models crown at 11°, Phantom variants at 45°. Test fire with 62gr M855 before zeroing; inconsistent groupings suggest improper torque (crush washer 35 ft-lbs).
Critical Upper Receiver Assembly Elements and Their Roles
Prioritize a forged 7075-T6 aluminum upper housing for durability–machined variants weigh ~5 oz less but risk stress fractures under sustained rapid fire. Bolt carrier groups (BCGs) with Carpenter 158 steel or 9310 alloy bolts resist cyclic wear better than standard mil-spec; nitride or chrome coatings extend lifespan by 30-40% in high-round-count applications. Forward assists with aggressive serrations reduce slippage during malfunction clearances, particularly in cold-weather or dusty environments where lubrication degrades.
| Component | Material/Caliber Considerations | Failure Impact |
|---|---|---|
| Charging handle | Extended latches (Ambidextrous) in 5.56: 7075-T6; .300 BLK: Titanium | Standard latches shear at ~2,500 rounds; upgraded versions support 10k+ |
| Barrel extension | .223 Wylde barrels tolerate +P loads; 6.5 Grendel requires custom bolts | Mismatched threads strip in |
| Gas tube | Stainless steel for mid-length; carbon fiber for lightweight builds | Clogging in sub-zero temps locks action without antifreeze lubricants |
Opt for low-profile gas blocks with set screws secured by Loctite 242–press-fit variants shift under recoil impulse, altering point of impact. Free-floating handguards using kevlar-reinforced polymer or M-LOK aluminum mitigate barrel harmonics distortion; Picatinny rail sections add ~4 oz but simplify optics mounting. Buffer tube weight selection directly correlates to cyclic rate: H (3.8 oz) for full-auto, H2 (4.6 oz) for semi-auto precision builds.
AR-15 Barrel and Gas System: Critical Insights for Optimal Performance
Choose a barrel length matching your intended use–16–20 inches for precision, 14.5–16 inches for versatility, or 10.3–12.5 inches for maneuverability in CQB. Chromoly steel (4140/4150) resists wear better than stainless, though stainless offers tighter rifling for sub-MOA accuracy. A 1:7 twist stabilizes heavy bullets (62–77gr), while 1:8 handles lighter loads (55gr) without excessive spin. Gas system length directly affects recoil impulse: carbine-length (7″) suits short-barrel builds but increases fouling, mid-length (9″) balances control and reliability, and rifle-length (12″+) reduces port pressure for smoother operation. Avoid mismatched gas tubes–mid-length tubes on carbine-length systems cause over-gassing, accelerating bolt wear.
Critical Adjustments for Reliability and Longevity
Regulate gas flow with an adjustable gas block (Superlative Arms or JP Enterprises) to fine-tune cycling based on ammo type (suppressed/unsuppressed, +P loads). Heavy-buffer setups (H2/H3) mitigate bolt bounce in over-gassed systems but add reciprocating mass. For suppressed use, reduce port size by 0.020”–0.030” via drilling or replace with a low-mass bolt carrier group (e.g., FailZero) to offset increased backpressure. Coat barrels in Melonite/Nitride or Cerakote for corrosion resistance; avoid chrome-lined barrels in precision builds due to inconsistent rifling tolerances. Clean gas tubes with dental picks every 500 rounds–carbon buildup in the tube reduces efficiency, leading to short-stroking.

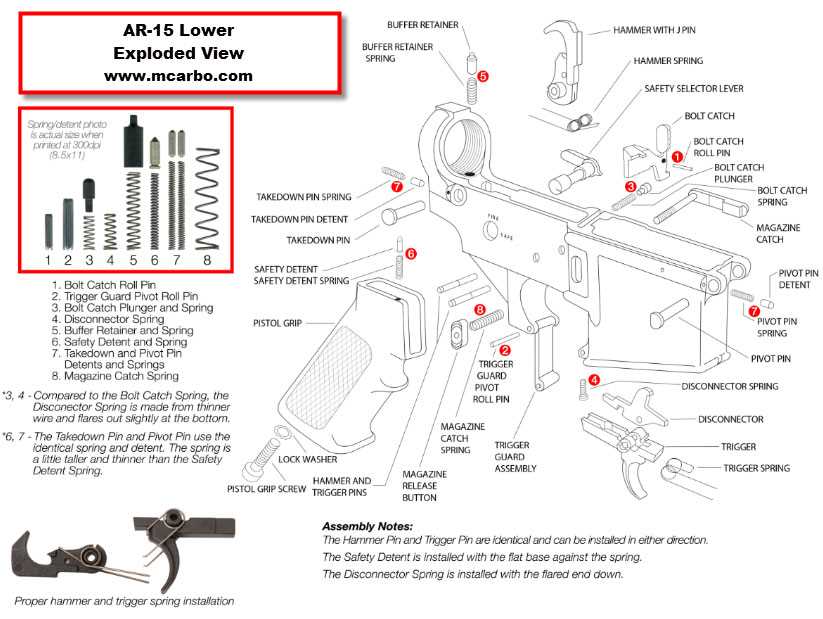

Lower Receiver Components Guide: Step-by-Step Assembly Sequence
Begin with the fire control group housing–insert the trigger assembly first, ensuring the disconnector spring sits above the trigger pivot pin hole. Align the hammer next, compressing its spring slightly while securing it with the hammer pin. Verify both pins rotate freely; binding indicates misalignment.
- Safety selector: Slide it into the left side before attaching the pistol grip–orientation matters (engaged position faces rearward).
- Buffer tube assembly: Thread the castle nut onto the receiver extension, then tighten against the lower’s rear face using a wrench (torque spec: 30-40 ft-lbs).
- Bolt catch: Install early–thread the plunger rod through the left-side hole before attaching its roll pin to avoid interference with the magazine release.
Next, attach the magazine release button to the right, threading the retaining screw until flush–overshooting strips threads. Pair it with the trigger guard, using the same roll pin to secure both. Dry-fit the grip before final tightening to confirm no contact points bind.
- Floorplate (if applicable): Secure last–some aftermarket variants include tension screws that require simultaneous adjustment with the buffer tube.
- Takedown pins: Insert rear pin first (larger detent spring), followed by the front–press firmly until detents click into place.
- Final check: Rack the charging handle while dry-firing to confirm smooth reset; sticky trigger pull signals improper disconnector engagement.
For ambidextrous controls, swap the safety selector before installing the grip–aftermarket extended levers may require modified grip panels. Avoid lubricating fire control internals; dry friction ensures reliable reset. If assembling a polymer lower, reinforce pivot pin holes with metal inserts to prevent wear.
Torque Specifications & Common Pitfalls
Buffer tube castle nut: 35 ft-lbs (min); overtightening cracks polymer lowers. Trigger pin installation: use a roll pin punch to avoid marring. Ejector block angle: 45 degrees–incorrect alignment causes feeding malfunctions. Check magazine well clearance with a loaded PMAG–some billet lowers require slight modification for STANAG magazines.
Critical: Always test-fire before attaching the upper–dumping a magazine confirms no double-feeds or light primer strikes. If the hammer fails to stay cocked, re-examine the disconnector’s engagement surface. Post-assembly, apply a thin coat of grease to moving metal-on-metal contacts (e.g., bolt catch lever).
Bolt Carrier Group (BCG) Disassembly & Critical Inspection Zones
Begin by securing the firing pin retainer pin using needle-nose pliers–pull straight outward without twisting to avoid deforming its 0.078-inch diameter. Once removed, slide the firing pin free; inspect the tapered end for erosion exceeding 0.010 inches or radial cracks under magnification. Replace if defects exceed these tolerances–manufacturers like Toolcraft and NiB-coated models typically last 6,000–8,000 rounds before wear compromises ignition consistency.
- Cam pin: Rotate counterclockwise until disengaged from the carrier’s 45° locking lug channel. Inspect both cam surfaces–glossy wear marks wider than 0.025 inches indicate improper headspace or excessive bolt rotation.
- Gas key: Check torque on its two Grade 8 8-32 screws–torque to 55–60 in-lbs using a T-handle wrench. Staked screws with visible cracking or shearing require carrier replacement to prevent gas blow-by.
- Extractor: Depress firmly while rotating 90° counterclockwise; inspect claw radius for chipping and spring tension. A worn claw (>0.030-inch gap when depressed) fails to retain spent brass–test with a dummy round’s rim thickness.
Carrier Rail & Lubrication Protocol
Disassemble the bolt from the carrier by retracting the bolt assembly fully, then rotating the lugs 45° to align with recessed cutouts. Clean carbon deposits from carrier rails using a nylon brush–avoid steel wool on NiB or DLC coatings to prevent abrasive wear. Wipe rails with a cotton patch soaked in Mil-Spec CLP to remove embedded fouling; resistant deposits dissolve in acetone for 30 seconds before replying with lubricant.
Apply a single drop of grease (e.g., Super Lube NLGI #2) to each of the carrier’s three bearing surfaces:
- Forward contact point on the carrier’s underside (interfaces with upper receiver rails).
- Extractor channel’s rear wall.
- Bolt’s gas ring grooves–rotate rings 120° apart to prevent alignment-induced gas leakage.
Excess lubricant attracts fouling, reducing reliability–nominal thickness should be 0.002 inches or less.
Failure-Prone Areas & Preventive Measures
Inspect the bolt face for micro-cracks using dye penetrant:
- 5% magnification reveals hairline fractures around extractor cutout or firing pin channel.
- MPI-tested bolts (e.g., Carpenter 158 steel) tolerate heat cycles better than standard 9310 alloys.
Gas rings wear unevenly; replace if gap exceeds 0.015 inches when compressed–stacking new rings atop old ones causes inconsistent cycling. Cam path erosion (>0.020-inch deep grooves) indicates insufficient bolt rotation–verify buffer weight matches gas system (carbine springs require H2 buffers for proper dwell time).
