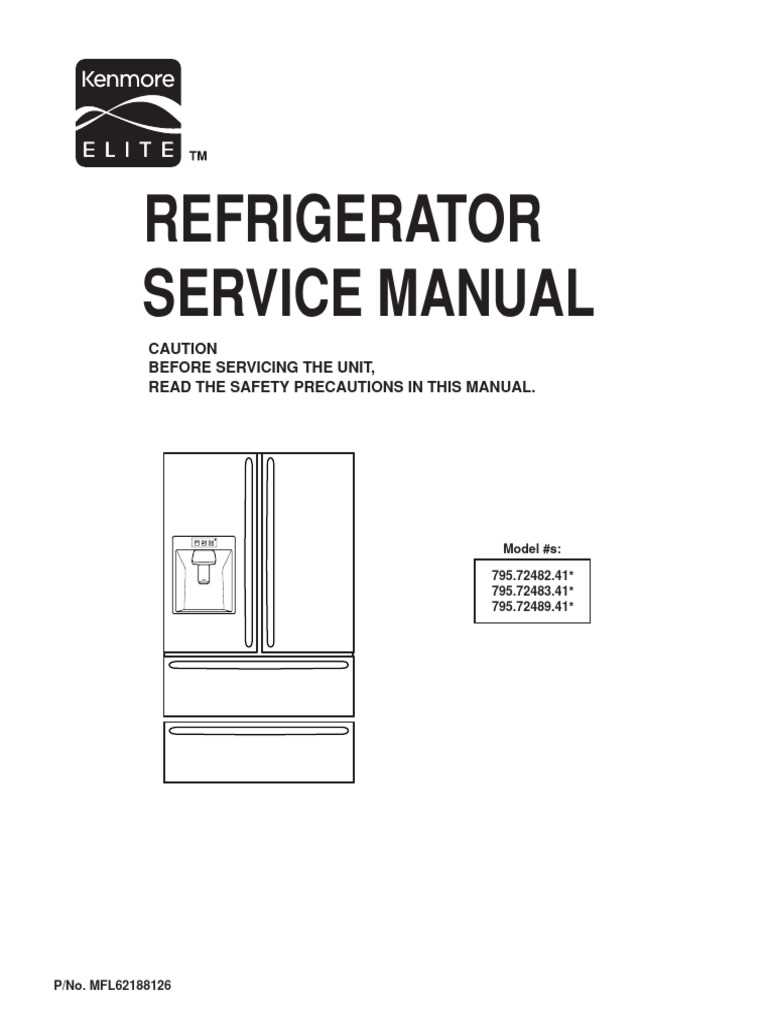

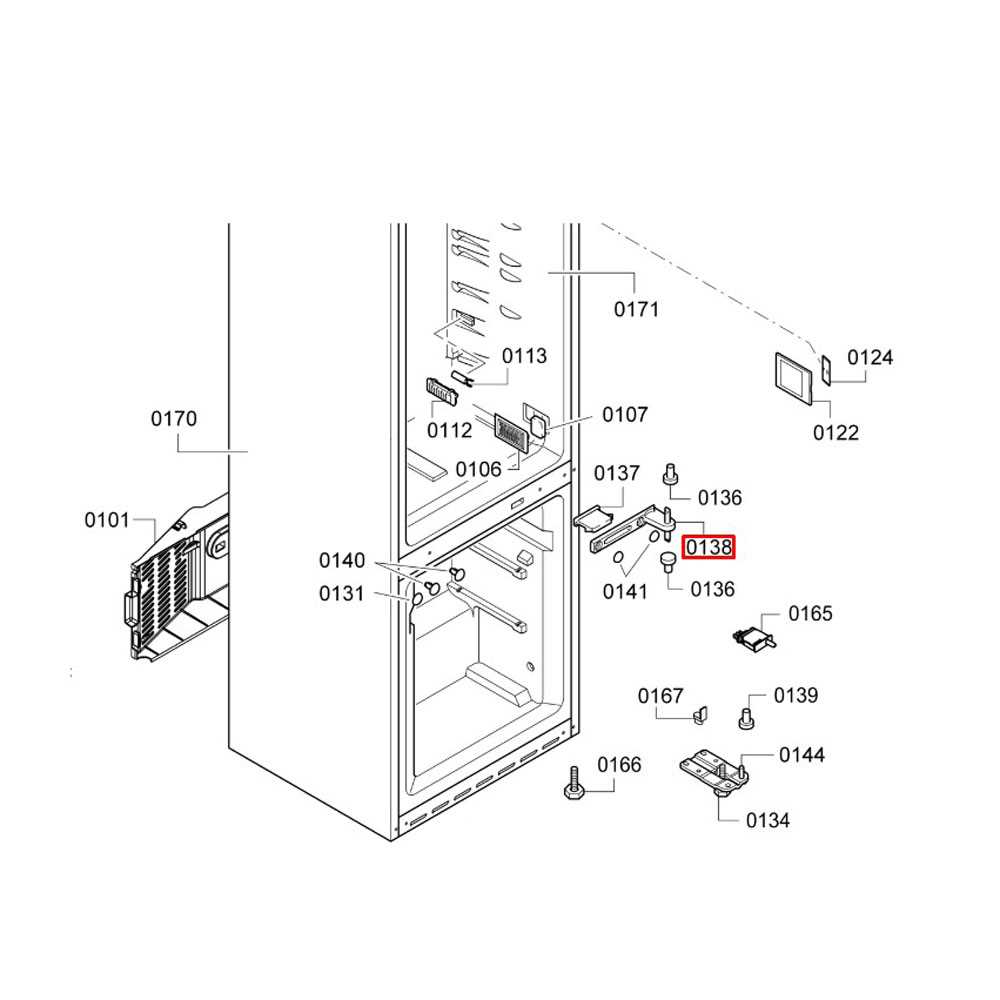

For urgent repairs, refer to the official service manual corresponding to your model number–this document is the most reliable source, containing exploded views and numbered component lists. Models manufactured after 2018 typically feature a QR code on the interior right wall; scan it with a phone to access the latest digital breakdowns without intermediaries. If the QR link fails, extract the model tag from the hinge area and enter it into the manufacturer’s support portal–filter results by “technical illustrations” to bypass generic troubleshooting guides.
Third-party suppliers often mislabel subcomponents; cross-reference serial codes from the manual with online part vendors to avoid mismatches. The evaporator fan assembly, for instance, varies between brushed and brushless motor designs–verify voltage ratings (120V vs. 240V) before ordering. For defrost thermostats, check resistance values at room temperature: 10-15 ohms indicates operational status, while infinite resistance signals failure. Ignoring these checks risks system overloads or compressor damage.
If original schematics are unavailable, disassemble the rear panel to inspect wiring harnesses–label each connector with tape to prevent reversed polarity during reassembly. The condenser coil layout differs between side-by-side and French-door configurations; note tubing patterns (U-bend vs. serpentine) to correctly identify adjacent components like the start relay or capacitor. For door-in-door models, the dispenser control board uses non-standard microswitches–procure replacements from authorized distributors only, as aftermarket equivalents may lack ESD protection.
Understanding Your High-End Cooling Unit’s Internal Layout
Locate the evaporator coil behind the rear panel inside the freezer compartment–typically secured by screws or clips. Label each screw as you remove them to avoid confusion during reassembly; manufacturers often use varying sizes. The coil’s frost buildup indicates airflow issues, requiring a defrost heater replacement, which mounts adjacent to it.
Inspect the condenser fan motor near the base of the appliance, accessible via the rear or bottom grille. Verify blade rotation with a multimeter set to continuity; proper resistance should read between 100-150 ohms. Replace the motor if readings exceed 200 ohms or show no signal.
Master control board failures often mimic compressor issues. Check for burnt relays or swollen capacitors on the board, located behind the front kickplate or inside the top-mounted housing. Use a schematic specific to your model year (e.g., 790.xxx or 106.xxx) to trace power flow from the thermistor to the main relay.
The dual evaporator damper door between fresh food and freezer sections requires delicate handling. Pry it open with a plastic tool to avoid breaking the fragile plastic gears. Lubricate the pivot points with food-grade silicone grease every 24 months to prevent sticking.
Key Components Hidden Behind Sealed Panels
Water filter housings in side-by-side units often corrode at the brass fitting connection. Apply pipe thread sealant (rated for potable water) before reinstalling to prevent leaks. Replace the entire housing if pitting exceeds 1mm depth.
Defrost thermostats snap onto the evaporator tubing and fail silently–test with a hairdryer to simulate defrost cycles. A working thermostat will click at 45°F (7°C); no click means replacement. Mount the new sensor in the exact original position to maintain factory calibration.
Ice maker drive mechanisms use nylon gears prone to stripping. Apply dielectric grease to the gear teeth during installation to extend lifespan. Programmable control modules for these units cost $80-$120, but rebuilding with third-party gears cuts costs to $15-$25.
How to Pinpoint Critical Elements in Your Premium Cooling Unit
Begin by removing the lower rear panel–this grants access to the compressor, condenser coils, and startup relay. Use a 1/4-inch nut driver to detach the screws holding the cover in place. Store fasteners in a labeled container to avoid misplacement during reassembly. The compressor is typically a black, cylindrical component with copper tubing; its copper lines connect to the condenser coils, which appear as a grid-like metal structure.
To locate the evaporator fan, open the freezer section and remove the interior back panel. You’ll need a Phillips screwdriver to unfasten the screws securing the panel. The fan is positioned behind this panel, often encased in a plastic housing near the evaporator coils. Listen for a gentle hum when powered–this confirms the fan’s operational status. If silent, check the motor or blades for obstructions.
Identify the defrost heater by tracing the evaporator coils. This component is usually a thin, translucent glass tube or a wire-wrapped rod running along the coils. Disconnect power before handling–this element can retain residual current. If frost buildup is excessive, the heater may be faulty; use a multimeter to test for continuity.
Examine the water filter housing near the upper right interior wall, typically behind a movable shelf. Twist counterclockwise to release–some models require pushing a release tab first. The filter should be replaced every six months; check the model number printed on the old unit to ensure compatibility. If water flow is slow, the inlet valve behind the base grille may need inspection.
For electronic controls, remove the front kick plate below the doors. Most units have a toe grille held by plastic clips–wedge a flathead screwdriver beneath and pry gently. The main control board is mounted here, with wiring harnesses plugged into labeled sockets. Refer to the service manual for exact pinouts if troubleshooting LED displays or cooling cycles.
- The air damper assembly sits between fresh food and freezer compartments, regulating cold airflow. Access it by removing the rear panel in the fridge section–look for a small plastic door with a hinge mechanism.
- Door seals (gaskets) should be checked monthly for cracks or gaps. Run a dollar bill along the seal; if it slides freely, replacement is needed.
- Condenser fan motors fail quietly–listen for irregular noises near the compressor area.
Ice maker components vary by model but typically include a motor module, mold, and water inlet tube. The inlet tube is prone to freezing–apply heat with a hairdryer on low to thaw. If ice production stalls, test the motor gear rotation manually by pressing the test button (if available) or cycling power.
The temperature sensors are small, cylindrical probes attached to the evaporator or fridge walls. Their wiring harnesses connect to the main board–use a multimeter to verify resistance values (consult the manual for expected readings). Faulty sensors disrupt cooling cycles; incorrect resistance usually triggers error codes.
Step-by-Step Guide to Accessing the Freezer and Main Compartment Internal Component Schematics
Begin by locating the technical documentation for your cooling unit model–this is typically found on the manufacturer’s official support portal or included in the original paperwork. If physical copies are unavailable, search using the serial number engraved on the interior sidewall near the upper back panel or behind the crisper drawers. Some brands archive schematics under “service manuals” rather than consumer guides; filter results by year and model variant to avoid mismatches. For older units, third-party repair databases like AppliancePartsPros or RepairClinic may host downloadable PDFs, though verify file accuracy against the serial number’s suffix for revisions.
Disassembling for Direct Access
Unplug the unit and remove all contents, then detach shelves and bins by lifting them from their tracks–this exposes the rear panel securing screws. Use a ¼-inch nut driver to remove the panel, noting screw placements; some models use hidden clips instead. The evaporator cover (typically white plastic) may require prying with a flathead screwdriver, but avoid forcing it to prevent cracking. Once removed, the internal wiring and sensor layout will match the schematic’s exploded view–cross-reference wire colors and connector types if repairing or replacing components like defrost heaters or thermistors. Always reattach panels in reverse order, ensuring gaskets seal properly to prevent condensation leaks.
Key Components to Replace in High-End Cooling Units and Where to Find Them on Schematics
Begin troubleshooting by locating the evaporator fan motor–critical for airflow circulation in side-by-side models–positioned behind the rear interior panel near the freezer compartment. Schematics typically mark this as “Fan Assembly” or “Fan Motor” near the coil housing, often adjacent to the defrost heater terminals. Verify part numbers on the motor’s label; common replacements include WR60X10269 or EAP1176935.
Water filters demand regular inspection, especially in units with built-in dispensers. The filter’s housing resides either behind the base grille or inside the upper-right corner of the fresh food section, identifiable by a twist-lock mechanism. Diagrams label this as “Water Filter” or “Inlet Valve Assembly,” with standard replacements like W10295370A or UKF8001. Always flush the system after installation to prevent sediment buildup in lines.
| Component | Typical Diagram Label | Common Part Numbers | Schematic Location |
|---|---|---|---|
| Evaporator Fan | Fan Motor/Assembly | WR60X10269, EAP1176935 | Rear freezer panel |
| Defrost Heater | Heater Element | WR55X10025, 2321716 | Behind evaporator coils |
| Water Inlet Valve | Valve Assembly | W10408179, WPW10324340 | Rear lower access panel |
Faulty defrost heaters cause ice buildup on coils, usually situated behind the evaporator assembly in bottom-freezer configurations. Diagrams denote this as “Heater Element” or “Defrost Heater,” with replacements like WR55X10025 requiring specific wattage verification (typically 500-700W). Disconnect power before testing continuity–zero ohms indicates failure.
The water inlet valve, prone to mineral clogging, resides behind the lower rear panel, marked as “Valve Assembly” in exploded views. Test for 120V at the solenoid during dispenser activation; silent operation signals replacement need. Common valves (W10408179) occupy a ¼-inch compression fitting–ensure tubing matches before installation.
Door seals (gaskets) degrade over time, visible as condensation or frost near edges. Schematics list these as “Door Gasket” or “Magnetic Seal,” with part numbers like WR22X10330A for French-door variants. Clean surfaces with mild soap before applying; improper alignment compromises efficiency. Use a dollar bill test–if it slides easily when closed, replacement is necessary.
Electronic control boards manage temperature settings, often situated behind the interior rear panel or inside the dispenser housing. Labelled as “Main Control” or “Display Board,” replacements like WR55X10942 require firmware compatibility checks. Disconnect the battery backup before installation to prevent errors–refer to the schematic’s wiring harness diagram for exact pin assignments.
