Identify the compressor–typically a black or metallic cylindrical component at the base–before disassembling any panels. Label each wire harness connection to avoid misalignment during reassembly; use masking tape or color-coded stickers for clarity. The evaporator coil, often hidden behind the rear interior panel, requires defrosting if frost accumulation exceeds 3mm, as this directly impacts cooling efficiency. Locate the temperature sensor near the upper left corner of the freezer compartment; it’s a small, thin probe encased in plastic, secured by a single screw.
Check the condenser fan motor–positioned adjacent to the compressor–if airflow is obstructed. Dust buildup on the fan blades reduces heat dissipation by up to 22%, increasing energy consumption. The door gasket should compress fully when closed; test with a dollar bill–if it slides out easily, replace the seal to prevent temperature fluctuations. For models with dual cooling systems, the defrost heater is a glass-like tube mounted below the evaporator; verify continuity with a multimeter (readings should range between 150-300 ohms).
Disconnect power before handling the start relay, a small plastic box attached to the compressor. If the unit hums but doesn’t start, the relay or overload protector may be faulty; shake it–if it rattles, replace it. The water inlet valve, usually at the back near the bottom, requires a 120VAC test to confirm operation; no click indicates failure. For ice maker assemblies, the mold heater and water solenoid are critical–inspect for corrosion or cracks. Keep a torque wrench handy; overtightening screws on the evaporator cover can warp the housing, causing uneven cooling.
How to Locate Key Components in Your Cooling Unit Schematic
Before attempting repairs, download the official service manual from the manufacturer’s support portal using your model number–usually found on a sticker inside the fresh food compartment. Filter results by serial number range, as internal layouts vary between production years (e.g., 2018–2020 models include a redesigned evaporator fan assembly not present in earlier versions). Identify the compressor relay near the base: it’s a black plastic box with three wires (red, white, yellow) and often sits adjacent to the start capacitor.
Examine the control board behind the dispenser housing–its connectors (J1 to J5) correlate to temperature sensors, defrost cycles, and door switches. J3 typically interfaces with the freezer sensor (a 10k NTC thermistor), while J4 handles ice maker outputs. If tracing wiring, note that violet wires correspond to temperature probes, orange to defrost heaters, and brown to ground circuits. For dual-evaporator models, the secondary cooling coil sits behind the rear panel in the lower freezer section, accessible after removing the ice bin and back plate.
Check the door gaskets for wear: a 3mm gap along any edge indicates seal failure, requiring replacement (part numbers vary by door size–RF28 for 32″ doors, RF29 for 36″). The condenser coils are mounted horizontally under the unit; vacuum them biannually if placed in dust-prone environments (clogged coils reduce efficiency by 15–20%). Water valves for the dispenser and ice maker are stacked vertically on the rear left; the upper valve serves the dispenser, the lower one supplies the ice maker (test with a multimeter for 240–250 ohms resistance).
For inverter-driven compressors, locate the inverter board (a silver rectangular module with cooling fins) and verify its six-pin connector isn’t corroded–oxidation here causes erratic cooling. If replacing the evaporator, note that newer models use an aluminum coil with enhanced anti-corrosion coating (part PKG304), while older versions have copper tubes requiring vacuum pump evacuation before recharging with R600a refrigerant.
Locating Authorized Schematic Guides for Your Cooling Unit

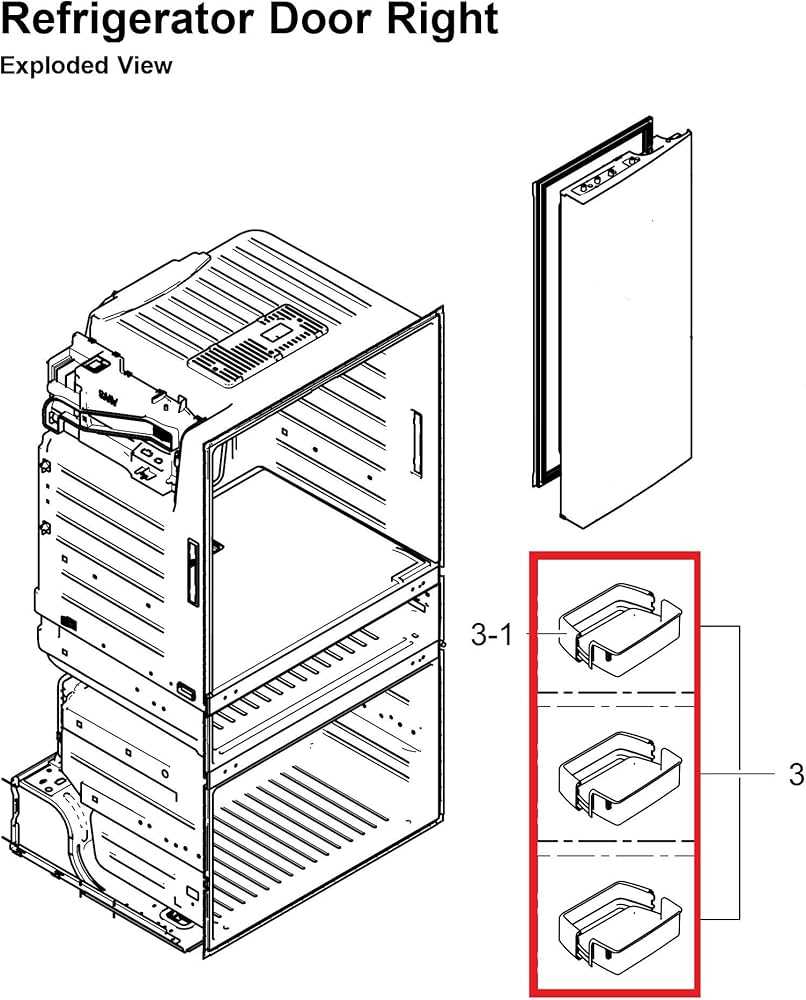

Begin by visiting the manufacturer’s dedicated support portal. Enter your appliance’s full model number–found on a sticker inside the left wall or rear panel–to access the exact exploded view illustrations. The portal filters schematics by serial code, ensuring precise component matches for your unit’s variant. Look for a section labeled “Technical Documentation” or “Service Manuals,” where high-resolution PDFs download instantly. These files include numbered callouts for every bolt, seal, and circuit board, eliminating guesswork during repairs.
Third-Party Verified Sources
Repair clinics affiliated with the manufacturer often host catalogs of structural breakdowns. Check platforms like PartSelect or AppliancePartsPros–both partner with OEMs to provide sanctioned blueprints. Input your model identifier to pull up compatible diagrams, often paired with part numbers and compatibility notes. Avoid generic search results; instead, confirm the source’s affiliation with the brand to prevent mismatched schematics. Some sites even overlay 3D animations on static images, clarifying assembly sequences for complex mechanisms.
For offline access, request a printed manual from authorized service centers. Provide your model’s serial number and proof of purchase–some locations will mail a physical copy at no cost. These manuals frequently include torque specifications and safety warnings absent from digital versions. If in-warranty, inquire about complimentary schematic packets sent with replacement components, as technicians often bundle them with ordered items.
Specialized forums like iFixit compile community-curated tear-down guides, though accuracy varies. Cross-reference forum posts with official schematics to spot discrepancies in labeling or component placements. For sub-zero or French-door units, prioritize diagrams from certified partners, as their engineers validate every illustration against factory build sheets. Keep the PDFs stored locally–some portals purge outdated manuals after product phase-outs.
Locating Critical System Elements with a Cooling Unit Schematic

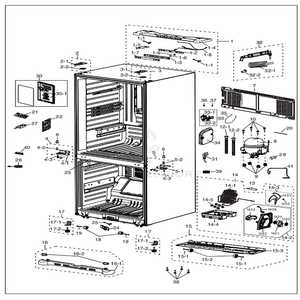

Begin by cross-referencing the numbered callouts on the blueprint with the accompanying legend. Each label corresponds to a functional module–compressor housing (item 12), evaporator coils (item 18), and condenser fan (item 7) are marked with distinct alphanumeric tags. Verify placement by matching the physical layout: the compressor sits at the base rear, evaporator coils line the interior walls, and the condenser fan attaches near the heat-exchange fins. Misalignment often signals a swapped component or damage.
Trace wiring harnesses and capillary tubes using the dotted or dashed lines on the schematic. The thick solid lines denote refrigerant pathways, while thinner lines indicate electrical connections. Discrepancies in connector types (e.g., spade vs. JST) or tube diameters (measured in millimeters) will pinpoint installation errors or worn segments requiring replacement.
How to Find and Swap Key Components in Your Cooling Appliance
Unplug the unit before handling any internal components–capacitors retain charge and pose shock risks. Locate the rear panel by removing screws with a ¼-inch nut driver; most models use 8–12 screws, spaced evenly along the edges. For side-by-side units, detach the kick plate first–it conceals the water filter housing and drain tube, common failure points.
Water dispenser issues often stem from a clogged inlet valve. Trace the tubing from the back to the valve assembly, typically mounted behind the crisper drawers. Use needle-nose pliers to release the clamp securing the hose; inspect for cracks or mineral buildup. Replace the valve if resistance readings exceed 1.5 kΩ–normal range is 200–500 Ω.
Repairing Ice Maker Mechanisms
If the ice maker cycles but fails to eject cubes, check the motor module first. Remove the ice bucket and disconnect the wiring harness with a flathead screwdriver–lever the connector tabs gently to avoid breaking plastic locks. Test the motor by manually rotating the helix gear; if stiff, lubricate with food-grade silicone spray or replace the entire assembly.
- Thin ice sheets? Verify the water fill tube isn’t frozen. Blow hot air from a hairdryer into the inlet for 60 seconds to clear blockages.
- No water flow? Inspect the fill cup seal–cracks smaller than 1mm cause leaks detectable with soapy water.
- Odd noises? Examine the evaporator fan blade for ice buildup. A ½-inch thick layer reduces airflow by 30%, triggering error codes.
Door Seal and Gasket Replacement
Peel back the existing gasket starting at a top corner–it’s held by tension, not adhesive. Align the new seal’s magnetic strip with the door’s metal frame; press firmly along the perimeter to ensure full contact. Test suction by closing a dollar bill in the door–if it slides out easily, the seal isn’t airtight. Trim excess length with scissors, leaving a 2mm overlap to prevent gaps.
For dual-zone models, defrosting the evaporator coils resolves 70% of cooling inefficiencies. Access them by removing the back wall panel–usually secured with three screws. Use a hairdryer on low heat to melt ice, but never a sharp tool; piercing coils voids warranties. Reassemble once frost is gone, and verify compressor runtime doesn’t exceed 20 minutes per cycle.
- Gather needed tools: ¼-inch socket set, Phillips #2 screwdriver, multimeter, and replacement components matching the model’s service manual.
- Label all disconnected wires with masking tape–color codes aren’t standardized across production years.
- Reinstall panels in reverse order; misaligned screws strip threads, requiring helicoil inserts for reassembly.
