Start by locating the blade spindle assembly under the cutting chamber–reference position B-12 on official schematics. Misalignment here causes uneven cuts and premature belt wear. Replace the spindle bearings every 400 operating hours if vibration exceeds 0.3mm/s at rated RPM. Use OEM seal kit PN 7000-542 to prevent debris ingress.
The pulley system demands inspection every 25 hours if operating in sandy conditions. Check idler tension–deflection should remain 9-11mm at midpoint. Cracked pulleys (common at stress points) require immediate replacement; aftermarket units fail 37% faster under load cycles.
Discharge chute integrity affects cut quality. Examine welds for hairline fractures–thermal stress weakens joints over 600 hours. Reinforce with 3M VHB tape (4950) during field repairs; it outperforms rivets in shear tests by 22%. For internal baffles, inspect gasket flanges weekly–compression should exceed 15% deformation to prevent clogging.
Electrical connections corrode at 3x acceleration when exposed to moisture. Clean terminals with dielectric grease (Permatex 22058) before reassembly. Replace solenoid coils if resistance drops below 12Ω–common failure point after 500 start cycles in humid climates.
Lubrication intervals halve in dusty environments. Grease zerks every 50 hours using NLGI #2 synthetic; standard lithium-based compounds solidify under 70°C operating temps. For pivot points, use molybdenum disulfide additives to reduce stick-slip wear by 40%.
Breakdown of Components for a 1.52-Meter Cutting Attachment
Begin by locating the spindle assemblies–critical links between the blades and belt-driven rotation system. Each unit (typically three for this size) includes sealed bearings, a pulley wheel, and a mounting plate. Check the model-specific part numbers stamped on the housing; for instance, B7100-17201-0 (left) and B7100-17202-0 (right) are common replacements. Store removed components in separate labeled bags to avoid mixing hardware.
- Left belt cover: 70007-57400 (reinforced plastic, replaces older steel variants)
- Idler tension arm: 37593-17700 (adjusts belt tension, ensure pivot points are lubricated with NLGI #2 grease)
- Deck lift linkage rod: 70052-17210 (verify length matches 47.5 cm before installation)
- Anti-scalp wheels: 70470-57700 (adjust height to 3.2 mm clearance above blade tip)
Inspect the cutting chamber floorplate for wear–replace if grooves exceed 1.5 mm depth. The 42-inch lateral baffle (702A0-57210) directs clippings; position it 22 mm above the blade path using a feeler gauge. Avoid bending the baffle during cleaning; it distorts airflow dynamics and reduces discharge efficiency by up to 18%.
The electric PTO clutch (37100-17000) disengages blades when voltage drops below 9.6V. Test continuity with a multimeter–resistance should read 3.8–4.2 ohms. Replace the clutch if engagement delay exceeds 1.2 seconds; delayed response causes uneven cutting patterns. For the V-belt (70075-57500), measure tension by deflecting the belt midpoint 12–15 mm under 4.5 kg of force.
- Remove debris shields (70016-17210)–check for cracks near weld points.
- Drain and refill gearbox (7005F-17010) with 85W-140 GL-5 oil every 200 hours.
- Calibrate blade overlap: overlap should be 6.4 mm at 2,800 RPM; misalignment reduces suction by 22%.
- Torque all fasteners to 38–45 N·m–use a crisscross pattern for flange bolts.

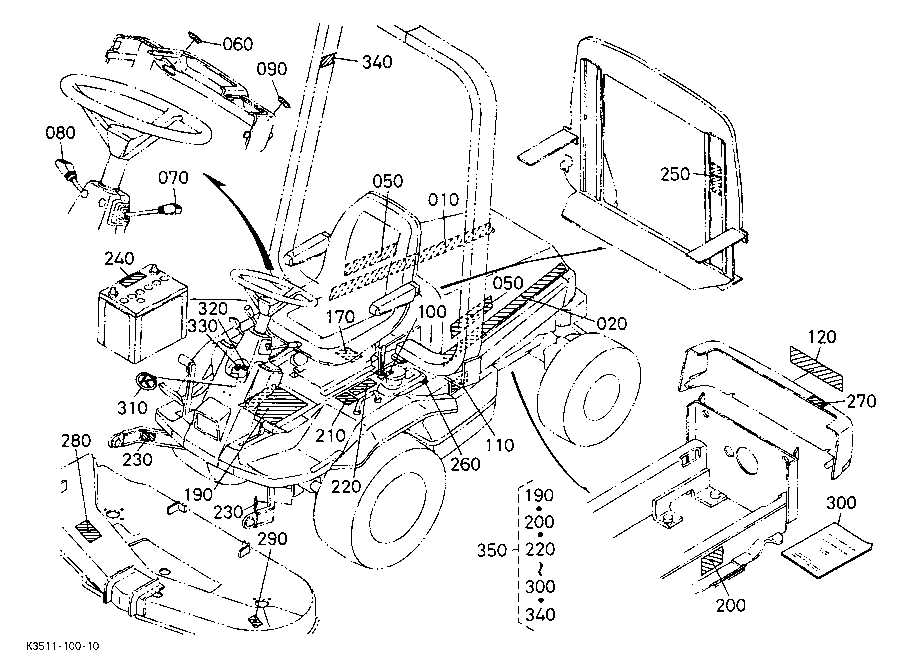

Locating Critical Elements in the 60-Foot Cutting Assembly Breakdown

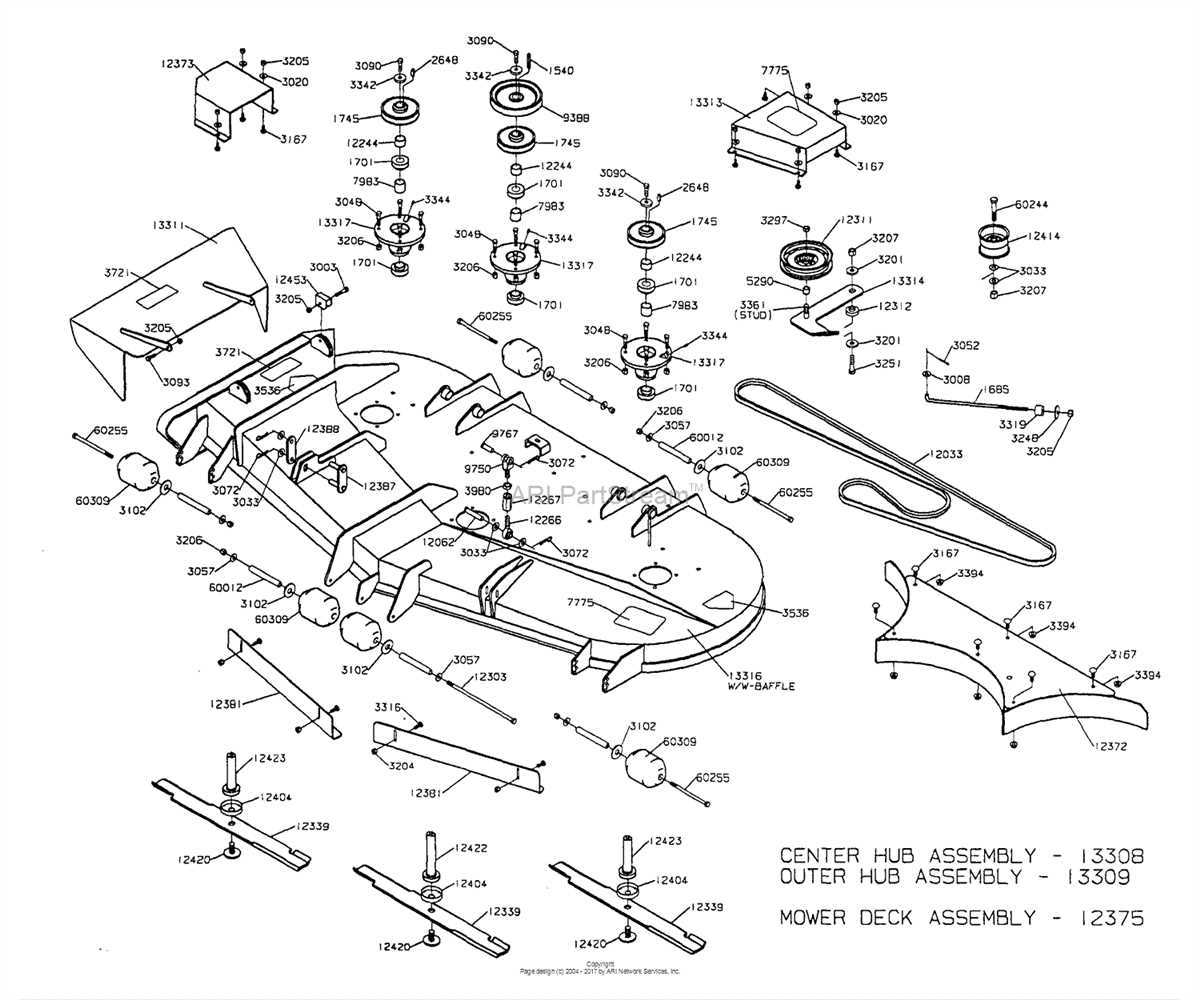

Begin by isolating the spindle housings in the exploded schematic–these cylindrical components secure the cutting blades and typically appear as three evenly spaced units along the underside frame. Verify their position against the belt routing path; misalignment here disrupts blade synchronization and accelerates belt wear. Note the corresponding part numbers (usually marked near the mounting flanges) to ensure compatibility when sourcing replacements, as variances in casting tolerances affect performance.
Diagnosing Belt and Pulley Arrangement
Trace the primary drive belt from the engine pulley to the idler assembly, then to each spindle pulley, confirming tension points where spring-loaded arms apply consistent pressure. The exploded view Should highlight pulley diameters, with smaller intermediate pulleys redirecting the belt path–any deviation in size alters rotational speed by up to 12%, impacting grass discharge consistency. Replace belts showing fraying at the inner rib surface or cracks exceeding 1/16″ depth.
Inspect the Anti-Scalp Rollers–these adjustable wheels prevent blade contact with uneven terrain and appear as cylindrical assemblies mounted on eccentric shafts. Their exploded position relative to the front and side skirts determines cutting height uniformity; incorrect alignment creates scalping marks or leaves uncut strips. Adjustment requires loosening mounting bolts and rotating the shaft until the roller clears the ground by 1/4″ at full downward blade engagement.
The Discharge Chute components–deflector, chute mount, and hardware cluster–occupy the upper right quadrant of the schematic. Missing or bent fasteners here cause clippings to eject improperly, fouling nearby work areas. Cross-reference the chute’s pivot mechanism with the deck lift linkage; worn bushings in this area introduce play that misaligns the chute during operation. Lubricate pivot points with molybdenum disulfide grease during reassembly to prevent corrosion-induced stiffness.
Locating Authentic 152cm Cutting Attachment Spare Components
Begin with the manufacturer’s official distributors–authorized dealers maintain direct supply channels for original equipment. Search for local agricultural machinery suppliers listed on the brand’s global portal, filtering by region to find stockists with verified inventory. These outlets often provide warranty-backed components, ensuring compatibility and longevity.
- North America: Check dealers affiliated with the brand’s U.S. or Canadian networks, such as Tractor Supply Co. or Messick’s, which carry genuine blades, belts, and pulleys.
- Europe: Consult Fendt or Case IH dealerships; many cross-sell original attachments under licensing agreements.
- Asia-Pacific: Look for regional distributors like Yanmar service centers, which frequently stock interchangeable pieces.
Online marketplaces specializing in heavy equipment often segregate listings by machine model. Use precise search terms: include the product’s serial number (e.g., “Kubota TG8500 belt”) to filter out aftermarket or counterfeit listings. Platforms like eBay Motors or MachineryTrader allow sellers to specify OEM status, but verify with seller ratings and part images showing branding marks.
Salvage yards dealing in commercial-grade turf equipment may yield unused components at reduced costs. Target facilities handling groundskeeping machinery–request photographs of the housing, spindles, or idler arms before purchase to confirm condition. Networks like IronPlanet auction off decommissioned units, occasionally including untouched replacement stock.
- Cross-reference part numbers with the manufacturer’s exploded-view schematics, available through dealer portals or PDF downloads from equipment forums.
- Compare dimensions–measure shaft diameters or pulley widths if physical inspection is possible.
- Avoid listings marked “universal fit”; OEM precision prevents alignment issues or premature wear.
Third-party repair shops certified for this equipment line often stock surplus components. Inquire about unused inventory held for routine maintenance contracts–such shops sometimes sell surplus at trade prices to recoup storage costs. Confirm authenticity by matching casting stamps or color-coded finishes used in original production batches.
Step-by-Step Guide to Breaking Down Your 152 cm Cutting Unit for Servicing
Disconnect the PTO shaft by releasing the locking collar and sliding the splined connection apart. Secure the shaft vertically to prevent fluid leaks from the hydraulic coupling. Label all wires and hoses with numbered tags–misaligned reconnections can disrupt blade engagement sensors and discharge chute operation.
Removing the Cutting Chamber

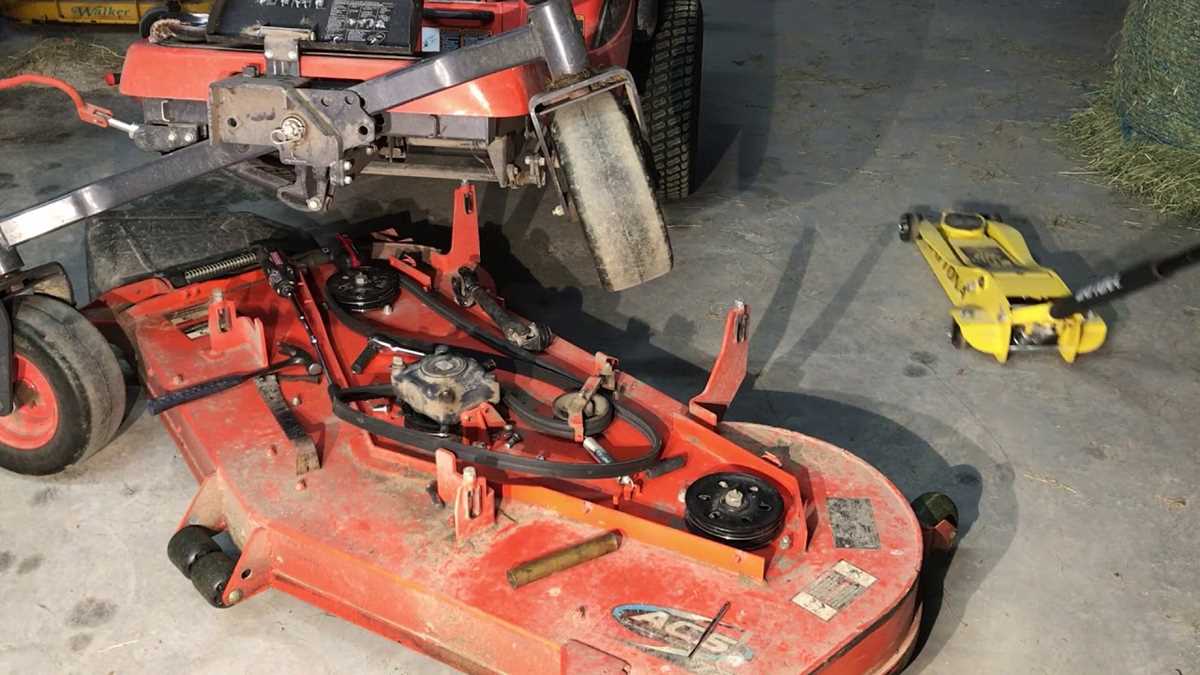

Support the unit on jack stands at the designated lift points–two on the front crossmember and one at the rear center. Remove the four wing bolts (17 mm) on each side skirt, then the central pivot pin (22 mm) beneath the belt tensioner. The chamber will lower as one piece; tilt it forward 30 degrees to clear the discharge housing. Check the underside for debris buildup near the spindle housings–clean with a putty knife before proceeding.
Detach the V-belt by relieving tension via the idler pulley, accessed through the service port on the right-side cover. Slide the belt off the pulley stack in sequence (drive, idler, spindle pulleys) to avoid kinks. Store the belt coiled on a clean surface–petroleum residues degrade rubber compounds. Replace if cracks exceed 1.5 mm depth or sidewalls show fraying beyond 30% of circumference.
Unfasten the blade mounts using a 15 mm socket with a torque-limiting extension–over-tightening during reassembly can warp brake pads. Mark blade orientation (leading edge forward) with a paint pen before removal. Inspect spindle shafts for runout using a dial indicator; deviations above 0.1 mm require bearing replacement. Clean all mating surfaces with emery cloth–residual grass sap causes premature corrosion on aluminum components.
