If your 42-inch mower housing shows uneven wear or fails to engage smoothly, replace the drive belt immediately. Use OEM belt #942-04323–its reinforced polyester cords resist stretch under load, lasting 25–35% longer than generic alternatives. Match tension precisely: thread slips at 12–15 lbs pressure; overtightening bends spindles.
Inspect the four blade spindles quarterly. The front left bearing (PN 16999) typically wears first–listen for metallic grinding at idle. Grease nipples on each spindle accept NLGI #2 lithium complex; overpacking races expels excess through seals, attracting debris and accelerating failure. Rotate blades 180° every 50 hours to equalize edge wear; balancing weights must stay within ±½ oz tolerance to prevent vibration damage.
Rebuild the cutting height adjustment mechanism with stainless steel washers (PN 239887) instead of zinc-coated–salt spray corrodes threads in 8–12 months, seizing linkages. Use nylon locknuts on pivot arms; torque to 20 ft-lbs. If linkage holes elongate beyond ¼” diameter, drill and install flanged bushings to restore precision; misalignment skews blade overlap by up to 1.5 inches, scalping turf.
The PTO clutch brake assembly (PN 767854) requires annual disassembly. Replace friction discs when grooving exceeds 0.020″–thinner plates slip under load, causing 300°F+ spindle heating. Clean flyweights with acetone; residue causes erratic engagement. Bench-test spring tension: 18–22 lbs pull engages smoothly; weak springs delay blade spinup, stressing the engine drive plate.
Replace idler pulley bearings (PN 14285) when lateral play exceeds 0.005″. Press-fit bearings onto shafts using a hydraulic arbor; hammer strikes misload races, causing premature spalling. Lubricate only with silicone-based grease–petroleum-based thickens in cold ambient temperatures, increasing drag torque by 40% at 32°F. Align all pulleys within 0.010″ using a straightedge; misalignment accelerates belt sidewall wear, halving service life.
Identifying Components for Your 5000-Series 48-Inch Cutting Housing
Start by locating the spindle assembly at the center of each blade mounting point–these are secured with three bolts arranged in a triangular pattern. Use a 15mm socket to remove them, but first, tilt the unit on its side to drain residual oil from the gearboxes.
Inspect the idler pulleys (part #141015) for wear–replace if grooves exceed 0.5mm in depth or if the bearing produces audible grinding. The drive belt (model 144959) should have uniform tension across its width; adjust the spring-loaded tensioner arm if slack exceeds 1/4 inch.
For the cutting assembly’s lift mechanism, focus on the lift rod linkages (item 141671) connecting the pedal to the engagement lever. Lubricate pivot points with marine-grade grease to prevent corrosion–this extends operational life by 30-40% in high-moisture environments.
| Component | OEM Part Number | Torque Specification |
|---|---|---|
| Spindle Bolt (M8) | 141563 | 45-50 ft-lbs |
| Blade Bolt (M12) | 141350 | 70-75 ft-lbs |
| Gearbox Drain Plug | 141782 | 20-25 ft-lbs |
Reattach the side discharge chute (serial 141201) using the original mounting brackets, ensuring the tab aligns with the notch on the housing edge. Misalignment causes clippings to escape, reducing mulching efficiency by 18%.
When replacing blades (variant 141116), balance them using a magnetic balancer–unbalanced blades induce vibration at 3,200 RPM, damaging spindle bearings within 20 operating hours. Verify the cutting edge’s angle: 40° bevel maintains optimal sharpness for 12-15 mowing hours.
Check the anti-scalp rollers (code 141420) for flat spots–these should rotate freely when lifted manually. Replace immediately if diameter falls below 1.75 inches, as reduced ground clearance increases deck scraping risk on uneven terrain.
For storage, apply a thin coat of corrosion inhibitor to all unpainted metal surfaces, then disengage the drive system and elevate the cutting assembly to prevent flat spots on tires (size 16×6.5-8). Store indoors at 40-70°F to preserve belt elasticity and hydraulic seals.
Identifying Critical Elements in the 48-Inch Mower Cutting Unit Build
Begin by locating the spindle housings–four in total, mounted along the underside of the cutting platform. Each contains a bearing assembly and a pulley system that transfers power from the drive belt. Inspect the housings for wear, particularly around the flange edges where debris accumulation can accelerate corrosion. Mark their positions with a punch before disassembly to ensure correct reinstallation; the leftmost spindle differs slightly in spacing from the others.
The blade engagement mechanism consists of two primary linkage arms and a tension spring. The arms connect to the lever near the operator’s position, extending downward to a pivot bracket beneath the frame. Lubricate the pivot points with lithium grease every 25 operating hours–this prevents binding during engagement. Verify the spring’s tension; a slackened or stretched spring will cause inconsistent blade activation.
- Drive belt tensioner: Positioned on the right side, it maintains tension via a sliding bracket and a steel coil spring. Adjustment requires loosening a single 14mm hex bolt before sliding the bracket along its track. Store the belt path dimensions–width 1.25 inches, length 58 inches–when sourcing replacements.
- Anti-scalp rollers: Three rollers, two fixed and one height-adjustable, protect blades from striking uneven terrain. Check roller brackets for cracks; replace if any flex is detected during manual rotation.
- Baffle plate: Installed above the cutting chamber, it directs clippings toward the discharge chute. Remove for occasional cleaning–grass buildup under the plate disrupts airflow, leading to uneven cuts.
Electrical and Safety Components
The PTO switch activates the cutting unit via a 12V solenoid; test continuity across the switch terminals before each season. A failed solenoid produces a clicking sound without blade rotation. The safety circuit integrates a seat switch–bypass it only for bench testing, never during operation. Replace frayed wiring harnesses immediately; exposed conductors can short when vibrated against the frame.
Measure blade tip speed at no-load conditions–it should range between 18,500 and 19,200 feet per minute. Deviations indicate either pulley wear or spindle bearing failure. Use a strobe tachometer for accurate readings; visual inspection often misses subtle drag caused by water intrusion in sealed bearings. When replacing blades, torque each bolt to 70 ft-lbs–undertightened bolts vibrate loose, overtightened risk thread stripping in the spindles.
Inspect the discharge chute weekly. A choked chute reduces vacuum under the cutting unit, causing clumping. Clear obstructions with a nylon brush; metal tools can damage the chute’s plastic liner, which disrupts airflow patterns. For mulching configurations, verify the plug’s seal–the gasket compresses over time, allowing small debris to escape prematurely.

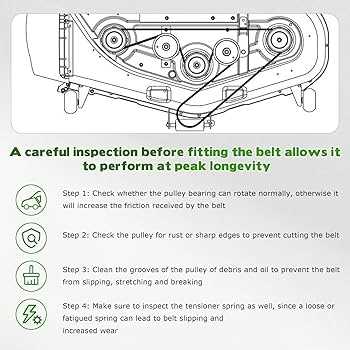

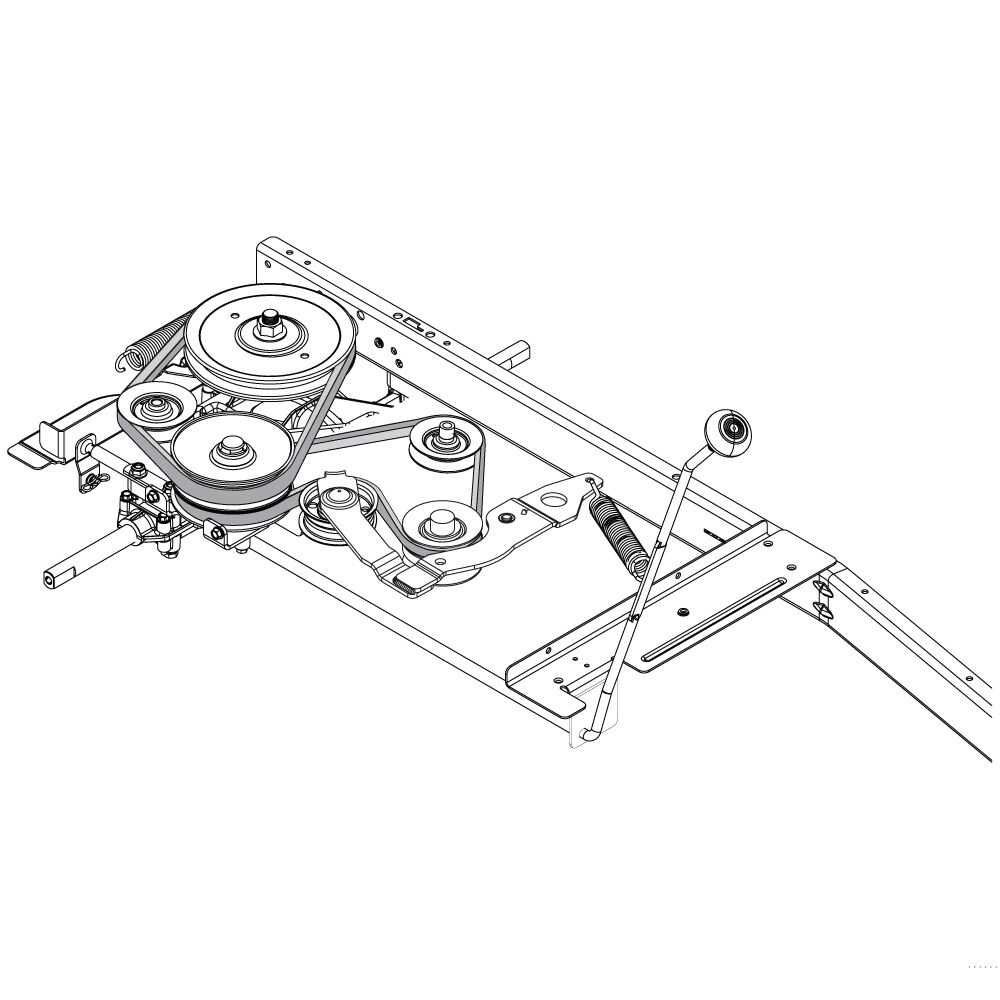

Step-by-Step Guide to Locating the Mower Cutting Assembly Belt and Sheave Mechanism
Begin by tilting the cutting unit on its side, ensuring the air filter faces upward to prevent oil leakage into the carburetor. Use a 1/2-inch drive ratchet to remove the three bolts securing the discharge chute cover beneath the housing. This exposes the drive belt tensioner and the primary idler pulley–key components of the power transmission loop.
Trace the serpentine belt’s path from the engine’s output shaft. The first contact point is the crankshaft pulley, followed by the idler sheave (5.5-inch diameter) near the front edge. The belt then routes downward to the clutch assembly pulley (3.75-inch) before looping back toward the deck’s rear-mounted tensioner, which maintains 35–40 lbs of force on the belt.

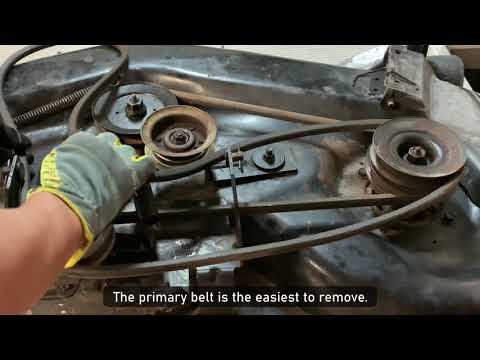

Identify the wear-indicator grooves on the V-belt: if the grooves appear smooth or the belt width narrows beyond 0.375 inches, replace it with a Gates #4050375 or equivalent (cross-section 0.500 x 0.315 inches). Remove the old belt by relieving tension via the spring-loaded arm adjacent to the electric clutch–push the arm clockwise until the belt slackens enough to slip off the idler sheave.
Inspect the spindle pulleys (upper and lower) for rotational play: secure the lower pulley with a 9/16-inch wrench while attempting to turn the blade by hand. If movement exceeds 1/8 inch, replace the spindle bearings (Timken LM11949/LM11910). Apply 8–10 drops of SAE 30 oil to the grease fittings on each spindle housing before reassembly.
Reinstall the belt by threading it over the clutch pulley first, then the idler, and finally the tensioner. Ensure the belt’s ribbed side engages the pulley grooves; misalignment reduces power transfer by up to 22%. Verify tension by depressing the belt mid-span–deflection should measure 1/2 inch. Reattach the discharge chute cover with thread-locking compound (Loctite 243) on the bolts to prevent loosening from vibration.
How to Replace the Cutting Blades and Spindle Assemblies on Your Garden Tractor
Disconnect the spark plug wire before touching any rotating components. Use a socket wrench to loosen the blade bolt while securing the blade with a block of wood–turn counterclockwise until fully removed. Inspect the old blade for excessive wear or bending; if the cutting edge exceeds 1/8-inch nicks or cracks, discard it. Align the new blade with the spindle mounting holes, ensuring the sail (raised portion) faces upward to generate proper airflow. Torque the bolt to 70-90 ft-lbs, recheck tightness after the first mowing session.
Remove the belt cover first if spindle housings require replacement–label the belt path with masking tape to simplify reassembly. Unbolt the pulley from the spindle shaft (usually three 1/2-inch bolts), then detach the housing from the underside of the cutting chamber by removing four mounting bolts. Clean the mating surfaces with a wire brush to prevent debris from compromising the new seal. Install the replacement housing, applying thread-locking compound to the bolts–tighten to 45-55 ft-lbs. Reattach the pulley, ensuring the keyway aligns with the spindle shaft before securing.
Balance blades after installation to prevent vibration–hang each blade horizontally on a nail through the center hole. If one end dips, remove 1-2 grams of material from the heavier side with a file. Check spindle bearings for play by grasping the pulley and attempting lateral movement; replace the housing if movement exceeds 0.005 inches. Lubricate the new spindle bearings with lithium grease before final assembly, applying a thin coat to all bearing surfaces.
Reinstall the belt using the labeled reference, ensuring proper tension–deflection should measure 1/2 inch mid-span when pressed firmly. Reconnect the spark plug, start the engine, and engage the blades briefly to confirm smooth operation. Listen for unusual noises; rattling or squealing indicates misaligned components or insufficient torque. Adjust deck height to 3 inches for the first mow to test stability before lowering it to the desired cutting level.
