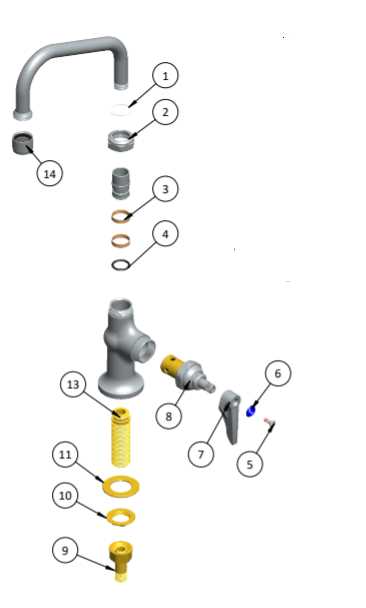

Begin by locating the spout assembly breakdown in your repair manual–most models list numbered sections for the cold/hot inlet valves, cartridge housing, and aerator mechanics. If documentation is missing, trace the plumbing lines: the left inlet typically handles cold supply, the right manages hot. Remove the handle first (often secured with a hex screw or cap nut), then check for mineral buildup in the O-ring grooves–replace any cracked seals immediately.
For cartridge replacement, note the stem’s spline pattern–common configurations include 18-tooth square drives or double-D cutouts. Misalignment during reinstallation will cause leaks. Use food-grade silicone grease (not petroleum-based) on gaskets to prevent corrosion. If flow remains uneven after reassembly, inspect the flow restrictor (usually a thin mesh disc behind the spout) for debris; soak in vinegar solution (1:1 ratio with water) for 30 minutes if clogged.
For threaded joints, apply PTFE tape in a clockwise direction (3 wraps max) to avoid pipe twists. Over-tightening can strip brass fittings–hand-tight plus a quarter turn with a wrench suffices. Store spare parts in sealed plastic bags with desiccant packets to prevent oxidation of rubber components. Always depressurize lines before disassembly by turning off the supply and releasing residual water via the sprayer nozzle.
Key replacement identifiers:
- Cartridge: Match by stem height (measure from base to tip) and diameter (standard sizes: 20mm, 25mm, 35mm).
- Gaskets: Use EPDM rubber for hot water tolerance; nitrile for cold-only systems.
- Nozzles: Check thread pitch (common: 9/16″-18 or 1/2″-27 NPSM).
Understanding Your Commercial Valve Component Layout
Start by locating the spout assembly–typically identified by its brass or chrome finish. Remove the aerator screen first if debris clogs flow; use needle-nose pliers for stubborn buildup. Below the handle, the cartridge housing (often hexagonal) requires a dedicated wrench–metric sizes 17mm or 19mm are common. Check the O-rings inside; deterioration here causes 70% of leaks.
- Flow restrictor: Remove only if low pressure persists after cleaning; factory settings optimize water efficiency.
- Stem packing: Tighten clockwise if handle wobbles, but avoid over-torqueing–excess force cracks ceramic discs.
- Body gasket: Inspect for warping during disassembly; replacement prevents cross-port leakage.
For single-handle models, note the mixing chamber’s position–usually beneath the spout base. Disassemble in reverse order of installation: handle → escutcheon → cartridge → bonnet → valve body. Label each component with masking tape; mismatched reassembly voids supply-line seals.
- Shut off water at the source; residual pressure ejects 0.5L/second.
- Drain lines by opening nearby outlets to prevent spills.
- Test seals post-reassembly: turn supplies on briefly, check for seepage around joints.
Replace ceramic disc cartridges every 3–5 years; corrosion accelerates wear in hard water zones (CaCO₃ > 180 ppm). For threaded connectors, apply PTFE tape in clock-wise direction–two wraps suffice. Avoid pipe dope; it migrates and clogs aerators.
How to Find the Model Number on Your Commercial Valve for Repair Components
Check the underside of the brass spout or mixing unit first–most manufacturers stamp a 4-to-7-character alphanumeric code there, often preceded by “T” (e.g., T-8600 or B-0450). If corrosion obscures the marking, gently scrub the surface with a brass brush and isopropyl alcohol; avoid steel wool, as it can erase fine engravings.
- Inspect the deck plate or mounting flange for a secondary identifier–typically etched near the inlet ports or escutcheon.
- For pre-2015 units, search the rear of the handle or beneath the bonnet nut–earlier designs placed codes in less visible locations.
- If no marking exists, measure the stem thread pitch (NPT, BSP, or metric) and spout reach (6″, 8″, or 10″) to narrow cross-reference options.
Alternative Verification Methods
Remove the aerator or flow restrictor–some models laser-etch the number inside the nozzle housing. For gooseneck valves, examine the swivel joint or check the wall bracket; cylindrical bodies often display codes vertically along the pipe radius. When in doubt, photograph the valve from multiple angles (including any attached tags) and compare against the manufacturer’s spare parts catalog PDF–filter by spout height, spigot finish, and actuator type.
How to Identify and Replace Key Components in Commercial Beverage Systems
Begin by isolating the spout assembly–detect corrosion or mineral buildup early using a flashlight and mirror to inspect the underside of the nozzle body. If the flow restrictor (typically a 1.5mm orifice screen) is clogged, soak it in a vinegar solution for 15 minutes, then rinse with compressed air at 40 PSI to dislodge debris without damaging the mesh. For leaky seals, replace the O-ring (standard size: 2.1mm ID, 3.5mm OD) with a silicone variant rated for temperatures up to 200°F to prevent premature degradation in high-traffic bar environments. Always verify thread compatibility–most commercial valves use NPT 3/8″ fittings, but older models may require BSP adapters.
Valve Core and Handle Mechanisms
Disassemble the activation lever by removing the set screw (usually a #2 Phillips) and lifting the handle vertically to avoid stripping the splines on the cartridge stem. If the valve fails to shut off completely, inspect the ceramic disc cartridge–rotate it 90 degrees counterclockwise to reset seating surfaces, or install a new unit (part #4225-X) if cracks are visible. For models with pull-down spray heads, check the retracting coil spring tension by stretching it to 120% of its resting length; replace if elasticity is lost to ensure consistent recoil. Lubricate all moving components with food-grade grease compliant with NSF/ANSI 51 standards to prevent contamination.
Locating Genuine Manufacturer Component Catalogs for Brassware Lines
Begin with the official manufacturer’s web portal–tsbrass.com/support hosts downloadable PDF guides for their commercial-grade valve assemblies. Each series (e.g., B-0900, B-1200) has a dedicated page with exploded views and SKU-matched cartridges, aerators, and spouts. Use the search bar to filter by model number printed on the underside of the spigot escutcheon.
Distributor networks like WebstaurantStore and Central Restaurant Products curate OEM-certified inventory. On their product pages, expand the “Related Accessories” tab to reveal compatible gaskets, handles, and flow restrictors. Confirm serial number prefixes (e.g., “B-09” or “900”) against the supplier’s part number to avoid mismatches.
Industrial suppliers such as Grainger and McMaster-Carr index brassware replacements under “Foodservice Equipment Repair” subcategories. Input the exact trim set identifier (found on the original packing slip or warranty card) into their search tools. Some SKUs may require verification via live chat with a specialist.
For legacy units predating 2015, visit eReplacementParts.com. Their archive includes discontinued components like pull-down spray heads for older bar gun setups. Filter by brand classification (“TS Brass & Bronze Works”) and sort results chronologically to match your installation’s production year.
Local plumbing wholesalers often maintain physical binders with printouts of brassware schematics. Request access to their “Commercial Fixture” section; technicians will cross-reference your model’s ID plate against internal crosswalk tables linking retail SKUs to factory-direct midcodes.
For urgent repairs, contact the manufacturer’s technical assistance line at (800) 872-3288. Have the model number and production date ready–agents can email exact diagrams with highlighted node points for washer kits, stem assemblies, or mixing chamber replacements.
Online forums like ChefTalk and Reddit’s r/commercialkitchen thread archived discussions where users post direct links to Google Drive folders containing full exploded-view PDFs. Search for threads titled “[Model Number] repair guide” to uncover community-uploaded references.
Certain aftermarket brands (e.g., Danco, Fluidmaster) produce universal-fit seals and springs compatible with select brassware ranges. Compare thread pitch and O-ring dimensions listed on their packaging against your unit’s specs–third-party components may require slight modification to fit precisely.
Essential Tools for Servicing Commercial Valve Mechanisms
Begin by securing a hex key set (metric sizes 2mm to 6mm) to remove set screws hidden beneath decorative caps. These fasteners often corrode in high-moisture environments, so apply penetrating oil (e.g., Kroil or Liquid Wrench) 15 minutes prior to attempting removal. For stubborn screws, use a precision screwdriver with a hexagonal bit adapter to prevent stripping–never force the tool, as damaged heads require costly replacements.
| Tool | Purpose | Critical Consideration |
|---|---|---|
| Adjustable basin wrench | Loosening/tightening supply nuts in tight spaces | 3/8″ drive with 18″ extension for deep access |
| Cartridge puller | Extracting stuck internal assemblies | Ensure compatibility with manufacturer’s O-ring groove spacing |
| Tubing cutter | Clean cuts on supply lines during reinstallation | Replace blades every 10 uses to prevent burrs |
Stock 0.010″ feeler gauges to verify clearance between ceramic discs in compression-style actuators–any variance beyond ±0.002″ indicates disc wear requiring replacement. For single-handle models with rotating stems, keep a spanner wrench (3/4″ to 1-1/4″) on hand; standard wrenches slip on chrome-plated surfaces, risking gouges that trap mineral deposits.
Inspect O-rings with a 10x magnification loupe before reassembly. Silicone-based lubricants (Dow Corning 111) extend seal life by 300% compared to petroleum alternatives, but only apply a 0.5mm coating–excessive lubricant attracts grit, accelerating wear. For threads on brass components, use PTFE tape (2.5 mils thick) wrapped clockwise in 3 layers to prevent galling without over-tightening.
Document each stage with a compact digital caliper (reading to 0.01mm) to record pull distances of stems and the positioning of flow restrictors. Deviations exceeding 0.5mm from the original measurements suggest misalignment during reassembly, which causes uneven wear on valve seats. Always test flow rates at 40 PSI before final installation–commercial units should not exceed 2.5 GPM to maintain pressure balance.
Replace worn tools immediately: a torque wrench calibrated to 15-20 in-lbs ensures cartridge retention caps are secured without cracking acrylic housings. Store tools in a magnetic parts tray (6″ diameter, 0.5″ depth) to prevent losing small components like E-clips or retainer rings, which commonly dislodge during disassembly.
