If you need to replace worn elements on your high-performance cutting tool, start by obtaining a detailed schematic. Contact an authorized service center or refer to the official repair manual–they provide exact positions of the carburetor, ignition module, and clutch assembly. The manual also specifies torque settings (e.g., 12–15 Nm for crankcase bolts) to prevent thread stripping.
For the engine assembly, focus on three critical zones: the piston group (13.5mm bore diameter), flywheel (magneto clearance: 0.3–0.4mm), and muffler. Use a feeler gauge to verify spark plug gap (0.5mm) before reinstalling. Avoid generic air filters–OEM replacements ensure optimal airflow matching the 66.7cc engine’s specifications.
Common failure points include the oil pump (inspect for 1.5mm port wear) and guide bar rails (replace if rail depth exceeds 0.5mm). The sprocket nose (7-tooth, 8mm pitch) wears faster than other components; check it every 5 operating hours with a micrometer. Always cross-reference the illustrated breakdown with your model’s serial number–late editions introduced revised gasket materials (part #1123 005 1234) for improved heat resistance.
When disassembling, label all fasteners–M5 bolts securing the cylinder (20Nm torque) differ from M6 crankcase bolts (25Nm). Store bearings (6203-2RS) in oil to prevent corrosion. For wiring, note color codes: yellow (CDI output), blue (ignition coil ground), and brown (switch return). Deviations may cause misfires or erratic idle (target RPM: 2,800 ±200).
Finding Your Chainsaw’s Blueprint: A Practical Walkthrough

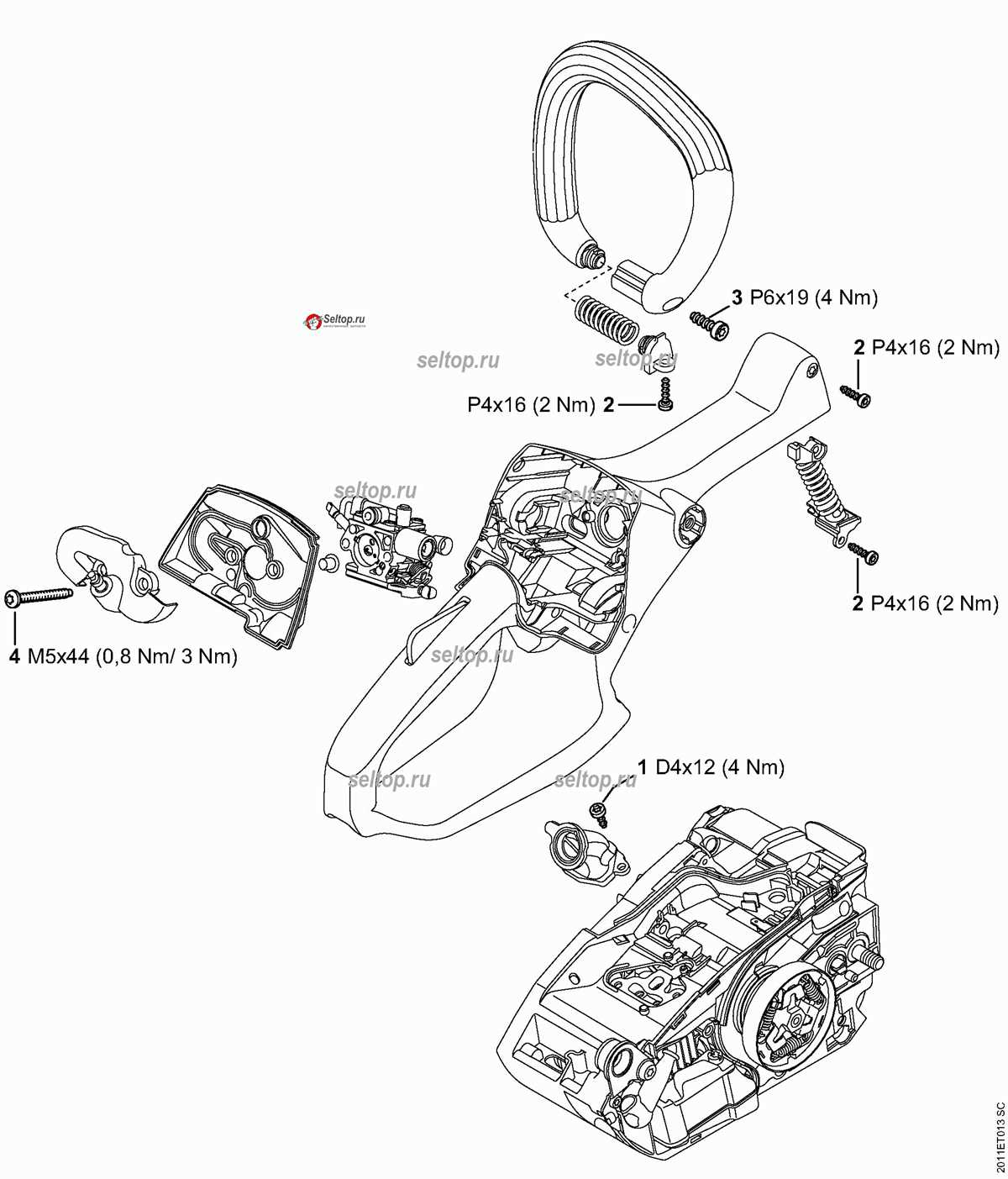

Download the official breakdown from the manufacturer’s support portal–look for file versions marked with “assembly” or “exploded view.” These schematics show every bolt, spring, and gasket in precise order, often grouped by sub-systems (engine housing, guide bar mount, air filtration). Zoom in on each numbered section: the top left quadrant typically covers the powerhead, while lower areas detail the chain brake mechanism and fuel module. If labels are blurred, cross-reference with the service manual’s inventory list–part codes match exact positions.
Begin disassembly by mirroring the diagram’s sequence: remove the outer casing before tackling internal components. Place screws in a magnetized tray to avoid misplacement–threaded fasteners for the clutch cover often differ from those securing the side plate. For piston ring inspection, note the direction markers on the schematic; misalignment during reassembly risks scoring cylinder walls. Use a torque wrench set to specs listed in the technical notes (usually 7-9 Nm for engine bolts).
Store printed schematics in a sealed bag near the workbench–oil and dust degrade paper quickly. Label ziplock bags with component groups (e.g., “Carburetor Parts”) to simplify troubleshooting later. For rare or obsolete pieces, the diagram’s reference numbers double as search queries for third-party suppliers.
Finding Engine Components in a Chainsaw Model MS 391 Schematic
Begin by identifying the carburetor–labeled as “Zama C1M” or “Walbro WT” in most schematics–usually positioned above the flywheel cover on the left side when viewing the saw from the rear handle. The air filter housing connects directly to it via three screws and a gasket; trace the intake path from the filter to the carburetor throat to confirm placement. If the diagram lacks labels, match the component’s shape: a rectangular metal block with attached fuel lines (red and white) and a throttle linkage arm.
| Component | Schematic Location | Key Markers |
|---|---|---|
| Cylinder | Central, beneath the starter housing | Finned aluminum body, spark plug port (top), exhaust port (side) |
| Piston | Inside cylinder, visible only when disassembled | Two compression rings, oil passage holes |
| Flywheel | Left side, behind the fan cover | Magnets embedded, engages starter pawls |
| Ignition module | Adjacent to flywheel, under cover | Two wires (spark plug and kill switch) |
Locate the muffler by following the exhaust port from the cylinder head–it’s a black, finned component bolted to the right side, often obscured by a heat shield. The crankcase sits beneath the cylinder, housing the crankshaft and connecting rod; in exploded views, it’s split into two halves sealed with a paper gasket. For the fuel pump (if equipped), check near the carburetor’s left side–a small diaphragm unit with a clear fuel line port.
Step-by-Step Breakdown of the Fuel System Components in a Professional Chainsaw Model
Begin by locating the fuel tank, positioned beneath the engine housing. This durable polyethylene reservoir holds approximately 0.6 liters of mixture and features a one-way breather valve to prevent vacuum buildup during operation. Remove the fuel cap (14mm hex head) and inspect the integrated filter screen–replace if clogged with debris, as even minor blockages disrupt fuel flow and engine performance. Ensure the O-ring remains intact to avoid air leaks, which cause erratic idling or stalling.
Trace the fuel line from the tank to the carburetor, noting two critical segments:
- Primary line: A clear, flexible hose (3mm ID) connects the tank to the fuel pump. Check for brittleness or cracks–degradation leads to air ingestion, starving the engine. Replace if older than 24 months, regardless of appearance.
- Return line: Smaller (2mm ID) and colored (typically green), this hose routes excess fuel back to the tank. Kinks or leaks here cause flooding–test by blowing compressed air through the line while submerged in water.
Carburetor Assembly: Internal Workflow
Disassemble the carburetor body by removing four Torx T25 screws. Inside, locate these components in sequence:
- Fuel pump diaphragm: A 0.2mm-thick nitrile rubber membrane pulsating via crankcase pressure. Measure deflection with calipers; replace if
- Inlet needle valve: Brass component seating against a Viton tip. Clean with 1200-grit lapping compound if grooves are visible, as pitting allows fuel bypass. Reassemble with the lever arm angled 3° downward against the diaphragm.
- Metering lever: Adjust the idle screw (clockwise turns increase RPM by 200/min per ¼ turn) with the engine at 50°C. Final adjustment requires a tachometer–target 2800 RPM ±100 at idle.
- Atomizer jet: Main (165) and pilot (55) brass jets require ultrasonic cleaning in acetone for 15 minutes. Reinstall with the main jet oriented 1° off-center from the throttle bore axis to optimize spray pattern.
Reconnect the lines using Loctite 577 on threaded fittings–standard thread sealant fails under vibration. Test for leaks by pressurizing the system to 3 psi with a hand pump; bubbles indicate faulty seals.
How to Locate and Swap the Air Filtration Unit on Your Professional Chainsaw
Begin by shutting off the engine and allowing it to cool for at least 10 minutes. Release the fuel cap briefly to relieve pressure, then remove the top cover by lifting the two quick-release latches–hold the cover by its edges to avoid damaging the intake snorkel aligned beneath it.
Slide the old filter out by pulling it straight upward from its housing; note the arrow embossed on the filter’s rim indicating airflow direction–install the new filter with this arrow pointing toward the cylinder. Inspect the rubber gasket sealing the housing; replace it if cracked or flattened to prevent unfiltered air bypass.
Before reinstalling the cover, examine the intake snorkel for debris accumulation–a compressed-air nozzle (40 PSI max) directed into the passage clears obstructions without risking component damage. Verify the snorkel’s two internal check valves move freely; if stuck, pry them gently with a flathead driver, ensuring they pivot on their hinge pins.
Replace the cover by aligning its guide tabs with the grooves on the cylinder housing–press firmly until both latches click into locked position. Start the engine and listen for irregular air hissing; if detected, remove the cover and reposition the filter’s gasket until the leak stops.
For optimal performance, swap the filter every 50 operating hours or immediately after cutting resinous woods like pine. Store replacement filters in sealed plastic sleeves to avoid contamination from sawdust or fuel vapors.
If the engine hesitates or stalls during acceleration, detach the intake assembly again and inspect the mesh screen beneath the filter–clean it with a soft brush, never a solvent, to preserve the anti-static coating. Reassemble only after confirming all surfaces are dry and free of residue.
Key Components of the Saw’s Cutting System and Sprocket Assembly
Inspect the bar mounting points every 20 hours of operation for wear or misalignment. The clamping nuts (M10 x 35, torque 12 Nm) secure the guide rail but should never be overtightened–check with a torque wrench to prevent deformation of the housing flange. Replace washers if grooves exceed 0.3 mm depth.
The drive sprocket (rim diameter 60.4 mm, 7 teeth) engages the linkage system at three contact zones: outer rim, inner pocket, and drive links. Lubricate these zones with ISO VG 150 mineral oil weekly–synthetic blends accelerate polymer wear. If teeth show uneven erosion (tolerance < 0.5 mm difference between peaks), machine-sharpen the rim or swap units to avoid derailing.
- Install the clutch drum using a spline alignment tool–misaligned splines shear under load (visible stress fractures at base).
- Check thermal sensor contact (plated brass disc, Ø 8 mm) behind the sprocket weekly; oxidation here triggers false overheating errors.
- The kickback chain brake band (cross-section 2.5 mm steel) requires adjustment every 50 hours–loosen locknut, turn adjusting screw ¼ turn clockwise, retighten to 8 Nm.
Guide rail compatibility dictates performance: 18-inch rails pair with PM3 chains (0.325” pitch, 1.3 mm gauge), while 20-inch rails require RM5 models (3/8” pitch, 1.6 mm gauge). Mismatched configurations causes binding–verify rail groove width with calipers (±0.05 mm tolerance). For rocky terrain, switch to carbide-tipped rails to avoid groove peening.
Chain tension should be set with the engine cold–a taut linkage system eliminates sag but risks wheel bearing wear. Use the adjustment bolt: turn clockwise until the lowest chain link lifts 2–4 mm above the rail, then back off ¼ turn. Cold tension loosens at operating temp; recheck after 10 minutes runtime. Replace any drive links with bent lugs immediately–they cause irregular sprocket wear patterns.
- Disassemble the sprocket cover annually: degrease roller bearings (Ø 12 mm) with non-chlorinated solvent, repack with lithium complex grease (dropping point 200°C).
- Test chain brake engagement by pulling backward firmly–lag > 0.2 seconds indicates spring fatigue (replace spring or band).
- Examine rail tip for burrs–file with a fine-grit stone at 30° to prevent kickback.
For optimal cutting efficiency, sharpen cutter teeth bi-weekly at 30° top plate, 60° side plate angles. Use a Dremel 9924 bit for hardwood, 409 for resinous material. Gauge depth to 0.6 mm below the tooth–excessive depth creates excessive vibration, causing sprocket flange erosion. Store chains submerged in commercial bar oil to prevent corrosion during idle periods.
