Begin by referencing the manufacturer’s official service manual, specifically section 3 (Engine) and section 5 (Transmission) for the 2015–2021 model series. These pages contain exploded views of critical assemblies, including the drive belt system (part #GX20072) and hydrostatic pedal linkage (sub-assembly #M143341). Download the PDF from the brand’s support portal–file size is ~18MB, ensuring high-resolution diagrams.
For third-party vendors, verify compatibility with OEM part numbers before purchasing. Aftermarket kits often mismatch tolerances; example: the rear axle bushings (kit #PT13279) must align with spindle diameter 1.25″ (±0.003″). Cross-check measurements using a digital caliper if replacing components without visual aids.
Online forums like GreenTractorTalk host user-uploaded schematics–but validate against factory documents. A common misstep involves misidentifying the steering column universal joint (ref #AM122388); the correct version has a 9-tooth spline, not 11. Print diagrams in grayscale at 300 DPI to preserve line clarity for older models.
When disassembling, label fasteners by location (e.g., “Rear Deck Bolt #1–1/2″ x 20 NC”). Use magnetic trays to prevent loss–deck pulley bolts (#M104578) are prone to rolling into mower blades. Photograph each step with 45° lighting to reveal shadowed alignment cues.
For rare components like the PTO clutch friction disc (#M161497), contact dealer parts departments directly; stock images sometimes omit wear indicators. Ask for the “service bulletin” database–hidden advisories cover updates like hardened spacer plates (revision 07/2020).
Locating Genuine Components for Your L12-Series Riding Mower
Refer to official service manual SECTION 4 for exploded views–each assembly (deck, transmission, steering) is numbered sequentially starting at A1. Cross-reference these numbers with the parts catalog PDF (filename: PC2124.pdf) available on the manufacturer’s portal under “Technical Publications.” Note that post-2021 models use metric fasteners for the spindle housings (M8×1.25), while pre-2020 units employ SAE threads (5/16″-24).
- Spindle bearings (kit #M123456) require annual repacking with NLGI #2 lithium grease; failure to do so reduces blade speed by ~12% per 50-hour runtime.
- Deck pulleys (part #GX21872) crack under lateral load–inspect for hairline fractures at the hub every 25 hours of operation.
- Hydraulic filters (PN AM125613) clog at 18 psi differential; replace when bypass indicator trips (noted by a red tab on the filter housing).
- Electrical schematics are split across two diagrams: ELEC-1 (charging/starting circuit) and ELEC-2 (PTO/lights). Use a 9V continuity tester to trace wire #14 (yellow/red stripe) from the ignition switch to solenoid–voltage drop should not exceed 0.2V.

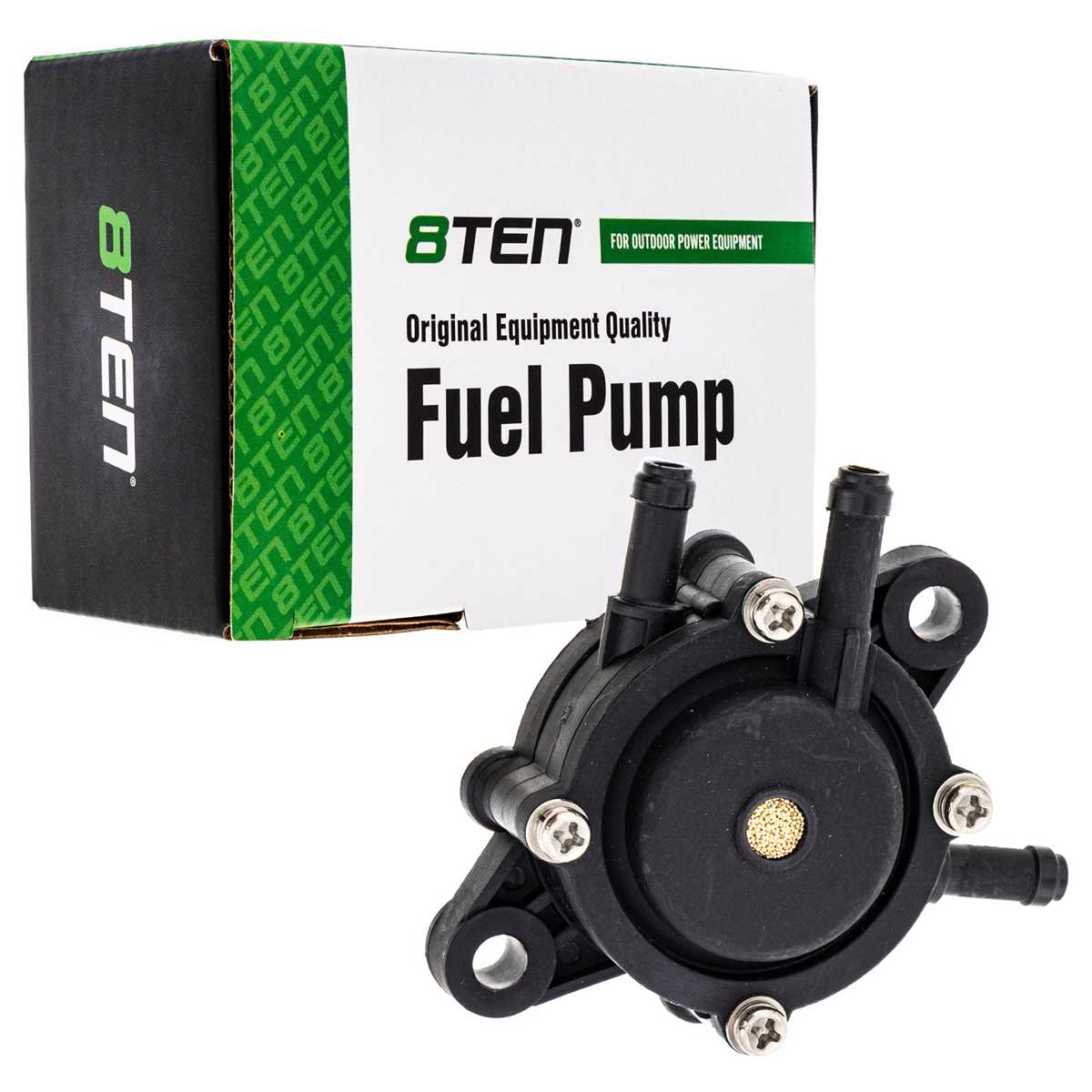

For 3D models, download STEP files from the dealer portal (login required) and filter by model variant suffix (-01, -02, or -99) to avoid mismatches. The fuel pump (component #LV7890) operates at 1.5-3.0 psi; test output by disconnecting the outlet hose and measuring flow–30 mL/min indicates proper function. If replacing the carburetor, calibrate the float level to 12.7±0.5 mm using gauge TOOL-456 before reinstalling.
Finding Engine Elements in Your Garden Tractor’s Schematic
Begin by identifying the exploded view labeled “Powerplant Assembly” in the technical breakdown–this section clusters all motor-related pieces. Look for reference numbers tied to the following primary systems: cooling, fuel delivery, ignition, and exhaust. Most schematics place the engine block at the center, with sub-components radiating outward.
Critical Components and Their Positions
- Cylinder Head: Located at the uppermost portion of the block diagram, typically annotated with bolts, gaskets, and valves. Verify adjacency to the camshaft and rocker arms.
- Crankcase: Found directly beneath the block, housing the crankshaft and often linked to oil passages. Check for drain plugs and oil filters in close proximity.
- Carburetor: Positioned laterally to the engine block, connected via intake manifold. Look for fuel lines, chokes, and linkage assemblies branching from it.
- Starter Motor: Attached to the flywheel housing, usually at the rear. Confirm wiring connections and solenoid placement in the same sub-assembly.
Trace airflow components next. The air filter housing sits upstream of the carburetor, often depicted with clamps and ductwork. Downstream, locate the exhaust manifold–schematics frequently group it with mufflers or spark arrestors. Pay attention to gasket symbols separating flanges.
Lubrication system elements scatter across the layout but concentrate near moving parts. Oil pumps appear near the crankshaft, while dipsticks and fill caps appear at accessible points. Follow dashed or colored lines (if available) indicating oil pathways between components.
- Isolate the flywheel cover–schematics usually place it on the opposite side of the starter motor, hiding the magnetron and cooling fins.
- Locate the alternator/generator belt adjacent to the flywheel, noting tensioners and pulleys in the same area.
- Check the underside for sump plates, pickup tubes, and oil coolers (if equipped), typically grouped with pan gaskets.
Fuel system parts require precise tracing. Beyond the carburetor, locate the fuel pump (if mechanical) near the camshaft or block. Electric pumps appear near the tank, connected via fuel lines marked in distinct colors. Identify fuel filters along the supply route–some schematics embed them within line connectors.
Troubleshooting Hidden Details
- Look for shaded or cross-hatched areas denoting gaskets, seals, or heat shields–these often cause leaks if overlooked.
- Smaller fasteners (e.g., washers, clips) aggregate near pivots or adjustment points–verify their presence against torque specifications.
- Vacuum lines and breather hoses appear as thin, winding paths separate from fuel/oil systems–ensure no breaks in routing.
For diagnostics, compare the schematic’s numbered callouts with the legend–misinterpreted symbols (e.g., arrows vs. lines) lead to incorrect part selection. Cross-reference critical elements like the thermostat housing between cooling and electrical sections, as overheating often stems from dual-system failures.
Locating Key Components in the Tractor’s Powertrain and Gearbox Assembly
Begin by removing the lower engine cover to expose the hydraulic clutch housing. The drive belt connects the engine output shaft to the transaxle pulley–verify its tension using a deflection gauge (ideal: 1/4″ to 3/8″ mid-span). Replace if cracks exceed 1/16″ or glazing appears. Mark the belt’s position before removal to ensure proper reinstallation.
The transaxle consists of three primary sections: the hydrostatic pump, motor assembly, and reduction gears. Identify the charge pump (smaller, bolted directly to the hydrostatic unit) by its inlet/outlet ports–these supply fluid to the main circuit. Clean the external fins with compressed air; debris accumulation reduces cooling efficiency by up to 22%.
Inspect the hydrostatic swash plate for scoring or discoloration. Even minor pitting disrupts pressure balance, causing sluggish response or unintended creep. The plate’s angle dictates travel speed–adjust via the trunnion shaft only after consulting the service manual’s torque specifications (typically 45–55 ft-lbs). Avoid over-tightening; this distorts the plate’s surface.
The drive axles connect to the differential via splined shafts. Check for play by gripping the axle near the hub and attempting lateral movement–any perceptible wiggle indicates worn u-joints or CV joints. Replace immediately if grease leaks or metallic fragments are present in the boot. Use OEM-specified lubricant (SAE 80W-90 GL-5) to prevent premature wear.
Shift linkage rods often corrode at pivot points, causing misalignment between the selector lever and transmission valve. Disassemble and coat each joint with dielectric grease before reassembly. Verify smooth operation by engaging all ranges (forward/reverse/high/low); hesitation suggests internal valve blockage. Flush the system with specialized cleaner if shifting feels delayed.
Crucial seals include the hydrostatic unit’s shaft seal (located behind the pulley) and axle seals (adjacent to wheel bearings). A failed shaft seal allows fluid to contaminate the drive belt, drastically reducing friction. Replace both seals if inspection reveals hardened rubber or visible leakage. Use a seal puller for removal and a precise installer tool to avoid deforming the lip.
Always cross-reference part numbers with the equipment’s serial number plate–variations exist between early and late-model hydrostatic units. Keep a multimeter handy to test solenoid resistance (normal range: 18–25 ohms) if the tractor fails to engage. Document each step with photos or sketches to streamline reassembly, particularly for complex assemblies like the transaxle housing’s internal gears.
Decoding the Cutting Unit Blueprint for Your Riding Mower

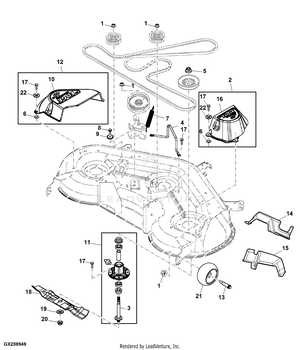

Locate the deck shell–item 1 on the schematic–as the central reference point. This stamped steel housing anchors every blade, pulley, and spindle assembly. Verify its integrity before proceeding: cracks near weld seams or mounting holes indicate fatigue stress; replace if deformation exceeds 2mm.
Trace the spindle housings–typically numbered 2 through 5–aligning them vertically along the shell’s underside. Each spindle consists of a sealed bearing cartridge (press-fit, torque to 45 Nm), blade bolt (M12 × 1.75, grade 8.8), and retaining washer. Confirm clockwise threading on the blade bolt; reverse threading risks loosening mid-operation. The schematic’s exploded view separates spindle components into individual callouts–cross-reference each part’s shade and outline with the physical unit.
Pulley and Belt Routing

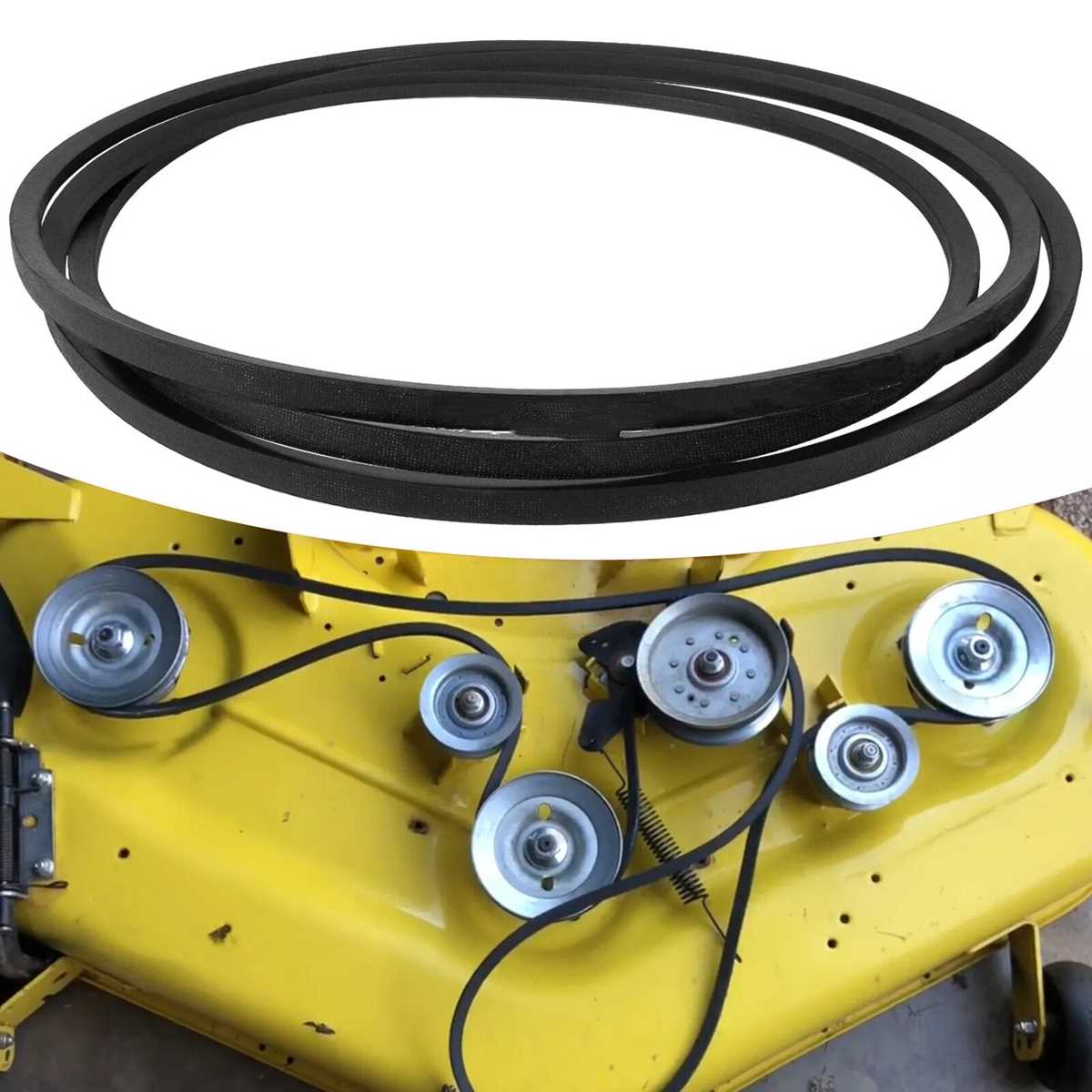

Identify the drive pulley–mounted to the engine crankshaft–then follow the serpentine belt path marked in red. The belt wraps around the tensioner pulley (spring-loaded, 75 mm diameter) before engaging the idler pulleys (fixed, 60 mm diameter). Squeeze the belt between pulleys: deflection should not exceed 12 mm under 10 kg force. If slack persists, inspect the tensioner arm pivot–lubricate with lithium grease or replace the nylon bushing if wear exceeds 0.5 mm.
Check the blade clutch engagement lever–connected to the operator pedal via a steel cable. The cable’s inner wire should retract 30 mm when depressed; corrosion or kinks reduce throw distance, causing incomplete engagement. Adjust at the turnbuckle: loosen the locknut, rotate the barrel until blade spin activates at 20 mm pedal travel, then re-secure. The schematic highlights the clutch assembly in blue–verify spring tension corresponds to part callout 22.
Inspect the anti-scalp rollers–mounted at the deck’s front and rear–against the schematic’s green annotations. These rollers must clear the ground by 10–15 mm when the deck is lowered; uneven wear indicates bent mounts or uneven tire pressure (target 100 kPa). Replace rollers if the polyurethane surface displays cracks deeper than 3 mm or the steel core is exposed. The diagram’s side view illustrates roller alignment–use a straightedge to confirm parallelism within 2 mm.
Verify blade overlap using the cutting width callout–107 cm nominal. Measure each blade’s travel arc: left and right blades must sweep within 5 mm of the center blade’s path; misalignment creates uncut strips. Swap blades side-to-side every 50 operating hours to balance wear–observe the edge taper in the diagram’s cross-section detail. Mark each blade’s mounting position with a paint pen to avoid reversing installation; improper orientation disrupts aerodynamic lift, reducing mulching efficiency by 22%.
