Start with the headstock–the uppermost section where tuning pegs adjust string tension. A broken machine head requires immediate replacement; lightweight models risk slipping under pressure. Check the nut: grooved slots must align precisely with fretboard strings to avoid buzzing or misintonation. If replacing, opt for bone or synthetic graphite–plastic wears faster.
Move to the neck. A warped fretboard ruins playability; sight down its edge to spot twists. Fret wire should sit flush–high frets cause string choke, low ones create dead notes. Truss rod adjustment compensates for humidity shifts: clockwise tightens relief, counterclockwise increases bow. Measure string height at the 12th fret–electric models need ~1.5mm on bass side, ~1.0mm treble.
The body’s construction dictates sound. Solid wood delivers sustain but weighs more; hollow chambers reduce weight but risk feedback. Pickups must match your genre: single-coils offer clarity for clean tones, humbuckers cancel noise for distortion. Pots degrade–scratchy volume knobs signal worn carbon traces. Shield cavities with copper tape to block interference.
Bridge systems vary: fixed bridges stay in tune but limit tremolo effects; floating systems enable dive bombs but require frequent setup. String-through designs increase resonance but complicate restringing. On acoustics, bridge pins must secure strings–cracked pins cause intonation issues. Tailpieces like trapezes add sustain but demand precise alignment.
Electronics deserve attention: output jacks corrode over time, causing intermittent signal loss. Battery compartments should allow quick swaps–poor contact kills active pickups mid-performance. Inlays aren’t decorative; abalone dots guide finger placement in low light. Strings themselves dictate lifespan: coated varieties last longer but dampen brightness; stainless steel resists corrosion but wears frets faster.

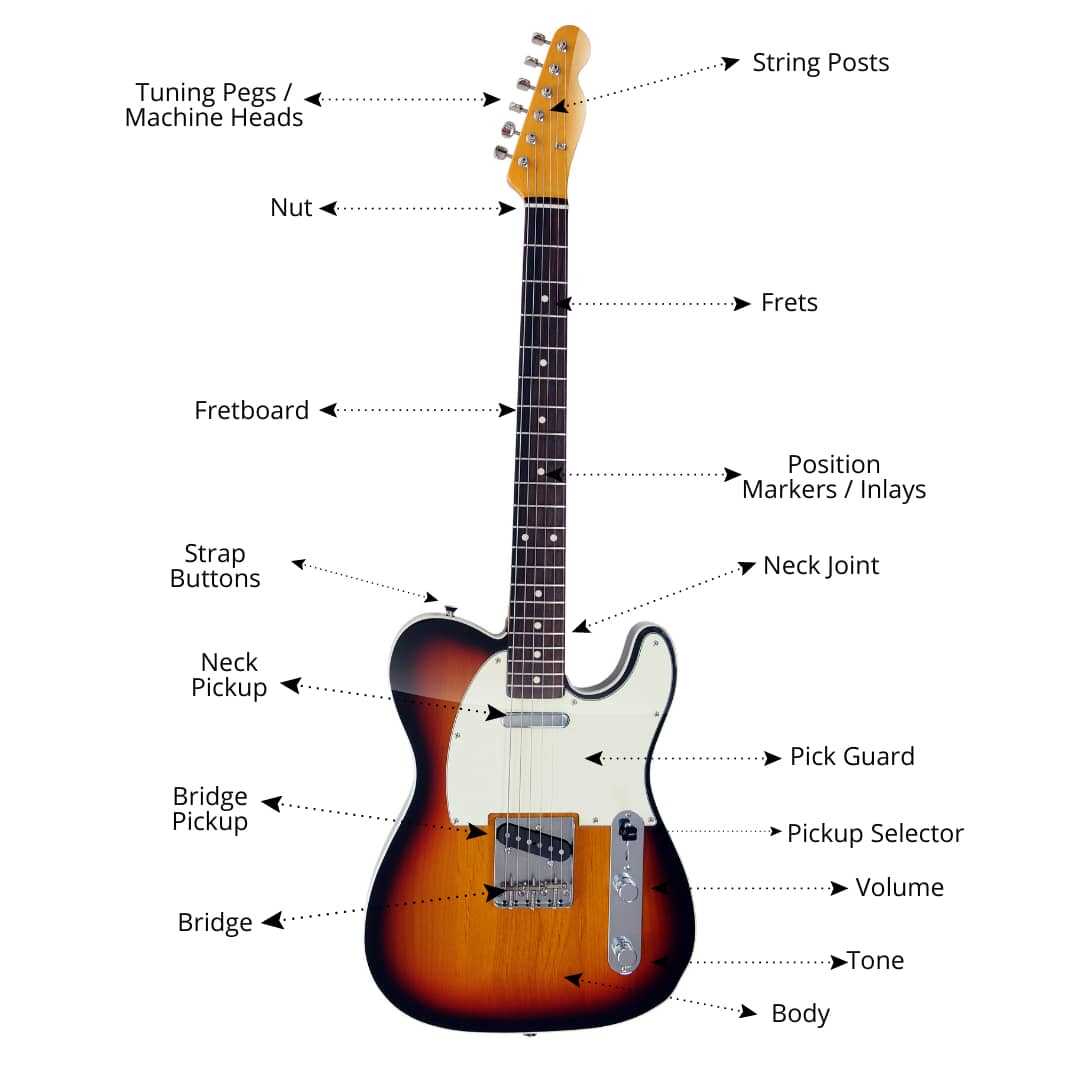

Visual Guide to Acoustic and Electric Instrument Anatomy

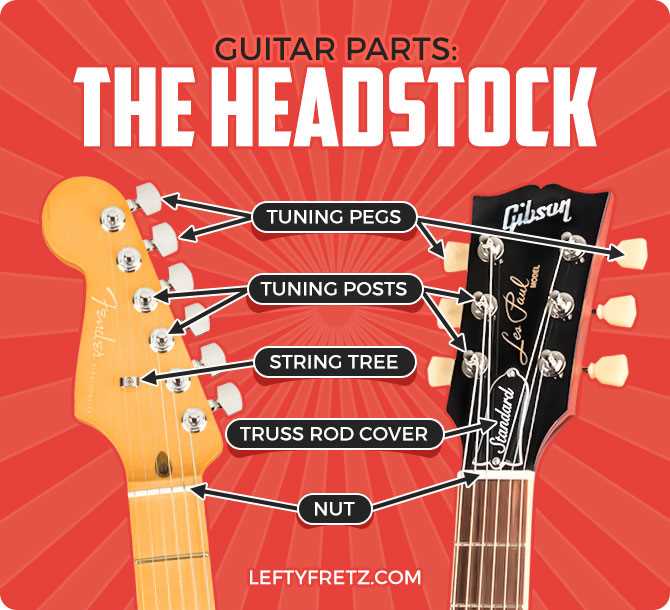

Start by identifying the headstock–its shape and angle affect string tension and tuning stability. Brands like Fender opt for straight designs, while Gibson uses angled headstocks to reduce breakage risks near the nut. Always check the machine heads (tuners) for smooth operation; clogged gears or worn bushings cause pitch drift.
The nut, carved from bone, synthetic polymer, or brass, sets string spacing and action height. Files should only adjust slots if strings buzz against the first fret–over-sanding weakens sustain. For electric models, string trees on headstocks regulate downward pressure; misaligned ones introduce tuning inconsistencies.
Map the fretboard–rosewood offers warm tones but requires oiling, while ebony resists wear but is prone to cracking in dry climates. Inlays (dots, trapezoids) are purely aesthetic but aid navigation; abalone or mother-of-pearl variants signal higher-end craftsmanship. Radius varies: vintage specs use 7.25″ for playability, modern profiles (9.5″–16″) suit bending.
Locate the neck joint–bolts, dovetails, or neck-through designs impact resonance and access to high frets. Bolt-ons (common in Stratocasters) prioritize repair ease; set-necks (Les Pauls) enhance sustain but complicate truss rod adjustments. Heel shapes differ: deep cuts improve upper-fret reach but may weaken structural integrity.
Examine the body–solid woods (mahogany, alder) emphasize mids and bass, while hollow or semi-hollow builds add airiness but risk feedback. Weight-relief techniques (chambering, weight-reducing holes) balance comfort and tone. Binding protects edges from nicks; mismatched colors hint at refinishing.
For pickups, single-coils (clean, bright) suit funk and surf, but humbuckers (thicker, noise-canceling) excel for rock and jazz. Potentiometer values (250k for brighter tones, 500k for clarity) and capacitor types (.022µF–.047µF) shape treble retention. Wiring diagrams reveal hidden coil splits or phase switches–factory schemes often include shortcuts for easy mods.
Trace the bridge–fixed types (Tune-o-Matic) offer stability, while tremolo systems (Floyd Rose, Bigsby) demand precise setup. Saddles, whether steel, brass, or graphite, dictate intonation; improperly cut grooves cause string slippage. Acoustic bridges use pins or ties; loose pins require glue, not force, to avoid top damage.
How to Spot Critical Elements on an Acoustic Instrument’s Resonant Structure
Begin by locating the soundhole–the circular opening directly beneath the strings. Its diameter typically ranges from 3.5 to 4 inches, with most modern builds favoring a 3.875-inch standard. The edge of the soundhole often features a decorative rosette, a concentric ring of wood, fiber, or shell inlays; this is not purely ornamental–it reinforces the structural integrity around the opening. Beneath the soundhole, press firmly on the top plate (usually spruce, cedar, or mahogany); a muted thud suggests delamination, while a crisp resonance confirms a well-glued joint. Trace the perimeter where the top plate meets the ribs: this is the binding, a thin strip of wood, plastic, or abalone that protects the edges from impacts and defines the body’s silhouette. Check for uneven gaps–indicators of poor craftsmanship or warping.
Run your fingers along the waist–the narrowest point between the upper and lower bouts. This contour isn’t arbitrary; it affects playability and ergonomics, with classical models favoring a straighter 14th-fret access, while dreadnoughts push the waist lower for deeper bass. Examine the bridge (typically rosewood or ebony) on the lower bout; the saddle slot should sit parallel to the frets, and the bridge pins (if present) must align perpendicular to the plate. Misalignment here causes intonation drift. Finally, grip the neck joint where it meets the body–dovetail, mortise-and-tenon, or bolt-on–each construction affects sustain and repair complexity. A properly set dovetail should feel seamless, with no visible glue lines or movement under pressure.

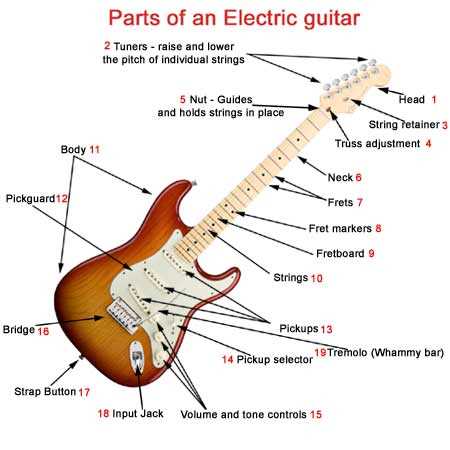

Step-by-Step Guide to Labeling Electric Stringed Instrument Components
Begin with the headstock–mark the tuning pegs by their position (6-L, 5-L, 4-L for left-side machines; 3-R, 2-R, 1-R for right-side). Use a fine-tip permanent ink pen or laser-etched tags for durability against sweat and handling. Include the string gauge (e.g., “.009–.042”) next to each peg to simplify restringing. Label the nut slot widths (typically 2.1mm for high E, 3.2mm for low E) on the underside if performing maintenance.
- Measure the bridge pickup height from the pole piece to the string underside–record values in millimeters (ideal range: 2.0–2.5mm for neck, 1.8–2.3mm for bridge).
- Note pickup cavities with adhesive vinyl labels specifying potentiometer values (e.g., “250K Volume,” “500K Tone”) and capacitor codes (“.022µF” or “.047µF”).
- Engrave control plate screws with torque settings (3–4 in-lbs) to avoid overtightening.
- Stencil the truss rod cover with the adjustment direction (“+ = Counterclockwise for relief”) and recommended allen wrench size (4mm or 5/16″).
- Mark output jack threads with thread locker type (“Loctite 243”) and tightening torque (10–12 in-lbs).
- Document strap button screws with thread pitch (metric M4 or imperial #8) and material (stainless vs. plated).
Key Terms for Stringed Instrument Neck and Fingerboard Components
Begin by memorizing the primary reference points on the fingerboard: the position markers–dots, blocks, or custom inlays–typically found at frets 3, 5, 7, 9, 12 (double dots), 15, 17, 19, and 21 (if present). These serve as visual guides for rapid navigation during performance; adjust your playing posture to keep them in peripheral view without straining the neck muscles. The 12th fret, marking the octave of open strings, is critical for tuning checks and positional shifts–ensure its accessibility isn’t obstructed by string action height or neck relief.
Fretwire dimensions directly influence playability: narrow gauge (e.g., 0.080″–0.095″) reduces finger fatigue but risks fret buzz if the neck lacks proper curvature, while jumbo wires (0.100″–0.110″) enhance sustain but demand precise finger placement. Measure string action at the 1st and 12th frets using feeler gauges–optimal heights vary by genre: 0.024″ (1st fret) and 0.090″ (12th fret) for blues, versus 0.018″ and 0.070″ for shredding. Adjust truss rod tension incrementally (quarter-turns max) to correct neck bow, with relief ranging from 0.010″ (classical) to 0.015″ (drop-tuned setups).
| Term | Description | Practical Impact |
|---|---|---|
| Nut | Slotted component (bone, brass, graphite) separating open strings from the fingerboard | Incorrect height causes tuning instability; slot width must match string gauge (e.g., 0.043″ for .009 gauges) |
| Heel | Neck-body joint intersection (set-in, bolt-on, or neck-through) | Bolt-on heels with recessed screws allow easier access to upper frets; radius sanding may be needed for comfort |
| Scale Length | Distance from nut to bridge saddles | 24.75″ (Gibson-style) favors warmer tones; 25.5″ (Fender) increases string tension–affects finger stretch and intonation |
Examine fingerboard wood species for tonal and tactile differences: maple offers brightness and smoothness, ideal for fast passages but requires frequent cleaning to prevent rosin buildup, while ebony’s density enhances sustain but wears strings faster. Radius curvature–flat (7.25″) to compound (10″–16″)–dictates fretting comfort; test with bends at the 5th and 20th frets to confirm uniformity. For recessed tremolo systems, verify the neck pocket depth matches the baseplate thickness to avoid neck angle issues, which disrupt action and intonation.
