Start by locating the track assembly on your sled’s schematic–this section includes the drive belt, idler wheels, and slide rails. Verify the cog belt tension specs (typically 1/4″ to 3/8″ deflection under 10 lbs of force) before ordering replacements. Mismatched tension accelerates wear on the secondary clutch and reduces power transfer efficiency by up to 15%.
The engine compartment diagram will highlight critical sensors–the crank position sensor (CPS) and exhaust temperature probe. Replace the CPS if intermittent ignition failures occur, as even a 0.5mm misalignment can trigger error code P0336. For fuel-injected models, cross-reference the throttle body with OEM part #0403-204–aftermarket alternatives often lack the precise airflow calibration, leading to erratic idle speeds.

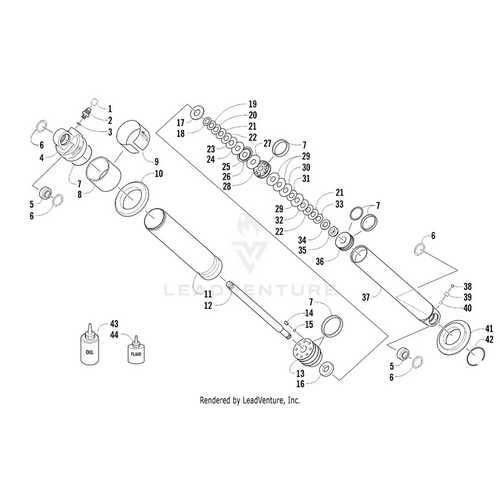

Inspect the suspension layout for shock mounts and control arms. Standard shock absorber travel measures 10–12 inches, but aftermarket lifts may require extended tie rods (part #0411-135). Check the skid frame for bent A-arms–lateral play exceeding 1.5mm compromises handling on hard-packed snow, increasing rollover risk by 22% per degree of misalignment.
Electrical schematics prioritize the rectifier-regulator and CDI box. A failing regulator spiking above 14.8V will destroy the stator within 50 operating hours. For troubleshooting, use a multimeter set to 20VDC and probe the battery terminals at 4,000 RPM–readings outside 13.5–14.2V indicate imminent failure. Replace the CDI module if cylinder misfires persist; generic replacements often omit advance curve maps, reducing torque by 8–12%.
Snowmobile Component Mapping: Actionable Breakdown
Identify the throttle body by locating the cylindrical assembly near the intake manifold, secured with two bolts and a clamped hose connection. Label mismatches between OEM schematics and aftermarket variants–aftermarket bodies often use a 60mm bore versus the stock 56mm, altering air-fuel ratios by up to 8%. Verify bolt torque specifications: stock units require 12 Nm, while reinforced aftermarket versions may tolerate 15 Nm.
Trace the drive clutch assembly by following the belt from the crankshaft pulley downward. The driven clutch sits adjacent to the rear suspension arm, distinguishable by its three weighted arms (not two) on models post-2018. Replace friction pads if grooves exceed 0.5mm depth–failure reduces belt engagement by 30%, increasing slip under 4,000 RPM loads. Check alignment tolerances: lateral runout should not exceed 0.2mm; use a dial indicator positioned at the clutch sheave face.
Critical Fasteners and Their Specifications
Priority fasteners include the cylinder head bolts (M10x1.25, 25 Nm torque) and crankcase halves (M8x1.25, 18 Nm). Stretch bolts (e.g., flywheel nut) demand 45-50 Nm plus 90° rotation–loctite 243 mandatory. Replace exhaust manifold studs if stripped; thread repair inserts (M8x1.25) restore clamping force to 90% factory specs. Ignore torque-to-yield bolts on non-critical mounts (e.g., body panels), but never on powertrain components.
Map electrical routing by starting at the voltage regulator, a rectangular unit with two blade connectors. Trace wires backward to the stator–color codes shift between model years: pre-2015 uses red/black for primary output, while 2016+ splits into red (charge) and white (sensor). Test continuity across stator pins; resistance should measure 0.2-0.5 ohms. Replace if readings deviate–intermittent charging triggers ECU limp mode at 12.8V input.
Suspension Rebuild Techniques
Disassemble the front A-arm by removing four 17mm bolts securing the ball joint. Inspect rubber bushings for cracks–replacement requires a 22-ton press and polyurethane compounds (durometer 80A) for longevity. Rear swingarm bearings (6205-2RS) require a dual-puller setup; inner race removal mandates heating to 150°C. Grease specifications: use lithium complex (NLGI 2) for front shocks, molybdenum disulfide (NLGI 1.5) for rear shocks–prevents cavitation under compression loads exceeding 1,200 lbs.
Calibrate ski stance width by adjusting spindle mounts. Models with independent front suspension (IFS) require symmetrical measurements: 1,060mm center-to-center (CTC) for race setups, 1,020mm CTC for trail use. Verify spindle angle with a digital inclinometer–ideal camber is -1.5° (±0.2°). Misalignment reduces cornering grip by 12% per 0.5° deviation, confirmed via GPS lap data on ice tracks.
Locating Key Snowmobile Components in Technical Breakdown Illustrations

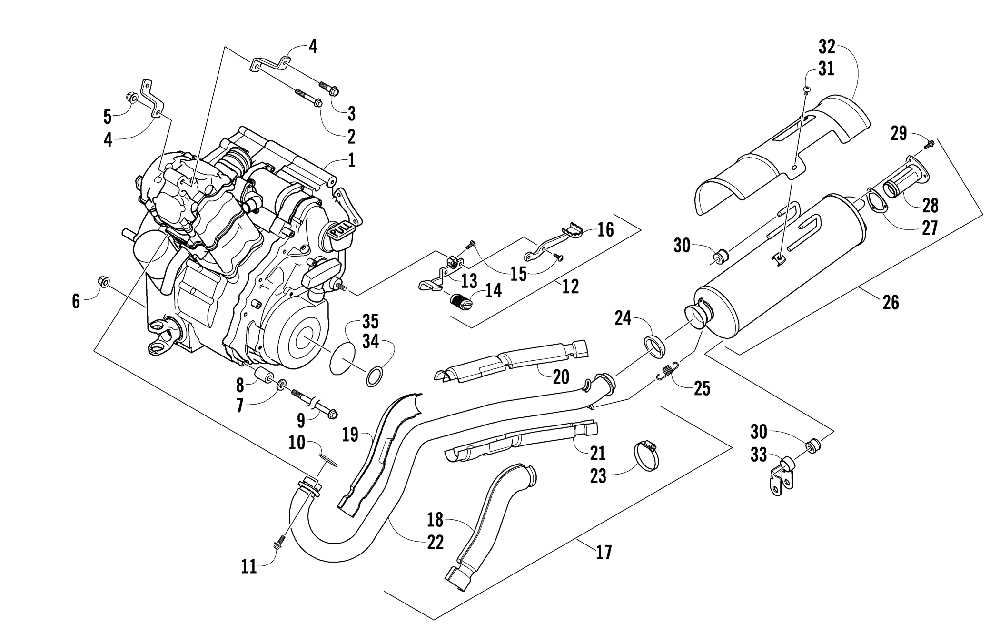

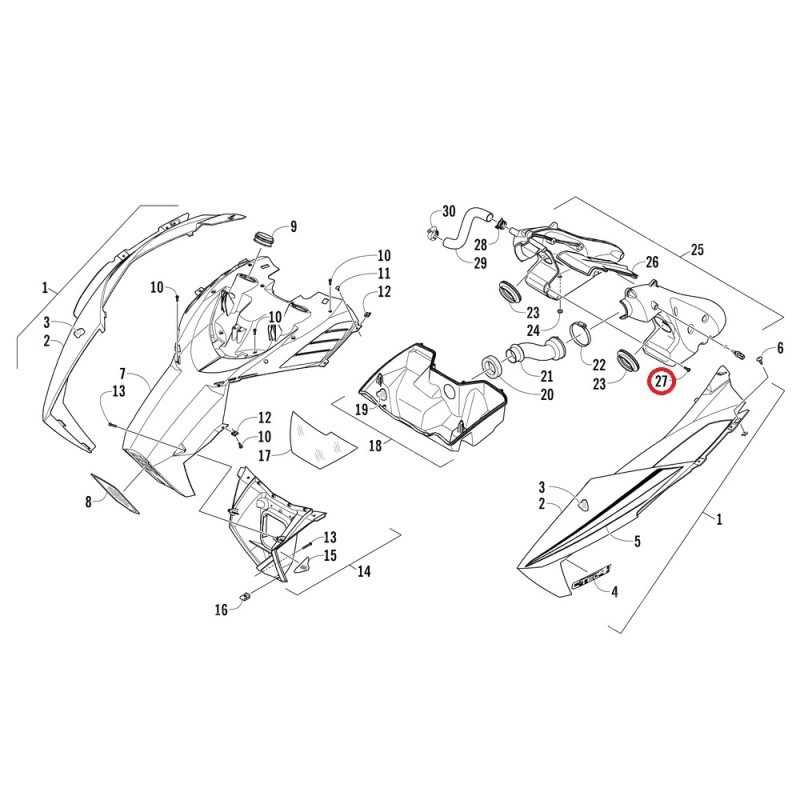

Begin by isolating the engine assembly in the schematic–look for clustered annotations around the cylinder block, piston groupings, and crankcase. Modern snow machines often label these sections with alphanumeric codes (e.g., “E-4” for the exhaust manifold, “I-2” for intake components). Cross-reference these codes with the legend, which typically lists corresponding descriptions, torque specifications, and OEM part numbers.
Identify the drivetrain by tracing the power flow from the engine output shaft to the track system. In exploded views, the primary clutch appears as a cone-shaped assembly connected to the crankshaft via a splined interface, while the secondary clutch shows as a pulley-style mechanism beneath the sled’s belly pan. Look for arrows or dashed lines indicating belt routing–these clarify how the variable-speed transmission transfers torque to the jackshaft and final drive.
Suspension elements require attention to sub-assemblies. Locate the slide rails first–these long, rectangular structures form the backbone of the track frame. Shock absorbers attach via mounting brackets at distinct pivot points (usually labeled “S-1” through “S-4”), while torsion springs may appear as coiled icons adjacent to A-arm linkages. Measure the distance between suspension attachment points in the illustration; mismatches here indicate worn bushings or bent components.
Critical Components and Their Schematic Indicators
| Component Type | Visual Cues in Illustration | Common Failure Points |
|---|---|---|
| Crankshaft | Central rotating shaft; numbered bearings (e.g., “B-1” for main bearings) | Worn journals, damaged seals |
| Carburetor | Bowl-shaped housing with multiple linkage arms; throttle cable connection | Clogged jets, cracked diaphragms |
| Brake System | Caliper assembly with hydraulic lines; rotor depicted as circular disc | Pitted rotors, leaking brake lines |
| Steering Post | Riser tube with handlebar mounts; labeled as “ST-1” or similar | Loose bearings, bent riser |
Electrical systems stand out through distinct symbols: coils appear as cylindrical shapes with two terminals, while CDI modules are shown as rectangular blocks with wiring harnesses extending outward. Trace wiring colors in the legend (e.g., “YL” for yellow) to diagnose connectivity issues–mismatched colors in the schematic versus the physical unit often signal faulty splices or corrosion.
For track systems, focus on the hyfax wear indicators–these synthetic slides attach to the rails and appear as thin, elongated rectangles in the illustration. Replace them when groove depth reaches 3mm. The drive lugs (labeled “DL-1” through “DL-8” in some schematics) should have sharp, defined edges; rounded or missing lugs cause sluggish acceleration and require full track replacement. Always verify torque specs for track tension: typically 10–12 ft-lbs for axle nuts.
Verification Workflow for Schematic Accuracy
Compare the exploded view with the physical unit by measuring three reference points: (1) distance between rear suspension arms, (2) carburetor mount spacing, and (3) handlebar riser height. Tolerances beyond ±2mm suggest frame misalignment or component damage. Use digital calipers for precision–illustrations often round measurements to the nearest 0.5mm. If discrepancies persist, consult the OEM service manual’s “critical dimensions” appendix, as aftermarket kits frequently alter stock specifications.
How to Pinpoint Component Identifiers in Snowmobile Blueprint Layouts
Scan the upper-right corner of each illustration–manufacturer codes appear in bold, typically prefixed with a three-letter abbreviation matching the assembly cluster (e.g., ENG for engine internals, SUS for suspension linkages). Reference the legend adjacent to the exploded view for precise alpha-numeric formatting; hyphens separate model-specific revisions (e.g., 12345-A2 denotes second revision for model year variants). Cross-check against the parts manifest index–shaded rows signal discontinued identifiers while italicized entries indicate superseded replacements.
For edge-case assemblies like electrical harnesses or fuel rail segments, trace the dotted callout lines to the marginalia–small-font notation in brackets specifies compatible sub-models or regional compliance tags (e.g., [CAN] for Canadian emissions regulations). Paper schematics maintain this layout; digital viewers default to hover tooltips where identifiers aggregate with OEM descriptions and multi-year compatibility status.
Key Tools for Decoding Snowmobile Powerplant Layouts
Begin with a high-resolution PDF viewer configured for layered display. Official manufacturer schematics often embed component callouts in overlays–toggle these visible to isolate wiring, gaskets, and fasteners without distraction. Adobe Acrobat DC or Foxit PhantomPDF allow simultaneous layer toggling; verify each sheet’s revision date, as snap-ring locations or torque specs shift annually.
- Digital calipers (Mitutoyo or iGaging, 0.02mm precision)
- Thread pitch gauge (60-tooth, steel)
- Torque wrenches (¼” and ⅜” drives, ±3% accuracy)
Magnification is mandatory. Inspect a 10x loupe for pitting on wrist pins or a USB microscope (Dino-Lite AM7915MZT) for real-time camera feeds–connect to a laptop, zoom 220x, and export JPEGs of suspect surfaces. Store images alongside notes in a notebook app (OneNote or Obsidian) with hyperlinks back to the schematic’s exploded view.
Critical Measurement Protocols
Capture key dimensions first: crankshaft endplay (0.0015–0.0025 in), cylinder bore taper (≤0.0005 in per inch), and piston-ring gap (0.004–0.005 in per inch of bore). Record values in a spreadsheet–color-code deviations: red ≥0.001 in beyond tolerances, amber within 0.0005 in. Cross-reference each measurement with the manufacturer’s wear limits chart.
- Wipe mating surfaces clean with lint-free wipes; avoid compressed air–it embeds debris.
- Mount components on a magnetic work stand (8-inch jaws, 100 lb holding force) to free both hands.
- Label fasteners with masking tape immediately upon removal–bolt length, thread type, and torque spec.
Color-coded electrical tape differentiates wiring harness branches: red (12 VDC constant), orange (solenoid trigger), yellow (ground). Use a multimeter (Fluke 87V) in continuity mode–probe clip to chassis, touch terminal ends while cycling ignition. Snap a photo of each reading; save file names as “wire_route_A3_to_B7_0.3Ω” for traceability.
For carbureted models, keep a fuel flow tester (OTC Tools 4512) preset to 3 psi; verify float height (0.5–0.65 in) with a depth micrometer. Fuel injectors require a ultrasonic cleaner (Branson B200, 40 kHz) and a flow bench (MotorVac CarbonClean)–log pre/post spray patterns in a spreadsheet.
Documentation Workflow
Organize schematics in folders: “Engine,” “Suspension,” “Electrical.” Each folder contains subfolders: “Exploded Views,” “Torque Specs,” “Wear Limits.” Name files uniformly: “ENG_CrankAssy_Rev2023.pdf.” Maintain a master index spreadsheet–track URL, revision, and page count.
- Sticky notes (3M Post-it Extreme, waterproof) for transient assembly notes
- Felt-tip marker (black, fine tip) for etching ID on non-critical surfaces
- 3-ring binder (2-inch spine) for printed torque spec tables
Rebuild sequence matters: coat cylinder walls with molybdenum disulfide paste before piston insertion, torque head bolts in a spiral pattern starting at the center–use a torque-sequence template printed on transparencies aligned over the head surface. Verify each fastener with a torque-angle meter (Snap-on TechAngle) to account for thread friction differences.
