Start by identifying your model’s service manual–typically printed on a sticker inside the left door panel near the top hinge. If the sticker is missing, check the lower edge of the tub’s right side or behind the toe kick plate, where a 12-to-15-character alphanumeric code is pressed into the metal. Cross-reference this code with the official manufacturer’s exploded view PDFs; third-party repair sites omit critical alignment notches on spray arms and filter housings.

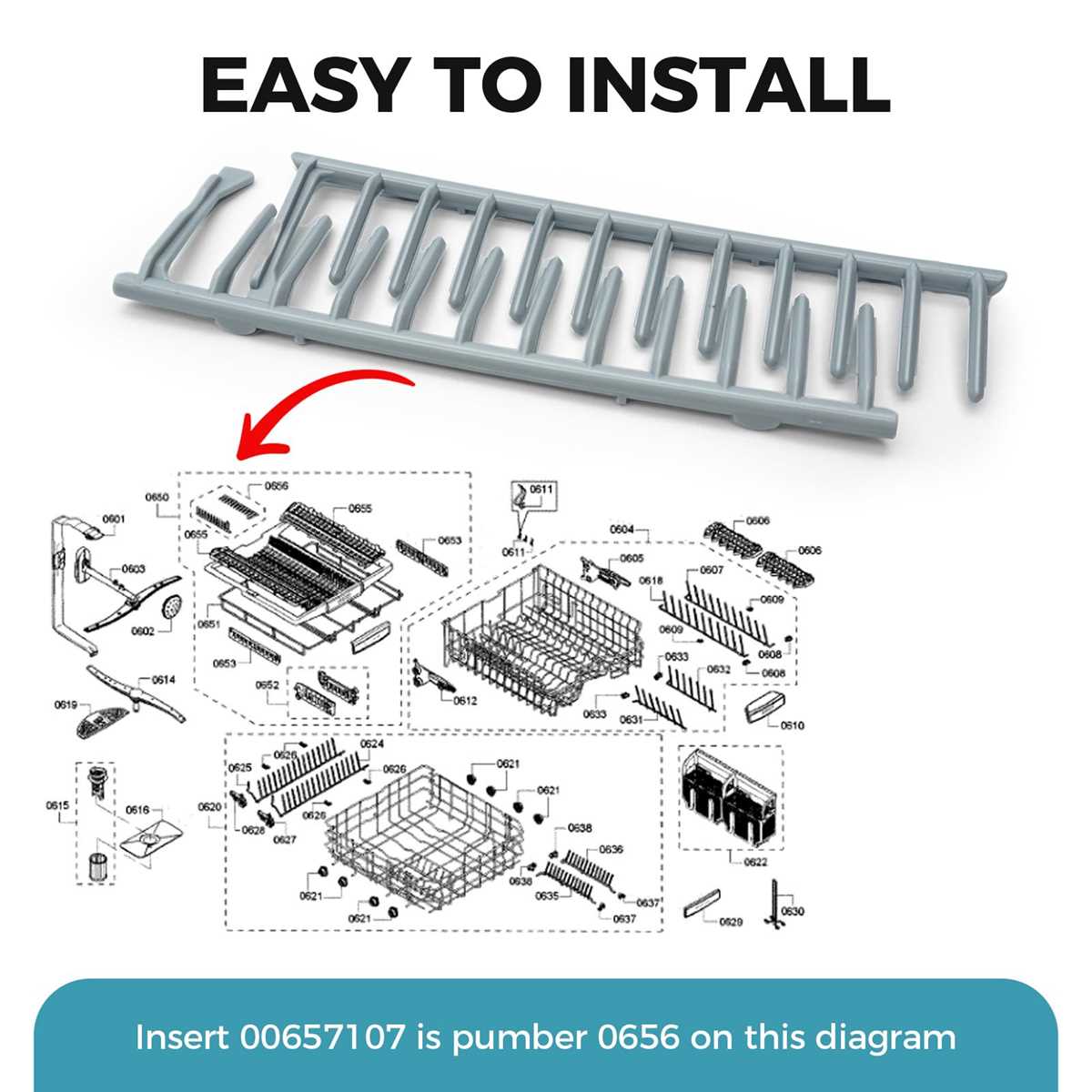

For the interior upper rack assembly, note that the wheel axles snap into triangular or hexagonal molded tracks–forceful removal risks cracking the nylon clips. The middle spray arm (part #SHX8PT65UC/08 or equivalent) rotates on a ceramic bearing; excessive residue requires soaking in 150 °F distilled water mixed with citric acid at a 1:10 ratio for 30 minutes before scrubbing with a soft-bristle brush. Replace the O-ring (inside diameter 18 mm) if the seal surface shows hairline grooves deeper than 0.2 mm.
The main pump impeller (often mistaken for the heater assembly) sits directly beneath the sump screen; access it by removing six Torx T20 screws on the base plate. Clean the impeller’s six vanes individually–any debris wider than 1.5 mm can disrupt water pressure, triggering error code E15. The float switch, a small white cylinder near the front left corner, has a magnetic reed; test continuity with a multimeter set to 20 kΩ when lifting the switch by hand.
When reassembling the detergent dispenser, ensure the spring latch clicks firmly into the micro-switch slot–misalignment causes premature release cycles. The heating element coil lies along the tub’s rear wall; measure resistance between the terminals: 25–35 Ω indicates normal operation. If readings exceed 50 Ω, the element must be replaced to prevent under-heated wash cycles and extended runtime.
Understanding Your Advanced Kitchen Appliance’s Component Layout
Start by locating the lower spray arm assembly–it’s secured with a single T20 Torx screw beneath the bottom rack. Remove the rack completely to access the sump filter, which unscrews counterclockwise by hand. The cylindrical fine filter nestled deeper requires a flathead screwdriver to pry its retaining clip loose. Label each filter with masking tape before cleaning to avoid confusing their positions during reassembly, as the coarse and fine variants aren’t interchangeable.
Key Areas Prone to Wear and Their Indicators
The pump impeller–the heart of the appliance’s water circulation–often accumulates debris between its plastic vanes. Check for cracks or stripped threads if the motor hums but produces no water flow. The door latch mechanism, a frequent failure point, will cause error code E15 if misaligned; test its microswitch by pressing it manually with a multimeter set to continuity mode. The heating element, a thin metal coil encased in the base, should register 20-40 ohms of resistance–any reading outside this range signals burnout.
Upper rack rollers, typically white nylon wheels with metal axles, wear unevenly and may squeak or jam if dirt accumulates. Replace them in pairs to maintain balance, using snap-ring pliers to remove the retaining clips. The detergent dispenser lid’s spring-loaded catch weakens over time; if it fails to snap shut, bend the metal tab inward slightly or swap the entire cup assembly (part #SHX8PRY2UC/10). For the rinse aid compartment, the translucent reservoir is prone to clouding–soak it in a 50/50 vinegar-water solution to restore clarity without damaging the float valve.
When tackling the control panel, detach the inner door panel by removing six T15 Torx screws–four along the perimeter and two hidden beneath the insulation strip. The electronic control board houses relays that degrade from humidity; if the appliance powers on but buttons don’t respond, inspect solder joints with a magnifying glass for hairline cracks. The turbidity sensor, a small optical window near the sump, can be cleaned with a cotton swab dipped in isopropyl alcohol, but avoid abrasives that may scratch its surface and trigger false dirt-load readings.
Reassembly Pitfalls and Pro Tips
Before reinstalling the spray arms, ensure the bearing rings (black plastic collars beneath each arm) lie flat against the tub–misalignment here causes leaks or inefficient water distribution. The drain pump’s impeller must spin freely by hand; if stiff, flush the housing with water to dislodge trapped glass or utensil fragments. The water inlet valve, located behind the toe kick, should be tested for 500-1500 ohms resistance; replace it if the solenoid clicks but no water fills. Finally, tighten all screws in a star pattern to prevent warping the door seal, and run a diagnostic cycle (press “On/Off” + “Cycle Select” simultaneously for 3 seconds) to confirm all systems engage properly.
Identifying the User Interface and Circuitry Components
To access the control panel and electronic modules, remove the inner door panel by unscrewing the Torx T15 fasteners (typically 6–8) along the perimeter. The top edge often conceals two additional screws beneath a plastic trim–pry it gently with a flathead screwdriver, avoiding damage to the retaining clips. Once detached, the panel will reveal the mainboard (green PCB, labeled with firmware revision, e.g., “SW 06.43”) and wiring harness connections. Note the ribbon cable linking the display to the board; disconnect it by lifting the black locking tab before lifting the panel free.
Key Electronic Assemblies and Their Positions
- Power supply module: Located behind the lower kickplate (held by two Phillips screws), this black rectangular unit converts AC to DC. Verify input/output voltages (120V AC → 24V DC) before handling.
- Touchpad membrane: A thin, flexible circuit adhered to the outer door panel. Replace if unresponsive; peel carefully–avoid bending the contact traces.
- Motor controller: Mounted near the circulation pump (bottom rear), identified by a heat sink and 3-wire connector (red/black/white). Check for burnt smells or swollen capacitors.
- Water inlet valve: Blue or gray solenoid (left side, behind the toe kick). Test resistance (80–120Ω) using a multimeter.
Label all disconnected wires with masking tape (e.g., “Mainboard J4 – White”) to prevent misreconnection during reassembly. Refer to the component layout sketch in the service manual’s appendix for exact terminal locations.
Locating and Maintaining Spray Mechanisms for Optimal Performance
Inspect the upper and lower spray arms first–these components typically snap into place beneath racks. The upper arm connects to a mounting bracket near the rear; lift gently to detach. Check for mineral buildup along the nozzle edges, especially in hard-water regions where calcium deposits accumulate within weeks. A nylon brush and distilled white vinegar soak (two hours max) dissolves stubborn residue without damaging plastic.
Lower arms often have larger openings but clog faster due to food particles settling. Rotate the arm counterclockwise while pulling downward to release from its spindle. Shake out debris before rinsing under warm water–no soap required. If nozzles appear misaligned, use a toothpick to clear individual holes; needles or metal tools may scratch coatings and accelerate corrosion.
Verifying Spray Nozzle Functionality
Run a cycle with racks removed to observe water patterns. Active nozzles should emit a steady, forceful stream in a circular motion. Weak or erratic sprays signal blockages or worn bearings. Remove the arm assembly per manual instructions, then submerge in a 50/50 vinegar-water solution for 60 minutes–longer exposure softens seals and invites leaks.
Rotate arms manually before reinstalling to confirm smooth movement. If resistance persists, apply heat-resistant silicone grease sparingly to moving joints. Avoid petroleum-based lubricants; they degrade rubber seals over time. Replace arms showing cracks or stripped mounting tabs–they fail suddenly under pressure, often mid-cycle.
Middle rack spray tubes (found in select models) twist-lock horizontally; slide left then right to disengage. These are prone to grease buildup from cooking oils. Scrub with a dishwashing detergent solution and a microfiber cloth–abrasives strip protective finishes. Reattach only after verifying all three alignment tabs click into place.
Preventative Measures
Flush arms monthly with a baking soda rinse (1 tablespoon dissolved in warm water) to neutralize odors and maintain water flow. Hard water areas benefit from a quarterly decoupling of all spray components for deep cleaning. Dry thoroughly before reassembly–trapped moisture invites mold growth on rubber gaskets.
Listen for unusual grinding noises during operation. This indicates foreign objects (bones, glass shards) lodged inside arms. Disassemble immediately to remove debris; continued use wears impeller teeth, leading to costly motor repairs. New arms start at $22, while full replacements exceed $85–regular inspections save labor costs.
Document spray arm positions during disassembly. Improper reassembly causes uneven water distribution, leaving dishes dirty at cycle end. Take photos or mark reference points with masking tape to simplify reinstallation. Always test-run an empty unit after servicing to confirm all nozzles activate.
Key Elements of the Water Cleaning and Waste Removal System
Inspect the coarse filter monthly–remove debris by twisting counterclockwise, then flush under running water to dislodge grease buildup that reduces pump efficiency. Replace this component if cracks appear; a damaged filter allows food particles to bypass, clogging the impeller and tripling energy consumption during cycles.
- The fine mesh sits beneath the coarse filter and traps particles down to 0.3 mm–rinse weekly to prevent biofilm formation, which can emit odors after 7–10 days of neglect.
- A blocked drain hose triggers error code E24; detach and snake with a 4 mm flexible brush to clear obstructions like olive pits or labeling glue.
- Check valve flaps behind the sump annually–wear causes backflow, forcing recirculation pumps to operate 18% longer per load.
Install a secondary inline filter upstream of the machine if water hardness exceeds 120 ppm–this prevents calcification of the heating coil, which drops drying performance by 30% after 500 cycles. Keep the air gap at least 2 cm above the sink rim; improper height causes siphoning, leading to standby leaks.
