Start by locating the exploded view illustration for the upper housing and carburetor assembly–look for PN 6029-2401 on page 12 of the manufacturer-issued service manual. This schematic pinpoints every gasket, seal, and bolt, including torque specifications: M6 fasteners require 8-10 Nm, while M8 bolts must be tightened to 20-25 Nm to prevent stress fractures in the cast aluminum casing.
For ignition troubleshooting, reference the wiring harness layout (figure 3-5) where the ignition coil connects to the flywheel magneto via a 3-pin connector; confirm resistance values between terminals–primary coil should measure 0.5-1.5Ω, secondary coil 10-15kΩ. Replace the coil if readings deviate by more than 10%.
The air filter assembly schematic (section 4-A) highlights two critical components: the pleated paper element (part 4101-0151) and foam pre-filter (4101-0152). Clean the foam pre-filter in mild detergent every 50 operating hours, drying thoroughly to avoid engine flooding; replace the paper element every 200 hours or if visible debris persists.
Refer to the fuel system diagram (figure 3-8) to identify the fuel pump (PN 6019-2102) and needle valve positions. The pump diaphragm must maintain elasticity–check for cracks by flexing it manually; a brittle diaphragm starves the engine, causing intermittent stalling. Rebuild kits include a new diaphragm, gaskets, and filters–install them as a complete set to avoid vacuum leaks.
For engine reassembly, follow the crankcase disassembly schematic (figure 2-3) meticulously. The piston rings must sit flush within the cylinder bore–use a feeler gauge to verify end gaps of 0.2-0.4mm. Misaligned rings increase oil consumption by 30% and reduce compression by up to 15%. Apply molybdenum grease to the wrist pin bearings to extend their lifespan to 500 hours.
How to Locate and Replace Components in Your Portable Generator Model 500
Start by securing the maintenance manual specific to the early 2010s 6.5HP engine variant–symptom guides for carburetor malfunctions differ from those in later fuel-injected versions. Identify the air filter housing by tracing the intake tube from the engine block; the assembly sits directly beneath the recoil starter on models with pull-start ignition.
Replace the spark plug only after verifying gap specifications (0.028–0.031 inches for NGK BPR6ES). Remove the rubber boot first, then use a 13/16-inch socket to avoid stripping threads. Rust on the electrode indicates moisture exposure; apply dielectric grease to the boot terminal during reassembly to prevent future corrosion.
Fuel System and Electrical Compartment Breakdown
Drain the fuel tank completely before servicing the internal fuel pump. The priming bulb connects via a clear vinyl hose–check for cracks at stress points near the fuel valve. For voltage regulator replacements, disconnect the battery first; the regulator sits adjacent to the stator under the alternator cover, marked by a finned aluminum heat sink.
To access the AVR (automatic voltage regulator), remove the control panel’s rear cover–four Phillips screws secure it. Label wires before detachment; black leads typically ground to the frame, while red or yellow carry output to the outlets. Replacement units require thermal paste on the mounting surface to ensure proper heat dissipation.
Inspect the piston rings during major overhauls by removing the cylinder head (six 10mm bolts, uneven torque sequence). Measure ring gap with a feeler gauge–exceeding 0.012 inches indicates wear. For oil pump failures, note the gerotor design; disassembly requires removing the flywheel, accessible only with a Harmony Tools HT-30 puller.
Reassemble the exhaust manifold with a new gasket–copper-coated units prevent warping at sustained high loads. Tighten bolts in a cross pattern to 18 ft-lbs. Test run the unit at half-load for 30 minutes to confirm no leaks before full use; monitor both oil pressure and outlet voltage stability.
Finding Key Engine Elements in Your Generator’s Schematic
Start by identifying the air-cooled engine block in the upper-left quadrant of the layout–it’s typically marked with bold borders or shaded fill. Look for labels like “engine housing,” “block assembly,” or “cylinder unit” nearby. The spark plug sits near the top, often depicted as a small cylindrical component with a wire connecting upward. If the illustration includes a cross-section, the piston will appear below the plug, aligned with the crankshaft at the base.
Critical Subcomponents to Trace
- Carburetor: Locate it adjacent to the intake manifold–usually a rectangular or circular shape with fuel lines branching off. Follow the fuel line from the gas tank (bottom-right region) to confirm.
- Flywheel: Positioned behind the cooling fins, this heavy disc may blend into the outline; search for text like “magneto rotor” or “fan flywheel.”
- Governor linkage: A small lever or rod connecting near the carburetor–verify by tracing its path to the throttle plate.
- Oil drain plug: Marked with a hexagonal shape at the engine’s underside; oil filters (spin-on type) attach nearby.
For precise reference, note the engine model number stamped on the valve cover–Briggs & Stratton 205432 or Honda GX240 variants are common. Match this number to the schematic’s legend (often a table in the bottom margin). If labels overlap, check the orientation: exhaust ports face outward, intake valves align with the carburetor side.
Troubleshooting? Prioritize these checks using the chart’s callouts:
- Verify the air filter housing isn’t clogged–it’s typically a large, boxy element near the carburetor inlet.
- Inspect the recoil starter assembly (pull cord side) for dislodged springs or frayed rope–indicated by a coiled spring icon.
- Confirm alternator connections (rectangular block with wires) aren’t corroded–these sit beneath the flywheel cover.
Locating Engine Air Intake and Fuel Mixing Components for Portable Generators
Start by removing the engine cover–typically secured with four 8mm bolts. The air filter housing sits directly over the carburetor; it’s a black plastic box attached with two 6mm screws. Inside, you’ll find a foam element (model AF-304) held by a wire retainer; replacements should measure 3.5″ x 5″ x 0.75″. Always check for oil saturation; if present, clean the foam with warm water and mild detergent or replace it to prevent restricted airflow.

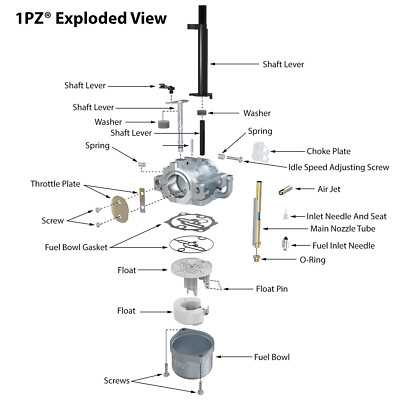

Carburetor disassembly requires disconnecting the fuel line first–use needle-nose pliers to pinch the hose clamp at the tank outlet. The mixing valve (model CV-212) has a brass body with three 4mm screws securing the bowl; remove them to access the float, needle, and seat. Inspect the needle (part #987-654) for wear–a groove deeper than 0.2mm means replacement. The seat (OEM #123-456) should be free of corrosion; tap it gently with a brass punch if stuck.
Critical Components to Verify Before Reassembly
- Gasket between carburetor and engine–replace if brittle (use BN-887).
- Fuel filter inline (part #456-789)–check for debris; change every 50 hours.
- Throttle linkage–ensure it moves freely; lubricate with silicone spray.
- Air filter cross-reference: Briggs & Stratton model 698369 fits foam dimensions exactly.
- Carburetor rebuild kits from Walbro WT-346 match internal components.
- Universal fuel shutoff valves (thread M12x1.25) replace OEM part #741-852.
The emulsion tube (ID 2.1mm) threads into the carb body; remove it with a 7mm deep socket. If clogged, soak in acetone for 30 minutes, then blow compressed air through both ends. The idle jet (part #321-654) sits adjacent; its orifice (0.5mm) must be clear–use a single strand of wire to clean, never a drill bit. Reinstall all brass fittings with thread sealant to prevent vacuum leaks.
After reinstalling, prime the fuel system by squeezing the bulb until firm resistance is felt–this bypasses trapped air. Start the engine and check for leaks at the bowl gasket; tighten the screws in a cross pattern to 2.5 Nm. Adjust idle speed with the adjustment screw (1/8″ turn clockwise raises RPM by ~100). If surging persists, the diaphragm (kit #PK-998) may be torn; it separates under the plastic cover retained by a single screw.
Compatibility and Alternative Sources
Interpreting the Generator’s Fuel Pathway and Line Connections
Locate the carburetor inlet on the schematic first. It’s marked near the top right, typically with a small circular symbol connected to a single horizontal line. Trace this line backward to find the fuel filter–an elongated oval labeled between the tank and carburetor–ensuring no kinks or branches interrupt this primary route.
Identify the fuel pump next, shown as a boxed rectangle with dashed inlet and outlet lines. The inlet line originates from the tank’s lower port, while the outlet feeds directly into the filter. Confirm the arrow direction on the pump’s symbol matches the actual flow; reverse orientation indicates a drawing error or misassembly risk.
Key Junctions and Return Loops
Examine the tank’s dual ports: the primary outlet (left) supplies fuel, while the secondary (right) handles overflow. A thin return line runs from the carburetor bowl back to this secondary port–ensure this loop remains open to prevent pressure buildup. Blockages here often mimic fuel starvation symptoms.
Check the priming bulb if included. It’s depicted as a rounded black circle with a stem connecting to the main supply line. Pressing it forces fuel past the pump; if the bulb doesn’t refill within three pumps, suspect a clogged line segment or failed one-way valve upstream.
Troubleshooting Flow Restrictions
Use a pressure gauge on the filter’s outlet side if stalling occurs. Ideal readings range 2.5–4 psi; deviations suggest a faulty pump or obstructed screen. Isolate segments by disconnecting lines at junctions–blowing compressed air (10–15 psi) through each confirms patency.
Label lines before disassembly. Mark the tank’s main output with red tape, the return with blue, and the primer bulb stem with yellow. Misrouted lines cause hard starts or flooding even when all components appear functional.
