Replace or repair components efficiently by referencing your model’s official breakdown. Locate the user manual’s exploded view–typically page 8 or 9–for exact part placement. For example, the gasket (item #FS2240) sits directly under the lid seal, while the cutting bar (#FS2230) aligns parallel to the roll holder. Cross-check numbers against the manufacturer’s parts list to avoid mismatches.
Disassemble the unit only after unplugging it and relieving pressure from the air chamber. Use a flathead screwdriver to pry the upper casing, but note that some models require a Torx T10 bit for secure housing screws. The vacuum pump module (#FS2205) detaches via two Phillips screws; lift it straight upward to prevent damaging the silicone tubing connections.
Clean replacements with isopropyl alcohol before installation–especially seals and valves–to prevent debris from compromising suction. The retention bar (#FS2215) must click audibly into the lid frame; partial engagement causes inconsistent sealing. Test each component individually after reassembly: run an empty cycle to confirm proper air evacuation before storing food.
Understanding Your Vacuum Sealer Component Layout
Begin by locating the sealing strip on your appliance–typically a narrow, replaceable Teflon-coated band running along the upper edge of the sealing chamber. This element degrades fastest due to repeated heat cycles, so keep spare strips on hand. Models vary slightly: some include a built-in cutter above the strip, while others require manual scissors. Verify compatibility before ordering replacements–measure both the length (usually 30–45 cm) and width (5–8 mm) with calipers to avoid misfits.
Identify the vacuum channel next–a grooved pathway beneath the lid that directs suction evenly across bags. Blockages here often cause incomplete sealing; inspect weekly for debris or moisture buildup. A small brush or compressed air can clear obstructions without damaging the surface. Some units feature dual channels for wider bags–refer to your model’s technical guide to confirm if yours supports this. Incorrect bag placement over a single-channel unit leads to uneven vacuuming and potential pump strain.
The motor assembly sits behind the vacuum channel, encased in a housing that may unclip for servicing. Listen for unusual noises: rattling suggests loose components, while high-pitched whines indicate bearing wear. Lubricate moving components sparingly with food-grade silicone spray–avoid petroleum-based products. Check the drive belt (if accessible) for cracks every six months; a snapped belt halts operation entirely. Most belts stretch over time–adjust tension or replace if vacuum strength weakens.
- Upper lid: Often hinged with torsion springs; clean the hinge mechanism monthly to prevent stiffness.
- Drip tray: Removable plastic or stainless steel–positioned below the sealing strip to catch liquid runoff.
- Gasket: A silicone or rubber ring lining the lid; ensures an airtight seal when closed–replace if compressed or torn.
- Control panel: Buttons or touchpad for vacuum strength and sealing duration settings–clean with a damp cloth only.
Inspect the heating element–a thin wire parallel to the sealing strip–if bags fail to close properly. Use a multimeter to test continuity: resistance should read between 10–20 ohms. Higher readings indicate degradation; low readings suggest a short. Some models combine the element and strip into one unit–these are not serviceable and require full replacement. Always unplug the device before testing to prevent electrical hazards.
Common failure points by frequency:
- Sealing strip (every 6–12 months)
- Gasket (12–18 months)
- Vacuum pump (motor or diaphragm, 2–3 years)
- Drive belt (varies by usage)
- Heating element (rare, 3+ years)
Refer to the exploded-view illustration in your manual for precise part numbers–manufacturers often update designs without notice. Cross-reference measurements against your physical unit if ordering third-party components. For European models, ensure voltage compatibility (220–240V) if sourcing North American replacements. Keep a set of Torx and Phillips screwdrivers (T10–T20 sizes) on hand for disassembly; some fasteners require tamper-resistant bits.
How to Spot Critical Elements in Your Vacuum Sealing Device
Examine the sealing strip first–it’s the thin, replaceable band running along the unit’s opening. Check for cracks, discoloration, or wear; these indicate it’s time for a swap. Most models need this component replaced every 10–15 uses, especially if sealing moist or fibrous items. Skipping this step leads to inconsistent suction and failed seals, wasting bags and effort.
Troubleshooting the Motor and Pump
Listen for unusual noises during operation–grinding, straining, or prolonged humming signals pump or motor issues. A healthy unit runs smoothly for 10–20 seconds per cycle; anything longer suggests blockages or failing internals. Clean the air vents monthly to prevent overheating. If deep cleaning doesn’t help, the motor may need professional servicing or replacement.
Inspect the bag holder and clamp mechanism next. Ensure the clamp presses firmly against the sealing strip when engaged–misalignment causes weak seals or air leaks. Test by sealing an empty bag; if wrinkles appear or the seal isn’t uniform, adjust the clamp tension or realign the strip. Loose clamps often require tightening the screws beneath the unit’s base plate.
- Drip tray: Catches liquids during sealing–empty and wash after every use to prevent mold or bacterial buildup. A cracked tray won’t contain spills, leading to motor damage.
- Power cord: Check for fraying or exposed wires. Replace immediately if damaged; faulty cords are a fire hazard.
- Control panel: Buttons should respond without delay. Sticky or unresponsive controls may need cleaning or require a reset (consult the manual for model-specific steps).
Finally, test the vacuum channel–clear any debris from the small port where air exits. Use a thin brush or compressed air to remove particles; blockages here reduce suction efficiency. If performance doesn’t improve, the internal filter (if equipped) may need replacement. Store the unit with the lid slightly open to prevent moisture buildup and extend component lifespans.

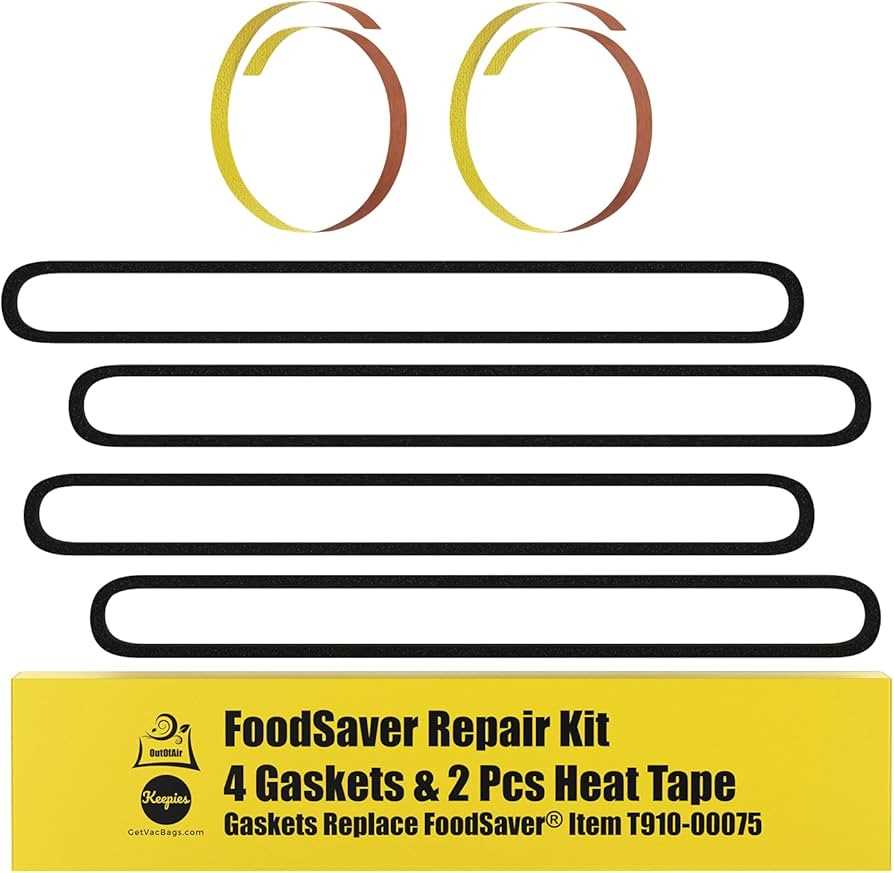

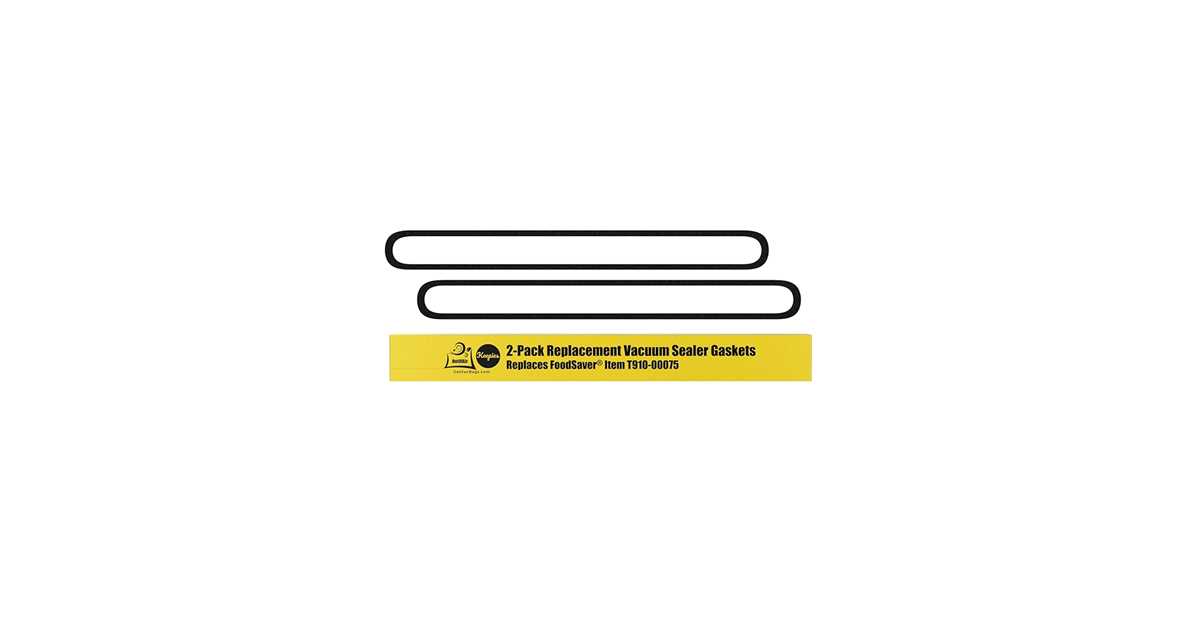

Where to Find Replacement Gaskets and Sealing Strips
Start with the manufacturer’s official website or authorized retailers like Amazon, Walmart, or Bed Bath & Beyond. Search for the model number of your vacuum sealer–usually found on the base or underside–to ensure compatibility. Brands like Weston, NutriChef, and Anova sell direct-fit components, including rubber seals and heat strips, often labeled as “maintenance kits.” Check product descriptions for dimensions (e.g., 11″ or 15″ width) and material (silicone or BPA-free plastic) to match your unit.
Specialty Appliance Stores
Stores like Williams Sonoma, Sur La Table, or local kitchenware shops stock replacement sealing strips for high-end models, including chamber vacuum sealers. These retailers often carry universal gaskets that fit multiple brands, but verify compatibility by comparing the groove width and thickness. Call ahead or check online inventories, as stock varies by location. Some stores offer installation services for an additional fee.
For budget-friendly options, visit eBay or Mercari, where sellers list used or new-old-stock parts. Filter results by “new” condition and read seller reviews to avoid counterfeit items. Pay attention to shipping costs, especially for international listings, as they can exceed the price of the gasket itself. Message sellers with photos of your sealing bar for confirmation before purchasing.
Industrial suppliers like McMaster-Carr or Grainger sell bulk rolls of silicone sealing strips, cut to custom lengths. This is ideal for commercial units or frequent users replacing multiple gaskets. Measure your existing strip’s profile (e.g., flat, L-shaped, or T-shaped) and order samples first, as return policies are strict. Prices start at $20 for a 5-foot roll, significantly cheaper than single-unit replacements.
DIY and Repair Workshops
Local appliance repair shops or community maker spaces sometimes stock generic gaskets compatible with popular sealers. Ask technicians for offcuts or leftover strips from previous jobs–many will sell these at a discount. Forums like Reddit’s r/appliancerepair or iFixit’s guides include threads where users share sources for hard-to-find components, including OEM part numbers. Always cross-reference measurements before installing.
How to Disassemble and Clean the Vacuum Channel
Unplug the sealing unit and locate the release tabs on the upper housing. Press both tabs simultaneously while lifting the cover–this exposes the vacuum chamber without tools. If residue obstructs the tabs, use a flathead screwdriver no wider than 3mm to pry gently at the seam, applying pressure near the hinge side to avoid cracking the plastic. Detach any removable filters first; models with mesh screens (e.g., VS1110) have clips on the underside–slide them outward at a 45-degree angle to prevent tearing.
| Component | Cleaning Method | Frequency | Tools Needed |
|---|---|---|---|
| Vacuum channel walls | Wipe with 70% isopropyl alcohol on a lint-free cloth | After every 10 uses | Microfiber cloth, soft-bristle brush |
| One-way valve | Soak in warm water with 1 tsp baking soda for 10 minutes | Monthly | Small bowl, toothpick (for debris) |
| Exhaust port | Blow compressed air at 20 PSI from inside out | Bi-weekly | Air duster, tweezers |
Inspect the channel for mineral buildup–use a wooden coffee stirrer, not metal, to scrape stubborn deposits from corners. For units with aluminum heating strips (e.g., GM2000 series), clean only with distilled water to prevent oxidation; never submerge. Reassemble in reverse order, ensuring the O-ring seats fully in its groove–misalignment causes air leaks detectable by a hissing sound during operation. Test with a dry bag before storing foods.
