Start by identifying the model year–older VX and FX series (2010–2018) use pneumatic switches, while post-2019 units rely on electronic modules. The intake grate sits forward of the pump assembly; remove it first to access the impeller housing. Label each fastener–M8 bolts on the ride plate differ from the M10 studs securing the steering nozzle.
For fuel systems on 1.8L engines, trace the return line from the pressure regulator to the tank–clogs here mimic injector failure. Ignition coils on SHO models attach via three-wire harnesses; crimped terminals cause misfires, not spark plugs. Replace exhaust manifold gaskets every 100 hours on supercharged units to prevent boost leaks.
Hull drainage valves (¼” NPT) require annual replacement if saltwater exposure exceeds 10%. Bilge pumps draw 8–12 amps–test by jumping the float switch directly to 12V. Steering cables fray internally near the handlebar base; inspect before diagnosing ECM errors. Replace ribbed drive belts at 200-hour intervals; carbon dust accumulates on tensioners.
For electrical troubleshooting, use a digital multimeter with a 0.1-ohm resolution. Ground straps connect the engine block to the hull–corrosion here triggers ECU faults. Supercharger clutch engagement applies 4–6 Nm of preload; adjust via shim washers. Coolant bleed screws differ: threaded on 4-strokes, plug-style on 2-strokes. Use OEM thermal paste on cylinder head sensors.
How to Interpret Jet Ski Component Schematics Effectively

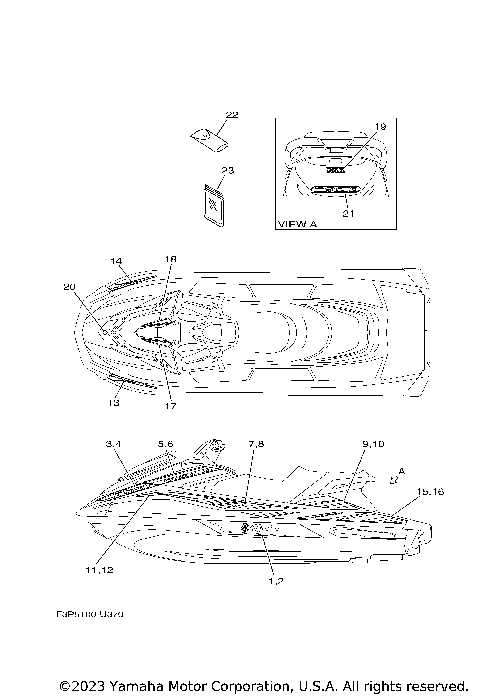

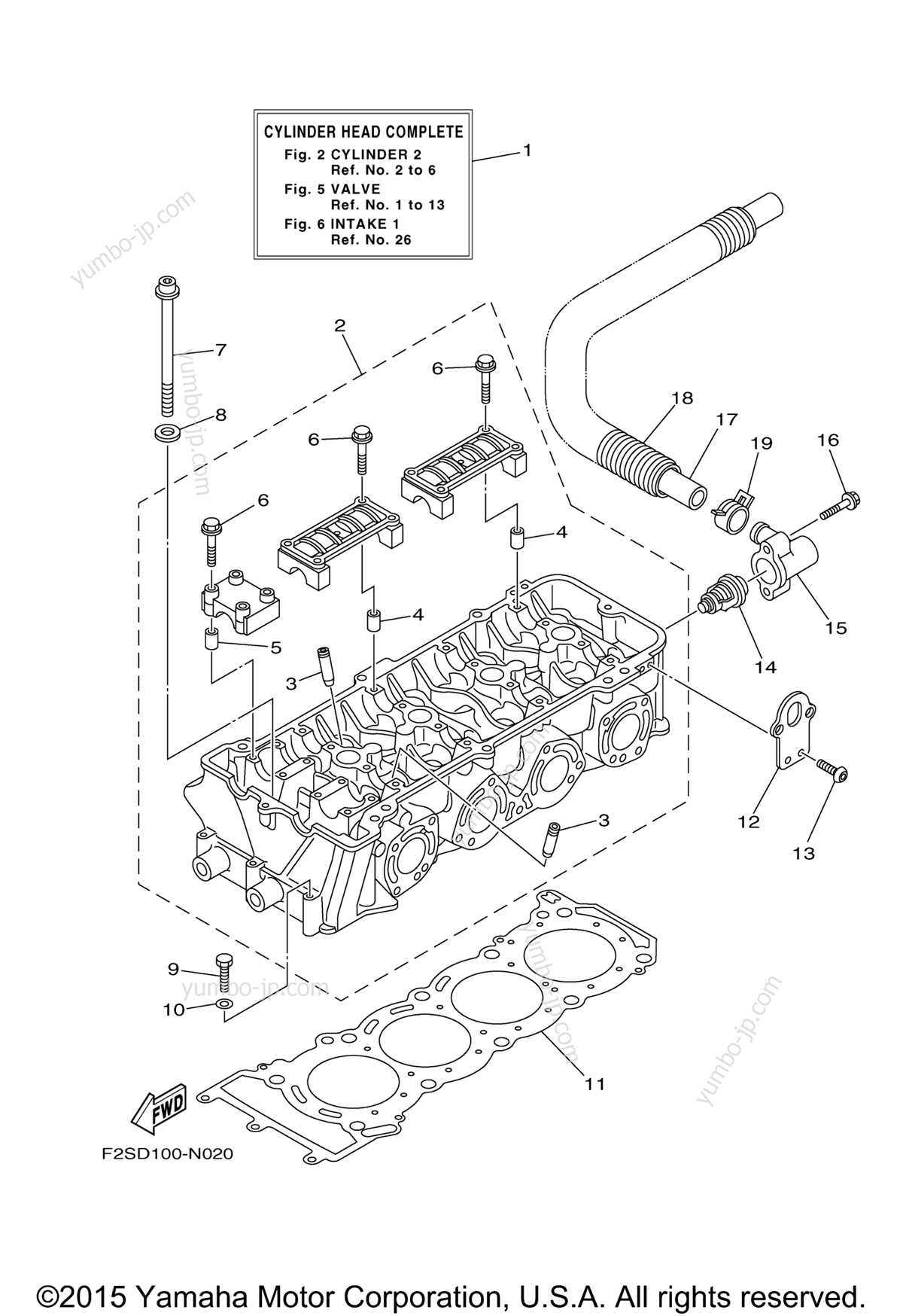

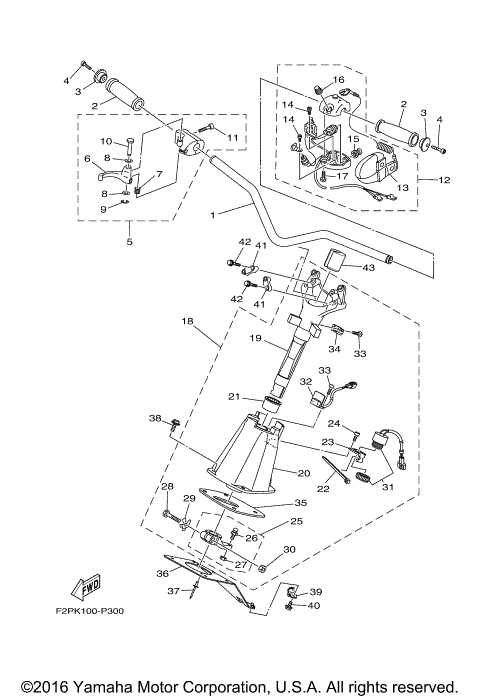

Locate the model-specific schematic in the owner’s manual or service guide–look for the section labeled “exploded views” or “assembly breakdown.” Each illustration groups components by functional zones: propulsion, intake, cooling, and electrical systems. Cross-reference the numbered parts list with the visual layout to avoid misidentifying similar-looking gaskets, impellers, or seals, particularly in high-wear areas like the pump housing.
- Impeller area: Verify thread direction (left-hand vs. right-hand) before disassembly. A mismatched impeller nut can strip threads.
- Hull fittings: Note rubber grommet placement on bilge drain plugs–incorrect orientation causes leaks.

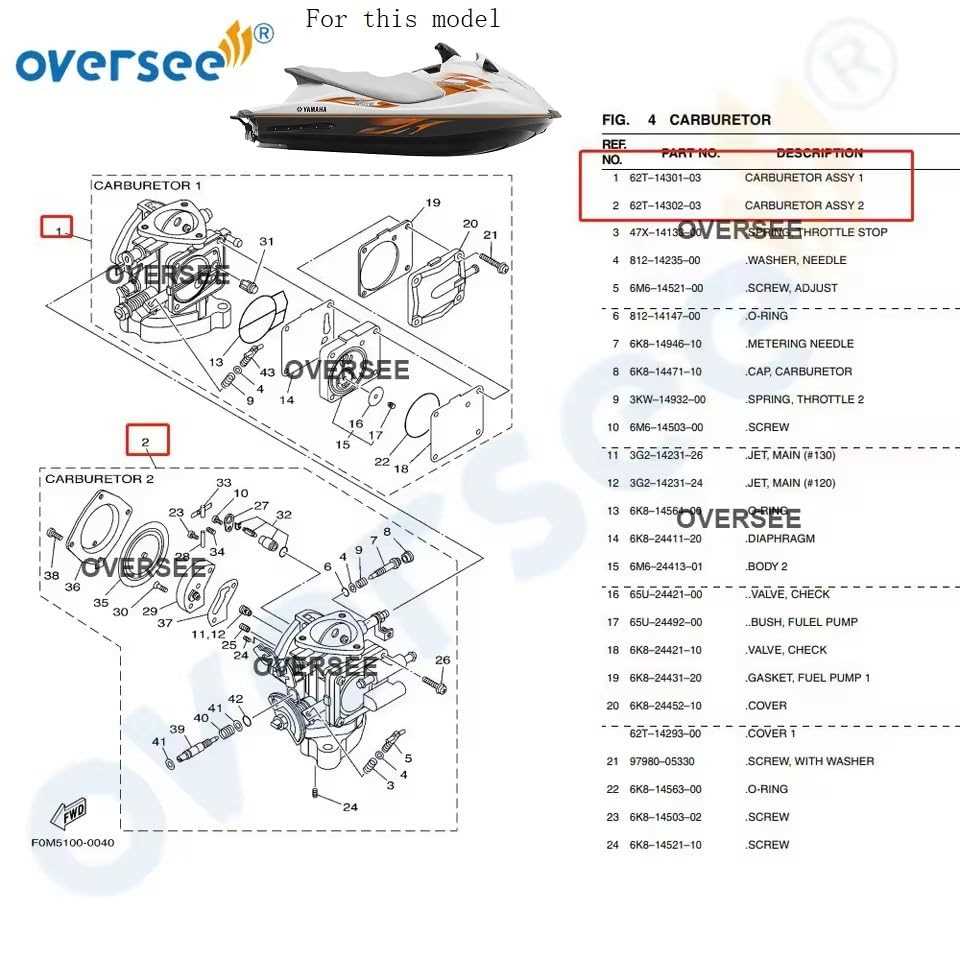

- Fuel system: Check O-ring compatibility between carb models (44 mm vs. 46 mm; mixing them voids pressure seals).
Common Pitfalls When Matching Components
Never assume interchangeability between model years–even minor revisions alter bolt patterns or mounting points. For example, the 2020 FX HO uses a 12-blade ride plate, while the 2022 FX Cruiser HO switches to a 16-blade design for better stability, requiring different tooling for removal. Always verify torque specs: over-tightening the jet pump housing bolts (spec: 18-22 Nm) can crack the aluminum casting.
- Inspect the schematic’s footnotes for critical updates (e.g., revised impeller pitch angles in post-2021 models).
- Use a digital caliper to confirm shaft diameters–aftermarket suppliers frequently mislabel 15 mm vs. 16 mm variants.
- Label disconnected wires by taping paper tags (avoid marker on insulation–ink rubs off when wet).
- Store small fasteners (e.g., 6 mm washers) in magnetized trays to prevent loss in bilge water.
Locating Authentic Jet Ski Component Breakdown Illustrations
Start with the manufacturer’s authorized portal. The official marine division website for the brand maintains an extensive repository of detailed schematics. Navigate to the “Service” or “Support” section, then select “Exploded Views” or “Parts Catalog.” Models from the FX, VX, and GP series, among others, are indexed by year and configuration–filter precisely to avoid mismatches. These documents include factory part numbers, torque specifications, and assembly sequences, essential for accurate repairs or upgrades.
Dealerships and certified service centers often provide direct access to these resources. Contact a local representative with your model number and year; they can email PDFs or printouts of the exact breakdowns. Some locations keep physical manuals on-site–requesting them may require scheduling an appointment. Third-party platforms like BoatMoto.com or MarineEngine.com aggregate these schematics, but verifying their authenticity against the official source is critical to prevent errors.
For vintage or discontinued models, forums such as GreenHulk.net or WaveRunnerForum.com host user-uploaded scans, though quality varies. Cross-reference any non-official diagram with the OEM specifications to confirm accuracy–even minor discrepancies can lead to component damage or performance issues.
Critical Elements in a Personal Watercraft Powerplant Layout
Locate the impeller housing immediately below the jet pump assembly–the gap between the impeller blades and the wear ring must not exceed 0.3 millimeters to prevent efficiency loss. Replace the wear ring if grooving deeper than 0.5 millimeters is visible; failure to act reduces thrust by up to 18%. The stator vanes, positioned aft of the impeller, channel water flow–ensure all six vanes sit flush against the pump body, as misalignment introduces turbulence and cavitation bubbles detectable by a high-pitched whine during acceleration.
Internal Combustion Core Breakdown
| Component | Material | Service Interval | Failure Symptoms |
|---|---|---|---|
| Piston rings | Cast iron with molybdenum coating | 100 operating hours or annual inspection | Blue exhaust smoke, compression below 10.5 bar |
| Crankshaft seals | Fluorocarbon elastomer | Replace whenever lower unit is split | Milky engine oil, coolant in exhaust |
| Fuel injectors | Stainless steel with sapphire nozzle | Clean every 50 hours, replace every 200 | Misfires at 5,000 RPM, visible carbon on spark plugs |
Torque the cylinder head bolts in a spiral sequence, starting at 10 N·m, then 25 N·m, finishing at 40 N·m–deviating from this order warps the head surface, leading to coolant leaks through the intake ports. The throttle body gasket must be replaced whenever the housing is removed; reuse introduces air leaks that manifest as erratic idle and hesitation above 3,500 RPM. Verify the flywheel keyway is free of burrs before reinstalling; a sheared key advances timing unpredictably and may cause detonation under load.
How to Identify and Locate Impeller and Pump Housing Components
Begin by removing the jet propulsion unit’s rear cover–typically secured with 8–12 bolts (size M8 or M10). Trace the intake grate upward to expose the pump assembly; the impeller sits directly behind it, encased in a stainless-steel housing marked with casting numbers (e.g., “6D8” or “1JX”). Note the blade count: 3-blade designs dominate mid-range models, while 4-blade variants appear in high-thrust applications. Measure diameter–standard sizes range from 120mm to 180mm; deviations indicate aftermarket modifications or wear.
Key Markers for Part Recognition
Locate the wear ring–its smooth, cylindrical surface should align flush with the impeller’s outer edge. If grooves exceed 0.5mm, replace both ring and impeller to prevent cavitation. The pump housing’s volute (spiral chamber) bears directional arrows; mismatched flow rates cause overheating. Inspect the stator vanes: intact edges suggest factory specs, while chips or deformations signal debris strikes or improper assembly. Cross-reference casting numbers with manufacturer service bulletins–the suffix letters (e.g., “A,” “B”) denote incremental updates.
Use a flashlight and borescope to examine the drive shaft coupling: splines must show zero rounding, and the rubber damper should lack cracks. If the impeller’s hub lacks a brass insert, verify torque specs–80–100 Nm applies to standard shafts. For twin-pump systems, confirm the crossover pipe’s O-rings (Durometer 70–90 Shore A) are intact; leaks here mimic fuel pump failures. Always compare dismantled components against technical schematics before ordering replacements–mislabeled parts (e.g., “left-hand” vs. “right-hand” pitch) void warranty coverage.
Step-by-Step Approach to Interpreting Jet Ski Propulsion System Schematics
Locate the legend first–it decodes symbols, line weights, and color codes. Most schematics use solid lines for primary components, dashed lines for secondary connections, and dotted lines for seals or gaskets. A red outline typically marks high-pressure zones, while blue indicates cooling circuits. Cross-reference these with the accompanying key to avoid misreading assembly sequences.
Trace the drive shaft path from the engine coupling to the propeller hub. Note every intermediary element: bearings (marked with concentric circles), seals (hatched areas), and alignment shims (thin parallel lines). Skip no details–even minor spacers affect torque transmission. If the schematic splits into exploded views, follow each sub-assembly separately before reintegrating them.
- Identify fasteners by thread pitch and head type (e.g., hex bolts vs. Phillips screws).
- Check callout numbers against the parts manifest to confirm materials–stainless steel vs. coated alloys.
- Highlight fluid ports–lubrication inlets, coolant bypasses–using a yellow highlighter.
- Measure gaps between components directly on the diagram; tolerances often appear in micrometers.
Verify electrical connections by matching wire colors to the legend. A black wire with a yellow stripe denotes ground, while green with orange may indicate a sensor circuit. Use a multimeter to confirm continuity before assuming the diagram’s accuracy–schematics often lag updates to production models. If corrosion is visible on the actual unit, cross-check with the revision history in the manual’s appendix.
- Print the schematic at 100% scale for precise overlay comparisons.
- Mark discrepancies between the schematic and physical assembly with sticky notes.
- Test hydraulic pressure points against labeled PSI values before reassembly.
- Store annotated copies digitally in a vector format to maintain zoom clarity.
