Start by identifying the engine assembly–typically positioned at the rear of the unit. The recoil starter, air filter housing, and carburetor are clustered here. If performance drops, check the fuel line connections (visible as translucent tubing) for cracks or leaks, as these cause rough idling. The impeller housing, located beneath the auger, often accumulates debris; release the belt guards to access it.
Examine the drive system next. The friction wheel (mounted near the wheels) engages the track for propulsion–ensure it’s free of ice buildup. Replacement belts should match the original specs: 5/8″ width for the auger, 3/8″ for the drive. The shear pins, two per auger, are designed to break under stress–always keep spares (part #532404301) on hand. For electric models, inspect the control panel wiring for frayed insulation, as exposed circuits cause erratic operation.
To disassemble the chute mechanism, remove the deflector first, then the locking collar. The gearbox (housed in the auger frame) requires SAE 30 oil–drain and refill annually. If the machine struggles with deep snow, adjust the skid shoes (sliding plates under the housing) to raise the clearance. For stubborn clogs, use the clearing tool (threaded rod) to push debris through the discharge port.
Lubrication points are critical: apply grease to the auger shaft bearings every 20 hours of use. The wheel bearings (sealed units) rarely need servicing, but squealing indicates failure–replace both wheels if needed. For models with electric start, test the battery voltage before winter (12.6V fully charged); store in a climate-controlled space to prevent sulfation.
How to Locate and Understand Your Winter Machine Component Schematics
Begin by downloading the official service manual for your specific model from the manufacturer’s website–filter by serial number to avoid mismatches. The exploded view illustrations typically group components by assembly: auger housing, impeller fan, chute mechanism, and drive system. Each section uses numerical references linking parts to a corresponding list, where you’ll find part numbers, torque specs, and compatibility notes.
Critical assemblies often include annotations for wear-prone items like shear pins, belts, and scraper blades. Replace these every 50 operating hours or at the first sign of deformation. For example, the auger belt (usually marked with a red or yellow stripe) should deflect no more than ½ inch when pressed mid-span. Use a feeler gauge to verify tension–exact specs vary by model year.
- Chute rotation gearbox: Drain old grease annually, refill with 80W-90 gear oil (check viscosity for sub-zero operation).
- Friction disc: Clean monthly with isopropyl alcohol to remove ice buildup–residue causes slipping.
- Headlight assembly: LED bulbs commonly fail at the solder joint; resolder if flickering occurs.
The impeller fan’s casting often cracks near the hub–inspect annually with a dye penetrant kit. If cracks exceed ¼ inch, replace the entire fan (do not weld; structural integrity is compromised). For gearcase repairs, use only OEM seals–aftermarket versions leak at low temperatures due to improper durometer ratings.
- Disassemble the handle assembly by removing four Torx T25 screws–track each component’s orientation (mark with paint).
- Soak the control cables in warm soapy water for 10 minutes to remove corrosion, then lubricate with PTFE dry film spray.
- Reassemble with thread-locking adhesive on all fasteners–vibration loosens them over time.
For electric-start models, test the battery’s cold-cranking amps (CCA) before winter: anything below 400 CCA indicates a recharge or replacement. The starter solenoid clicks but doesn’t engage? Check the flywheel’s ring gear teeth–chipped teeth prevent proper engagement. If replacing, ensure the new gear aligns exactly with the old one’s tooth pattern to avoid misfires.
Locating Critical Elements in Your Winter Equipment Schematic

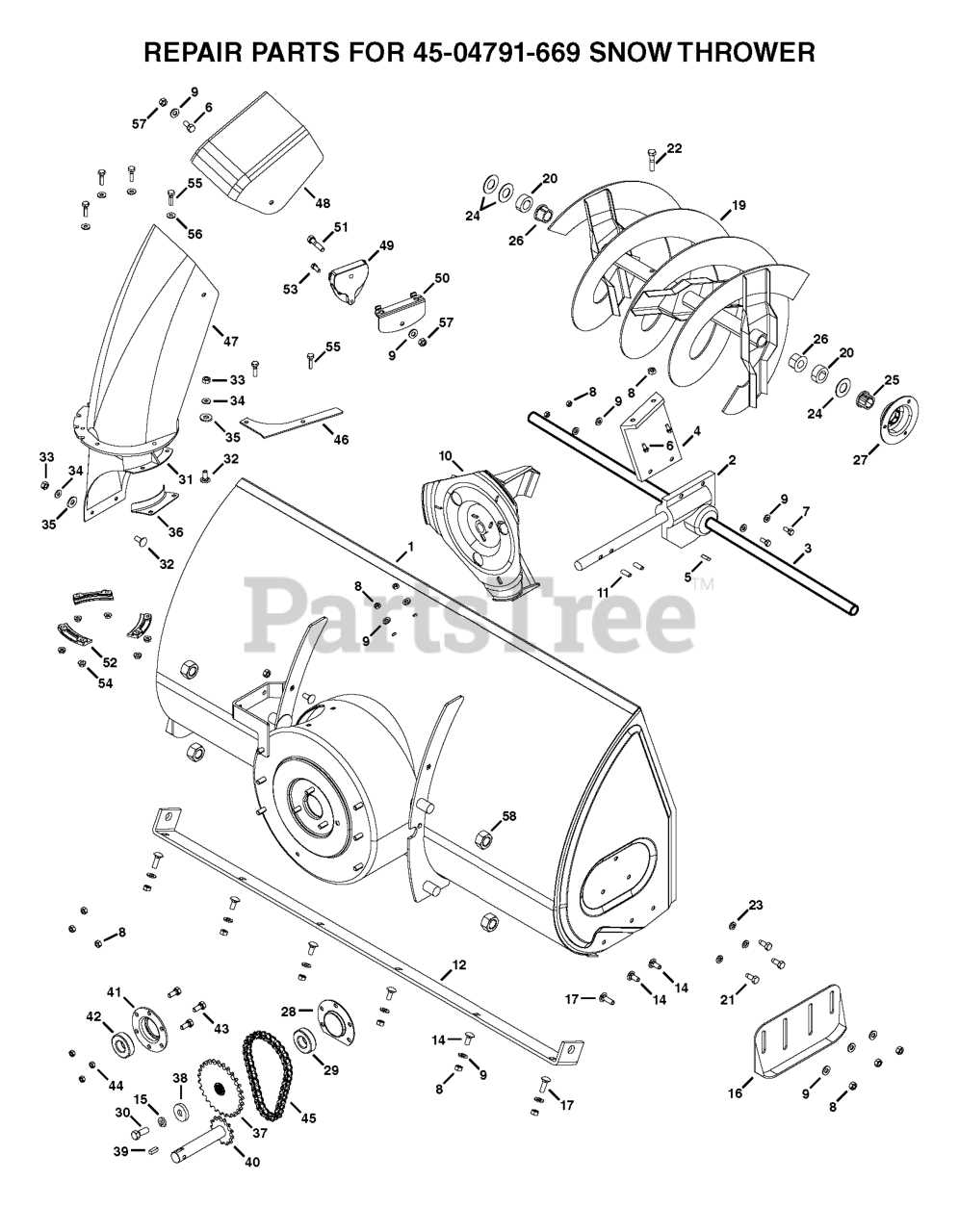

Begin by isolating the auger assembly in the exploded schematic–this section typically sits at the front, just behind the intake housing. Verify the presence of shear pins (usually Item #42 or #47 in manuals) as these safeguard the helical blades from excessive torque. Missing these can lead to motor strain or belt slippage under heavy snow loads.
Trace the power transfer pathway from the engine output shaft to the drive system. The key components here include the friction disc (often labeled as a “wheel” or “traction plate”) and the worm gear, both critical for smooth operation on gradients. If the exploded view shows a splined shaft adapter (common in models after 2018), note its alignment with the axle–misalignment here causes uneven wear on tracks or wheels.
Decoding the Chute and Deflector Mechanism
Identify the chute rotation gear (usually a circular toothed component) and its linkage to the manual or remote deflector control. Check for the presence of a brass bushing (Item #112 or similar) within the chute collar–its absence accelerates metal-on-metal wear, leading to erratic snow discharge. For models with electric chute rotation, locate the small motor and verify its wiring harness connections against the schematic’s pinout diagram.

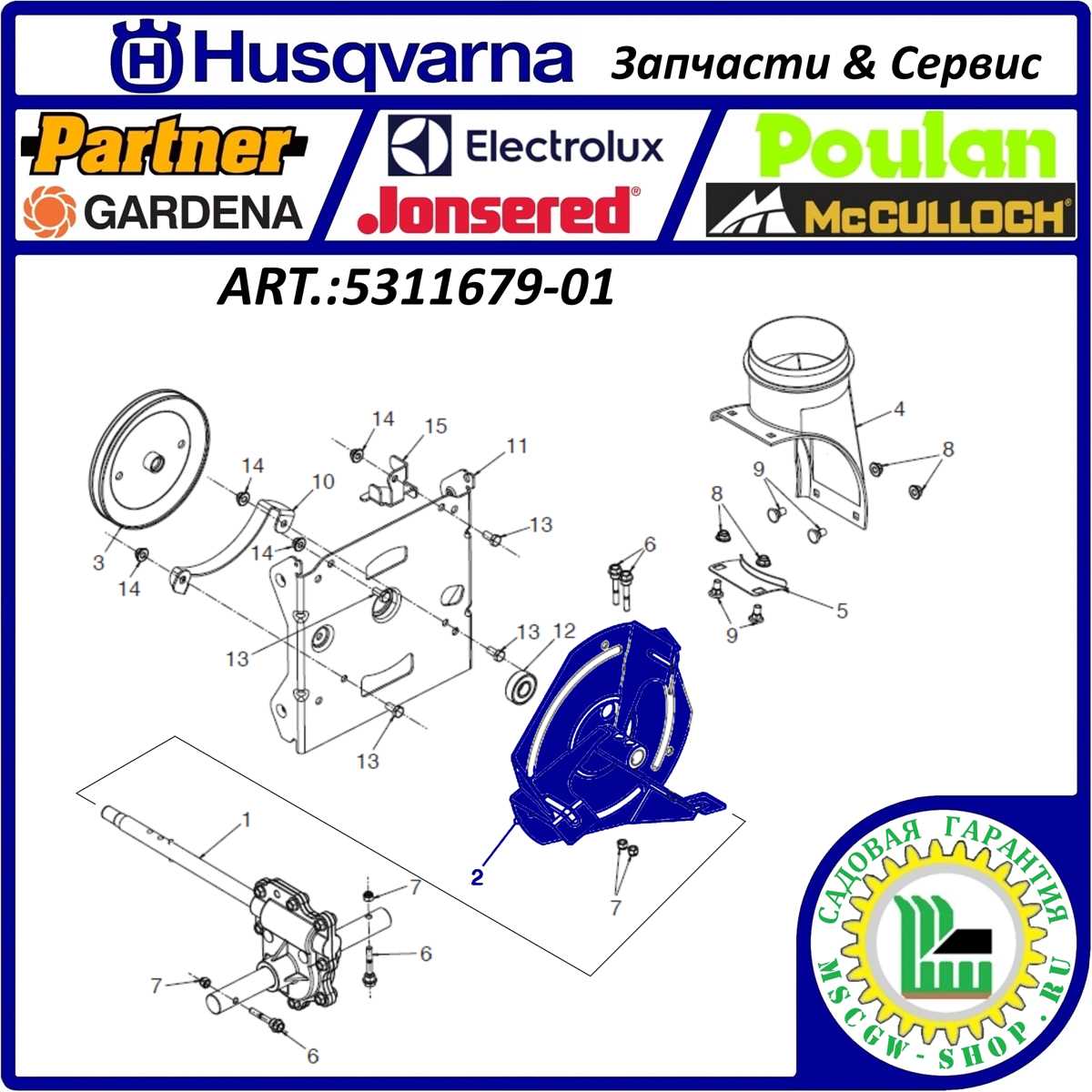

Examine the impeller housing (sometimes listed as the “fan case”) for the volute and its fastening bolts. Loose bolts here create vibration issues, while stripped threads (common on aluminum housings) require helicoil repair. The impeller itself should match the pitch angle shown in the exploded view–deviations reduce throwing distance by up to 30%.
Inspecting Undercarriage and Auger Interface
Focus on the scraper bar (or “skid shoe”) positioned beneath the auger. The exploded view will show wear plates–measure their thickness against the manufacturer’s specifications (typically 3–5 mm). Replacement is mandatory if grooves exceed 1 mm in depth, as compromised plates allow snow buildup on pavement. For tracked variants, locate the tensioning springs (Item #89 or #91) and confirm their free length matches the schematic’s baseline–weak springs cause track slippage on icy inclines.
Cross-reference the belt routing diagram with the exploded view, noting the decking placements for the auger and drive belts. Incorrect routing (e.g., skipping a pulley) reduces torque by 15–25% and accelerates belt degradation. For hydrostatic transmission models, identify the hydraulic pump assembly–leaks here often originate from the input shaft seal (Item #64), visible as fluid residue near the flywheel.
Compare the handlebar assembly components against the exploded view, particularly the grip attachment points and throttle cable routing. Loose handlebar mounts (secured by Item #15 or #18 bolts) cause steering instability, while frayed cables necessitate full replacement–repairs to the inner cable are temporary at best. For electric start models, ensure the battery tray alignment matches the schematic’s torque specifications (usually 8–12 Nm) to prevent terminal corrosion from vibration.
Locating Original Equipment Manufacturer Identifiers on Schematics for Winter Equipment
Begin by examining the exploded view illustrations in the official service manual. OEM identifiers typically appear adjacent to each component, often as alphanumeric codes prefixed with “HUS” or “532” followed by six to eight digits. These labels are consistently placed near the item’s visual representation–check for small text boxes or annotations connected by leader lines. For engines and critical assemblies, codes may be stamped directly on the metal or molded into plastic parts; cross-reference these with the schematic’s numbered list.
Key Locations for Verification
Focus on the gearcase, impeller housing, and auger shaft areas–common wear points where replacements are frequent. The schematic’s parts breakdown for these sections will show codes like “HUS532123456” next to the drive belt or shear pins. If the manual lacks clarity, inspect the physical unit: remove the chute or side panels to find etched or printed OEM numbers on internal components. Engine-related identifiers, such as “Briggs & Stratton 796390” or “Kohler XT675,” often appear on the valve cover or recoil starter, requiring a flashlight for visibility.
For electrical systems, trace wiring harnesses in the schematic to find connectors labeled with codes like “HUS532456789.” These codes may also be printed on heat-shrink tubing or molded plugs. If the manual’s resolution is poor, zoom into the PDF or request a high-definition version from the manufacturer’s support portal–look for “Service Parts” sections, not just user guides, as they contain precise item mappings.
When in doubt, measure the component and compare dimensions with the schematic’s specifications. OEM numbers for augers or paddles often include diameter or length (e.g., “532123456-24” for a 24-inch model). Avoid third-party resellers’ listings without verification; confirmed OEM codes ensure compatibility with the machine’s model year and series.
Step-by-Step Guide to Identifying Key Components on Your Equipment Schematic
Begin by securing the technical manual for your machine–locate the section labeled “Drive and Clearing Assembly” or an equivalent. Most schematics group the helical cutter and fan blades under this heading.
Scan the exploded view for numbered components resembling spiral-shaped metal or heavy-duty rubber strips. These are the primary material movers; their placement is typically near the front housing, directly behind the intake chute.
- Look for labeling like “rotary blades” or “scroll blades” if the manual avoids direct terminology.
- Separate the outer casing illustration to reveal inner plates–these often obscure the fan mechanism.
- Note any hatching or shading patterns: helical blades usually display dense, overlapping lines indicating a spiral structure.
Trace the drive shafts extending from the motor rear toward the front assembly. The helical cutter attaches perpendicular to this axle, while the impeller (fan) secures parallel, set slightly offset within the chamber.
Cross-reference part numbers next to each component with the legend at the page’s edge. Numbers beginning with 52- or 63- often indicate the specific material movers and fan blades respectively.
- Measure approximate diameters if uncertain: helical cutters span 85-95% of intake width; fans occupy 50-70% of chamber depth.
- Confirm housing attachments–some schematics depict shear pins or bolts around the helical cutter’s circumference; these will align with sockets on the intake frame.
- Check for wear indicators: blades marked with dashed red lines denote high-friction zones needing periodic inspection.
Print or zoom the schematic if details are unclear. Use a grease pencil to highlight the helical cutter path and impeller blades, ensuring you can distinguish them from secondary elements like scraper bars or anti-clog flaps.
