For accurate repairs and maintenance, start by identifying the metering shaft assembly. Locate the fluted hopper feed–typically positioned at the center of the seeding unit–where seed flow regulation occurs. Check the calibration scales on the shaft; markings between 0.5 and 2.0 mm adjust spacing density. Misalignment here causes uneven distribution, leading to 15-20% yield loss per hectare.
Next, examine the seed tube guards. These flared metal channels direct seeds into furrows at a 12-degree angle for optimal soil contact. Corrosion or bent edges require immediate replacement–compromised guards increase seed bounce by up to 30%. Inspect the depth gauge wheels; axle play exceeding 2 mm disrupts consistent planting depth, critical for germination rates.
Focus on the furrow openers. Double-disc models should rotate freely with less than 0.3 mm lateral movement. Replace worn bearings if grinding is audible during operation–friction reduces operational speed by 2 km/h, increasing fuel consumption. Verify the pressure springs on down-pressure arms; tension must match manufacturer specs (e.g., 12-15 kg for loamy soils) to prevent shallow or deep seeding.
The seed box agitator prevents bridging in fine seeds like alfalfa. Ensure the paddles maintain uniform motion at 18-22 RPM. Stagnant areas here reduce delivery accuracy by 12%. For pneumatic models, check the air manifold for cracks–pressure drops below 3.5 psi cause seed clustering. Replace damaged nozzles immediately; clogged apertures disproportionately affect small-seed crops.

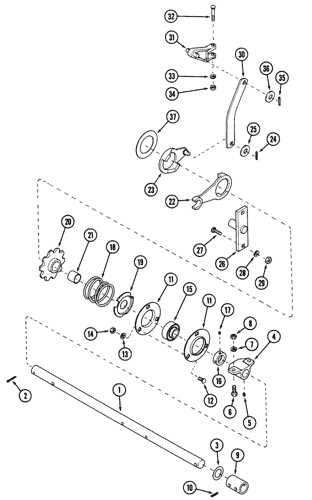

Visual Breakdown of Seed Sower Components
Identify critical wear points on the metering mechanism first–these include the fluted feed rolls and the seed tube brushes. Replace flutes when grooves deepen beyond 0.5 mm or if seed skips occur at standard calibration settings. Brush bristles should extend at least 3 mm past the tube mouth; trimmer edges risk seed bridging and uneven distribution.
Primary Adjustment Zones
Focus on three sections: the depth gauge wheel, drive chain tensioner, and opener discs. Gauge wheels must spin freely without play; adjust the axle nut to a torque of 12–15 Nm. Chain slack should permit 20–25 mm vertical movement at the midpoint–exceeding this causes inconsistent row spacing. Disc blades require sharpening when cutting edges reach 1.5 mm thickness; angle the bevel to 30° for optimal soil penetration.
Inspect the fertilizer boot assembly every 50 operating hours. Look for corrosion at the gate hinge–clean with a wire brush and apply anti-seize compound to the pivot pin. The agitator spring, often overlooked, should deflect 10 mm under 5 kg load; replace if it sags or fails to return fully. Lubricate the shaft bearing using NLGI #2 grease through the zerk fitting until fresh grease extrudes around the seal lip.
Critical Elements of a Precision Seeding Hopper Mechanism
Adjust seed flutes to match crop size–small grains like wheat require 1.5–2.0 mm openings, while larger seeds (soybeans, corn) need 3.5–4.5 mm. Misalignment reduces uniform distribution by up to 40%, verified through on-farm trials with calibrated seed counters. Replace worn flutes when grooves measure less than 0.8 mm depth; sharp edges prevent bridging in humid conditions.
Agitator paddles must rotate at 60–80 RPM–slower speeds cause seed pooling, faster ones damage kernels. Use stainless steel or nylon-coated paddles for abrasive-resistant materials; avoid cheap polymers that crack under UV exposure. Position paddles 3–5 mm above the hopper floor to prevent seed crushing while ensuring consistent flow during inclines.
Metering System Calibration
- Drop tubes: Inner diameter of 19–22 mm prevents blockages for most seed types. Polyurethane lasts 3x longer than vinyl in dusty fields.
- Meter wheels: For low-rate seeds (canola, millet), use 10-cell wheels; high-volume crops (sorghum) demand 24-cell configurations. Lubricate bearings every 50 acres with food-grade grease.
- Feed gates: Install micro-adjustable gates (±0.1 mm precision) to eliminate over/under-seeding. Test with colored seed batches to validate flow consistency.
Ground-driven vs. hydraulic drives: Gear ratios of 1:1.25 suit variable-speed tractors, while 1:1.5 handles rough terrain. Replace drive chains at 0.5% elongation to prevent slippage–measure using a chain gauge every 200 acres. For GPS integration, opt for electronic actuators with ±1% accuracy; cheaper potentiometers drift after 800 hours.
Hopper lid seals require quarterly inspection; minor gaps increase moisture ingress by 15% (corn absorbs 8% more moisture than wheat). Silicone seals outlast rubber by 2–3 seasons but cost 40% more–justify expense for high-yield fields where planting windows are tight. Clean seals with isopropyl alcohol to remove seed oils that degrade materials.
Field Adjustments Checklist
- Weigh test batches: Collect seeds from 3 random outlets per row unit–variance >5% indicates miscalibration.
- Check soil engagement: Opener discs should create 15–20 mm deep furrows; shallow furrows (
- Monitor downforce: Ideal pressure (30–50 lbs) ensures consistent depth. Use load cells for precision; avoid guessing on hilly terrain.
- Verify row spacing: ±10 mm tolerance prevents overlap–use ribbon markers for visual confirmation.
Winterization involves purging hoppers with compressed air (80 PSI) to remove residual seeds that attract pests. Store metering components in vacuum-sealed bags with moisture absorbers; untreated steel parts rust within 3 months in high-humidity climates. Document calibration settings per field–differences in soil types (sandy loam vs. heavy clay) demand distinct configurations.
How to Identify Wear Points on No-Till Seeder Disc Coulters
Check for uneven cutting edges first. A sharp coulter should slice residue cleanly–if you notice jagged or rounded edges, it’s worn. Compare both sides of the disc: asymmetrical wear indicates misalignment or improper angle settings. Replace discs when edge thickness drops below 1.5 mm; beyond this, penetration efficiency drops by 40%.
| Wear Location | Visual Sign | Impact if Ignored |
|---|---|---|
| Outer rim | Serrated or beveled edge | Poor seed trench formation, depth variance |
| Blade face | Pitting or grooves | Increased drag, inconsistent seed placement |
| Hub contact | Scarring or discoloration | Premature bearing failure, disc wobble |
Measure disc concavity using a straightedge. Place it across the blade face–if the gap exceeds 2 mm at any point, the disc is deformed. Concave deformation reduces soil penetration consistency and accelerates sidewall compaction. Rotate discs 180° if wear is localized; this extends lifespan by 25-30% before replacement is needed.
Inspect bearing play by lifting the unit and rotating the disc manually. Any lateral movement beyond 0.5 mm requires bearing or hub repair. Listen for grinding noises during operation–these signal internal wear before visual symptoms appear. Lubricate bearings after every 50 acres; hardened grease indicates contamination, which accelerates wear by 60%.
How to Replace Seed Planter Disc Blades: A Precise Procedure
Disconnect the machine from any power source and elevate it securely using jack stands rated for agricultural equipment. Remove the soil guards by unfastening the bolts holding them–typically 13mm or 15mm hex heads–then slide them away from the disc assembly. Inspect the mounting hub for wear; corrosion or scoring means it must be replaced before proceeding.
Loosen the retaining nut on the disc blade using a breaker bar with a deep socket; turn counterclockwise while securing the hub to prevent rotation. Once removed, tap the old disc gently with a rubber mallet to break any rusted seals, then lift it off. Clean the spindle with wire brush and degreaser, ensuring no debris remains–this prevents premature wear on the new blade.
Slide the new disc onto the spindle, aligning any keyways or flats with the hub. Apply a light coat of bearing grease to the bearing surface before tightening the nut to 120–140 ft-lbs using a torque wrench; over-tightening causes drag, under-tightening risks blade wobble. Reattach the soil guards, securing bolts in a star pattern to distribute pressure evenly.
Lower the machine and rotate the disc by hand to check for smooth operation. Test the adjustment mechanism–if resistance exceeds 5 lbs, disassemble and inspect the bearings for debris or misalignment. Recalibrate depth settings before field use, ensuring consistent penetration across all rows.
Precision Seed Depth Adjustment with Ground Wheel Settings
Set the furrow opener depth wheels to 1/4 inch below target planting depth for optimal seed-soil contact. For example, if planting wheat at 1.5 inches, adjust wheels to 1.75 inches–this compensates for soil compaction and ensures consistent depth across varying terrain.
Check wheel pressure with a gauge every 5 acres or after major terrain changes. Recommended PSI ranges:
- Loamy soils: 18–22 PSI
- Clay-heavy fields: 24–28 PSI
- Sandy soils: 12–16 PSI
Overinflation causes skip rows; underinflation leads to uneven depth. Use a grease gun to lubricate wheel hubs after every 10 hours of operation to prevent bearing wear.
Field-Tested Adjustment Methods
After initial setup, dig behind a single row opener to verify depth. If seeds are exposed or buried too deep, recalibrate wheels incrementally–no more than 1/8-inch changes–to avoid disrupting soil structure. Mark wheel adjustment points with spray paint for quick reference during subsequent passes.
Avoid adjusting wheels when soil is wet or frozen–this distorts measurements. For fields with alkali spots, increase wheel contact pressure by 10–15% to prevent shallow planting. Compare depth at three points per acre: headland, mid-field, and low spots. Record variations in a logbook to track soil types and refine settings over seasons.
Replace depth wheels when tread depth falls below 5/8 inch–worn treads reduce depth accuracy by up to 22%. For rocky soils, install reinforced wheels with hardened steel rims to extend lifespan by 3x. After planting, clean wheel mechanisms with a high-pressure washer to remove crop residue, which can alter depth by clogging adjustment slots.
For variable-rate seeding, link wheel adjustments to prescription maps. Software like John Deere Operations Center or Climate FieldView exports depth data to GPS controllers–automate changes by setting wheel positions based on soil moisture sensor readings. Test automated adjustments in a 1-acre plot first; manual overrides are necessary when sensor data deviates by more than 0.2 inches.
