Start by locating the engine housing–it’s marked with a unique serial number on the bottom, typically beginning with a 2-digit year code followed by a 6-character production sequence. This number determines compatibility with replacement elements. Without it, cross-referencing becomes unreliable.
For the cylinder and piston assembly, note the two distinct oil channels on the intake side–these differ from earlier models. Measure bore diameter (50.0 mm) and compression ratio (10.5:1) before ordering rings or seals. Incorrect sizing leads to poor sealing and performance loss.
The carburetor (WT 644) requires precise calibration. Identify the three adjustment screws: L (low speed), H (high speed), and T (idle). Mark their original positions with a fine marker–factory settings are 1.25 turns (L) and 1.5 turns (H) from closed. Deviations cause starting issues or excessive fuel consumption.
Examine the flywheel for signs of wear on the magneto pole shoes. If the coating is chipped, replace the entire unit–partial repairs fail under load. The flywheel nut torque is 60 Nm; use a Stihl-recommended socket (part #1123-893-4501) to avoid damaging the threads.
For the chain brake system, check the friction ring (part #1121-122-0801). If grooves exceed 0.5 mm depth, replace immediately–worn rings reduce stopping force by up to 40%. The brake band tension must be 2.0–2.5 mm when engaged; adjust via the screw on the clutch cover.
Reference the official exploded view documentation (item #5058-405-0721) for precise part numbers. Avoid third-party schematics–missing or mislabeled components (e.g., gasket #1128-120-4003 vs. #1128-120-4004) lead to assembly errors. Print or save a digital copy before disassembly.
Practical Guide to Identifying Components in Your Professional Chainsaw Model
Begin by locating the engine assembly (part code 1128-020-1205) on the left side of the unit–it’s secured by four Torx T30 bolts. Remove these in a cross pattern to prevent warping the housing. Inside, you’ll find the piston (code 1128-030-0100), which should be inspected for scoring marks every 50 hours of operation. Replace it if grooves exceed 0.05mm in depth; measurements can be taken with a micrometer at three points along the circumference.
For fuel system troubleshooting, reference the fuel pump (reference 1128-700-2102) positioned beneath the carburetor. Disconnect the fuel line before removing the pump–use pliers to loosen the clamp at position A (marked in the official schematics). Apply a light coat of Loctite 243 to the threads when reinstalling to prevent vibration-related loosening. Always replace the O-ring (code 1128-120-1600) if it shows flattening or cracks; a compromised seal will cause lean fuel mixtures.
| Component | Tool Required | Torque Spec (Nm) | Wear Limit |
|---|---|---|---|
| Flywheel nut (1128-024-4102) | 13mm socket + torque wrench | 60 ± 5 | None (replace if stripped) |
| Spark plug (NGK BPMR7A) | 19mm spark plug socket | 25 ± 2 | 0.6mm gap |
| Muffler (1128-180-6000) | 8mm hex key | 12 ± 1 | Carbon buildup >2mm |

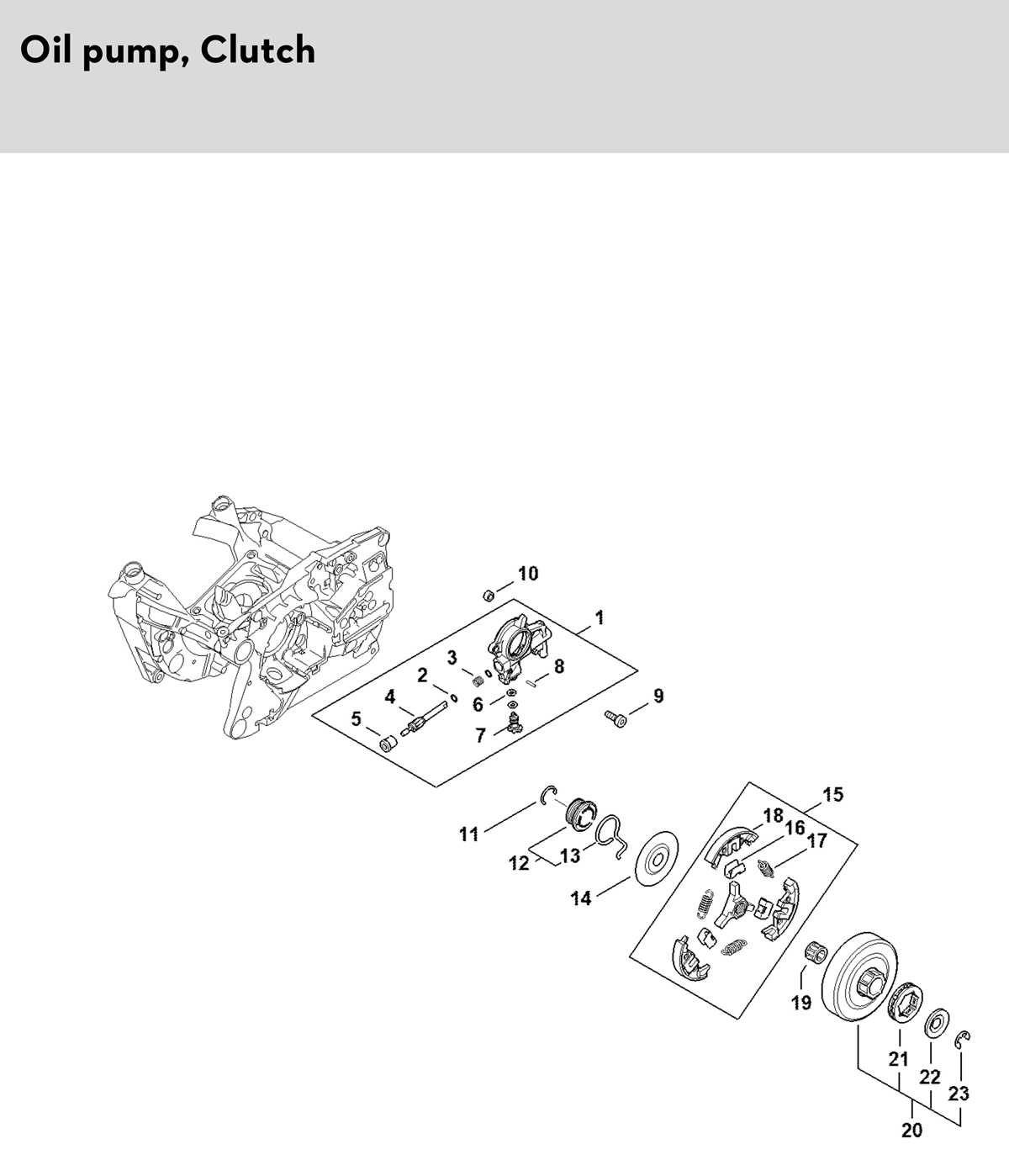

The clutch assembly (code 1128-160-2000) requires a specialty puller (Stihl part 5910-893-4600) for removal–never pry it off, as this damages the crankshaft taper. Inspect the clutch shoes for uneven wear; if one side shows more than 1.5mm reduction in thickness, replace the entire unit. Lubricate the new clutch with a thin film of MoS2-based grease before installation to ensure smooth engagement under load.
When servicing the guide bar, check the oil port (located at the base near the sprocket) for obstructions–clean it with compressed air at 90 PSI. The bar’s rails should have a uniform thickness of 1.6mm; if measurements drop below 1.1mm, replacement is mandatory. For the chain, use a digital tension gauge: target 0.5mm deflection between the bar and the midpoint rivet when pulled by hand. Over-tightening accelerates wear on the drive sprocket (code 1128-640-0102), which should be replaced every second chain for optimal performance.
Electrical System Checks
Test the ignition coil (reference 1128-400-0108) with a multimeter: primary winding resistance should read 0.2–0.4 ohms, secondary winding 7–12 kOhms. If readings fall outside these ranges, replace the coil–not repairs are possible. The kill switch (code 1128-460-0200) can be bypassed temporarily for testing by bridging the contacts with a 1kOhm resistor, but never operate the unit without proper safety circuits engaged.
Locating Authorized Schematics for Your Professional Chainsaw Model
Begin with the manufacturer’s regional portal. Each market–North America, Europe, Asia–hosts a dedicated technical resources section where detailed assembly illustrations are published. Navigate to the support or service tab, then select “technical documentation” or “service materials.” The schematics appear as downloadable PDFs, organized by product serial number ranges.
For immediate access, use the model identifier printed on the crankcase or clutch cover. Input this exact code into the site’s search bar–partial matches often return incomplete or outdated files. Verify the file’s date: current schematics reflect production updates, including revised bearings, seals, or housing dimensions introduced in mid-2023.
Key Sources and Backup Options
- Regional official websites: filter by country to avoid region-locked content.
- Dealer portals: authorized service centers receive login credentials for an expanded database, including internal bulletins.
- Printed service manuals: purchase the most recent edition (SKU 1130 790 0000) from certified distributors–contents mirror the digital schematics but include torque specifications and troubleshooting flowcharts.
Third-party aggregators often omit mid-assembly revisions. Cross-reference illustrations with the official parts catalog (available as a separate download) to confirm gasket thicknesses or snap-ring variations. The catalog lists every component with official part numbers, illuminating replacements approved for OEM equivalence.
When digital access fails, contact support directly. Provide the model variant (e.g., standard, compact flywheel, or reinforced sprocket versions) and engine displacement suffix (e.g., “-ET” denotes ethanol-compatible models). Representatives release secure file transfers upon verification–avoid email requests, as attachments violate policy due to sensitive calibration details.
Mobile applications extend functionality for field technicians. The official app caches schematics offline, enabling quick comparisons between exploded views and physical assemblies. Enable notifications to receive real-time alerts when revised diagrams replace older versions–critical for addressing recall updates or newly discovered wear patterns in the centrifugal clutch.
Troubleshooting Common Access Issues
- Browser compatibility: Schematics render correctly in Chrome or Edge; avoid Safari due to PDF layering errors.
- Adobe Reader requirements: Files include layered annotations; ensure version 2023 or newer to display hidden notes.
- Proxy restrictions: Corporate networks or VPNs may block downloads–switch to a personal connection if encountering HTTP 403 errors.
Preserve downloaded materials on an encrypted drive. Schematics include proprietary engineering notes–unauthorized distribution risks legal action under the manufacturer’s copyright policies. For older units (pre-2020), request archived diagrams through the heritage program, which retains superseded illustrations dating back to initial production cycles.
Locating Critical Engine Elements in Your High-Performance Saw Inventory
Begin by isolating the engine assembly sheet–typically the first detailed breakdown in the schematic. The crankcase (item #7210) and cylinder (item #7220) will be central, marked with distinct casting numbers for verification. Cross-reference these with the serial tag on your unit: mismatches indicate aftermarket replacements or incorrect listings. For displacement-specific models, confirm the piston (item #7250) ring groove count (three grooves = original spec) to rule out mismatched compression ratios.
Fuel system components cluster near the top right quadrant. The fuel pump diaphragm (item #7512) sits adjacent to the carburetor (item #7530), identifiable by its mesh filter and two-stage housing. Look for the primer bulb (item #7505) first–its translucent design and vendor logo (usually embossed) serve as a landmark. Adjacent, the fuel line routing diagram (often item #7540-7543) specifies inner diameters: 1.5mm for the feed line, 2.0mm for the return, deviations cause lean/rich running.
Ignition modules occupy the left margin. The flywheel (item #7310) magnets should align with the ignition coil (item #7320) gap of 0.3mm–use a non-ferrous feeler gauge to confirm. Spark plug caps (item #7330) bear a resistance value (5kΩ for resistor types) and thread length (19mm standard); substitute with 12.7mm only for high-altitude kits. The air filter housing (item #7400) connects via three T20 screws–missing or stripped threads hint at prior fuel contamination compromising the intake seal.
Step-by-Step Disassembly for Common Professional Chainsaw Repairs
Disconnect the spark plug wire immediately to prevent accidental startup. For the rear handle housing, remove the two screws securing the throttle trigger mechanism–use a T25 torx driver. Note the orientation of the throttle spring before extraction; it must reinstall identically to ensure proper tension.
To access the piston, first drain all fuel and bar oil. Remove the clutch cover by unscrewing the three 10mm bolts in a star pattern. The centrifugal clutch requires a specialized puller (PN 1110-893-2001) to avoid damaging the crankshaft threads. Rotate the clutch clockwise while applying steady pressure–do not force it.
Cylinder Head and Gasket Replacement
Unbolt the cylinder head in diagonal sequence (8mm bolts) to avoid warping. Lift the head straight upward to prevent piston contact. Clean the mating surfaces with a plastic scraper and 400-grit wet/dry paper–never use metal tools that may score aluminum. Install the new gasket dry; silicone sealants degrade under two-stroke heat and can clog the ports.
For flywheel removal, lock the piston at top dead center using a piston stop (PN 1121-007-1000). The flywheel nut (13mm) requires 80 Nm torque–use an impact wrench or leverage bar, but avoid sudden jerks to prevent crankshaft keyway damage. The flywheel magnet ring is fragile; store it in a clean, vibration-free area during servicing.
Reassemble the muffler by aligning its dowel pin with the crankcase hole. Tighten the three 8mm screws to 15 Nm, cross-pattern. A loose muffler causes performance drops and may allow exhaust gases to escape into the starter housing, damaging the recoil spring.
Inspect the carburetor diaphragm for tears by holding it against a bright light. Replace if pinholes exist–even minor leaks disrupt the fuel-air ratio. Clean internal passages with compressed air (max 30 psi) and a carburetor cleaner brush (PN 0000-890-5200). Avoid wire probes; they can enlarge the jets, altering calibration.
When reinstalling the guide bar, ensure the oiler holes align perfectly. Misalignment starves the chain of lubrication, causing rapid wear on the drive sprocket and bar rails. Tighten the bar nuts to 18 Nm–over-torquing warps the clutch cover, while under-torquing risks bar rotation during operation.
