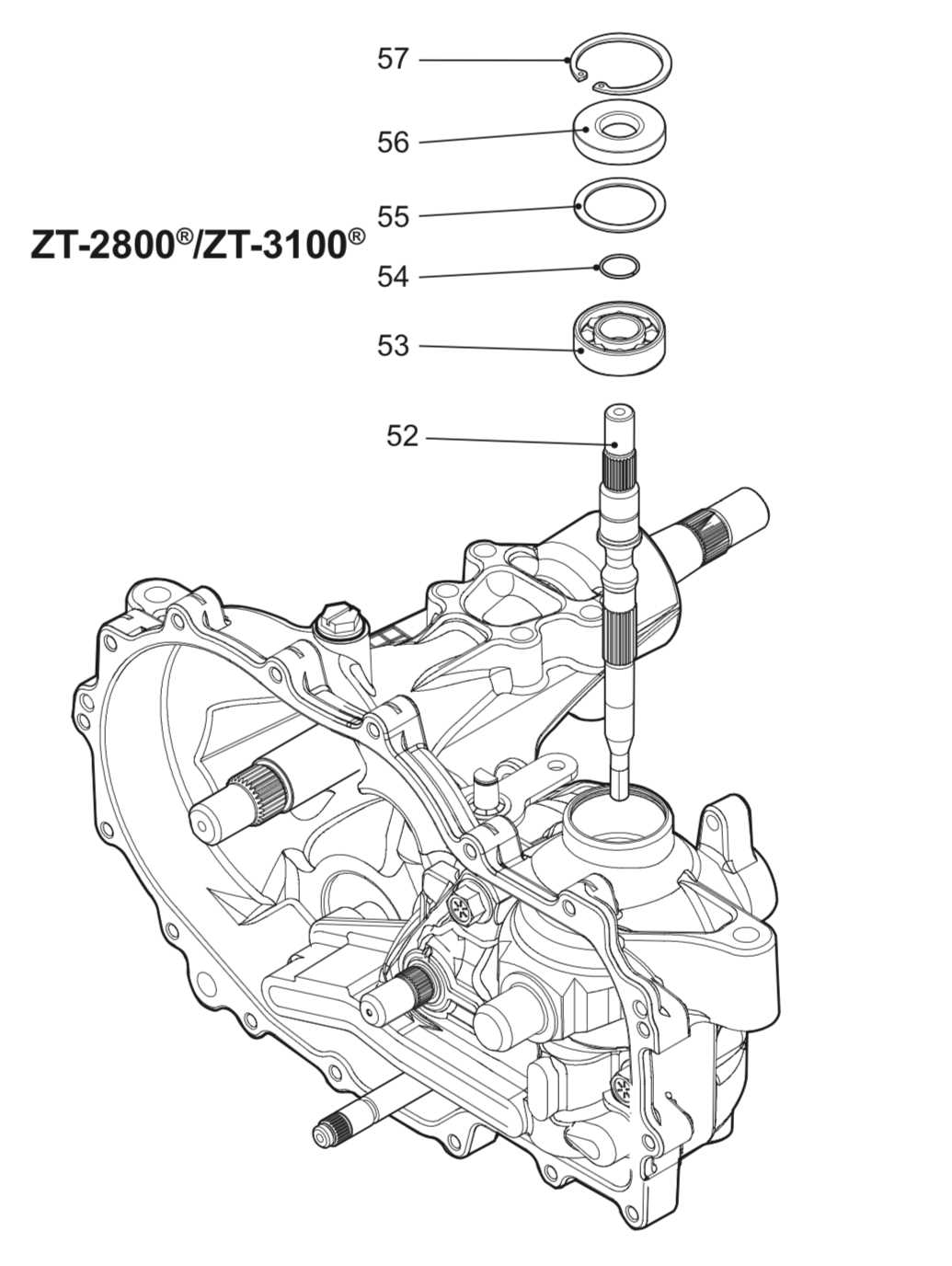

For precise repairs on zero-turn drives like the 2800-series, begin by locating the input shaft housing–often the first point of failure under heavy loads. Identify the circumferential snap ring securing the bearing assembly; a specialized snap-ring pliers (external gripping type) will prevent damage during disassembly. Refer to the exploded view for part #80-0130, a tapered roller bearing critical for axial load distribution–replace this if lateral play exceeds 0.003 inches.
Inspect the charge pump body (part cluster near the hydraulic port) for scoring or excessive wear. The pump’s efficiency drops sharply when clearance between the gerotor set and housing surpasses 0.005 inches; use a micrometer for confirmation. Note that part #80-0400, the drive gerotor, is prone to premature wear if contaminated fluid is used–always flush the system with ISO 46 hydrostatic oil before reinstallation.
When reassembling the control arm linkage, verify that the torsion spring tension aligns with factory specifications (typically 12–15 lb-in). Misalignment here causes sluggish steering response; test by applying 50 psi to each hydraulic circuit and checking for smooth, symmetrical motion. For the hydrostatic unit, prioritize replacing the rotating group assembly (part #80-0200) if stall torque at the wheels falls below 20 ft-lb–this indicates internal slippage.
Store removed components in benzotriazole-treated trays to prevent corrosion during diagnostics, especially the splined output shaft. If the brake pad (part #80-0320) shows uneven wear, recalibrate the brake actuator cam to ensure equal pressure distribution–failure to do so will reduce service life by up to 40% in high-cycle applications.
Finding and Using Transaxle Assembly Schematics for Zero-Turn Models
Start by locating the official service manual for the 2800-series transaxle–this document remains the most reliable source for accurate breakdowns. If unavailable, third-party suppliers like Partstree or Jack’s Small Engines offer exploded-view illustrations with numbered lists matching OEM catalogs. Verify part numbers against the original equipment label, typically affixed near the input pulley or hydraulic pump mounting bracket. Discrepancies between aftermarket diagrams and factory specs often appear in control linkages, axles, or seal kits–cross-check dimensions before ordering.
For assembly visualization, prioritize diagrams that separate subsystems into layered views: hydraulic circuit, gear train, and brake components. The hydraulic motor housing usually appears at the front, with spiral gear clusters (P/N 79454) nested inside. Use a magnifying tool or print sections at 200% scale to identify smaller elements like snap rings (P/N 67821) or thrust washers. Store downloaded schematics in a tablet compatible with shop-friendly PDF readers–avoid relying solely on printed copies, as updates to part numbers occur biannually.
- Common failure points: Input shaft seal (P/N 34901), prone to wear at 800+ hours.
- Oil cooler lines (P/N 80203) often crack near crimp points–replace in pairs.
- Charge pump assembly (P/N 56732) requires torque specs: 12-15 ft-lbs for mounting bolts.
When interpreting schematics for rebuilds, note color-coding conventions: red signifies high-pressure circuits, blue indicates return lines, and green marks vent or drain paths. The 2800-series utilizes dual-loop hydrostatic systems–mistaking same-color ports between left/right pumps will cause erratic steering. For bench testing, attach a pressure gauge (18-22 ft-lbs for case screws and 30-35 ft-lbs for axle nuts, but confirm with a torque wrench due to varying thicknesses in aluminum housings.
Locating the Authorized Transaxle Assembly Breakdown for the 2800 Series
Begin with the manufacturer’s dedicated support portal at Hydro-Gear’s official technical resources. Under the “Service & Parts” section, select the 2800 product line–filter by transmission model if prompted. The schematic is listed as a downloadable PDF under “Exploded Views” or “Assembly Diagrams,” often labeled with a suffix like “ZT-2800 Rev. 3” or similar revision identifiers. Verify the serial number on your unit matches the document’s applicability range to avoid misalignment.
Alternative Sources for Verified Schematics
Authorized OEM dealers–such as MTD, Toro, or Cub Cadet service centers–maintain proprietary databases containing precise breakdowns. Request the “2800 transaxle service manual” directly; specify whether you need the clutch, hydraulic pump, or gearcase layout. Some dealers provide these upon proof of purchase or warranty registration. Online marketplaces like Jack’s Small Engines or eReplacementParts also host scanned OEM manuals, but cross-reference the part numbers listed against the manufacturer’s latest revision before purchasing.
For immediate access, locate the product’s serial plate–typically mounted on the transaxle housing–and enter it into the manufacturer’s parts lookup tool. This generates a dynamic illustration with part callouts, pricing, and availability. If the link fails, contact technical support with the full serial number; they may email the correct schematic within 24 hours. Avoid third-party forums unless the file includes a direct OEM watermark or header identifying Hydro-Gear as the source.
Step-by-Step Breakdown of Heavy-Duty 2800 Series Drive Assembly Components
Begin by securing the input shaft housing–this is the most critical failure point under load. Use a torque wrench set to 65 ft-lbs for the four M10 bolts; over-tightening causes stress fractures, while under-tightening leads to oil leaks. The shaft itself contains precision-ground splines; inspect for wear exceeding 0.002 inches–any deeper grooves require replacement to prevent transmission slippage.
The hydrostatic pump and motor assembly function as a sealed unit, but the charge pump filter–located behind the external bypass valve–must be replaced every 200 hours of operation. Use OEM filter #42594, as aftermarket alternatives often lack the micron rating necessary to trap ferrous particles, accelerating internal wear.
Disassemble the control arm linkage by removing the snap ring on the pivot shaft. Check the nylon bushings for elliptical wear; if clearance exceeds 0.010 inches, replace with hardened steel bushings. Lubricate the exposed pivot points with NLGI #2 lithium grease–synthetic blends attract dust, forming abrasive paste.
Inspect the differential spider gears under the differential cover. The gear teeth should show no pitting deeper than 0.005 inches; if found, replace the entire differential assembly rather than individual gears–mismatched tolerances cause uneven torque distribution. The pinion gear preload should measure 0.004–0.006 inches with a feeler gauge; adjust shims accordingly.
The brake mechanism relies on friction discs sandwiched between steel plates. Replace discs if thickness falls below 0.120 inches; steel plates must have no warping beyond 0.003 inches. Adjust brake clearance to 0.030–0.050 inches using the adjustment screw–too loose and braking lag occurs, too tight and the assembly overheats.
During reassembly, coat all gasket surfaces with anaerobic sealant #515–RTV silicone migrates into oil passages, clogging filters. Replace the drive axle seals if the lip shows cracking or hardness exceeds 70 Shore A–compromised seals contaminate the gear oil, leading to catastrophic bearing failure.
Test the unit on a dynamometer before reinstallation. Monitor case pressure–it should not exceed 15 psi at 3,000 RPM; higher readings indicate blocked vents or internal restrictions. If pressure spikes, disassemble and clean the internal venting passage using compressed air–solvents swell O-rings, causing long-term leaks.
Key Components for Transaxle Repair Kits and Their Identifiers
Replace worn bearings first. The input shaft bearing (PN: 73289) and output shaft bearing (PN: 73290) fail under heavy loads, especially in commercial mowers. Check for roughness during rotation–grinding noises indicate immediate need. Both require a bearing puller for removal due to tight tolerances. Pair replacement with fresh seals: input shaft seal (PN: 73291) and output shaft seal (PN: 73292) to prevent oil leaks.

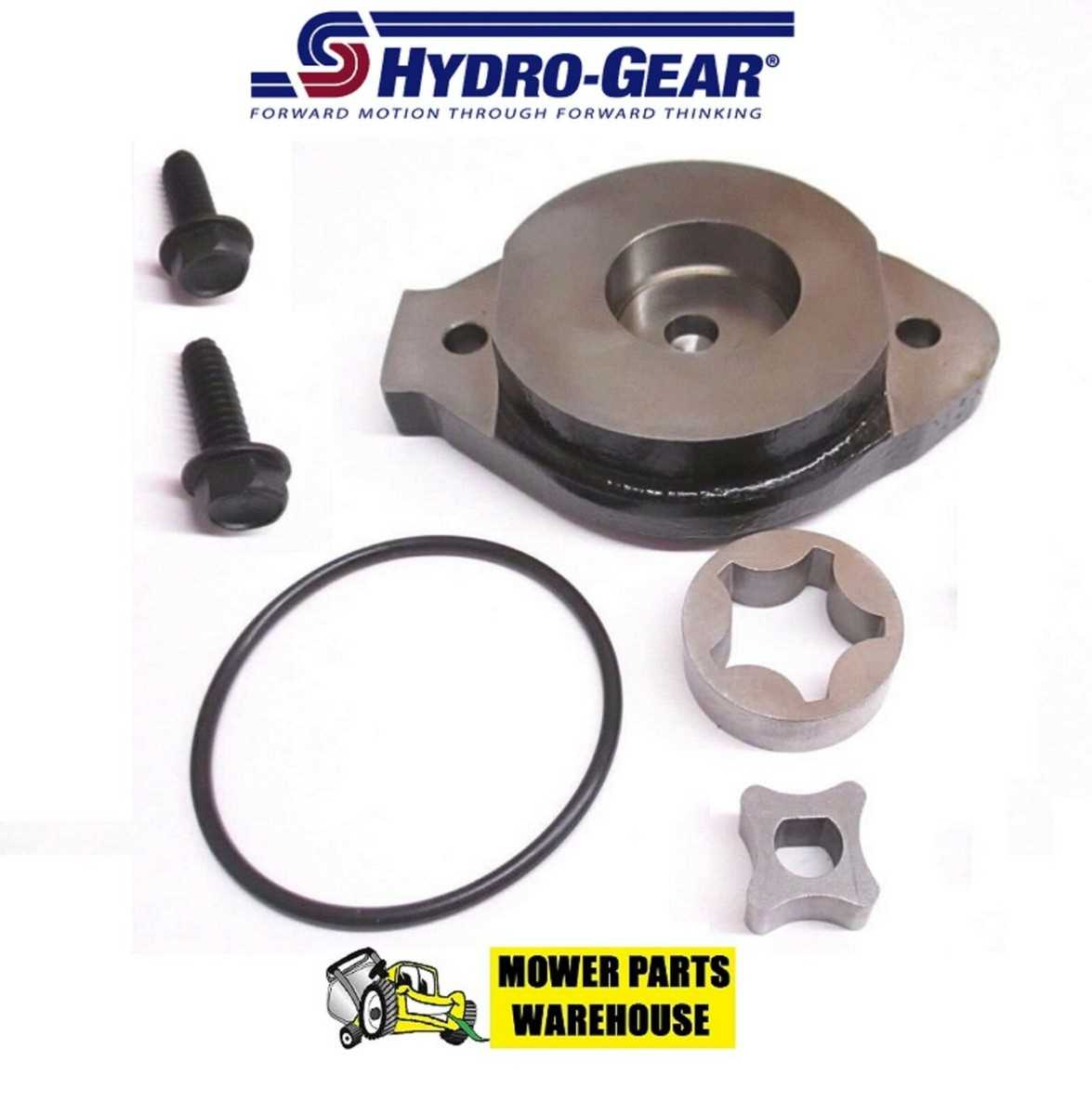

Rebuilding the hydraulic pump? Start with the charge pump kit (PN: 520574). It includes the gerotor set, pressure relief valve, and gaskets–critical for maintaining proper fluid flow. Overheating often traces back to this assembly. If the transaxle loses power but still turns, inspect the control arm (PN: 520161) and feedback spring (PN: 520225). Misalignment here causes erratic speed changes, even with a functional pump.
| Component | Part Number | Failure Symptoms | Tools Required |
|---|---|---|---|
| Control valve housing | 73286 | Slow engagement, sticking | 10mm socket, snap-ring pliers |
| Hydrostatic piston kit | 73287 | No movement (total loss) | Torque wrench, piston press |
| Bypass lever assembly | 520156 | Unintended free-wheeling | Allen keys, pliers |
| Case gasket | 73288 | Oil leaks at housing seam | Gasket scraper, sealant |
For units exhibiting high-pitched whining under load, focus on the hydrostatic piston kit (PN: 73287). Disassembly reveals scored cylinder blocks or broken piston shoes–telltale signs of overheating. Replace only if the swashplate remains undamaged, or the entire assembly may require refurbishment. Always match the new pistons to the original bore size to avoid performance loss.
Spool valves seize often. The control valve housing (PN: 73286) handles pressure modulation, and build-up of debris here produces sluggish response. Cleaning helps, but replacement is recommended if wear exceeds 0.002″. Use magnetic oil plug (PN: 520234) during reassembly to capture future contaminants, preventing repeat failures.
When traction feels weak despite engine power, inspect the drive axle (PN: 520139). Axle shafts shear under excessive side loads, particularly in hilly terrain. Pair replacement with upgraded differential spider gears (PN: 520147) if differential action feels gritty. For units without clutch packs, add limited-slip differential clutch kit (PN: 73300) to improve grip.
Finish with external linkages. The arm bracket (PN: 520160) and ball joint (PN: 520222) wear faster than internal components, causing imprecise movement. Grease fitting threads strip easily–replace bolts with hardened steel variants if corrosion appears. Adjustments fail if rod ends bind, so always verify full travel before final torque.
Fluid and Filter Upgrades
Drain intervals stretch with synthetic transaxle fluid (PN: 92882)–lasts 300+ hours versus 150 for conventional oils. Filter changes demand the spin-on filter (PN: 73293); never reuse old washers, as crushable seals lose elasticity. Aftermarket alternatives lack compatibility testing, risking seal failures. Always bleed air from the system post-service, or cavitation damages charge pumps within hours.
