Start with the manufacturer’s official breakdown–locate the exploded view for the 254 model series under the “Service Manuals” section of their support portal. This document, usually labeled “Illustrated Parts List” or “Component Breakdown”, provides numbered references for every piece, from the cutting deck housing to the hydrostatic transmission linkage. Cross-reference these numbers with the model’s serial plate to avoid compatibility errors.
Prioritize OEM replacements for critical systems: blade spindles, drive belts, and hydraulic pumps. Aftermarket equivalents often lack precision tolerances, leading to accelerated wear. For example, a belt labeled 532-40-0613 must match the exact 1.5-inch width and 88-tooth pitch–substitutes may slip or snap under load.
Use a multi-angle inspection before ordering. Remove the mower deck and inspect the idler pulleys and tension springs for scoring or deformation. Replace both together, as uneven wear causes misalignment. For the engine, track the air filter housing and carburetor gasket–clogged filters starve the motor, while degraded gaskets introduce unmetered air, disrupting fuel ratios.
Leverage interactive schematics offered by authorized dealers. These digital tools let you isolate subsystems–select the “Deck Assembly” tab to highlight spindle bearings, or “Powertrain” to trace the drive belt path. Bookmark the URL and save a PDF version for offline troubleshooting during field repairs.
Group orders by subsystem to minimize downtime. Purchase drive tires, wheel hubs, and axle seals together–fluid leaks often degrade all three simultaneously. For the cutting system, bundle blades, spindles, and belt guards; a dull blade damages spindles, while missing guards accelerate debris buildup.
Guide to Locating and Replacing Components in Your Mower Model Z254F
Begin by identifying the serial number plate beneath the cutting deck–this code determines compatible replacement units for your machine. Use the last six digits of the serial to filter original manufacturer components, avoiding aftermarket mismatches that may void warranty coverage. For instance, air filters (OEM #532184730) and spark plugs (OEM #585540801) must match the exact revision specified for your build date.
Common Wear Items and Replacement Intervals
| Component | OEM Reference | Service Interval | Notes |
|---|---|---|---|
| Belt | 532181720 | 200 operating hours | Check tension after 100 hours; replace if cracks exceed 3 mm |
| Blades | 585540802 | 50 operating hours | Sharpen at 25 hours; balance to prevent vibration damage |
| Drive wheels | 532196274 | 400 operating hours | Grease zerk fittings every 150 hours to extend lifespan |
Disassemble the deck by removing four bolts at the rear pivot points–label each with its position (front left, rear right) to avoid misalignment during reassembly. The blade spindle housing (OEM #532406659) often traps debris; clean threads with a wire brush before reinstalling to prevent cross-threading. For electrical faults, trace circuits starting at the ignition switch; resistance values between terminals 1 and 3 should read 0.5–1.2 ohms–any deviation suggests a defective solenoid (OEM #532140037).
Finding the Genuine Rider 254F Component Guide on the Web
Begin with the manufacturer’s dedicated support portal. Input the exact model designation–*Rider 254F*–into the search bar at https://www.husqvarna.com/us/support/. Filter results by selecting “Parts & Accessories” then “Illustrated Schematics.” The system generates a scrollable exploded view for every assembly: engine blocks, cutting decks, drive systems, and electrical harnesses.
Alternative Sources for Immediate Lookup
- Dealer Portals: Authorized service centers maintain their own databases. Request login credentials from a local outlet; their internal system typically hosts higher-resolution breakdowns with direct OEM part numbers.
- Third-Party Aggregators: Sites like Partstree, Jack’s Small Engines, and eReplacementParts index identical schematics. Ensure the thumbnail snapshot matches your exact unit suffix–*F* denotes specific transmission ratios absent in base variants.
- Forums: Search threads tagged “Rider 254F exploded” on LawnSite or GardenWeb. Members frequently attach PDF snapshots of manual supplements unavailable elsewhere.
Print or screenshot the schematic sheet corresponding to the needed sub-system–blade housing, hydrostatic pedal linkage, or air filter assembly. Cross-reference each callout number with the adjacent legend: torque specifications, compatible lubricants, and aftermarket interchange codes are typically embedded. If discrepancies arise between sources, default to the OEM document downloaded directly from the primary hub.
Locating Critical Power Plant Elements on Your Zero-Turn Schematics
Begin by isolating the air filtration sector–marked near the engine’s upper left quadrant in most blueprint layouts. The pre-cleaner (outer mesh housing) and primary filter (pleated cellulose core) connect via a sealed intake tract, often highlighted in contrasting shades. Verify clamps at both junctions; loose fittings here drop vacuum pressure, skewing fuel-air ratios and triggering erratic RPM dips.
Trace the carbureted fuel delivery path next: sediment bowl → pump → needle valve → float chamber. On illustrations, the bowl typically sits below the flywheel housing, identifiable by its translucent bowl and brass drain plug. A vertical jet cluster feeds the throat–ensure it’s debris-free; even 0.3mm particles skew idle stability. Replace O-rings every 25 maintenance hours if ethanol-blended fuel is present.
Examine the ignition circuit–magneto coil beneath the flywheel, wire harness routed toward the spark plug boot. Schematics usually depict this in bold red, but check for color deviations on older revisions. Resistance should read 3-4 kΩ at 20°C; values outside this range indicate faulty magnet positioning or cracked insulation, causing misfires under load.
Decoding the Cutting Deck and Mower Blades in Schematic Guides
Locate the blade spindle housing first–typically marked with numeric labels like 12-015 or 14-022 in exploded-view illustrations. These identifiers correspond to OEM-specific components, such as pulley brackets or deck lift rods, which often share visual similarities but differ in tolerances. Cross-reference the spindle’s mounting holes with the guide’s measurements: a 4.5-inch spacing indicates a standard residential model, while 6-inch gaps suggest reinforced commercial-grade hardware.
- Blade arcs (labeled 15-003 or similar) include blade stop tabs–check their orientation. If the tab points upward, the blade rotates clockwise; downward tabs signal counterclockwise rotation. Mismatched blade direction ruins cutting precision and overworks the engine.
- Deck plates (e.g., 16-008) feature notches for belt tensioners. Confirm alignment by matching the notch’s angle with the guide’s callout: a 15-degree cutout means high-lift blades, while 30 degrees indicates mulching plates.
- Anti-scalp wheels (17-012) adjust via threaded rods. Rotate clockwise to lower the deck for thick grass, counterclockwise to raise it–calibrate using the guide’s recommended 3-inch ground clearance for optimal airflow.

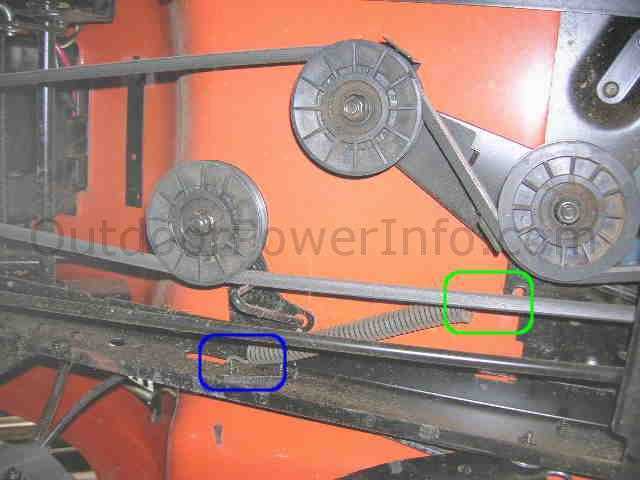

Trace the belt routing path using arrow indicators, often color-coded in guides: red for drive belts, blue for blade engagement. If arrows loop under spindle pulleys (13-005), ensure the belt sits inside the grooves–misalignment causes slippage and premature wear. For decks wider than 48 inches, verify idler pulley (18-007) placement; offset idlers require opposite-side installation versus centered ones. Replace blades if the guide’s torque specs (e.g., 70–90 ft-lbs) aren’t met–under-tightening risks unthreading during operation.
How to Locate Spare Components with the Z254F Exploded Illustration
Begin by downloading the official schematic from the manufacturer’s service portal–search for “Z254F service manual” using the model’s serial number. Each component is labeled numerically; match these numbers to the list on pages 12–15 for precise identification. For example, item 47 corresponds to the deck belt, while 62 denotes the blade spindle assembly.
Compare the exploded view with your physical mower to verify broken or worn elements. Hold the diagram alongside the machine and trace connections: pulleys to belts, blades to spindles, or cables to control levers. If a part appears misaligned or damaged, cross-reference it with the nearest authorized dealer’s catalog using the numeric code.
Key Sections to Focus On
The engine and cutting deck illustrations span the first two sheets. Sheet 1 covers the powertrain–filters, carburetor, and throttle linkages–while Sheet 2 details the deck’s mechanics: belts, spindles, and height adjustment. For rare components like the discharge chute (item 11) or side deflector (item 34), consult Sheet 3’s auxiliary parts.
Order replacements directly from the manufacturer or certified suppliers using the OEM numbers listed in the schematic. Avoid third-party sellers unless they specify compatibility with the exact build year–tolerances vary between 2020 and later models. For instance, the blade brake clutch (item 59) requires a year-specific variant.
If in doubt, photograph the damaged section and overlay the photo with the diagram to confirm dimensions. Some components, such as the drive belt tensioner (item 48), have subtle differences in width or tooth count. Measure twice before purchasing.
Store the diagram digitally in a folder labeled “Z254F breakdowns” for quick access during seasonal maintenance. Bookmark the manufacturer’s parts lookup tool–filter results by model and engine type to eliminate guesswork when reordering consumables like air filters (item 23) or spark plugs (item 8).
