Begin by examining the cylinder–the core of any multi-chambered handgun. This rotating drum houses five to eight cartridges, depending on the model, and must align precisely with the barrel for safe firing. Misalignment between the chamber and barrel creates significant pressure risks, a critical failure point in poorly maintained firearms. Look for markings or wear around the cylinder gap; excessive carbon buildup here indicates frequent use or inadequate cleaning.
The frame serves as the structural foundation, holding the grip, trigger mechanism, and hammer in place. Lightweight alloys reduce recoil but sacrifice durability compared to steel frames. Pay attention to the grip angle–older designs like the Colt Single Action Army use a 23-degree grip, while modern variants such as the Ruger GP100 adopt a steeper 30-degree angle for better ergonomics. Check for stress cracks along the frame’s lower sections, especially near the grip screws.
The trigger assembly controls both single-action and double-action operation. In single-action mode, the hammer requires manual cocking, reducing trigger pull to 3–4 pounds–a detail preferred in target shooting. Double-action pulls weigh 8–12 pounds, offering added safety for carry. Examine the sear engagement; a sloppy or worn sear increases the risk of accidental discharge. Replace triggers with excessive play (greater than 0.02 inches) immediately.
The ejector rod and crane arm (or yoke) work together to extract spent casings. Swing-out cylinder models use a star-shaped extractor, while fixed-cylinder designs rely on a simpler push-rod system. Lubricate the crane arm’s pivot point sparingly–too much grease attracts debris, leading to cylinder misalignment. Test for smooth rotation by cycling the cylinder 10 times in a row; hesitation indicates internal friction.
Inspect the barrel for rifling wear and muzzle crown uniformity. A damaged crown causes inconsistent bullet departure, drastically affecting accuracy. Clean the bore thoroughly after each use, as fouling accumulates fastest in grooves near the forcing cone. For precision applications, match ammunition to the barrel’s twist rate–typically 1:18.75 or 1:20 for common .357 Magnum loads.
Finally, assess the firing pin and hammer for wear. A rounded or blunted firing pin tip leads to light primer strikes, while a cracked hammer may fail to reset properly. Many modern designs incorporate an inertial firing pin safety–verify its function by dry-firing with snap caps to ensure reliable drop protection. Replace any components showing signs of deformation or excessive rounding.

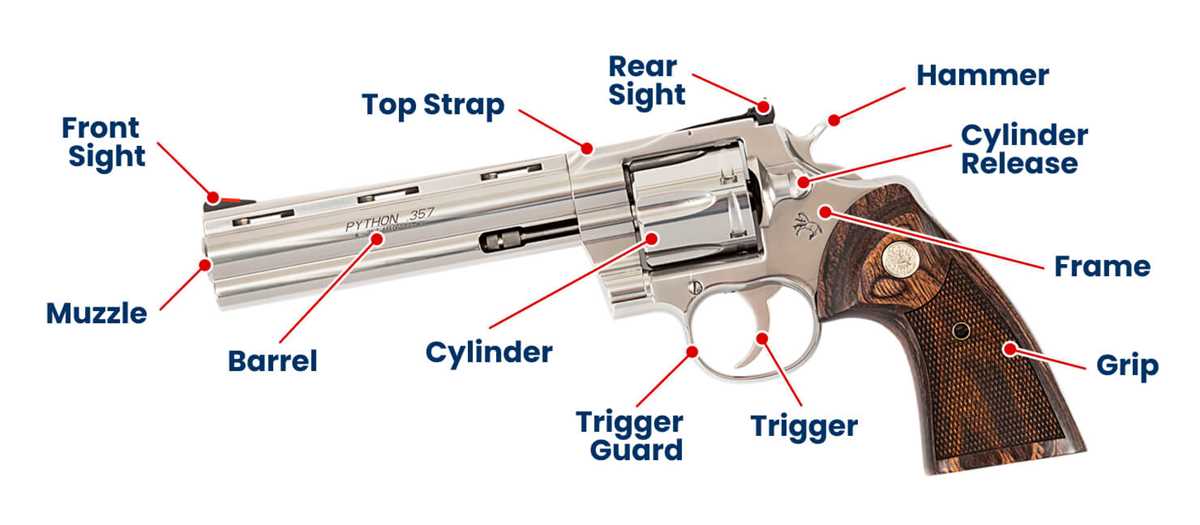

Key Components of a Handgun Cylinder Mechanism
Start identification with the frame–the rigid skeleton holding all other elements. Forged from steel or aluminum alloy, it bears the serial number and houses critical stress points like the trigger guard and grip. Measure its weight distribution: models like the Smith & Wesson Model 686 balance at 70% front-heavy, while compact designs like the Ruger GP100 skew 60% rearward. This affects muzzle rise during rapid fire.
Inspect the cylinder–the rotating drum containing chambers. Chrome-molybdenum steel cylinders withstand 45,000+ PSI pressures from .357 Magnum loads, while titanium cylinders reduce weight by 40% but risk deformation at temperatures above 800°F. Count chambers: standard configurations hold 5-8 rounds; speedloaders require precise alignment with the crane, which swings outward for reloading. Misalignment by 0.5mm causes ejection failures.
Examine the barrel–threaded or integral–for rifling patterns. Polygonal rifling (e.g., Glock) reduces fouling by 22% compared to conventional grooves. Length dictates velocity: a 4-inch barrel achieves 1,200 fps with .38 Special, while an 8-inch barrel adds 200 fps. The muzzle crown–machined to 0.001-inch tolerance–prevents accuracy-robbing gas erosion; poor crowns degrade groups by 1.5 MOA.
- Trigger assembly: Sear engagement must break at 90–120° for single-action and 45–60° for double-action. Factory triggers average 6–8 lbs pull weight; aftermarket adjustments lower to 2–3 lbs but risk accidental discharge if springs weaken.
- Hammer: Forged from S7 tool steel, it strikes the firing pin (inertia-type) with 18–22 ft-lbs force. External hammers allow manual cocking; shrouded designs prevent snagging on holsters.
- Extraction system: Star-shaped ejector rod ejects spent casings sequentially; misaligned rods (common in budget revolvers) cause jams every 3rd or 4th cycle.
Check the grip–ergonomics dictate recoil control. Rubberized grips absorb 30% more kick than wood; finger grooves improve retention but limit hand size compatibility. The backstrap–often overlooked–houses the main spring, which compresses 0.25 inches during trigger pull; over-torqued screws strip threads after 50 cycles.
Focus on the cylinder stop–a 0.1-inch hardened steel lug that locks the drum in battery. Worn stops (measured via feeler gauges) allow cylinder rotation mid-fire, risking catastrophic failure. The hand (pawl) rotates the drum 60° per trigger pull; weak springs cause “short-stroking,” leaving chambers misaligned.
Document wear patterns using dye penetrant testing. Stress fractures appear first near the charge holes (>0.003-inch cracks compromise safety). Replace the recoil shield if erosion exceeds 0.01 inches–this steel plate absorbs 65% of backward force. Store in climate-controlled environments: humidity above 60% accelerates rust on blued finishes by 200% compared to stainless steel.

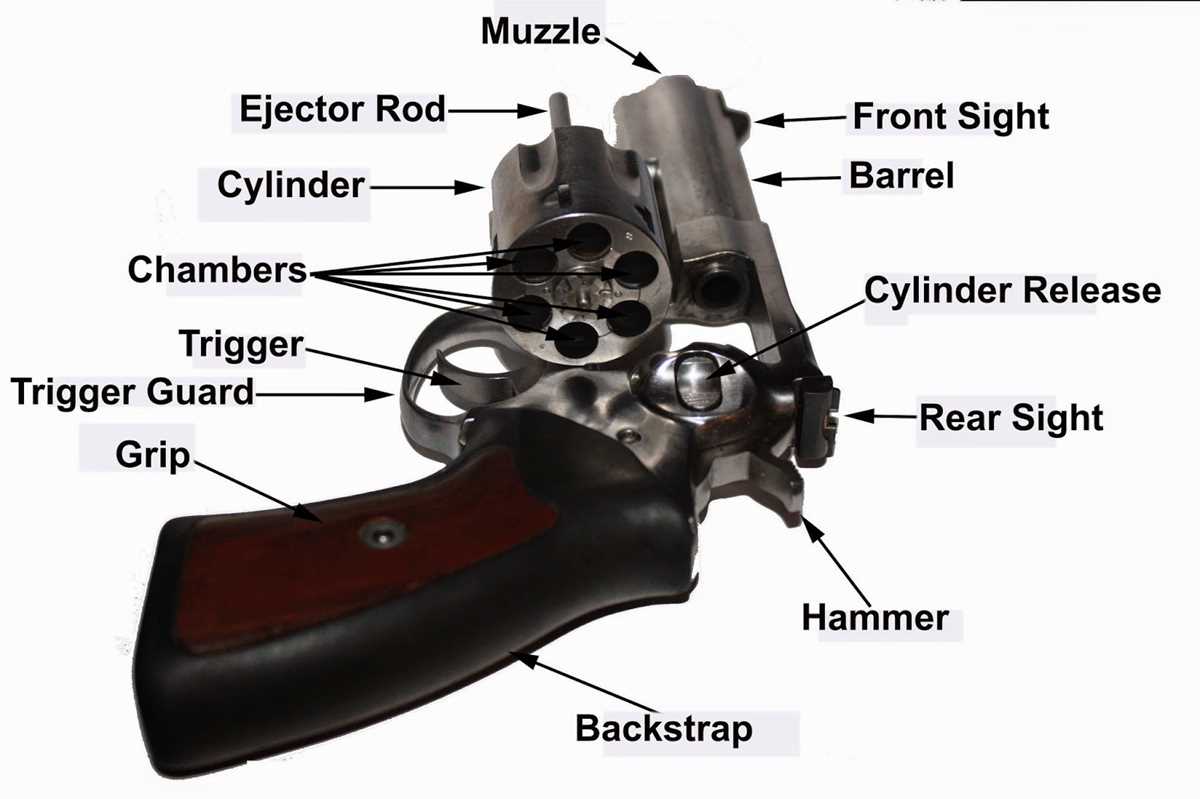

How to Identify the Cylinder and Its Key Elements
Examine the rotating chamber first–it sits directly behind the barrel and houses ammunition. Locate the fluted or smooth outer surface; fluted designs reduce weight while maintaining strength. Count the charge holes (typically five or six) to confirm capacity, as this matches the model’s firing sequence.
Trace the crane arm–the pivoting mechanism that swings outward for reloading. Check for a release latch near the frame, usually on the left side, which disengages the cylinder from the weapon’s body. Older models may feature a spring-loaded plunger instead of a latch.
Inspect the rear face of the cylinder for the extractor star, a toothed component that ejects spent casings. Press it manually–it should move smoothly without resistance. Some designs integrate an automatic ejector, activated by opening the crane arm fully.
Identify the ratchet–a circular gear on the cylinder’s rear that engages with the hammer. Each tooth corresponds to a charge hole, ensuring precise indexing during rotation. Misalignment here often indicates timing issues requiring professional servicing.
Look for flange grooves around the cylinder’s circumference. These guide rotation inside the frame, preventing lateral movement. Wear in these grooves signals excessive use or improper maintenance.
Check the cylinder stop notches–small cuts near the ratchet that lock the chamber in firing position. Damaged notches cause misfires or premature chamber rotation, posing safety risks. Polish or replace if grooves appear rounded.
Verify the throat grooves inside each charge hole–these funnel the bullet into the barrel. Rough or uneven throats increase pressure inconsistencies. Use a bore light to inspect for corrosion or fouling buildup.
Compare the gap between cylinder and barrel–measured with a feeler gauge, it should not exceed 0.006 inches. Excessive gap reduces muzzle velocity; some shooters file the forcing cone for a tighter fit, but this voids warranties and risks structural failure.
The Core Strengths of Handgun Frames and Handling Ergonomics
Select a firearm chassis built from forged steel for maximum durability under repeated stress–avoid stamped or polymer alternatives if reliability in high-round-count scenarios is critical. A one-piece frame construction eliminates flex points common in multi-material designs, ensuring consistent barrel-cylinder alignment after thousands of firings. Look for models with integral lugs supporting the cylinder yoke; this design reduces torsional strain during recoil compared to pinned or screwed assemblies.
Grip Geometry Matters More Than Texture
Opt for a grip profile that aligns with the natural angle of your wrist when the muzzle is horizontal–typically 10-20 degrees from vertical. A rounded backstrap prevents hand fatigue better than flat surfaces, while finger grooves should be shallow enough to accommodate different hand sizes without forcing misalignment. Check for an undercut at the rear of the trigger guard; this detail allows better control by letting the web of your hand sit higher, reducing muzzle flip by up to 15%.
Avoid grips with aggressive stippling unless they follow contoured pressure zones–uneven texture causes hotspots during prolonged shooting, degrading accuracy rather than improving it. Palm swells should be subtle; excessive shaping forces unnatural hand placement, increasing perceived recoil. For magnum loads, a slightly extended grip length (1.2–1.5 inches below the trigger) helps distribute force across a larger surface area without sacrificing dexterity.
Monolithic grip panels made from reinforced nylon outlast wood in humid conditions, resisting warping and cracking for 10+ years of regular use. If customizing, replace screws with hardened steel torx fasteners; standard Phillips heads strip under torque applied by recoil vibrations. Test fit panels dry-fire before final installation–even a 0.5mm misalignment between panel edges and the chassis can create friction points, slowing trigger reset speed.
Examine the grip-to-frame interface for seamless transitions; gaps trap debris and moisture, accelerating corrosion in hidden contact points. A properly chamfered front strap reduces snagging on holsters while drawing, but ensure it doesn’t compromise structural integrity–weakened areas near the barrel latch are failure points in long-term carry firearms. For duty use, select a grip that sheds mud and sand effortlessly; rounded edges and minimal crevices simplify cleaning after exposure to harsh environments.
Material Choices Impact Weight and Performance
Scandium-aluminum alloys offer a 30% weight reduction over steel without sacrificing strength in compact carry frames, but verify heat-treatment specs–poorly processed blends deform under repeated +P loads. Titanium components shave weight further but require precise machining tolerances; mismatched thermal expansion between dissimilar metals can cause cylinder timing issues over time. If using a lightweight frame, check for reinforced hammer pivots–lighter materials demand stiffer springs, which accelerate wear on softer pins.
Textured rubber or rubberized grip inserts dampen recoil impulse better than synthetic polymers, reducing felt recoil by 8–12% for standard 357 Magnum loads. Avoid overmolding that extends onto the frame; loose rubber degrades trigger pull smoothness and can interfere with speedloader engagement. For target shooting, a heavier frame made from stainless steel (e.g., 416 or 17-4 PH) minimizes muzzle rise, allowing faster follow-up shots at extended distances–accuracy improves by 5–7 MOA in rapid fire sequences.
Inspect the ejector rod clearance whenever modifying grips; improper sizing (e.g., aftermarket panels) can cause binding during reload cycles, particularly in double-action models. A longer grip may improve control but should never obstruct cylinder rotation–measure clearance at full extension (0.02 inches minimum). For precision work, a grooved backstrap enhances thumb placement during single-action cocking, shaving 0.1 seconds off split times in competitive shooting.
