Start with the motor housing–located at the base of your filtration unit–where the power supply connects. Check the thermal overload protector positioned beneath the capacitor; this small but critical element prevents overheating by cutting power if temperatures exceed 105°C. If the system fails to start, 60% of cases trace back to a faulty capacitor, identifiable by a bulging or ruptured casing. Replace it with an exact microfarad match (±5% tolerance) to avoid voltage spikes.
The impeller sits directly on the motor shaft, enclosed by the diffuser and volute. Inspect the impeller blades for erosion, especially if water pressure drops by 20% or more–this indicates worn edges, reducing flow efficiency. Clear debris from the impeller’s eye using a stiff wire coil; avoid sharp tools to prevent damaging the plastic or bronze material. A 1/16-inch clearance between the impeller and volute ensures optimal suction.
Examine the seal plate (also called the mechanical seal) between the wet end and motor. This assembly consists of carbon and ceramic faces; if water leaks from the motor’s base, the seal has failed. Disassemble carefully–misalignment during reassembly causes premature wear. Lubricate the O-ring with silicone grease before installation, ensuring it sits flush in its groove. A damaged seal contaminates the motor windings, shortening its lifespan by 70%.
Trace the suction and discharge ports–standard diameters range from 1.5 to 2 inches, threaded or union-style. Verify the check valve on the discharge side swings freely; a stuck valve creates backpressure, forcing the motor to work harder. For above-ground units, the strainer basket (20-30 mesh) should be emptied weekly to prevent clogs that reduce flow by up to 40%. Replace cracked baskets immediately–fragmented debris bypasses filters, clogging the impeller.
For variable-speed models, locate the control board (typically behind a snap-off panel). If error codes flash, cross-reference with the manufacturer’s manual–codes E03 to E07 usually indicate motor faults, while E21-E29 signal sensor malfunctions. Reset the board by cutting power for 30 seconds, but persistent errors require professional diagnostics to avoid damaging the motor’s PCB. Always disconnect power at the breaker before handling electrical components–residual voltage in capacitors can deliver a lethal shock.
Visual Guide to Water Circulation System Components
Identify the impeller housing by locating the large, rounded casing attached directly to the motor. This section endures the highest stress–inspect for cracks or warping every 90 days if operating in high-chlorine environments. Replace if surface pitting exceeds 0.5mm depth.
Check the basket strainer at least weekly. A properly seated gasket prevents debris bypass; verify the O-ring’s flexibility using the squeeze test–discard if it fails to rebound within 2 seconds. Clogged baskets increase motor load by 18-22%, measurable via amp draw spikes on your energy monitor.
The seal plate separates wet and dry zones. Misalignment here causes premature shaft wear, typically visible as blackened lubricant residue near thehaft collar. When replacing seals, apply silicone grease only to the stationary face–never the rotating ceramic ring–to avoid adhesion failure.
- Diffuser: Positioned over the impeller, channels water flow. Look for erosion patterns–tapered vanes indicate improper chemical balance.
- Volute: Casing directing water output. Paint corrosion exposes cast iron; recoat with epoxy rated for 1200 PSI within 48 hours.
- Union connections: Hand-tighten only–over-torquing cracks PVC threads. Use PTFE tape on male threads exclusively, wrapping clockwise.
Voltage fluctuations often stem from corroded capacitor terminals. Clean contact points using 800-grit emery cloth, followed by dielectric grease. Capacitors rated below 40 MFD should trigger immediate replacement–common failure symptom is intermittent startup.
Lubricate the motor bearings annually with synthetic-based lithium complex grease, type NLGI #2. Inject precisely 1.5cc per port using a syringe-style grease gun; overfilling by even 0.2cc generates heat buildup, reducing bearing lifespan by 35%.
Examine the shaft for pitting near the mechanical seal seat–this area experiences torque loads up to 37 Nm under normal operation. Surface scratches deeper than 0.1mm necessitate turning the shaft on a lathe or full replacement; repair welds compromise tensile strength.
Periodically test back-pressure using a digital flow meter. Baseline readings should match manufacturer specs within ±5%. Deviations suggest gimped impeller performance–a typical 3HP unit should circulate 110-130 GPM at 25’ head pressure with a clean filter.
Schematic Key for Maintenance Technicians
- Highlight the priming cycle pathway in yellow.
- Trace electrical wiring paths in red–ensure contactor coil test reads 20-30 ohms.
- Verify thermal overload protector reset button pops at 150°C–higher temperatures signal insufficient oil circulation.
- Cross-reference RPM readings with pulley ratios to confirm belt tension: deflection should not exceed ½” per foot of span.
How to Identify Critical Elements in a Water Circulation System
Begin by locating the motor housing–typically a cylindrical or rectangular metal casing with cooling fins. This component powers the entire mechanism, transferring energy to the impeller. Note the motor’s electrical rating (voltage/amperage) printed on its label, as mismatched specifications can lead to inefficiency or failure. Most residential units operate on 115V or 230V; industrial models may require 3-phase power.
Examine the impeller next–a disk-shaped rotor with curved blades enclosed in a diffuser. It sits behind the strainer basket, forcing water through the system via centrifugal force. Corrosion, debris buildup, or misalignment will reduce flow rates. Replace impellers if blades appear chipped, bent, or unevenly worn, as even minor damage degrades performance by up to 30%.
Seals and Bearings: The Silent Workhorses
The mechanical seal prevents leaks between the motor shaft and volute chamber. Inspect it for cracks, dryness, or carbon deposits–common failure points after 2–5 years. A faulty seal often causes puddles beneath the unit. Bearings, located inside the motor housing, should spin smoothly without grinding noises. Replace bearings immediately if resistance is felt during manual rotation; seized bearings can overheat and destroy the motor.
Check the volute chamber–the curved casing surrounding the impeller. Look for calcification, rust, or pitting on interior surfaces, as these disrupt water flow. PVC or thermoplastic models resist corrosion better than metal but can crack under stress. Use a flashlight to verify the chamber’s interior is debris-free, as trapped leaves or sand create dead zones that reduce efficiency.
- Strainer lid and basket: Transparent lids allow quick debris checks without disassembly. Baskets should have uniform mesh size (typically 1/8″ openings) to trap particles while maintaining flow.
- Union connectors: Two-part threaded collars join the housing to plumbing. Hand-tighten only; over-torquing cracks plastic fittings. Apply silicone lubricant to O-rings to prevent leaks.
- Diffuser gasket: A rubber ring between the impeller and volute chamber. Replace if flattened, stiff, or missing–compression ensures a watertight seal.
Test the pressure switch (if equipped) by activating the system. Normal operating pressure ranges from 10–25 psi; irregular readings indicate clogs, air leaks, or a failing impeller. Thermostatic overload protectors on the motor prevent overheating; verify they reset automatically after cooling. If the unit cycles frequently but pumps little water, air pockets may be trapped in the lines–bleed the system at the highest point.
How to Identify the Impeller in a Circulation Mechanism Breakdown

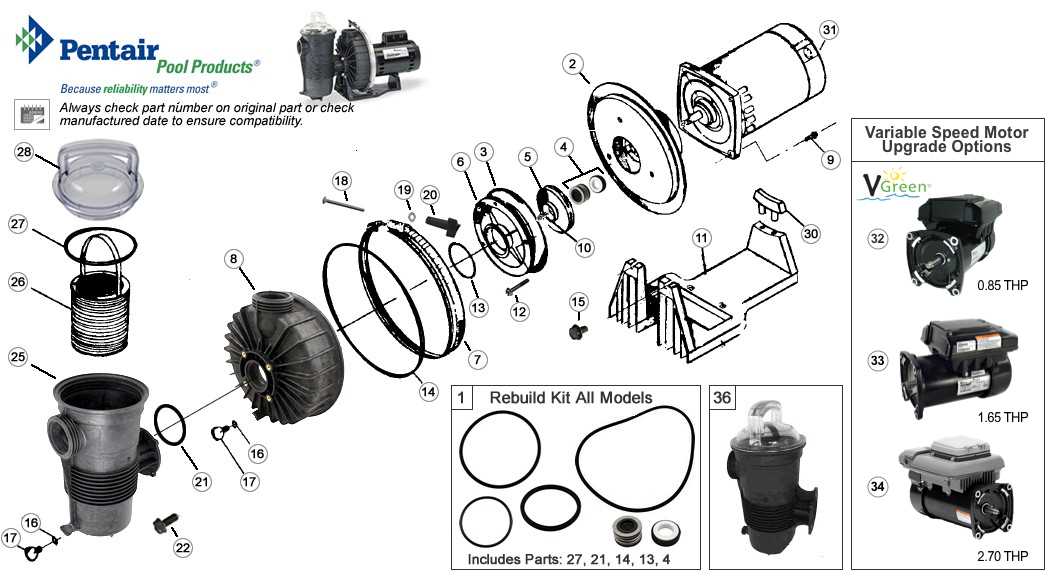

The impeller is typically positioned near the motor shaft in an exploded schematic, often labeled as the “rotating component” or “blade assembly.” Search for a curved, fan-like structure enclosed within the volute casing–this is the core element responsible for fluid propulsion. Most manufacturers mark it with a reference number close to the drive section, so cross-check it against the legend in your technical manual.
Locate the shaft seal adjacent to the impeller; its presence confirms the correct region. On industrial-grade schematics, the impeller is frequently grouped with wear rings and diffuser vanes, all clustered at the fluid intake side. If the exploded view includes an inlet strainer, the impeller sits directly downstream, turning clockwise when viewed from the motor’s perspective.
For rapid verification, measure the diameter–standard impellers range from 150mm to 250mm in residential systems. Larger units may split the impeller into stages, stacked along the shaft. Ensure bolts securing the impeller housing align with the motor mounting flange; any misalignment suggests incorrect identification.
Key Components for Filtration System Maintenance and Their Roles
Replace the motor impeller every 3–5 years if you notice reduced water flow, unusual vibrations, or a humming noise without movement–clear signs of wear. The impeller’s blades generate water pressure by spinning at 3,450 RPM (for 60Hz units) or 2,850 RPM (50Hz), so even minor deformations drop efficiency by up to 20%. Opt for stainless steel impellers over plastic for chlorinated or saltwater setups; they resist corrosion and cavitation pitting three times longer.
Install a shaft seal kit whenever replacing the electric drive or if moisture appears around the housing. A failing seal lets water enter the motor compartment, leading to bearing failure within weeks. Look for kits with ceramic-faced seals (rated for 10,000+ hours) paired with Buna-N rubber O-rings–these handle temperatures up to 250°F and resist chlorine better than silicone. Avoid generic seals; verify compatibility with the model’s horsepower (0.5HP seals differ from 1.5HP in spring tension).
Diffuser gaskets degrade faster than expected, especially in high-TDS water. A cracked gasket causes air leaks, reducing suction by 30% and forcing the unit to run 50% longer cycles. Replace annually or when the gasket loses elasticity (test by pinching–it should snap back). Use only manufacturer-specified gaskets; aftermarket versions often compress unevenly, creating gaps. For saltwater configurations, add a thin layer of silicone lubricant during installation to extend lifespan.
Inspect pressure-side basket filters monthly for cracks or fine debris bypass. Even a 1mm gap lets particles reach the pre-filter, clogging the intake screen in hours. Replace baskets showing stress fractures immediately–polypropylene baskets with reinforced ribs last twice as long as smooth-sided ones. For high-flow systems (e.g., spa jets), upgrade to a 150-micron mesh basket; standard 200-micron baskets fail under sustained 90+ GPM loads. Always check the locking ring’s threads–cross-threading ruins the seal permanently.
