Start by identifying the serial number plate on the loader’s left-side frame rail–this contains the model designation and build code critical for sourcing replacements. The engine compartment houses the most frequently serviced elements: the air filter assembly (mounted near the intake manifold), hydraulic pump (bolted to the rear of the engine block), and radiator core (positioned behind the cab’s rear access panel). For quick verification, match the three-digit suffix on the pump label to the corresponding part number in the manufacturer’s exploded view schematics.

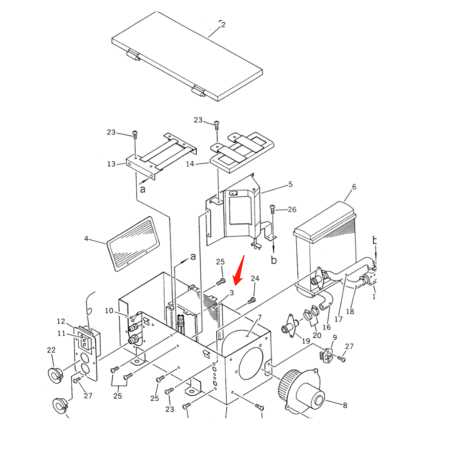

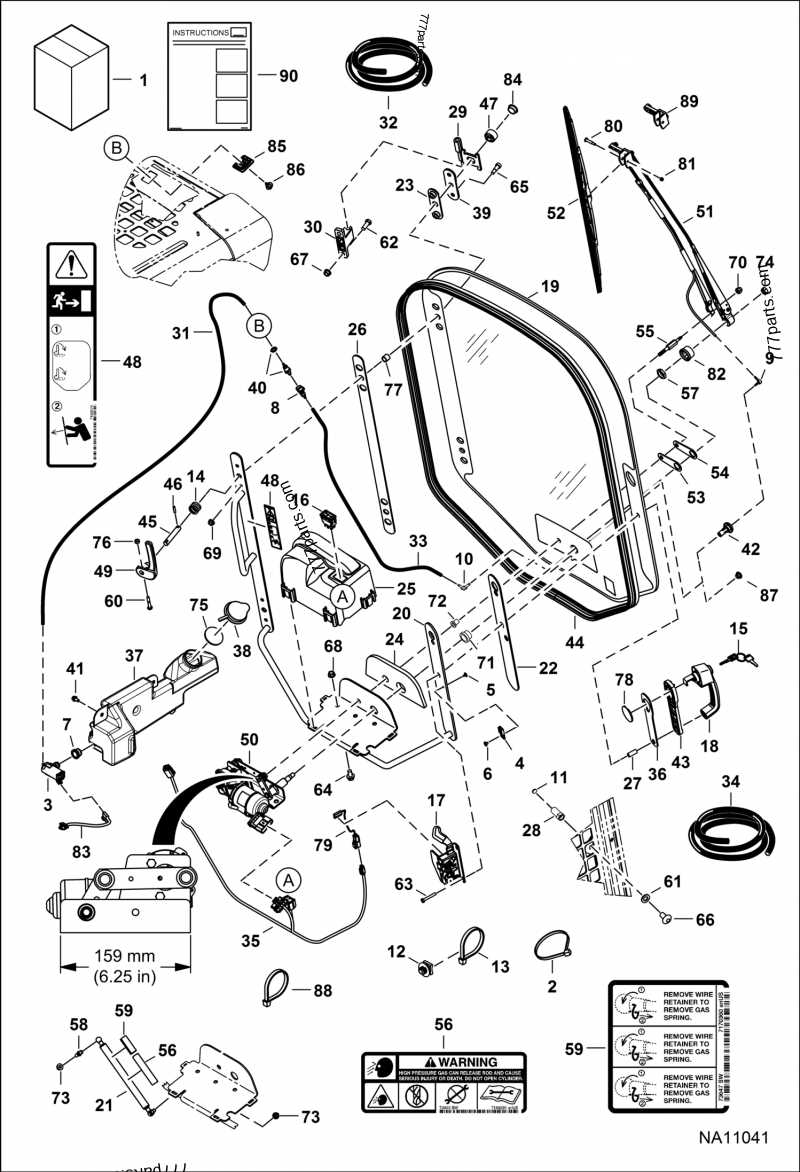

Track tension adjustments require the undercarriage diagram, where the idler wheels, rollers, and sprocket teeth are labeled with their respective part prefixes. The hydraulic manifold―located beneath the operator’s seat―features solenoid valves marked with OEM codes; cross-reference these with the electrical wiring harness connectors (labeled A1 through A8) to isolate faulty components. Cab internals rely on a separate exploded view: the control lever linkages, joystick potentiometers, and instrument cluster use distinct sub-assembly numbers visible only when the dash panel is removed.
Fuel system components cluster around the diesel engine’s rear: the injection pump sits above the flywheel housing, while the fuel filter head integrates a water separator with a torque specification of 22 Nm. Accessing the hydraulic cooler requires removing the right-side engine cover, where hose routing diagrams list quick-connect fittings by color (blue for pilot circuits, red for high-pressure). For structural repairs, the ROPS frame weld points reference a numbering system aligning with repair manual page 12-4, detailing reinforcement plates and mounting bolt grades.
Replace worn cutting edges using the bucket assembly diagram–blade segments attach via eight M16 bolts torqued to 150 Nm, while side cutters use a four-hole pattern with designated wear indicator lines. The lift arm pivot points incorporate sealed spherical bearings; their replacements match OEM numbers stamped on the retainer collars. When ordering filters, note the alpha-numeric suffix (e.g., “-Z2”) on the existing unit–this denotes micron rating and bypass pressure compatibility.
Locating Reliable Schematics for Your Compact Loader
Start with the OEM manual–it’s the only source where hydraulic line routing matches exact factory specifications. Third-party diagrams often simplify or mislabel critical components like the swing cylinder or pivot pins, leading to reassembly errors. If you don’t have the original booklet, request a PDF from the manufacturer’s official support portal using your machine’s serial number; dealers sometimes provide encrypted copies only through verified channels.
For hydrostatic transmission sections, use exploded views instead of single-line schematics. The T590’s travel motor assembly, for instance, has 17 bolts in three torque groups–mixing them during reassembly can shear casings. Print the relevant page and circle each fastener’s designated torque value directly on the paper before disassembly. Avoid adhesive labels on metal parts; solvent residues weaken seals.

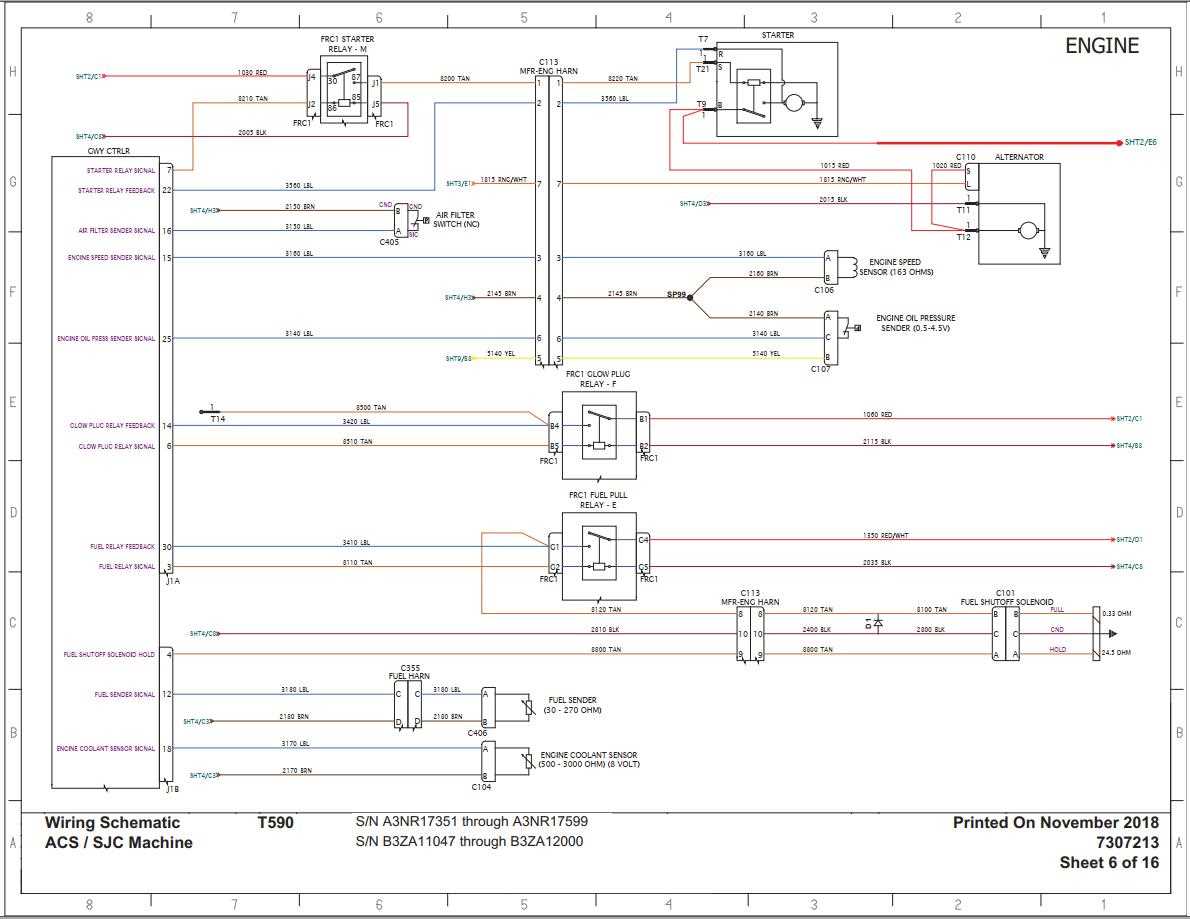

When tracing electrical harnesses, color-code confusion is the most common misstep. The loader’s CAN bus wiring bundle includes six red wires, but only one has a 0.75mm sleeve near the instrument cluster. Without this identifier, technicians frequently cross-connect the fuel sender and hour meter, corrupting data logs. Strip wires only after confirming continuity with a milliohm meter–visual inspection alone fails on corroded contacts.
Lubrication points aren’t standardized across aftermarket schematics. The loader arm pivot joints require NLGI #2 lithium grease, while the quick-coupler mechanism needs water-resistant molybdenum disulfide paste to prevent galling under load. Apply a bead no thicker than 3mm; excess grease migrates into hydraulic cylinders, mixing with fluid and causing sluggish actuator response. Always purge trapped air after servicing by cycling each function five times.
Store diagrams in sealed polyethylene sleeves and keep them in the loader’s cab glovebox. Paper deteriorates rapidly when exposed to diesel fumes and UV light, and even laminated versions eventually delaminate. For field repairs, transfer critical dimensions–like pump mounting flange tolerances–to a microfiber cloth with permanent marker; it resists oil smears better than notebooks.
For structural weldments like the ROPS frame, avoid relying on generic sketches. The T590’s cab mount bracket has a precise 12-degree angle not visible in most illustrations–incorrect reattachment alters seat alignment, causing premature pedal wear. Use a digital angle finder and measure twice before heating the MIG torch; distortion from improper preheat can compromise frame integrity during rollover events.
Identifying the Compact Loader Hydraulic Pump Assembly in Manual Schematics
Begin by locating the section labeled “Hydraulic Components” or “Power Train” in the equipment’s service illustrations. These segments typically appear in the mid-rear portion of the diagram booklet, often between pages 40–70 in standard manuals for skid-steer models. Look for subheadings referencing “main pump” or “charge pump,” as these denote critical fluid circulation units.

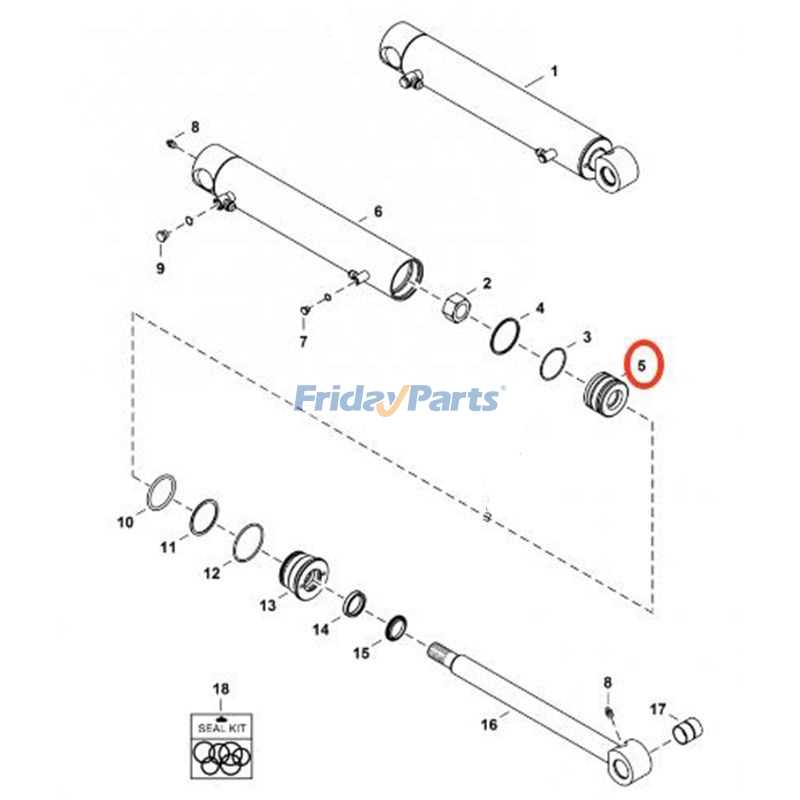

Examine the exploded view illustrations where hydraulic assemblies are depicted. The main pump usually sits near the engine compartment, attached via mounting brackets and connected by hoses to the reservoir. Identify inlet and outlet ports–these are distinguished by their respective hose routing labels, frequently marked “P1,” “P2,” or “T” for return lines.
Check the numerical reference guide adjacent to the visual layout. The hydraulic pump assembly is assigned a specific identifier, often a 4–6 digit number prefixed with codes like “23-,” “66-,” or “80-.” Cross-reference this number with the part list to confirm the exact assembly grouping, which may include the pump housing, internal gears, and shaft components.
Trace hydraulic lines in the schematic starting from the fluid tank. The pump is positioned early in the flow sequence, preceding control valves and actuators. Look for bold or dashed lines indicating high-pressure circuits–these originate at the pump’s discharge port and lead to directional control sections.
Inspect the engine bay layout in the diagram. The hydraulic pump is mounted on the engine’s accessory drive, often adjacent to the alternator or water pump. Note the pulley or splined drive coupling connecting it to the engine crankshaft; this linkage is crucial for verifying pump placement.
Review torque specs and assembly notes if present. Some schematics include installation diagrams showing bolt patterns and required fastener grades for pump attachment. These details help distinguish the main pump from smaller auxiliary pumps, which might serve cooling or steering circuits.
Use color-coding clues if the manual employs them. Some manufacturers highlight hydraulic components in blue or green, separating them from electrical or mechanical systems marked in other colors. This visual distinction expedites identification in complex diagrams.
For digital manuals, utilize search functionality with keywords like “main hydraulic unit,” “fluid drive assembly,” or “charge pressure system.” Filter results to show only exploded views–these offer the clearest depiction of pump components relative to nearby parts like filters or manifolds.
Locating Key Powertrain Elements via Manufacturer Blueprints
Begin by retrieving the official service manual PDF from the manufacturer’s portal using the serial number stamped on the machine’s chassis frame. The 3.4-liter turbo-diesel engine block is usually depicted in section 105-1050, with subassemblies numbered sequentially: cylinder head (105-1052), crankcase (105-1055), and oil pan (105-1060). Cross-reference these numbers with the exploded view plates–each plate shows tolerances and torque specs, critical for disassembly without damaging gaskets or seals.
Isolate the fuel system components by tracing the schematic’s fuel delivery path: primary filter (300-3220), transfer pump (300-3230), and high-pressure common rail (300-3240). The rail’s injectors (300-3250-01 through -06) are marked with individual calibration codes–record these before removal to ensure proper reinstallation. A misaligned injector can cause uneven combustion, detectable via diagnostic software logging cylinder misfires.
| Component | Schematic Plate | Location Code | Critical Measurement |
|---|---|---|---|
| Turbocharger | 200-2030 | Rear engine mount | Vane clearance: 0.006-0.012 in |
| Exhaust manifold | 200-2040 | Cylinder bank 1 | Gasket gap: |
| Coolant pump | 400-4010 | Front timing cover | Impeller backlash: 0.002-0.004 in |
Identify the cooling system’s thermostat housing (400-4020) by following the upper radiator hose to its aluminum casting–often corroded and prone to leaks. The schematic labels the thermostat valve (400-4022) with an opening threshold of 180°F; replacement requires matching this spec exactly to prevent overheating or sluggish warm-up cycles. Replace the housing O-ring (part 400-4025) simultaneously to prevent cross-contamination between coolant and lubricant circuits.
Trace electrical harnesses using the colored wiring diagrams in section 500-5500. Each sensor connector (e.g., crank position sensor 500-5510) is keyed to prevent reverse polarity–damaged pins void sensor functionality, triggering fault codes P0335 or P0340. The schematic’s legend decodes wire gauge and insulation type: 16 AWG for power leads, 18 AWG for signal lines, all rated for 300V and resistant to hydraulic fluid exposure.
