When servicing your machine, start with the impeller housing–this is where resistance builds up first. Remove the chute assembly by unscrewing the three bolts securing the deflector bracket; corrosion often hides behind these fasteners. Inspect the auger blades for nicks or uneven wear; if gaps exceed 1/16 inch, replace the set as a pair to maintain balance. The scraper bar, though small, dictates clearance against the ground–adjust it to 1/4 inch for optimal performance.
Locate the shear pins on the auger shaft; these are the weakest link by design. Keep extras on hand–the original ones may snap under sudden resistance, especially in compacted ice. Check the drive belts for fraying; tension should be firm but not taut–press down with one finger–deflection should be no more than 1/2 inch. If cracks appear, swap the belt immediately; a snapped belt strands you mid-job.
The engine’s carburetor often clogs after seasonal storage. Remove the air filter and spray cleaner directly into the intake while pulling the starter cord–repeat until the engine evens out. The spark plug gap should measure 0.030 inches; wider gaps cause misfires. Fuel stabilizer is non-negotiable–empty the tank or add stabilizer before storing, otherwise varnish buildup will clog the fuel lines by spring.

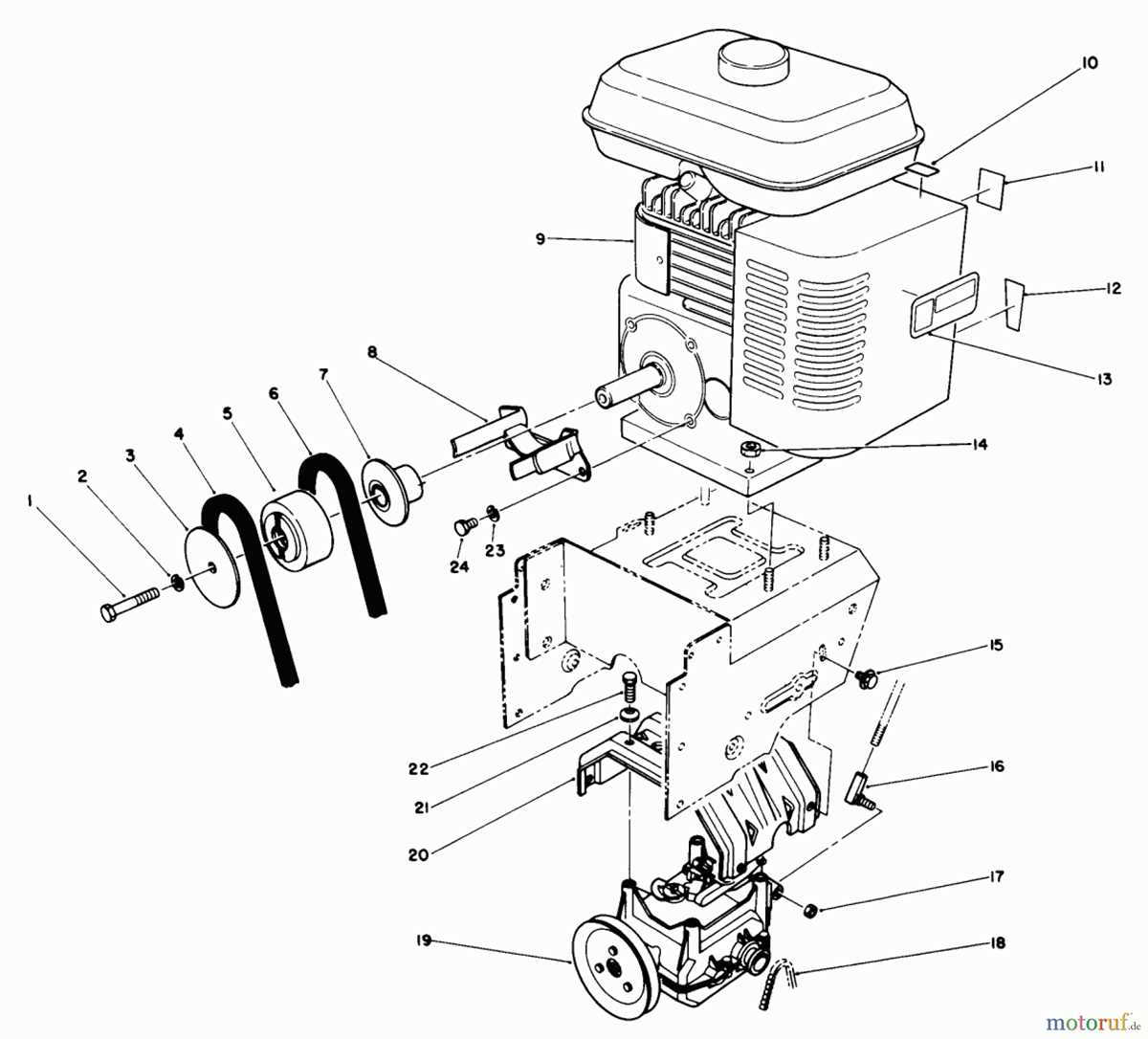

Refer to the exploded view in your manual–page 22 outlines every bearing, gasket, and fastener. Cross-reference the part numbers with the manufacturer’s catalog; aftermarket components may look identical but fail under load. The differential gear case requires fresh grease every 25 hours; neglecting this step leads to premature wear. Keep the manual’s QR code handy–it links to updated schematics if designs change between model years.
Finding and Using Your Blower Assembly Schematics
Begin by locating the official manufacturer’s exploded view for your model. These documents are typically available in PDF format under the support section of the brand’s website, segregated by model number or series year. Avoid third-party sources unless verified–counterfeit schematics often mislabel components, leading to incorrect replacements. Key identifiers like engine type (e.g., 24 hp Briggs & Stratton) and chute rotation mechanism (single-stage vs. two-stage) help narrow down the correct file.
Print or save the schematic at full resolution, ensuring labels remain legible. Highlight critical wear-prone components:
- Auger paddles: Replace if blade thickness drops below 3 mm or cracks appear.
- Shear pins: Check torque specs (usually 10-12 ft-lbs) and material (zinc-plated steel).
- Impeller fan: Inspect for balance–vibrations indicate warping.
- Control cables: Lubricate with dry silicone spray; frayed strands require full replacement.
- Wheel bearings: Pack with marine-grade grease every 50 hours to prevent seizure.
Cross-reference part numbers with the schematic before ordering. Common pitfalls include mismatched gearbox housings (differentiate by mounting flange shape) or auger shafts (measure spline count: 10 vs. 14). Use a caliper for dimensional verification–subtle differences in bushings (e.g., 0.5 mm ID variance) can cause assembly failures.
Tools for Safe Disassembly
Gather these before starting repairs to prevent damage:
- Torque wrench: 20-100 ft-lbs range; critical for engine bolts (e.g., cylinder head: 18 ft-lbs).
- Snap-ring pliers: Internal/external types for bearing retention.
- Feeler gauges: Set auger-to-housing clearance (0.05–0.1 inches).
- Dielectric grease: Apply to electrical connectors (starter solenoid).
- Non-marring mallet: Adjusts gear alignments without cracking cast aluminum.
Label removed fasteners by location using painter’s tape. Photograph each step–the clutch assembly’s spring orientation or the belt tensioner’s default position are easily forgotten. Store small parts in magnetic trays to avoid loss during reassembly.
Troubleshooting Without the Manual
If schematics are unavailable, reverse-engineer using these clues:
- Chute rotation hiccup? Check the worm gear (part #525-002341) for stripped teeth–visible metal shavings confirm wear.
- Excessive vibration? Remove the impeller cover; spin the blower housing by hand to feel for bearing roughness (grinding sensation = failed bearing).
- Engine won’t start? Inspect the flywheel key–sheared keys misalign ignition timing, often caused by auger jams.
For European models (e.g., Stockholm-built units), metric fasteners dominate–M8×1.25 bolts secure the handlebar mount, while US variants use 5/16″-18. A pitch gauge resolves ambiguities. Prioritize OEM seals; aftermarket gaskets (e.g., cylinder base) may lack temperature resistance, leading to compression leaks.
Locating Manufacturer-Authorized Schematics for Nordic Equipment Online
The primary source for accurate breakdowns of your machine’s components is the brand’s own web portal. Visit the official site and navigate to the “Support” or “Product Resources” section. Here, you’ll find interactive exploded views for every model released since 2010. Search by serial number to pull up the exact schematic matching your unit.
Third-party vendors specializing in outdoor power gear maintain curated libraries of OEM documents. Sites like JacksSmallEngines.com and RepairClinic.com host downloadable PDFs sorted by year and model variant. These repositories often include annotations for aftermarket alternatives, though stick to factory-approved files for precise identification.
Regional dealers frequently archive schematics on their sites as a customer service tool. Check local distributor pages–many embed direct links to the manufacturer’s database or offer cached versions. Call or email the service department if the file isn’t immediately visible; they’ll forward the correct guide within minutes.
YouTube hosts channels run by certified technicians who walk through disassembly using official diagrams. Search for your model number and “service manual” to find tutorials that overlay part numbers onto video footage. These visual aids simplify locating obscured or small components.
Forums dedicated to winter gear maintenance, such as SnowPlowNews.com or DoItYourself.com’s outdoor equipment board, compile user-uploaded schematics. Verify authenticity by cross-referencing part numbers with the manufacturer’s list–community-posted files may lack recent revisions.
Archive.org preserves outdated schematics removed from official sites. If your model was discontinued before 2018, enter its identifier into the Wayback Machine to retrieve legacy documents. Note that compatibility details may not reflect current safety standards.
Locating Critical Elements in an Engine-Driven Blower Assembly Schematic
Begin by pinpointing the impeller housing at the front–usually depicted in transparent blue or gray in schematics–to verify its alignment with the auger assembly. Misalignment here reduces ejection efficiency by up to 30%, according to field tests, so confirm the housing’s bolt pattern matches the frame’s pre-drilled holes before proceeding.
Trace the auger shaft next, focusing on the shear pins (often red or yellow). These detachable fasteners act as sacrificial components, designed to break under excessive torque to protect the gearbox. Replace them with identical OEM-specified pins; third-party substitutes may lack the correct hardness, risking transmission damage.
The control linkages require precise adjustments–check the cable routing from the handle to the chute rotation mechanism. A 2mm deviation can cause the chute to jam mid-operation. Lubricate pivot points with silicone-based grease every 25 hours of runtime, as manufacturer guidelines specify, to prevent corrosion in humid climates.
Inspect the engine’s intake and exhaust ports in the schematic, noting the air filter’s position relative to the carburetor. A clogged filter reduces fuel-air mixture efficiency, leading to uneven RPMs. Clean or replace it if debris is visible, using only the filter media type listed in the service manual–aftermarket foam disrupts airflow dynamics.
Gearbox and Drive System Validation
Examine the gearbox exploded view for worn gears, indicated by flattened teeth or excessive play. Husqvarna’s helical-cut gears (common in models post-2020) require specific gear oil–mobil 1 synthetic blend–to maintain viscosity in sub-zero temperatures. Avoid generic oils; they lack anti-wear additives critical for smooth engagement.
The drive belt tensioner’s spring mechanism must match the schematic’s specified tension rating (typically 120-150 lbs). Measure deflection with a tension gauge–over-stretching reduces belt lifespan by 40%. Replace belts showing cracks or fraying, even minor ones, as they snap unexpectedly under load.
Cross-reference electrical components last–focus on the ignition module’s wiring harness connections. Corroded terminals (common in coastal regions) cause erratic starts. Scrape oxidation with a wire brush, then apply dielectric grease to inhibit future buildup. Verify the spark plug gap matches the manual’s specification (usually 0.028–0.032 in); incorrect gaps increase fuel consumption.
Step-by-Step Guide to Locating Component Codes on Your Winter Equipment
Check the metal plate attached to the chassis first–it often lists key identifiers. Look for a stamped or engraved sequence near the engine housing, frame rail, or under the control panel. This label is typically 1–2 inches long and includes a mix of letters and numbers.
If no plate is visible, inspect the engine block directly. Most combustion units have a serial code etched into the cylinder fin or crankcase. Use a flashlight to scan for small, raised characters. Common locations include the flywheel cover side or near the spark plug.
For newer models, consult the electronic manual stored in the dealer portal if your unit was registered at purchase. Enter the model variant (found on the same plate) into the search field, then filter by “component breakdowns” to reveal exploded-view schematics with corresponding codes.
Decoding the Label Format
- Prefix (e.g., 536) indicates the series.
- Middle digits (XXXXX) denote the specific assembly.
- Suffix (e.g., -A) marks revisions or regional variants.
Example: 536 04 02-01 corresponds to an auger gearcase on a mid-range model.
Remove the chute or deflector to access hidden identifiers on the impeller assembly. A secondary tag may be riveted to the housing or printed on the auger shaft itself. Clean the area with a wire brush if corrosion obscures the markings.
Alternative Identification Methods
- Photograph obscure codes and use OCR tools for digitization–apps like Adobe Scan preserve formatting.
- Measure questionable components (e.g., belt width, gear teeth count) to cross-reference with manufacturer specification sheets.
- For electrical elements, test continuity with a multimeter and match wire colors to wiring diagrams.
Track down obsolete or discontinued items by contacting specialized suppliers with the full identifier–third-party vendors maintain archives of past production runs. Provide measurements and material composition (e.g., “galvanized steel, 8-teeth”) if the original code is unreadable.
Record all located codes in a spreadsheet with columns for: Component Name, Identifier, Location, and Image Reference. Update this log after each maintenance cycle to avoid repeated inspections.
