Before any repairs, locate the fill valve–the tall cylindrical component on the left side. Turn the water supply shutoff underneath counterclockwise to drain residual pressure. Most modern assemblies use a float cup or float ball to regulate inflow; confirm which type yours has by lifting the arm gently–if resistant, it’s cup-style, if loose, ball-style. Replace the seal if worn; common failure points include the flapper chain getting tangled or the refill tube detaching.
Inspect the flush mechanism next. Pop the lid upward, avoiding side pressure to prevent cracks. The flapper should sit flush against the flush valve seat; clean mineral deposits with vinegar if buildup exists. Check the lift wire for kinks–straightening prevents uneven water flow during activation. Over-tightened lift arms cause slow drainage; adjust to ⅜-inch gap above the top of the overflow tube.
Ensure the overflow pipe isn’t blocked–water should rise no higher than 1 inch below its rim. Test by pouring a cup of water directly into the pipe; if drainage is sluggish, the valve assembly needs replacement. Calibrate the float height by pinching the clip on a cup-style float to slide it down for lower water levels or up for higher. Incorrect float positioning wastes up to 3 gallons per flush or causes incomplete refill.
Reassemble by aligning the flush handle lever with the lift arm slot, securing the nut finger-tight plus a quarter-turn with pliers–over-tightening cracks the porcelain. Reconnect the water supply, turn clockwise to restore flow, and observe the first flush. Listen for continuous running post-flush; if present, jiggle the handle to reset or replace the flapper immediately.

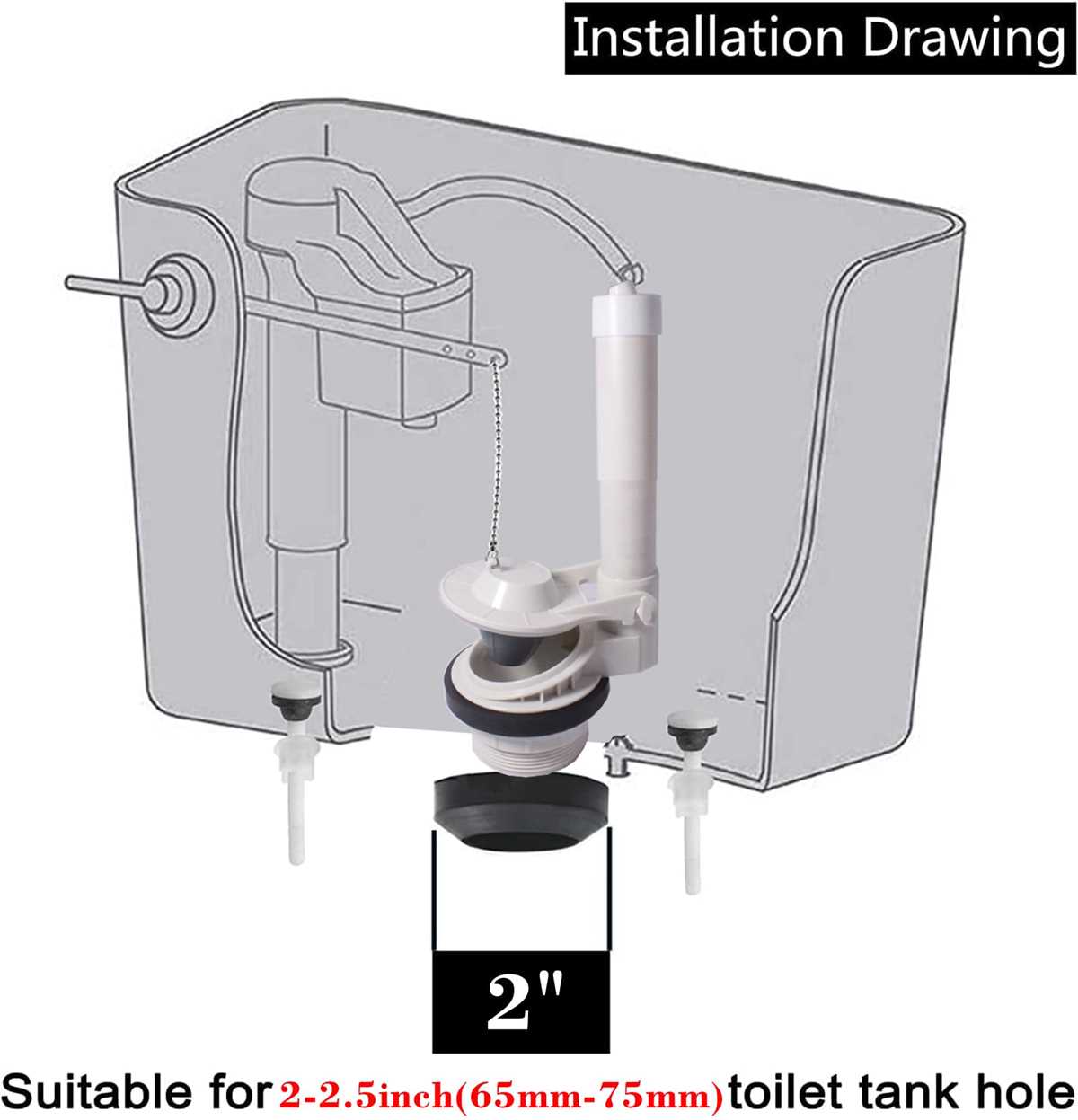

Key Components Inside Your Flush Mechanism Blueprint
Locate the flush valve seat at the base–it’s the opening where water exits during operation. Ensure it’s free of mineral deposits by scrubbing with vinegar every six months; neglect causes slow leaks or incomplete flushing. A faulty seal here wastes up to 200 gallons daily.
Float Systems: Ball vs. Cylindrical
Opt for a cylindrical float (modern models) over the ball float–it’s less prone to tangling and requires zero adjustment. If using a ball float, secure the arm at a 45-degree angle to prevent overfilling. Misalignment here leads to 30% more water loss per flush.
Examine the refill tube: it should channel water into the overflow pipe, not directly into the bowl. A misrouted tube can trigger phantom flushes, draining 1-2 gallons every hour. Trim excess length to ¼ inch above the overflow pipe’s rim.
Replace the flapper every 2-3 years–silicone lasts longer than rubber and resists chlorine degradation. Test seal integrity by adding food coloring to the water; leaks will stain the bowl within 10 minutes. A worn flapper accounts for 80% of silent water waste.
Adjust the fill valve’s water level marker to 1 inch below the critical level indicator (usually a red or black line). Overfilling by even ¼ inch spills 50+ gallons monthly. Most valves allow height tweaks via a screw or sliding clip.
Inspect the trip lever and lift chain–ensure the chain has ½ inch of slack. Too tight, and it pulls the flapper prematurely; too loose, and the flush won’t activate. Lubricate the lever’s pivot point annually with silicone spray to prevent corrosion.
For dual-flush models, verify the selector switch’s spring tension. A weak spring causes partial flushes to default to full volume, defeating water-saving benefits. Test by pressing lightly–resistance should be firm, not mushy. Replace switches showing cracks or stiffness.
Critical Internal Mechanisms of a Cistern
Inspect the fill valve monthly to prevent silent water waste. Models like Fluidmaster 400A adjust water levels precisely–set the refill tube just above the overflow pipe to avoid phantom flushes. Replace this component every 5–7 years, even if no leaks appear, as worn seals degrade efficiency by up to 23%.
Flush handles must pivot freely; tighten the mounting nut clockwise if the lever sticks. Lubricate pivot points annually with silicone grease to reduce friction–avoid petroleum-based products, which corrode plastic linkages. Test the handle’s resistance; ideal torque ranges between 1.2–1.8 Nm for consistent flushing.
- Overflow tube: Prevents cistern floods by diverting excess water into the bowl. Measure its height–standard is 1–2 inches below the critical level mark. Trim with a hacksaw if too tall, but never shorten below the refill tube’s outlet.
- Flapper seal: Replace every 2–3 years or when warping occurs. Silicone flappers last longer than rubber but cost 40% more. Verify compatibility with hard water–chlorine and minerals degrade rubber faster.
- Chain length: Adjust so there’s ½ inch of slack when the handle rests. Excess slack causes incomplete flushes; too tight strains the handle mechanism.
Clean the cistern interior twice yearly with white vinegar to dissolve mineral buildup. Soak removable components for 30 minutes, then scrub with a stiff brush. Avoid bleach–it weakens seals and accelerates corrosion in brass or copper fittings. For persistent scale, use a 5% citric acid solution instead.
Install a dual-flush converter if water conservation is critical. Kits like HydroRight reduce usage by 30% with a two-button system: 1.6 gallons for solids, 0.8 gallons for liquids. Ensure the existing cistern meets minimum volume requirements–most kits require 2.5+ gallons for proper operation.
How to Identify and Locate the Fill Valve
Shut off the water supply and flush the commode to drain residual liquid. The fill mechanism sits adjacent to the vertical overflow tube–typically a cylindrical or tapered plastic component rising from the base. Check for a float ball, cup, or sleeved design attached via an adjustable rod; these indicate the valve’s position. If absent, follow the water inlet pipe where it enters the reservoir–it connects directly to the intake assembly. Modern designs often integrate the shut-off and filling functions in a single unit, distinguished by a threaded base secured with a large plastic nut beneath the vessel.
Key Markers for Quick Recognition
Look for a white or translucent cap atop the device marked with numbers or arrow indicators denoting water level settings. Ballcock-style valves feature a floating sphere connected by a metal or plastic arm, visible at the rear of the cistern. Pressure-activated models lack external floats, instead housing sensors inside a sealed chamber beside the overflow pipe. Measure the diameter of the intake port–standard sizes range from 3/8” to 1/2” for residential fixtures–to confirm compatibility with replacement kits.
Step-by-Step Guide to Replacing a Flush Valve Seal
Shut off the water supply by turning the shutoff valve clockwise until it stops. Hold down the flush lever to empty the reservoir entirely. Disconnect the water supply line from the base of the cistern using an adjustable wrench.
Remove the lid and place it on a soft surface to prevent cracking. Unscrew the locknut beneath the reservoir’s underside–typically a plastic or metal ring securing the flush mechanism. If corroded, apply penetrating oil and wait 10 minutes before attempting removal again.
Accessing the Flush Mechanism
Lift the reservoir slightly to slide out the old flush valve assembly. Inspect the opening for mineral deposits or debris–clean with a cloth wrapped around a screwdriver if needed. The seal, usually a black or red rubber gasket, sits at the base of the valve stem.
- Old seals often split or harden–replace if cracks or brittleness are visible.
- Check alignment grooves; misplacement during reinstallation causes leaks.
- Store-bought kits include seals, but verify compatibility with your model’s diameter (common sizes: 2″, 3″).
Installing the New Seal
Press the new gasket onto the valve stem firmly, ensuring it sits flat against the base. Reinsert the assembly into the reservoir, aligning it with the overflow tube (if present). Secure the locknut by hand first, then tighten with pliers–avoid over-torquing to prevent cracking.
- Reattach the water supply line, ensuring the washer is intact to prevent drips.
- Turn on the water supply counterclockwise until resistance is felt–do not force.
- Let the reservoir refill. Test the flush 2-3 times, watching for leaks at the seal or connections.
If water trickles post-flush, adjust the float height to reduce overflow. Tighten the refill tube clip to prevent it from dangling into the overflow pipe. For persistent leaks, remove the assembly and resecure the gasket–even slight misalignment compromises performance.
Tools required: adjustable wrench, screwdriver, penetrating oil (if corrosion exists). Time estimate: 20–30 minutes. Replacement kits cost $5–$15, depending on brand (e.g., Fluidmaster, Korky).
Flapper Troubleshooting: Immediate Solutions for Persistent Problems
Replace worn-out silicone or rubber seals every 3–5 years, even if no visible damage exists. Submerge the flapper in vinegar for 30 minutes if mineral deposits cause sticking–this dissolves buildup without scrubbing. For adjustments, shorten the chain link-by-link if water runs continuously; ideal slack allows ½ inch of movement. Test fill consistency by adding food coloring to the bowl; leaks appear within 15 minutes if the seal fails. Keep spare 2-inch diameter models (like Fluidmaster 502) on hand–universal designs fit most residential units.
Silent leaks waste up to 200 gallons daily. Check valve alignment by pressing down–if water stops, misalignment disrupts sealing. Adjust guide arms on side-mounted flush mechanisms to center the flapper; offset positioning reduces longevity by 40%. Lubricate hinge points with silicone grease annually to prevent corrosion in hard-water areas. Replace flappers showing
| Issue | Quick Fix | Tools Needed |
|---|---|---|
| Sticking seal | Clean with 50% vinegar solution | Scissors, cloth |
| Chain interference | Trim excess links | Needle-nose pliers |
| Uncentered positioning | Bend guide arms inward | Flathead screwdriver |
| Slow refill | Inspect inlet valve screen | Brush, toothpick |
Hard-water corrosion necessitates specialized models–pick kryptonite-coated options for regions exceeding 180 ppm calcium. Verify compatibility by measuring flush volume; standard designs handle 1.6 GPF, while high-efficiency units require 1.28 GPF flappers. Install a dual-flush converter if partial flushes fail–reduction valves adjust water volume dynamically. Avoid bleach or abrasives; these degrade rubber compounds twice as fast as vinegar. Check manufacturer specs for temperature tolerances–some models warp above 110°F storage conditions.
Leaks after installation often stem from improper sealing techniques. Ensure gaskets sit flush by removing tank lid and repositioning twice before tightening. For persistent drips, coat the seal’s underside with plumber’s putty before reattaching–this creates a secondary barrier. Replace entire assemblies if cost exceeds $15; individual components rarely justify labor time. Monitor water levels weekly–sudden drops indicate check valve failure or hidden cracks in tank housing.
