For precise repairs or restoration, refer to the exploded schematic of the 1912 lever-action repeater. The receiver assembly–including the bolt, carrier, and firing mechanism–demands careful disassembly. Mark each component’s position before removal, particularly the bolt-locking lugs and ejector, which must align correctly during reassembly. Use a gunsmithing screwdriver with a hollow-ground tip to avoid marring screws, especially those securing the trigger housing.
The tubular magazine requires systematic inspection. Start by removing the takedown screw and barrel band, then slide the magazine tube forward. Check the follower spring for fatigue; replace if coiled tension is weakened. The cartridge stop and interrupter pivot pins should move freely–apply a light coat of high-grade gun oil if binding occurs. Note that the fore-end wood is press-fit; pry gently near the barrel lug to avoid splitting.
Critical wear points include the hammer cocking ramp and sear engagement surfaces. Polish minor grooves with Arkansas stone, ensuring a smooth 90-degree angle where they interface. For the buttstock, verify the tang screw tightens securely–looseness here can misalign the action. Use a torque wrench set to 25 in-lbs for final tightening. The safety plunger and its spring must spring back crisply; a sluggish response indicates debris buildup in the safety well.
When sourcing replacements, match the serial number range to the correct variant (A-grade, C-grade, or gallery). Early production models (pre-1920) have a shorter ejector and narrower bolt face. Later versions added a reinforced extractor claw. Always cross-reference with a factory manual–third-party schematics often omit subtle updates like the redesigned carrier latch introduced in 1924.
Understanding the Schematic of the 1912 Slide-Action Firearm
Locate the receiver assembly first–this is the backbone of the firearm’s mechanism. Its exploded view typically includes the breechbolt, carrier, and hammer, each positioned in precise relation to one another. The breechbolt slides forward to chamber a round, while the hammer remains cocked until the trigger disengages the sear. Ensure the extractor claw is intact; it hooks onto the rim of a cartridge and must pivot smoothly without excessive play. If missing or damaged, feeding failures will occur.
The trigger group consists of the trigger itself, sear, disconnector, and coupling bar. Verify the sear engages the hammer notch cleanly–any wear here causes misfires. The disconnector prevents full-auto function by resetting after each shot; if it sticks, the firearm will fire continuously. Lightly lubricate the pivot points, but avoid excess oil–it attracts fouling that jams the action.
The tubular magazine beneath the barrel holds rounds stacked nose-to-tail. Its parts include the follower, spring, and magazine tube plug. The follower pushes rounds toward the carrier, so polish its surface to reduce friction. If the spring loses tension, rounds won’t feed reliably. Replace springs every few years if corrosion is visible, even if they appear functional–weak springs lead to stove-pipe jams.
Barrel attachments like the forearm cap and sights affect handling. The cap secures the magazine tube; if loose, it wobbles and throws off accuracy. Front and rear sights should be tightly dovetailed into their bases–loose sights drift under recoil. Adjustable rear sights (if present) often use a sliding ramp; ensure the locking screw holds zero after sighting in.
Cleaning rods or brushes don’t appear in diagrams but are critical. Run a patch through the bore after disassembly to remove powder residue–neglecting this causes corrosion inside the rifling, increasing shot dispersion. Check the chamber brush fits snugly; aggressive brushing extends the firearm’s life but risks damaging the throat if done improperly.
Identifying the Firearm’s Core Housing in Schematics
Examine the upper left quadrant of the exploded view–this is where the tubular housing and action frame converge. The barrel, a slender cylindrical component, attaches directly to the receiver via threaded or pinned connections, depending on the variant. Look for a long, rifled tube extending away from the stock’s forward end; this distinguishes it from shorter gas tubes or magazine tubes in semiautomatic configurations.
Trace the receiver, typically depicted as a rectangular block with an open rear and front, housing the bolt and firing mechanism. In the schematic, it should align with the ejection port and charging handle slot–key indicators of its position. If the diagram includes a side plate, the receiver may appear partially obscured, but critical mating surfaces remain visible.
Verify barrel length by comparing it to adjacent components. Early iterations measure 20–24 inches, while takedown versions may show a segmented barrel split at the midsection. The chamber end often features a threaded muzzle, occasionally paired with a front sight base, confirming its identity even in simplified illustrations.

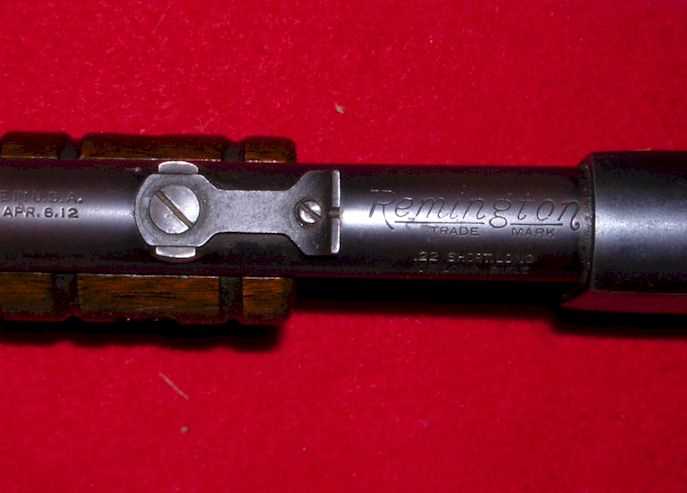

Check for evidence of serial numbers or Proof Marks near the receiver’s lower edge. These markings, though tiny, help confirm authenticity and manufacturing date when cross-referenced with original blueprints. If present, they eliminate confusion with aftermarket or custom assemblies.
Locate the recoil spring guide and bolt carrier group within the receiver’s interior. The schematic should illustrate these parts seated behind the barrel’s breech face, ensuring proper function during cycling. Absence in this region suggests an incomplete or generalized depiction.
Cross-check the firing pin channel, typically a narrow passage through the bolt face. This detail, though minor, differentiates the receiver from magazine housings or trigger assemblies, which lack such precision-machined pathways.
Locating Bolt and Firing Assembly Elements in Schematic Breakdowns
Begin by isolating the striker assembly at the upper right quadrant of the firearm’s schematic–this cluster includes the firing pin, its spring, and retainer. Verify alignment with the bolt body by cross-referencing the numbered callouts; misidentification here risks improper reassembly.
Trace the bolt’s travel path from locking lugs to the extractor claw–note how each interacts during cycling. The lugs (typically two) should engage the receiver rails precisely; insufficient contact demands closer inspection of wear grooves. Examine the extractor’s tension: a loose fit suggests spring fatigue or improper seating.
- Firing pin: Must protrude 0.055–0.065 inches beyond the bolt face when manually depressed. Measurements outside this range indicate bent components.
- Extractor: Should snap securely over a cartridge rim–failure to latch suggests replaced claws or weakened springs.
- Bolt handle: Check for tight indexing; wobble precedes stress fractures at the root.
Disassemble the striker assembly only if corrosion or binding appears under movement. Keep spring tension controlled–dried grease often causes erratic firing pin retraction. Store components in sequence: retainer>spring>firing pin, to avoid misplacing the tiny retainer cross-pin during cleanup.
Inspect the bolt body’s channel for carbon fouling–a brass brush removes stubborn deposits without scratching surfaces. Replace any bolt showing hairline cracks near stress points; patina alone isn’t disqualifying but signals potential weakness.
- Align the bolt face markings (visible under angled light) with the schematic’s callout numbers:
- Front serial digits indicate production batch–match these to service manual variants.
- Offset pin holes differentiate rimfire adaptations; reverse fitting voids safety locks.
Reattach the bolt handle last–rotate from closed to open positions while applying light rearward pressure. Resistance beyond 8–12 inch-pounds torque indicates internal friction, typically from misaligned sear engagement.
Test dry fire cycles before live rounds: uneven striker travel confirms incomplete cocking, traceable via the schematic’s exploded views to either bent trigger bars or worn disconnector cam surfaces.
Understanding the Trigger Mechanism and Safety Components in the Firearm Blueprint

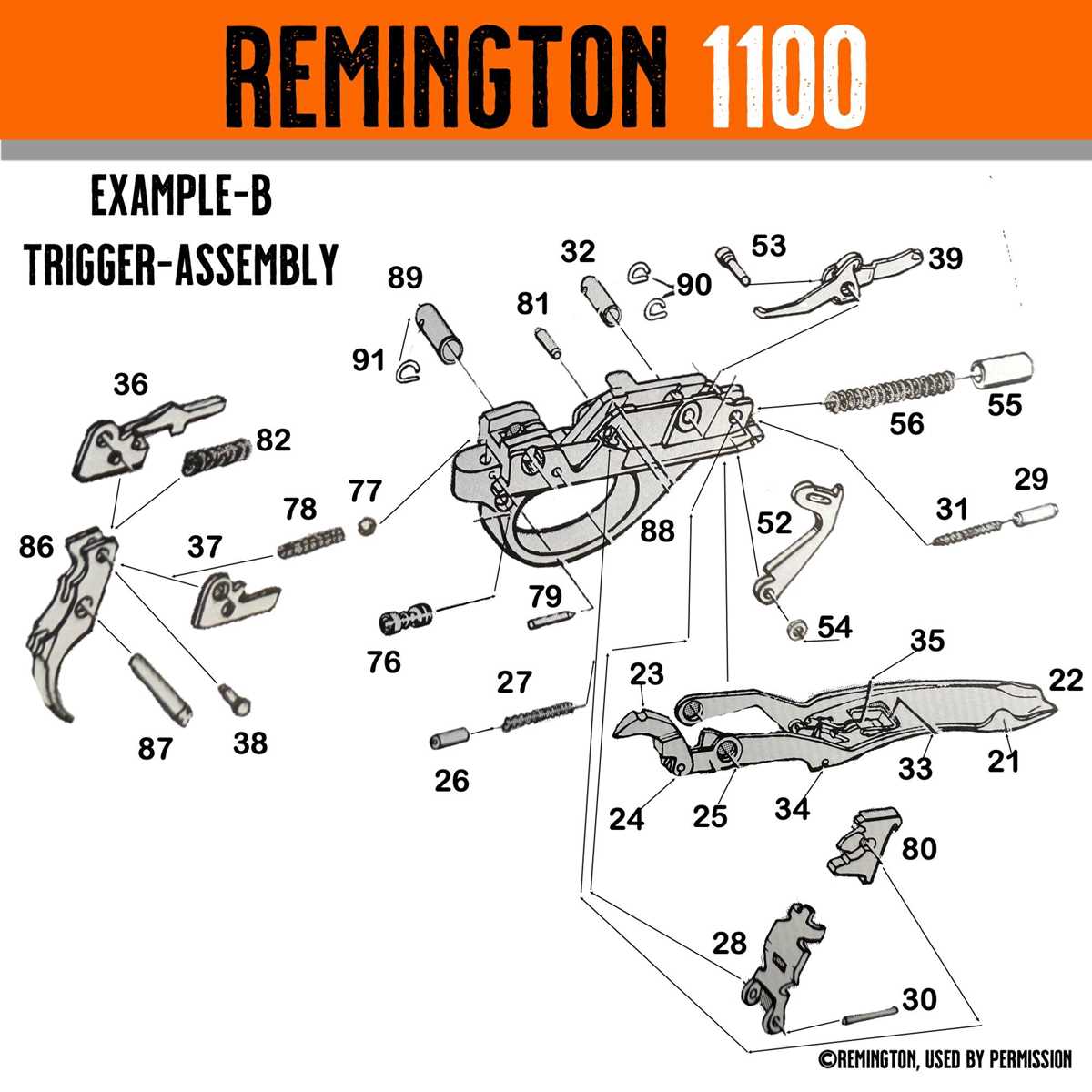

Locate the trigger assembly at the lower rear section of the receiver, typically marked near the take-down screw housing. The schematic labels this cluster as the “sear group,” consisting of the trigger itself, sear, disconnector, and trigger spring. Verify the numbered callouts against a magnified view–each component sits in precise alignment, with the sear pivot pin angled slightly forward for proper engagement with the hammer notch.
Trace the trigger’s path backward to identify the disconnector–an L-shaped piece that interacts with the bolt’s cam surface. Misalignment here causes failure-to-reset; confirm the disconnector rests flush against the trigger bar with no visible gaps. The trigger spring, a coiled wire section, should exert light tension when compressed; excessive slack suggests wear or incorrect installation.
Critical Safety Interlocks

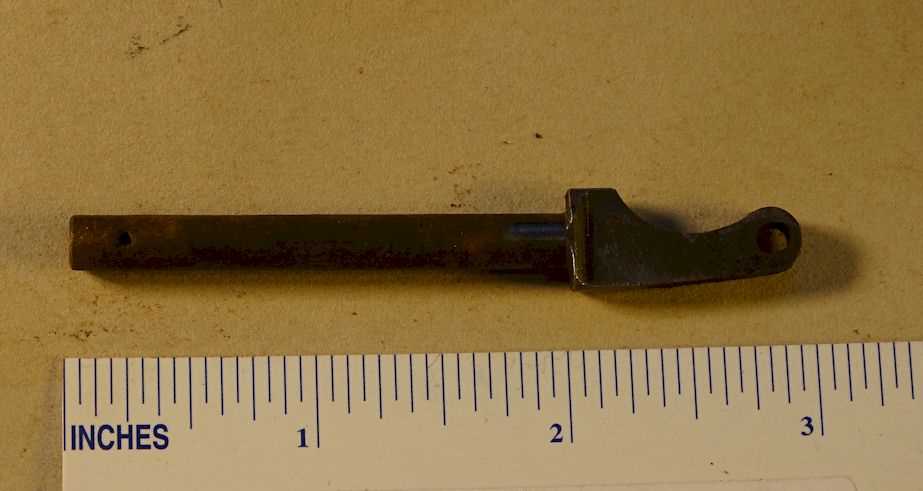

Isolate the manual safety lever on the right side of the frame, directly above the trigger guard. The blueprint denotes its linkage–a thin rod connecting to the trigger’s rear lug. Toggle the safety to “ON” (upward position) while observing movement: the linkage must rotate the trigger lug rearward, lifting the sear from the hammer notch. If resistance feels uneven, inspect the safety detent spring (a small coil beneath the lever) for deformation.
Examine the firing pin lock, situated within the breech face channel. This cylindrical plunger blocks the firing pin unless the trigger fully depresses. Confirm it protrudes slightly into the bolt’s path–dimensions should match the schematic’s .040-inch specification. A worn lock passes imperfectly, increasing risk of unintended discharge.
Check the integral trigger guard’s rear curve, where the magazine latch interlock prevents firing when the magazine is removed. The latch’s hooked end engages a cutout in the trigger’s lower extension; any bending here compromises this secondary safety. Reinstallation requires aligning the latch’s groove with the frame’s guide rail before tightening retention screws.
Cross-reference the exploded view with physical measurements: trigger pull weight should average 3–4 pounds for standard configurations. Use a trigger gauge to test; deviations beyond ±0.5 pounds indicate sear engagement issues. Lightly stoning the sear face (if hardened) can correct minor deviations without altering safety margins.
Document each verified component’s condition–note wear patterns on the sear’s engagement surface, ensure the disconnector’s edges remain sharp, and confirm the safety linkage rod ends aren’t rounded. Replace parts only in matched sets, as mixing worn and new components disrupts timing and safety function.
