For precise repairs, locate the internal wiring harness near the base–marked by a white or translucent connector. This links the motor assembly to the control panel, typically secured with two 8mm screws. Misalignment here causes erratic oscillation or power failures. Check for cracked housings on these connectors; L-series models (2018–2023) use brittle polycarbonate prone to stress fractures under 15lb pressure.
Replace the primary blade enclosure if static noise exceeds 42dB during operation. The split-phase motor (rated at 120V, 60Hz) requires a 0.4μF capacitor–verify capacitance with a multimeter set to 200nF range. Units manufactured after Q3 2022 integrate a self-resetting thermal fuse (rated at 135°C) embedded in the rear grille; bypassing this risks overheating the coil windings.
Use the schematic to trace the oscillation mechanism’s gears. The upper gear (32-tooth, acetal resin) meshes with a steel pinion (12-tooth). Apply dielectric grease sparingly–excess accelerates wear. If vertical movement sticks, inspect the synchronizer rod for bends exceeding 0.5mm; replace if deformed. The lower housing vents must remain unblocked; airflow restrictions degrade performance by 18% at 90°F ambient temps.
For control panel malfunctions, test the membrane switches with a continuity tester. Each switch pad should register 0Ω when depressed. Failed switches often exhibit delayed response–replace the entire panel if more than two pads are unresponsive. The LED driver circuit (5V, SMD resistor network) sits beneath the display; use anti-static tools during soldering to prevent damage.
Understanding Your Vertical Cooling Unit’s Component Layout

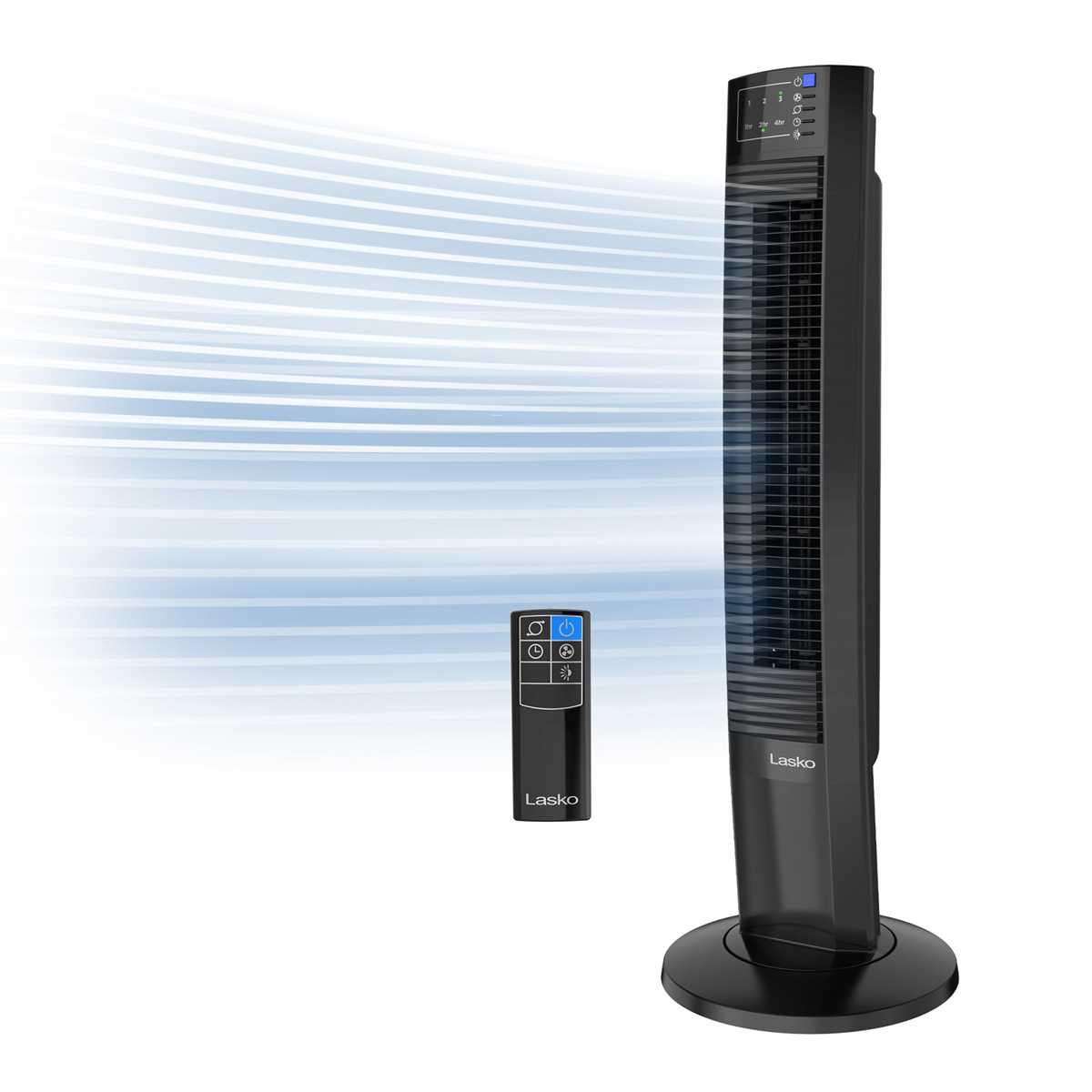

Start by locating the control panel at the top of the slim cooling unit. Most models feature a digital display or touch-sensitive buttons, though some older versions use mechanical dials. The central circuit board sits directly behind this section–disconnect power before inspecting or removing it to avoid electrical hazards. Check for loose wiring connections if the device fails to power on; corrosion or dust buildup on contacts often causes intermittent operation.
Examine the oscillation motor near the base. This compact mechanism drives the side-to-side movement, typically rotating 90 degrees, though some variants offer 60-degree oscillation. If movement stalls, listen for unusual buzzing–this suggests worn gears or misaligned drive wheels. Lubricate the gear assembly with silicone-based grease; petroleum-based products degrade plastic components over time. The motor’s capacitor may also require testing with a multimeter if rotation speeds become inconsistent.
The blower wheel assembly dominates the internal structure, positioned vertically within the column’s center. This circular array of blades draws air through the intake grille (front or rear, depending on design) and forces it upward through the vented housing. Dust accumulation on blades reduces efficiency–clean them using compressed air at a 45-degree angle to avoid damaging the lightweight plastic. Cracked or warped blades create vibrations; replace the entire wheel if repairs aren’t viable.
Inspect the safety grille covering the air intake. Some units feature dual layers–outer protective mesh and an inner fine filter trapping particulates. Wash reusable filters in lukewarm water with mild detergent; foam or charcoal filters require replacement every 3-6 months for optimal performance. Neglecting filter maintenance leads to overheating, as restricted airflow forces the motor to work harder. For models with ionizing functions, locate the ionization module adjacent to the blower wheel–test its output with an ozone meter if air purification weakens.

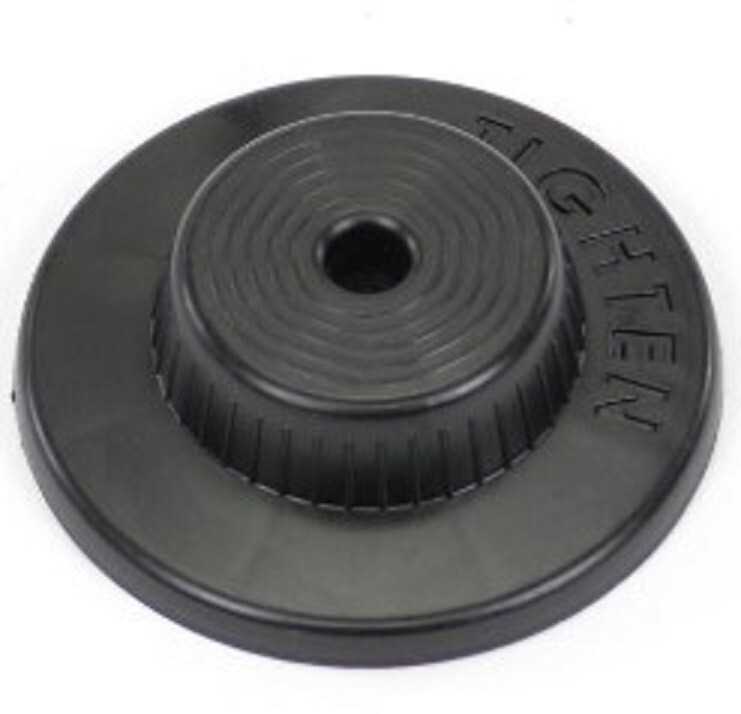

Base stability relies on weighted compartments or anti-slip pads. If wobbling occurs, verify that the weight distribution hasn’t shifted–some designs allow internal ballast adjustment. For electrical issues, trace the power cord to its junction point inside the base; look for frayed insulation or burn marks indicating overload. Always reference the manufacturer’s exploded-view schematics (available via model number searches) to confirm exact replacement part specifications, as dimensions vary across product lines.
Locating Critical Elements in an Airflow Device Disassembly Blueprint
Start by isolating the motor housing in the exploded schematic. Typically secured with three to five Phillips screws, it encloses the impeller assembly and control circuitry. Check for hidden clips near the base–these often crack under stress, requiring replacement. If the unit emits excessive vibration, prioritize inspecting these fasteners for torque consistency (optimal range: 0.8–1.2 Nm).
- Impeller blades: Verify alignment with the stator–misalignment reduces airflow efficiency by up to 30%. Measure blade clearance; gaps exceeding 0.5mm indicate wear.
- Oscillation mechanism: Locate the worm gear and ring gear pair. Lubricate with silicone grease every 500 operating hours to prevent seizing.
- Thermal fuse: Installed near the windings, this component fails during overheating. Test continuity with a multimeter; resistance should read 0 ohms.
Examine the power board next. Capacitors bulging above 5% of their diameter or leaking electrolyte demand immediate replacement–these faults cause erratic speed control. Look for a 47µF/450V capacitor near the rectifier; its lifespan rarely exceeds 8,000 hours under continuous load. For digital displays, trace the ribbon cable to the control panel–corrosion on connectors disrupts signal transmission.
Dismantling the air guide vanes reveals the air intake filter and rear grille. Clean the filter monthly using compressed air (max 50 psi) to maintain 95% optimal airflow. The grille’s snap-fit design makes removal tool-free, but avoid prying near the motor mount–excessive force shears molded plastic tabs. For repair, match replacement components by cross-referencing the model-specific reference number etched on the base plate.
Step-by-Step Guide to Locating Common Replacement Components
Disassemble the unit by removing the front grille first–typically secured with four to six snap tabs along the edges. Press each tab inward while gently prying the grille away from the housing; avoid excessive force to prevent breaking the plastic clips. Next, detach the rear cover by unscrewing two or three screws located at the base or sides–these are often 6mm Phillips-head fasteners. Once the covers are removed, the motor assembly, blades, and oscillation mechanism will be visible.
Identify the motor by locating the cylindrical component at the center–its underside will have two wires (red and black) connected to the circuit board. For blade replacement, unscrew the single central bolt holding the impeller to the motor shaft; note that some models require a 10mm socket. Check the oscillation gear near the base–if worn, look for a white or gray plastic pinion with six to eight teeth. Order replacements by matching the part number etched on the component (e.g., MOT-450 for motors, GEAR-OSC3 for oscillation units) or measure shaft diameters (±0.5mm tolerance) if labels are absent.
How to Read Wiring and Motor Assembly Diagrams
Locate the legend first–most schematics use color-coded lines or alphanumeric labels to distinguish circuits. Red, black, and blue wires typically indicate live, neutral, and ground connections respectively, while letters like “M” or “S” may mark main and secondary motor coils. Verify these against the component list to avoid misinterpretation of shunt or series windings.
Trace power flow from the source outward: begin at the plug or battery terminals, follow the thickest lines (high-current paths), then split into thinner branches for control circuits or auxiliary components. Disregard shaded areas or dashed lines–they often denote optional connections or alternative configurations rather than functional routes.
Identify relays, capacitors, and thermal fuses by their standardized symbols: a rectangular block with diagonal lines for resistors, curved plates for capacitors, and a wavy line for thermal cutoffs. Cross-reference these to the bill of materials to confirm values–0.1μF capacitors serve noise suppression, while 250V/10A fuses protect motor windings.
Motor assemblies separate into stator and rotor sections. The stator diagram labels pole pieces (e.g., “P1,” “P2”) and winding directions (arrows or “+/-” symbols). Rotor schematics emphasize commutator bars and brush positions–each bar pair corresponds to one winding coil. Polarized components like diodes or Hall sensors appear as triangular arrows; their orientation dictates current flow direction.
| Symbol | Component | Typical Value |
|---|---|---|
| ●–► | Diode | 1N4007 (1A, 1000V) |
| ○–✕ | Capacitor | 22μF/450V (start/run) |
| ▭ | Resistor | 470Ω/5W (dropping resistor) |
| ⚡ | Thermal fuse | 125°C/10A |
Check for dotted lines encircling groups of symbols–these highlight subcircuits like speed selectors or oscillation motors. Each subcircuit should terminate at a shared ground point or return path. If absent, verify the schematic’s revision number; older versions often omit these details.
Use a multimeter in continuity mode to confirm paths before disassembly. Probe connector pins one-to-one against the diagram–resistance readings below 1Ω indicate intact windings, while OL (open loop) signals failed coils or broken traces. Document measurements directly on a printed copy to track anomalies.
Voltage-regulated components require attention to input/output polarity. A bridge rectifier, for example, converts AC to DC; its four diodes must match the schematic’s lead arrangement (AC inputs on one diagonal, DC outputs opposite). Invert any single diode to short the circuit.
Label all removed components with masking tape and photograph each step. Align photos against the diagram to ensure reattachment accuracy–brush holders or bearing mounts often key into specific rotor slots. Test run the apparatus on low speed before full reassembly to validate torque and noise levels.
