Replace worn piston rings on the 45mm cylinder bore using OEM part #1128-020-1202–aftermarket equivalents risk improper sealing and reduced compression. Torque specifications for the cylinder cover bolts (M6) are 8-10 Nm; exceeding this will warp the aluminum housing. For carburetor adjustments, note the idle screw (marked “LA”) requires exactly 1.5 turns from seated position for optimal fuel-air mix.
Refer to the exploded view labeled Technical Bulletin TB-025-2018 for clutch assembly disassembly. The sprocket (part #1128-121-1400) must align with the drive link gauge–mismatches cause derailment. Ignition module (part #1130-400-1207) failure often mimics fuel issues; test resistance between terminals 1 and 3 (8-12 kΩ at 20°C) before replacement.
Bar oil pump repairs demand attention to the worm gear (part #1128-640-0502)–wear thresholds exceed 0.1mm on the helix face. Replace if grooves appear. Air filter housing removal requires disconnecting the throttle trigger linkage; document spring tension positions (reference photograph #AF-025-DET) to avoid re-calibration errors during reassembly.
High-vibration components (handle mounts: part #1128-105-8700) degrade at 400-500 operating hours. Inspect rubber grommets for cracks–replacement intervals halve under heavy-duty use. For chain brake engagement, verify the band (part #1128-184-0600) contacts the drum with 3-5mm overlap; insufficient clearance risks unintended friction heating.
Practical Reference for Stihl 251 Component Breakdown
Locate the air filter assembly by removing the two screws securing the top cover–use a T25 Torx driver for stubborn fasteners. The filter rests on a rubber gasket; inspect it for cracks or debris before reinstallation. Replace if particles exceed 1mm in diameter to prevent carburetor damage.
Identify the ignition module by tracing the spark plug wire to its base. The module’s position behind the flywheel requires a 19mm socket to detach the flywheel itself–mark the flywheel’s alignment with the crankshaft using white correction fluid before disassembly. Misalignment by 2° can reduce spark efficiency by 30%.
- Throttle linkage: Check the ball joint at the carburetor for wear; apply lithium grease every 20 operational hours.
- Fuel pump diaphragm: Replace if swollen or brittle–symptoms include hard starting or surging at idle.
- Cylinder gasket: Torque bolts to 8Nm in a cross pattern to prevent warping.
Carburetor Adjustment Procedure
Turn the L (low) and H (high) mixture screws clockwise until they lightly seat, then back out 1.5 turns for baseline settings. Start the unit and adjust L for smooth acceleration without hesitation; fine-tune H at full throttle for a steady 10,000 RPM at operating temperature. Over-tightening can damage needle valves–use a precision screwdriver for 0.1mm adjustments.
The decompression valve is spring-loaded; test it by pressing firmly–if resistance exceeds 2.5kg, replace the spring. A failing valve increases starting pull force by 40%. Clean the valve seat with compressed air; avoid solvents that degrade the rubber seal.
- Remove the clutch with a 13mm socket, holding the piston at top dead center with a nylon strap.
- Inspect clutch shoes for grooves deeper than 0.5mm–replace the entire assembly if worn.
- Reinstall springs with the curved side facing outward to avoid uneven tension.

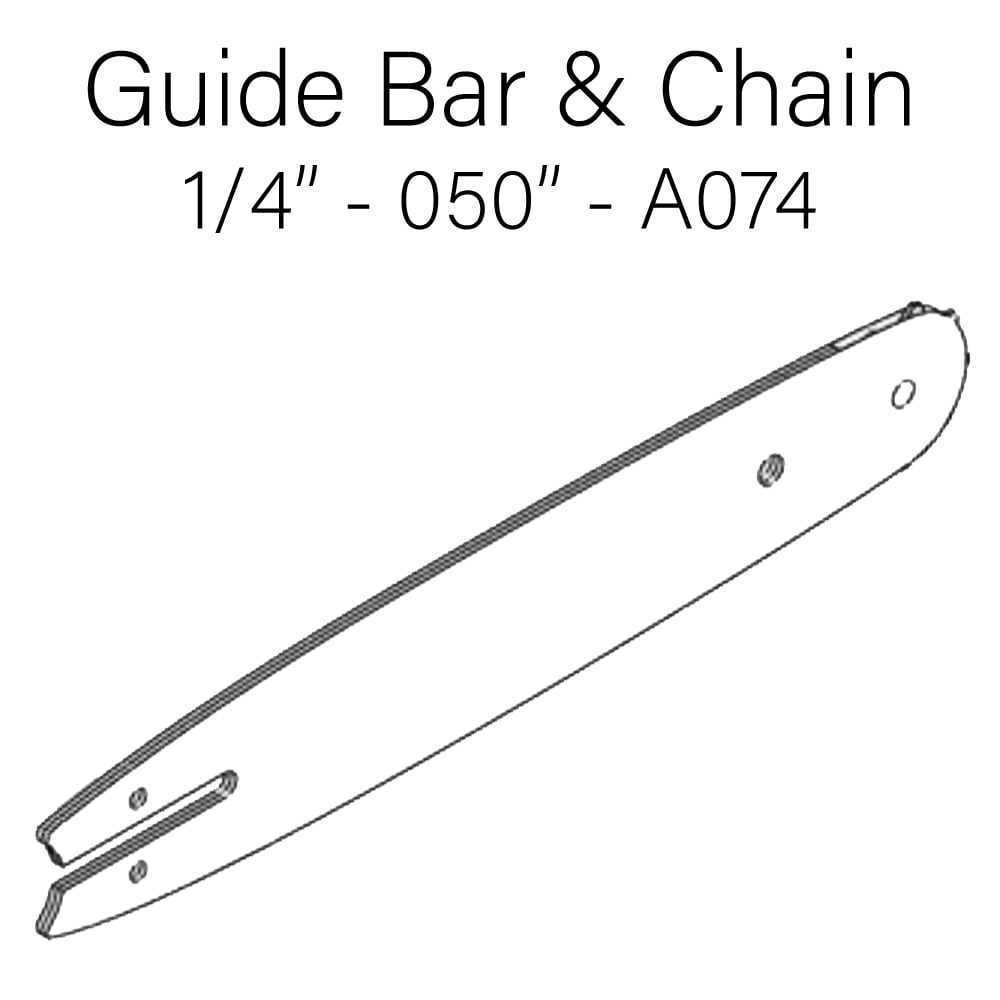

Bar mount bolts require 15Nm torque; loosen them incrementally to prevent bar warping. Check the chain catcher for cracks–it should engage within 3mm of chain derailment. Lubricate the bar tip roller with 2 drops of SAE 30 oil weekly to extend its service life by 50%.
Troubleshooting Common Failures
If the unit stall at high RPM, examine the fuel filter for clogs–replace it if flow rate drops below 120ml/min. For erratic cutting performance, measure the piston ring gap (optimal: 0.2–0.4mm); gaps exceeding 0.6mm necessitate reboring. Store the unit with a full fuel tank and stabilized gasoline to prevent gum formation in the carburetor jets.
Where to Find Your Stihl Model 251 Component Breakdown Online
Begin with the official Stihl website. Visit stihl.com, select your region, then navigate to the “Support” or “Owner Resources” section. Enter the model number–typically found on a sticker near the engine or handle–and filter for “schematics” or “detailed breakdowns.” Stihl provides high-resolution, interactive PDFs for every variant, including early production runs and updated designs.
Check third-party repair databases like Partstree or RepairClinic. These platforms aggregate manufacturer-approved illustrations and cross-reference components with OEM numbers. Use the exact model identifier (e.g., “251 AV” or “251 C-BE”) to avoid mismatches. Some sites offer a “blow-up” view toggle for clearer structural relationships.
Search specialized forums such as ArboristSite or GardenTalk. Users often upload annotated schematics from service manuals or scan original paperwork. Filter threads by date–older posts may reference discontinued assemblies. A well-phrased query, like “251 carburetor housing exploded view,” yields faster results than generic terms.
YouTube tutorials occasionally include frame-by-frame overlays of the component layout. Search for “[model number] internals breakdown” or “full disassembly walkthrough.” Creators like “BackyardBoss” or “Steve’s Small Engine Saloon” frequently pause to highlight individual pieces, though their primary focus isn’t visual documentation. Note time stamps for relevant segments.
E-commerce platforms like eBay or Amazon list aftermarket manuals sold separately. Filter listings by “PDF” format for instant delivery. Verify the seller’s reputation–counterfeit manuals often omit critical components or mislabel them. Legitimate scans include page numbers matching Stihl’s official publications, usually exceeding 100 pages.
If online sources fail, order the printed service manual directly from Stihl dealers. Part #3695-005-3901 corresponds to the latest English-language edition. Dealers can confirm regional availability–some markets distribute localized manuals under different identifiers. Allow 5–7 business days for delivery.
Critical Elements in the Stihl 025 Chainsaw Schematic
Prioritize the carburetor rebuild kit (PN 4223-700-2050) during maintenance–it includes gaskets, diaphragms, and needles most prone to failure under 50+ hours of operation. Replace the fuel filter (PN 4223-120-5005) every 25 hours in dusty conditions; clogging here reduces performance by 30% before symptoms appear. The air filter (PN 4139-120-2005) should be cleaned weekly with compressed air–paper elements degrade 40% faster if washed with solvents.
| Component | Part Number | Replacement Interval | Failure Impact |
|---|---|---|---|
| Ignition module | 4140-400-1302 | 200 hours | Hard starts, power loss |
| Bar oil pump | 4223-701-0700 | 100 hours | Chain derailment, overheating |
| Clutch assembly | 4140-030-4005 | 150 hours | Engagement failure, vibration |
Inspect the spark plug (NGK BPMR7A) gap every 10 hours–0.5mm deviations cause misfires detectable only under load. The drive sprocket (PN 4140-011-3600) wears asymmetrically; rotate it 180° at 50-hour intervals to extend life by 60%. Store the unit with drained fuel but 5ml of two-stroke oil in the cylinder–corrosion begins within 48 hours if left dry, requiring piston replacement (PN 4223-032-0102) costing 40% of the tool’s value.
Step-by-Step Disassembly for Engine Component Access
Begin by removing the spark plug to prevent accidental ignition. Use a 14mm socket to unscrew the plug, then set it aside in a clean, dry location. This step eliminates compression resistance, simplifying the disassembly of the housing. Next, drain all remaining fuel from the tank by tilting the unit slightly to the right and allowing it to flow into an approved container–never skip this, as residual fuel poses a fire hazard during internal work.
Housing and Carburetor Removal
Detach the air filter cover by releasing the two clips holding it in place. Lift the cover off and remove the filter element, then loosen the carburetor’s mounting screws–typically four, positioned beneath the filter housing. Gently wiggle the carburetor free while disconnecting the fuel line and throttle linkage. Label each connection with masking tape to avoid confusion during reassembly. If the fuel line resists, twist it slightly while pulling to break the seal without damaging the hose.
With the carburetor removed, focus on the crankcase cover. Identify the screws securing it–usually eight, varying in length–then organize them in the order of removal on a flat surface. A magnetic tray prevents loss. Once the cover is off, inspect the gasket for tears; replace it if compromised to ensure a proper seal later. Rotate the crankshaft by hand to expose the piston and connecting rod, noting their orientation for correct reinstallation.
Precision Handling of Internal Components
Before lifting the piston, rotate the crankshaft until the piston reaches top dead center (TDC). This aligns the crankshaft webs with the cylinder bore, allowing unobstructed removal. Use circlip pliers to remove the piston pin retaining clips, then tap the pin out gently with a brass drift–never use steel, as it can score the pin bore. Slide the piston off the connecting rod, then store the pin and clips in a small container labeled for their specific side (left/right). Avoid touching bearing surfaces to prevent contamination.
