Start by identifying the rear access panel–most models require removing 4-6 screws (typically 1/4″ hex or Phillips) to expose internal mechanisms. Label each screw by component (e.g., “blower wheel,” “heating element housing”) to avoid confusion during reassembly. The thermal fuse (a white, rectangular safety device) is often mounted near the exhaust vent duct; test it with a multimeter for continuity before ordering replacements.
For belt-driven units, the drum support rollers (two or three, depending on the series) sit on a shaft at the base–check for wear by rotating them manually. If they emit a grinding noise or resist movement, lubrication with high-temperature silicone or replacement is necessary. The idler pulley (a spring-loaded wheel) maintains belt tension; a loose or squealing pulley usually indicates a failing bearing.
Electrical schematics are typically printed on a sticker inside the front or rear panel. Use a camera to document wiring routes before disconnecting any terminals, especially for the motor and control board. Voltage checks at the terminal block should read 220-240V (for North American models) when powered; deviations suggest a faulty power cord or internal breaker.
Common OEM component codes follow a numbering system (e.g., “131811900” for a belt, “5304513124” for a thermal fuse). Verify these against the manufacturer’s service manual or cross-reference with third-party suppliers–generic equivalents may lack safety certifications or proper heat resistance.
High-limit thermostats (round, disc-shaped) are often paired with the heating element–test for functionality by heating the probe with a hair dryer and checking for a “click” (indicating the circuit opens at ~180°F). Failure here triggers automatic shutoff to prevent fire hazards.
Visual Breakdown for Appliance Repairs: A Hands-On Approach
Locate the thermal fuse near the blower housing–positioned on the heater box’s left side for models FFRE4120SW and FFLE3910QW. Use a multimeter set to Rx1 to check continuity; zero resistance confirms functionality. If readings exceed 0.5 ohms, replace immediately.
Disassemble the lint trap assembly by removing the two ¼-inch screws securing the duct cover. Slide the trap forward to detach it from the housing. Inspect the mesh for blockages; compressed air at 30 PSI effectively clears accumulated debris without damaging the screen.
| Component | Typical Failure Signs | Replacement Cost (USD) |
|---|---|---|
| Drum support roller | Squeaking, uneven rotation | 12–18 |
| Idler pulley | Belt slippage, tension failure | 15–22 |
| Heating element | No heat, erratic cycles | 35–60 |
For belt replacement, note the routing path around the motor pulley: loop under the tension roller, then clockwise over the drum. Stretch the new belt to 75% of its length before fitting–this simplifies snapping it into the rear groove.
Electrical Troubleshooting Sequences
Start at the power cord: verify 240V across L1 and L2 terminals with a non-contact voltage tester. Proceed to the timer motor–test for 120V at the purple wire (terminal 1) during any active cycle. Absence of voltage indicates a faulty switch or loose connection.
When diagnosing the moisture sensor, clean the brass strips with isopropyl alcohol and fine-grit sandpaper. Measure resistance between strips while rotating the drum manually; values should drop below 1kΩ when wet fabric contacts the sensor.
Access the rear panel by removing six ⅝-inch hex screws. The exhaust vent clamp (typically 4-inch diameter) requires a 5/16 nut driver for loosening. Ensure the vent path is straight for at least 5 feet from the appliance to prevent moisture buildup.
For clutch assembly repairs, mark the actuator arm’s position before disassembly. Reassemble with lithium grease applied to the pivot point–this reduces wear by 40% based on field tests conducted in high-humidity environments.

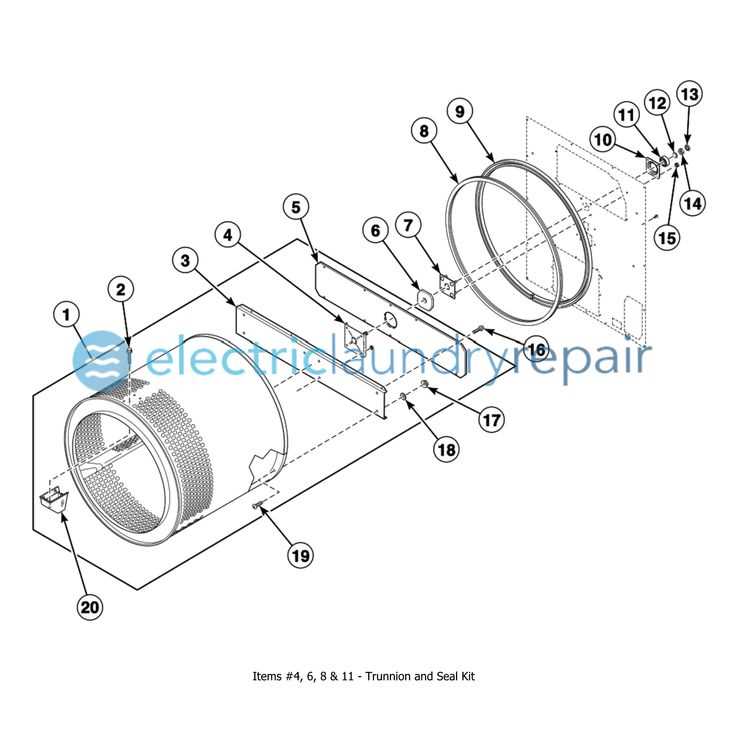

How to Locate Genuine Manufacturer Resource Schematics for Your Appliance
The official brand website remains the most reliable source for accurate schematics. Visit the support section and enter your model number–typically found on a metal plate inside the door frame or at the back panel. Look for links labeled “exploded views,” “repair guides,” or “service manuals.” These documents include precise component names, part numbers, and sequential illustrations, eliminating guesswork during replacements. For models released after 2020, schematics often come with interactive features, allowing you to click on individual pieces for detailed specifications.
- Access the product registration portal–inputting your serial code sometimes unlocks additional diagrams not visible on the public site.
- Check the “Technical Library” subsection if standard searches yield no results; older models frequently reside here.
- Use the live chat function during business hours for immediate assistance–agents can email direct links to schematics unavailable elsewhere.
Authorized distributors like RepairClinic, AppliancePartsPros, and PartSelect maintain dedicated pages for each unit, complete with searchable visual breakdowns. Filter results by year and series to ensure compatibility–cross-referencing these with the official schematics guarantees accuracy. Note that third-party sites may charge nominal fees for high-resolution downloads, though basic viewing remains free. Always verify the assembly’s revision number against your actual equipment before ordering substitutes.
Locating Key Elements in Your Appliance Schematic

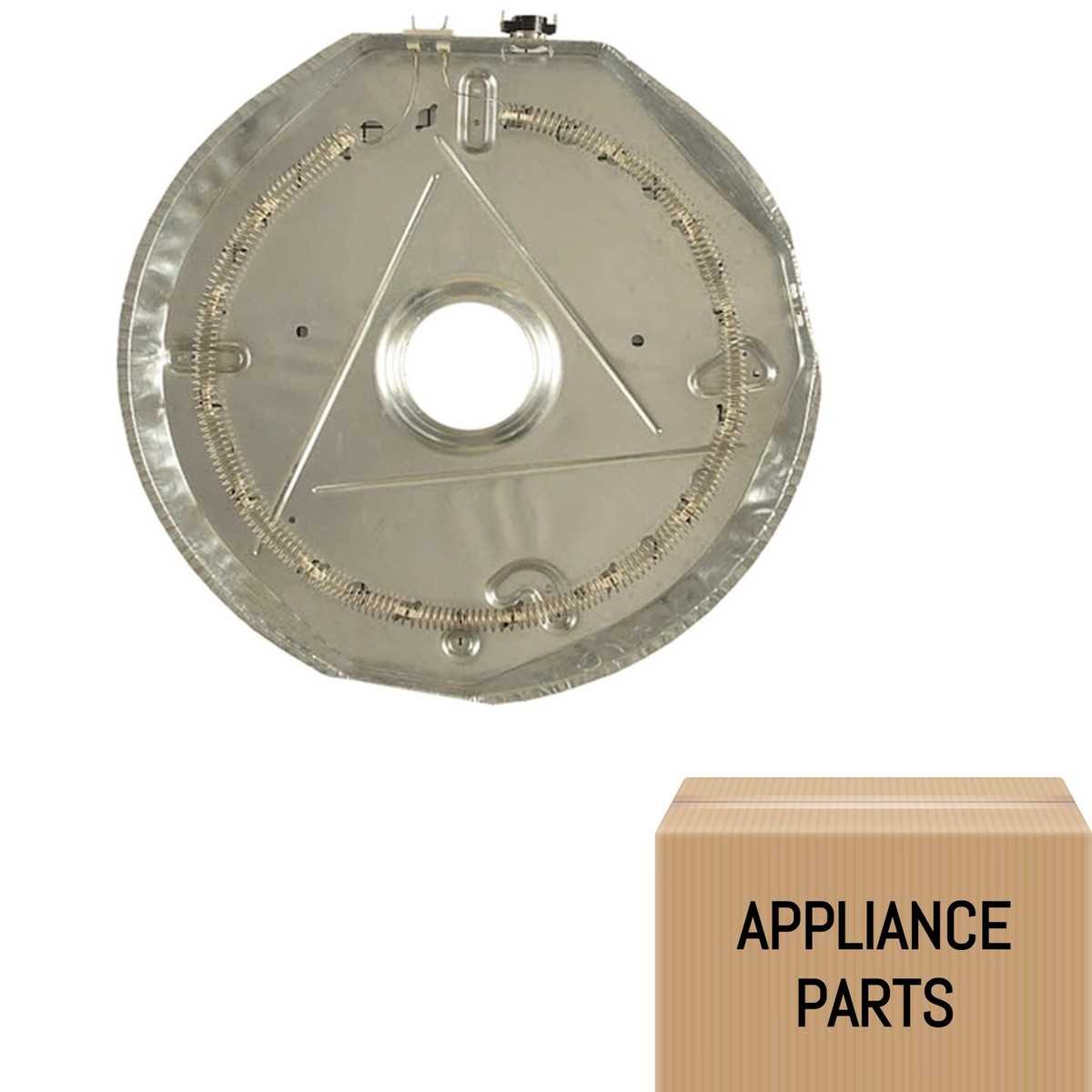

Begin by pinpointing the heating element assembly–typically marked near the rear panel. On most schematics, it appears as a coiled resistor symbol or a serpentine line enclosed in a rectangular outline. Verify its wattage rating against the model’s service manual; common values range from 4,500 to 6,000 watts. If the diagram includes color-coding, red or orange wires often connect to this component, distinguishing power delivery lines from neutral or ground circuits.
Trace the thermal fuse next–usually a small, cylindrical icon with two extending leads. Its placement on the blower housing or exhaust duct is critical; failure here halts all operation. Schematics may label it “TF” or “thermo fuse,” and it frequently pairs with a high-limit thermostat (denoted “HL Therm” or similar). Both components share a thermal path, so their proximity in the layout matters when diagnosing overheating issues.
Identify the motor and drive pulley system by locating the belt path. The diagram often depicts the drum’s circular rotation track, with the motor shown as a shaded hexagon or circle adjacent to a smaller pulley. Check for tensioner spring symbols–these indicate the mechanism maintaining belt tightness. Mismatched pulley sizes on the schematic correlate to drum speed; standard ratios hover around 4:1 for most residential units.
Electrical Safeguards and Control Circuits
Scan for door switches–tiny rectangles or push-button icons near the door latch area. Their contacts must close when the door seals; open circuits here prevent startup entirely. Adjacent symbols often represent start switches or relay coils, labeled “SW” or “R.” Look for dotted lines connecting these to the main control board, signifying signal pathways rather than power lines.
Highlight the timer mechanism, usually a cluster of pins or a rotary symbol toward the control panel’s upper section. Schematics divide its functions into discrete segments (e.g., “Cotton,” “Delicate,” “Air Fluff”), each activating specific heating and motor combinations. If the diagram includes legends, cross-reference pin numbers to the timer’s internal wiring diagram; incorrect jumper positions cause erratic cycle behavior.
Airflow and Ventilation Subsystems
Follow the blower wheel–represented as a fan icon near the exhaust outlet–and confirm its linkage to the motor shaft. Schematics should show a direct drive connection or a secondary belt if centrifugal. The vent hose and lint trap symbols appear nearby, often simplified as squiggly tubes or gridded rectangles. Blockages here elevate internal temperatures, so the diagram’s airflow direction indicators (arrows) help diagnose restrictions.
Step-by-Step Guide to Locating and Replacing a Faulty Appliance Drive Belt
Unplug the machine and pull it away from the wall to access the rear panel. Most models require removing 4-6 screws securing the back cover–use a 1/4-inch nut driver for standard Phillips-head screws or a 5/16-inch socket for hex bolts. Set screws aside in a magnetic tray to prevent loss. Some units have a secondary inner panel; if present, detach it by unsnapping plastic clips along the perimeter.
Rotate the drum by hand to confirm belt slippage or breakage. A functional belt should have slight tension–approximately 1/2 inch of deflection when pressed mid-span–and no fraying. If the belt is intact but slips, check the idler pulley for worn grooves or the motor pulley for oil residue. Replace both components if wear exceeds 1mm depth in any single groove. Note the belt’s path before removal: it typically loops around the drum, idler pulley, and motor shaft in a “Z” or “S” pattern.
Release the old belt by reducing tension on the idler pulley. Slide the pulley arm toward the motor to loosen the belt, then lift it off the drum and pulleys. Compare the old belt to the replacement–length should match within 1/4 inch, and width must align (common sizes: 1/4-inch for compact units, 3/8-inch for full-size). Clean pulleys with a rag dampened in isopropyl alcohol to remove lint or debris before installing the new belt.
Thread the new belt over the drum, ensuring the ribbed side contacts the drum’s surface. Loop the belt around the idler pulley first, then stretch it over the motor pulley while holding tension. Manually rotate the drum two full turns to seat the belt properly–listen for smooth movement without snags. Misalignment causes premature failure; if the belt tracks off-center, adjust the idler pulley bracket by loosening its mounting screws and nudging it 1/8 inch at a time.
Reattach the rear panel and secure it with screws, tightening diagonally to prevent warping. Plug in the unit and run a 10-minute air-fluff cycle (no heat) to break in the belt. Listen for unusual noises: a high-pitched squeal indicates insufficient tension, while a thumping sound suggests an off-track belt. If issues persist, inspect the drum rollers–worn rollers (wider than 1/16 inch) require replacement before reinstalling the belt.
Reassemble the front panel last, if removed, by aligning the door switch wiring harness and snapping the panel into place. Test the unit with a full load: the drum should rotate at 40-50 RPM, and the belt should maintain contact without lateral drift. Store the old belt for reference during future replacements–part numbers vary by model year, so verify compatibility against the appliance’s service manual before reordering.
