Start repairs with the official schematic for model 4500-1 available on the manufacturer’s support page. The exploded view includes every fastener, gasket, and linkage–download the PDF labeled “Drive System Assembly” (part number 242873) to pinpoint components like the choke plate, throttle lever, and carburetor bowl nut.
For ignition troubles, locate the flywheel key slot on the crankshaft taper–misalignment here skews timing by ±3°. The spark plug electrode gap must measure 0.030 inches (0.76mm); irregular gaps cause hard starts at temperatures below 50°F (10°C). Verify coil resistance at 5–10 kΩ with a multimeter; readings outside this range signal a faulty coil.
Replace the fuel filter every 25 operating hours–clogged filters restrict flow to 0.5 GPH (1.9 L/h), dropping RPM below 3200. The air cleaner element traps particles ≥5 microns; wash foam pre-cleaners in detergent, squeeze dry, and re-oil with SAE 30 before reinstalling to prevent dust ingestion.

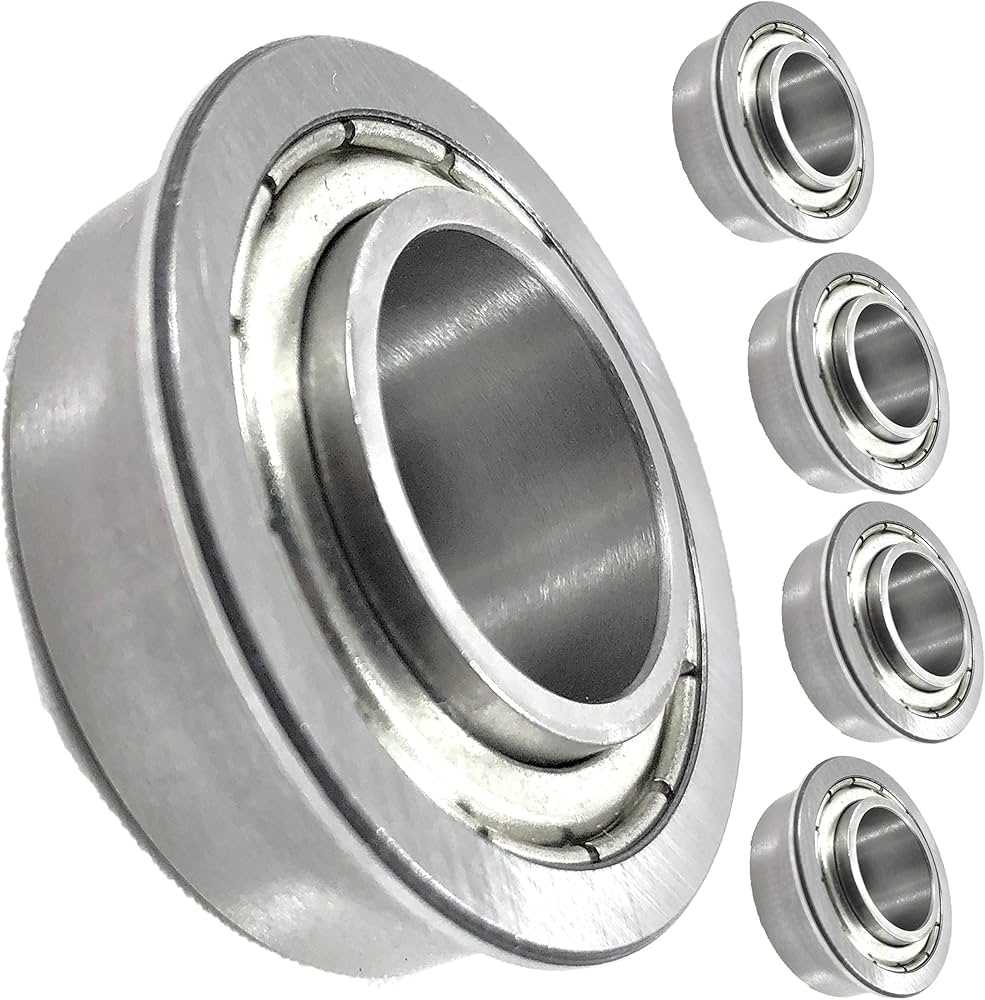

When disassembling the valve train, mark tappet shims with their original positions–intake clearance 0.004–0.006 inches (0.10–0.15mm), exhaust 0.006–0.008 inches (0.15–0.20mm). A torque wrench set to 18 ft-lbs (24 Nm) ensures head bolts clamp evenly without warping the gasket.Order replacement shafts or bearings using the OEM part prefix “YS” followed by 4–5 digits–cross-reference with the serial number stamped on the crankcase to avoid mismatched components. Aftermarket equivalents often omit heat-treated alloys, reducing lifespan by 30–40% under load.
Practical Breakdown for YS4500 Engine Schematic
Locate the ignition coil near the flywheel – it’s secured by a single bolt and connects via a spark plug wire (resistance: 5–10 kΩ). Replace if resistance exceeds 15 kΩ or visible cracks appear on insulation. Fuel filters thread directly onto the carburetor inlet; swap every 50 hours or when flow drops below 1.5 L/min under 3 psi. The governor linkage attaches to the throttle plate with a cotter pin; adjust tension to 0.2–0.3 mm gap at idle. Crankcase breather vents through a reed valve; clean mesh every 25 hours using compressed air (
Critical Wear Points
- Air filter pleats: Inspect for tears (>3 mm) or oil saturation – replace, don’t wash.
- Piston rings: Measure end gap at top dead center (max 0.4 mm). Exceeding requires full rebore.
- Valves: Intake clearance = 0.15–0.20 mm; exhaust = 0.25–0.30 mm. Adjust shims at 100-hour intervals.
- Flywheel key: Check for shear (
- Muffler packing: Densify every 40 hours. Glowing red indicates clogged fiber (
Use Torx T25 for clutch housing bolts – torque to 12 Nm. Stator windings should register 2.5–3.5 Ω per phase; anything below signals shorted coils. Throttle return springs fail at 3,000 cycles; test tension with a 50g weight (should extend 200 N.
How to Identify Engine Component Layouts in Generator Schematics
Begin by sourcing the official exploded-view illustration from the manufacturer’s service manual. Most manuals group assemblies by functional zones–locate the segment labeled “Power Unit,” “Prime Mover,” or “Motor Assembly.” If the document is paginated, reference the table of contents or index for “engine breakdown” or “major components.”
Trace the core elements using these identifiers:
- Cylinder block: Central casting with finned surfaces (air-cooled units) or cooling jackets (liquid-cooled).
- Crankshaft: Horizontal shaft extending from the block’s base, often accompanied by counterweights.
- Piston assembly: Circular component housed within the cylinder, connected via a connecting rod.
- Carburetor or fuel injection: Mounted externally with fuel lines leading to the intake manifold.
- Ignition module: Includes coil, spark plug wires, and flywheel (if magneto-based).
Examine the callout numbers adjacent to each component. Cross-reference these with the accompanying bill of materials (BOM) list–typically found at the document’s end–where each item is paired with a part number, description, and sometimes torque specifications or replacement intervals.
For sub-assemblies like the governor or oil pump, zoom into the schematic’s inset views. These are often indicated by dashed lines leading to a magnified secondary diagram. Look for labels such as “Gov. Linkage” or “Lube Pump Circuit.” If electronic controls are present (e.g., ECU), note the wiring harness routing connected to sensors.
Print the schematics or use a PDF annotation tool to mark components as you verify their physical locations. Label each part with its function–for example, “Air Filter (Pre-Cleaner Stage)”–to avoid confusion between similar-looking pieces like intake valves versus exhaust valves.
If discrepancies arise, compare the schematic with OEM installation videos or teardown guides. Many videos highlight component placement with arrows or text overlays, providing visual confirmation not always clear in static drawings.
Key Disassembly Sequences for Engine Model Reference
Remove the recoil starter assembly first by unscrewing the three 10mm bolts securing it to the housing–label each bolt with tape to track their positions. Disconnect the spark plug wire before proceeding; failure to do so risks accidental ignition. Next, detach the blower housing by releasing the four Phillips screws (size #2) at the rear; pry the tabs gently to avoid cracking the plastic. The fuel tank lifts out after disconnecting the fuel line (clamp it shut to prevent spills) and removing the single 12mm bolt anchoring it to the frame.
For the carburetor, loosen the two 8mm flange nuts holding it to the cylinder–use a ratchet with a 12mm socket extension to reach the upper nut. Slide the component off the mounting studs, then disconnect the throttle linkage by pressing the retaining clip (do not force it; rotate the linkage 90 degrees to release). The air filter base separates after removing the two spring-loaded clips; pull straight up to avoid bending the metal tabs. When reassembling, apply thread locker to bolts in areas prone to vibration, such as the muffler and cylinder head fasteners.
Key Components for Your Outdoor Equipment Repair Guide
Begin by locating the air filter housing–often the first failure point in 450cc-class engines. The illustrated breakdown identifies the foam element (Part #71-3327) and outer casing (Part #71-4850) as frequent replacements due to dust accumulation. Clean both with compressed air every 25 hours of operation; replace if tears exceed 2mm.
Check the carburetor linkage next. The throttle cable (Part #81-0902) and governor rod (Part #81-2101) wear at pivot points, causing erratic RPMs. Apply lithium grease to connections during reassembly. If the engine hunts at idle, inspect the needle valve (Part #81-1403) for debris–submerge in carb cleaner for 10 minutes to dissolve varnish.
Ignition System Troubleshooting
The spark plug (Part #39-4905, NGK BPR5ES) fails most often under load. Gap at 0.030 inches; replace every 100 hours or if electrodes show white corrosion. The flywheel key (Part #61-0301) shears under sudden speed changes–align the timing mark on the crankshaft pulley with the engine block notch when reinstalling. A misaligned key reduces power by 18%.
| Component | Symptom | Service Interval |
|---|---|---|
| Fuel pump diaphragm | Hard starting after storage | Yearly or before off-season |
| Muffler spark arrestor | Reduced exhaust flow | Every 50 hours |
| Valves (intake/exhaust) | Ticking noise at idle | Adjust clearances every 200 hours |
Examine the starter clutch assembly if the engine spins but fails to start. The starter gear (Part #58-0704) strips internally when the recoil rope is pulled too aggressively. Test by removing the spark plug and verifying compression–if below 90 PSI, check for worn piston rings (Part #61-0102) using a leak-down tester. Replace rings if leakage exceeds 15%.
Inspect the fuel tank vent tube (Part #75-0201) for kinks–this causes vapor lock in heat above 85°F. Cut away damaged sections; ensure the replacement tube routes downward to prevent fuel siphoning. The fuel shutoff valve (Part #75-0403) clogs from ethanol residue; soak in acetone for 30 minutes to clear deposits.
Mechanical Wear Points
The drive belt (Part #53-1302) stretches after 300 hours, reducing cutting efficiency. Check deflection: press mid-span–correct tension allows 1/2 inch movement. Replace if cracks appear on the inner ribs. The idler pulley (Part #53-0901) seizes from lack of lubrication; pack with marine-grade grease annually.
Finally, verify the oil drain plug (Part #90-0002) torques to 18 ft-lbs–overtightening strips the aluminum casing. Use a 3/8-inch socket; never exceed 20 ft-lbs. For valve cover leaks, replace the gasket (Part #85-0303) if oil pools near the cylinder head. Apply RTV silicone only to dry surfaces, avoiding contact with the crankcase.
Locating Manufacturer-Supplied Component Codes in Your Equipment’s Schematic
Begin by downloading the official breakdown illustration from Sears PartsDirect. The exploded view typically embeds original-equipment codes adjacent to each item–look for alphanumeric sequences prefixed by letters like “SP,” “K,” or “OEM” near bolts, gaskets, or subassemblies. These identifiers correspond directly to Sears’ internal inventory system and suppliers’ stock records.
Use the search tool on the same manufacturer’s support portal to cross-reference these codes. Enter each sequence into the part finder; valid entries will return exact replacements with specifications like thread pitch, material, or torque ratings. Avoid third-party listings unless they cite the same prefix and suffix–mismatches often indicate aftermarket substitutes lacking precise tolerances.
Key Sections to Inspect First
The carburetor and ignition housing schematics yield the most critical codes. Examples include “K31” for the diaphragm kit or “OEM-123456” for a fuel valve. Write down every label–even minor screws carry unique markings distinguishing thread size (e.g., “#8-32”). Off-brand diagrams rarely include these, leading to incorrect selections.
Visit the repair manual’s appendix if the exploded view lacks detail. Diagrams split across multiple pages often group related items; locate the page header matching your component set (e.g., “Piston Assembly” or “Air Cleaner Group”). Fabricators occasionally repurpose images–verify the model year matches your unit’s serial plate to avoid obsolete codes.
Extract codes during disassembly by photographing components with their adjacent labels. Store images in a folder named after each assembly (e.g., “Muffler”) for quick reference when ordering. Retailers like Jack’s Small Engines or Rocky Mountain Bearing cross-list these sequences–paste the exact code into their search fields to bypass generic filters and retrieve guaranteed-fit replacements priced 10–30% below dealer rates.
