For precise identification of internal elements in your 665-series kitchen unit, begin with the official exploded view documents. These schematics are available through authorized service portals under product category “automatic cleaning systems” – search using the eight-digit identifier found on the side panel or door frame. The primary assemblies to examine include the wash pump assembly (part 8558136), circulation motor (part W10818628), and lower spray arm (part 8193767). Cross-reference each number with the visual representation to confirm placement before ordering replacements.
Key structural areas requiring frequent maintenance show distinct patterns in failure rates. Left-side racks (component 3381866) often detach from tracks due to worn rollers, while door latches (part W10818559) degrade from repeated thermal cycling. The control module (part W10057924) sits behind the front panel; access requires removing the outer door screws and disconnecting wiring harnesses labeled CN1 and CN2. Label connections before unplugging to avoid reconfiguration errors.
Secondary systems include the heating element (part 8193844) and drain hose (part 4317927) – both prone to calcium buildup or physical degradation after 400 cycles. Use a multimeter to test continuity on the heating coil at ohms between 15-30 Ω; values outside this range indicate failure. For hose obstructions, detach at both ends and flush with pressurized warm water – stubborn blockages may require replacement if internal folds show cracking.
When sourcing components, verify compatibility by matching serial numbers against manufacturer cross-reference guides. Third-party equivalents exist (e.g., OEM pump motors from whirlpool often fit), but risk compatibility issues with updated firmware versions. Always test electronically controlled valves (assembly W10068017) after installation – improper seating can trigger error code F7E1 during diagnostic cycles.
How to Locate and Replace Components in Your Kitchen Appliance
Start by downloading the official exploded view schematic from the manufacturer’s support page–search for document number W10309472A. This file contains labeled illustrations of every internal element, grouped by assembly zones (e.g., lower spray arm cluster, door latch mechanism). Pay close attention to the item codes next to each part; these correspond to the exact replacement IDs needed for ordering.
- Upper rack roller assembly (code 8193759) often snaps out with minimal force–pull gently while tilting downward.

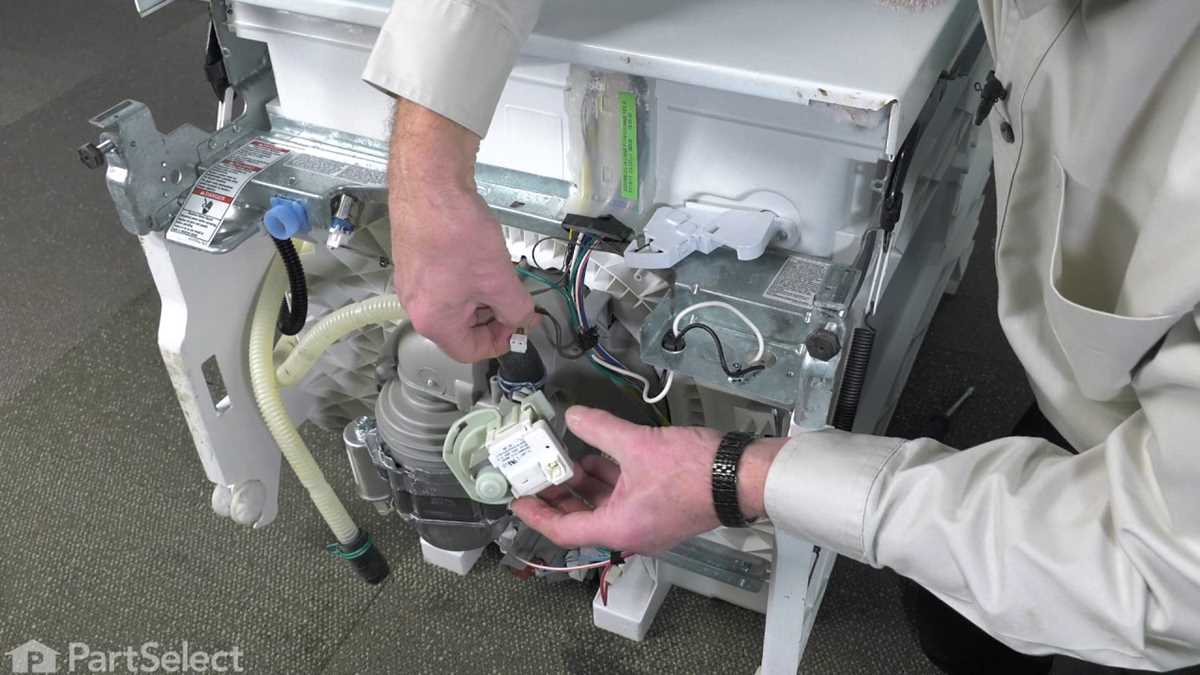

- The drain pump impeller (code W10238815) sits behind the rear access panel; unplug the appliance and remove three Torx T20 screws to reach it.
- Thermal fuse (code W10300511) connects via two spade terminals–use a multimeter set to ohms to test continuity before replacing.

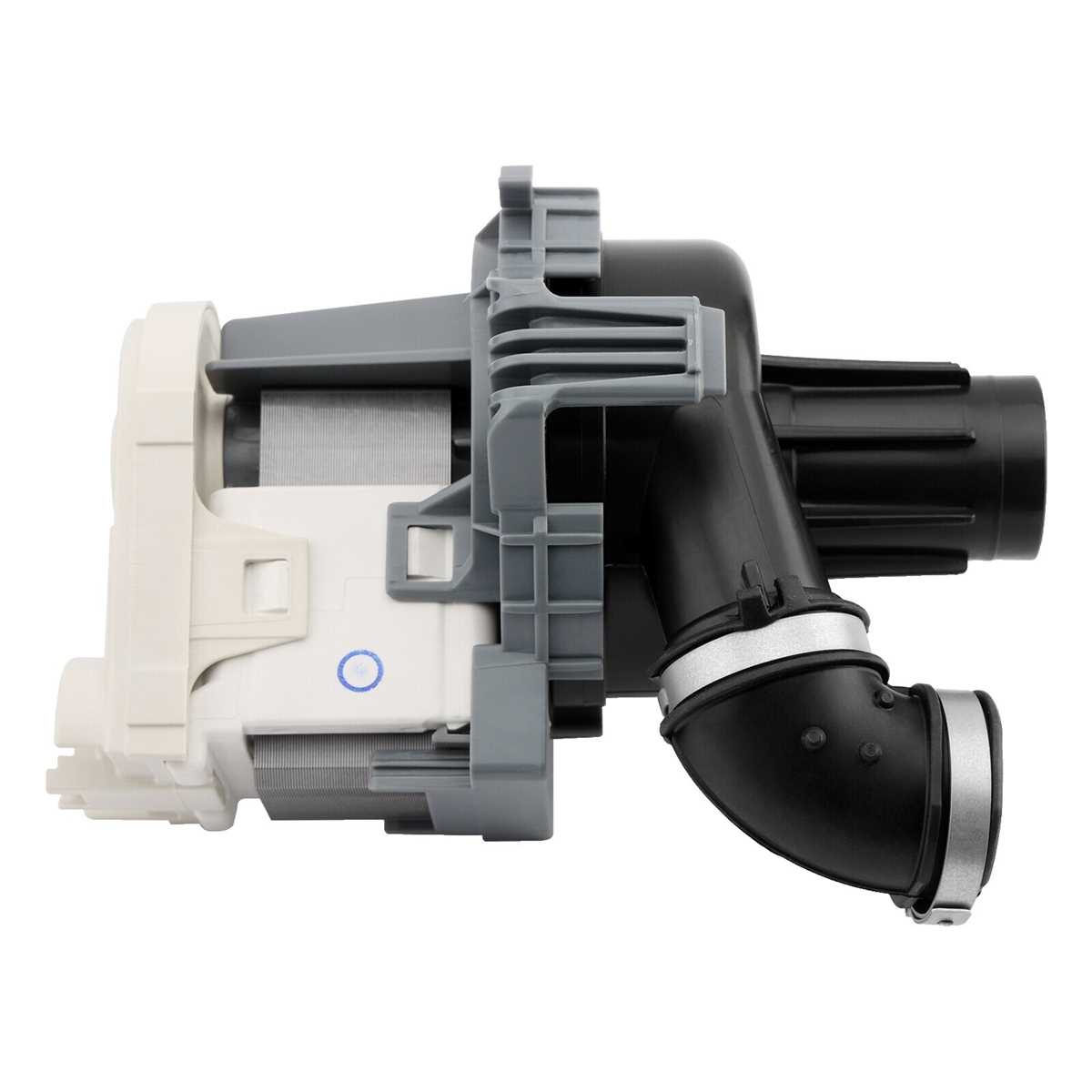

For high-wear components like the circulation pump motor (code W10263902), disconnect the wiring harness first–label each connector with masking tape to avoid misalignment during reassembly. Inspect the impeller for cracks; even hairline fractures will cause noise and poor water flow. If the valve assembly (code W10253850) leaks, soak it in white vinegar for two hours to dissolve mineral buildup–replacement is only necessary if seals are visibly warped.
Order replacements from authorized distributors using the exact codes above; third-party “compatible” parts frequently fail prematurely. Keep the exploded view schematic open on a tablet during repairs–match each screw and bracket to its labeled position to avoid leftovers. For safety, discharge the control board capacitors by pressing the power button three times after unplugging the unit.
Finding Schematics for Your Appliance Online: A Step-by-Step Guide
Visit the manufacturer’s official support portal first. For this specific unit, search “Sears PartsDirect” in your browser–this authorized distributor hosts original exploded views under product number 10654103. The page includes interactive breakdowns for pumps, racks, and control panels. Bookmark the direct URL to bypass future redirects.
Check eBay listings for seller-uploaded PDFs. Filter results by “completed listings” to find archived auctions with attached documents. Many retired repair technicians sell manuals bundled with used components. Download files immediately; links expire within 24-48 hours.
Search specialized forums like ApplianceBlog or FixYa. Use the advanced query: “site:applianceblog.com common replacement items 1065 prefix.” Threads often embed high-resolution scans from service manuals. Download images directly–forum attachments may disappear during site migrations.
Try Google’s filetype operator: “filetype:pdf repair schematic 106-series.” This surfaces technical documents hosted on university servers, repair shop websites, or even Wayback Machine snapshots. Scrutinize filenames for version dates–newer revisions include updated torque specs.
Inspect YouTube repair videos. Creators frequently overlay component codes (e.g., WPW10518993) during tear-downs. Use the timestamps to cross-reference your unit’s layout. Save the video’s description URL; some channels link to their own schematic repositories.
Contact local appliance stores. Many maintain private databases of service bulletins. Provide the serial number’s first five digits–this identifies the production run and corresponding documentation. Some shops email diagrams same-day for a nominal fee.
Step-by-Step Guide to Locating Key Components for Your Appliance
Begin by removing the lower rack to expose the spray arm assembly at the tub’s base. The center nut securing the spray arm typically requires a 5/16″ socket or adjustable wrench. Inspect the arm for cracked nozzles or sediment buildup–these often indicate a need for replacement. Part numbers for this component range between W10195728 and W10728918, depending on the production year.
Next, detach the bottom panel by unscrewing the two or three Torx T20 screws along the front edge. This reveals the filtration system, including the coarse filter, fine mesh screen, and sump cover. The fine mesh screen (part #WP8269711) is prone to clogging; rinse it under warm water if debris accumulates. Replace the sump cover (W10319086) if the rubber seal appears hardened or torn.
To access the detergent dispenser, open the door fully and locate the two Phillips-head screws on the inner door panel. Remove them to lift the panel, exposing the dispenser latch (W10195616) and microswitch (W10195619). Test the microswitch with a multimeter; continuity should register between 0.5Ω and 5Ω. If readings exceed this range, order the replacement switch.
The heating element, located beneath the tub, may require replacement if the unit fails to dry dishes. Disconnect power, then remove the outer toe panel by sliding it downward after loosening the two front screws. The element (part #WP8270165) connects via two terminals–label wires before disconnecting to ensure correct reconnection. Verify heating function by measuring resistance (40–60Ω typical).
For door gasket issues, peel back the existing seal and clean the groove with isopropyl alcohol. The replacement gasket (W10277994) installs by pressing it into the channel, starting at the top center and working downward. Avoid stretching the gasket during installation–misalignment causes leaks.
Electronic control boards often fail due to power surges. The main control board (W10177285) sits behind the lower access panel. Check for burnt capacitors or corrosion on solder joints before ordering. Reset procedures vary: hold the “Heated Dry” button for 4 seconds on newer units, or unplug for 5 minutes on older variants.
| Component | Common Failure Signs | Replacement Part # |
|---|---|---|
| Spray Arm | Nozzles clogged, uneven cleaning | W10195728 / W10728918 |
| Fine Mesh Screen | Slow drainage, standing water | WP8269711 |
| Heating Element | Dishes remain wet | WP8270165 |
| Detergent Dispenser Latch | Failure to release detergent | W10195616 |
Circulation pumps (W10158356) degrade over time, causing weak water flow. Symptoms include unclean dishes or grinding noises. Replace by removing the bottom panel and disconnecting the pump housing–note wire placements as shown in the internal wiring diagram. Test the new pump before full reassembly by running a rinse cycle.
Door springs (2 required, W10088357) lose tension, making the door difficult to close smoothly. Replace by detaching the outer door panel and disconnecting the spring hooks from the door frame. Install new springs with the coiled end facing downward to ensure proper tension. Test door operation before reattaching the panel.
Locating Authentic Components for Your Appliance by Serial and Identifier
Sears PartsDirect remains the most reliable source for original replacements, listing every component by its exact numerical code. Their inventory matches original equipment manufacturer (OM) specifications, ensuring compatibility without guesswork. Input the part number from the technical manual or inspect the failed component directly–each element carries a stamped identifier. The site filters results by your machine’s serial tag, eliminating cross-model confusion.
RepairClinic provides an interactive breakdown, where entering the full serial number pulls up a schematic with labeled elements. Their database includes both OEM and functionally equivalent substitutes, though OEM is flagged for precision. Use their “Exploded View” feature to cross-reference the position of each piece before ordering–this prevents misalignment during reassembly. Filters allow sorting by category (e.g., pump, rack assembly, control panel) or by the alphanumeric prefix (e.g., WP3360036, WD4975580).
Amazon’s “Appliance Replacement Components” department stocks genuine spares, but verify the third-party seller’s ratings–look for listings explicitly marked “Sears Authorized.” Search by the full part name (e.g., “Upper Wash Arm Assembly” followed by the number) to bypass counterfeit listings. Prime-eligibility often correlates with faster shipping, but cross-check the return policy for restocking fees on incorrect orders.
Local authorized service centers retain stock of common wear items (door latches, seals, impellers) and can pull up your machine’s bill of materials (BOM) from their internal system. Call ahead with the serial number–they’ll confirm availability and may offer same-day pickup for urgent fixes. Some centers also sell overstock at 20-30% below retail, but quantities are limited.
eBay sellers specializing in “Original Appliance Kits” frequently auction bulk lots, but scrutinize the item photos for batch codes matching your device’s production date. Sort listings by “Lowest Price + Shipping” and filter for “New” condition. Message the seller to request the exact numerical stamp–legitimate vendors provide uncropped images of the component’s label upon request.
The manufacturer’s warranty portal (accessed via the serial number on the inner door frame) sometimes directs to exclusive stockists for discontinued elements. Input the part name as listed in the error code manual–this triggers alternate sourcing options not visible on public searches. For example, a “Heating Element” prompt may reveal a direct factory replenishment link.
Salvage yards like ApplianceSurplus warehouse decommissioned units stripped for elements. Their online database sorts by brand lineage (in this case, the parent company’s earlier production runs) and part family. Physical locations allow hands-on inspection–bring the exploded view schematic to verify fitment before purchase. Cash discounts apply for in-person transactions.
Online forums like ApplianceBlog host member-shared sourcing tips, including direct contacts for regional distributors. Search past threads by the part’s alphanumeric tag–users often post exact vendor links or phone numbers for rare components. Register to post a query if no results appear; replies typically include part variants compatible across similar production cycles.
