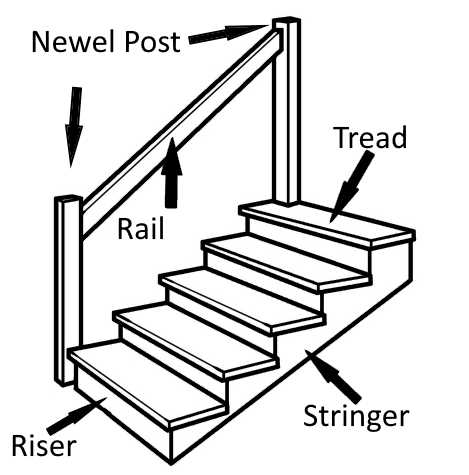

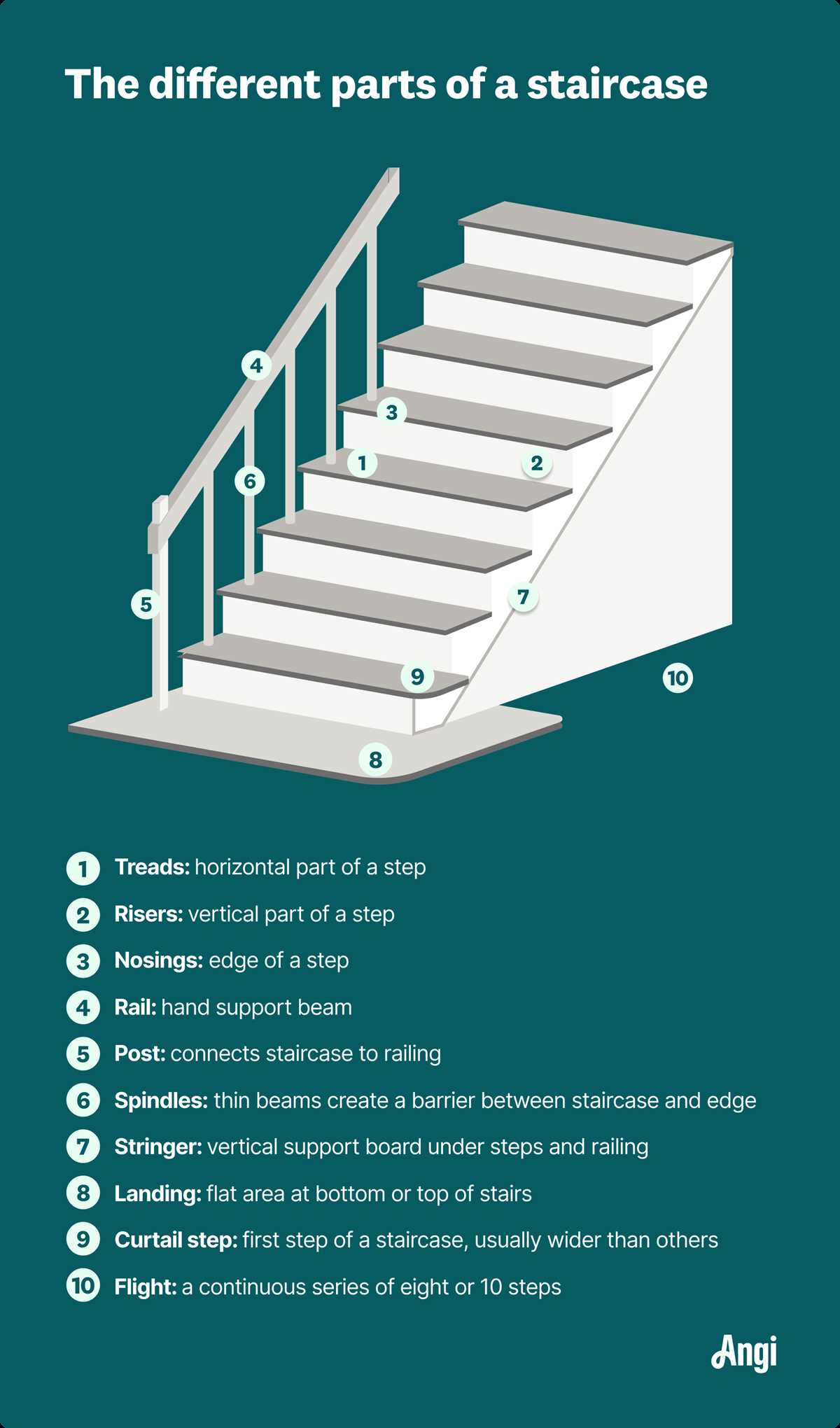

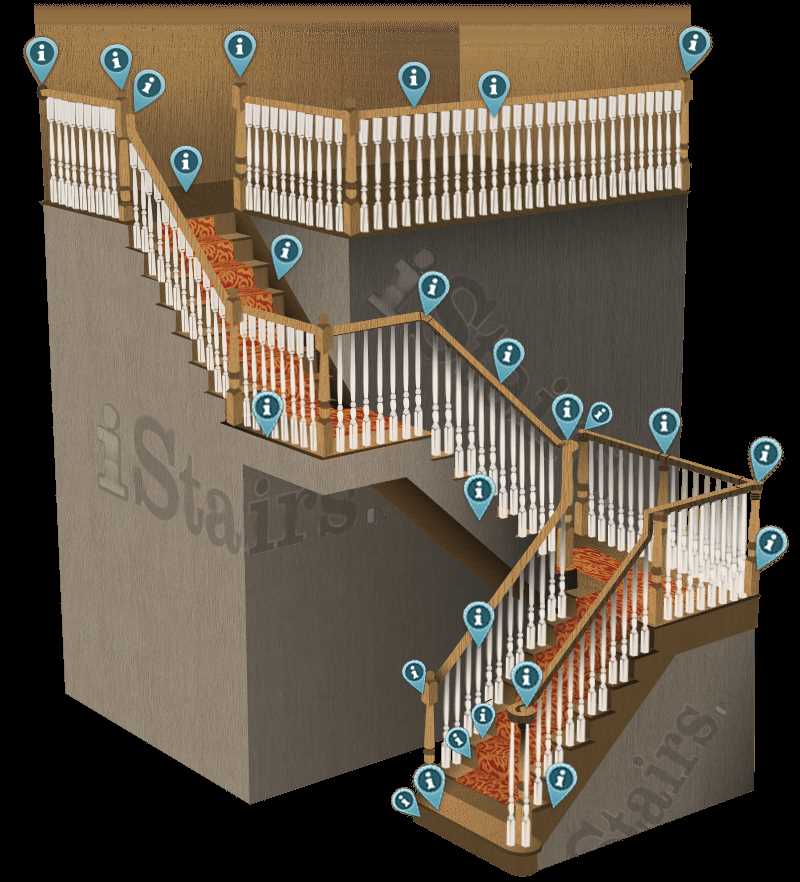

Identify the foundational support first–these are the side elements holding the entire construct. Known as stringers, they bear the weight and define spacing. Standard residential designs use two or three, spaced 80–100 cm apart. Commercial builds often reinforce with steel for spans exceeding 3.6 meters.
Look for the horizontal treads–each must withstand 1.5 kN per sq. meter. Depth shouldn’t fall below 25 cm, and headroom clearance demands 2 meters minimum. Hardwood like oak lasts decades; engineered composites resist moisture but require precise alignment screws every 15 cm.
The vertical risers determine step height–optimal range: 15–18 cm. Uneven increments cause fall risks; variations must stay under 9 mm. Closed risers prevent debris buildup but trap moisture, while open designs offer ventilation yet expose underside framing.
Handrails follow building codes–10–15 cm grip diameter, mounted 86–97 cm above tread nose. Guardrails on open sides mandate 110 cm height, with balusters spaced ≤10 cm to block 10 cm spheres. Wrought iron lasts; stainless steel suits coastal humidity.
Prioritize landing platforms–every 12 continuous steps must include one. Minimum dimensions match stair width × 1.2 meters. Above 3.7 meters elevation, intermediate landings reduce fatigue loading. Reinforced concrete outperforms timber for high-traffic areas.

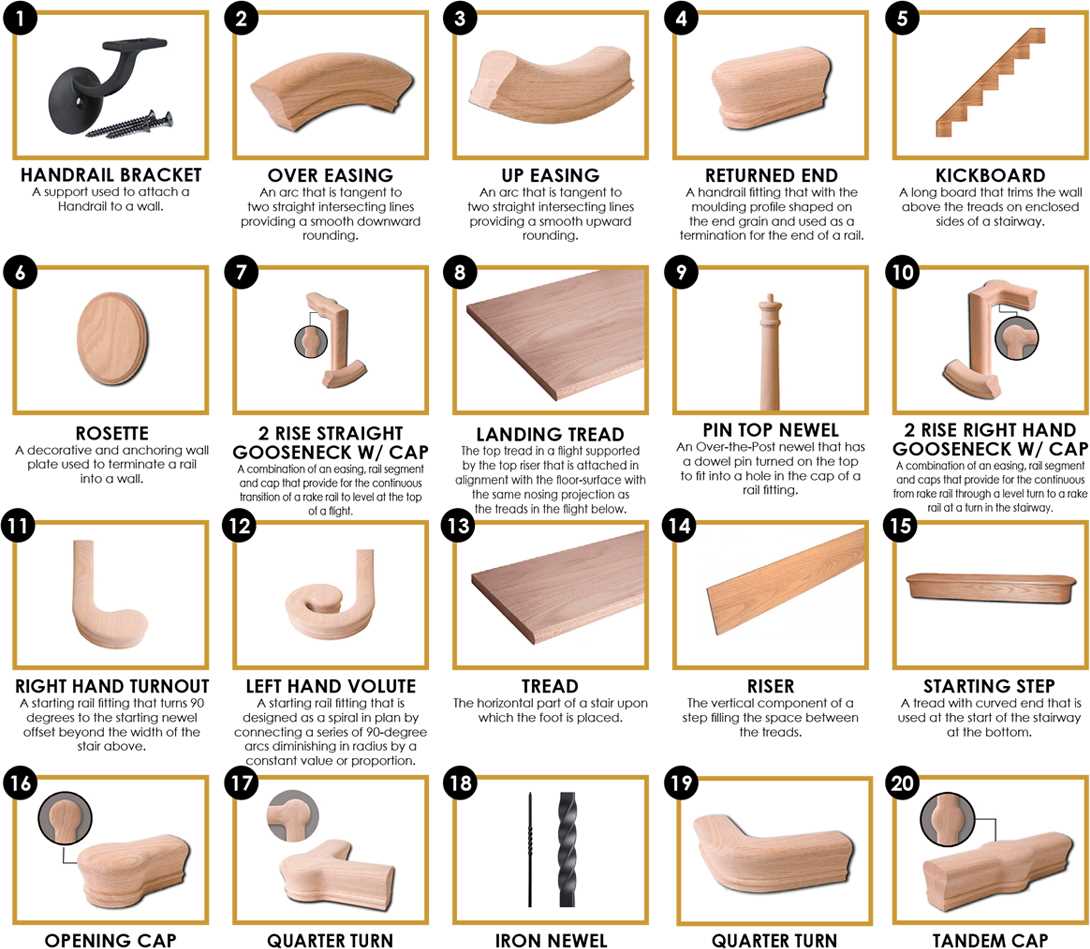

Key Components of Architectural Step Illustrations
Ensure the tread width adheres to building codes, typically minimum 250mm for residential structures and 300mm for commercial ones. Narrower steps increase trip hazards, especially in high-traffic areas. Verify local regulations before finalizing dimensions.
The riser height directly impacts user comfort–ideally 150–180mm. Uneven risers are a leading cause of falls, so consistency is critical. Use temporary spacers during construction to maintain precision across all segments.
Handrails must withstand 0.5 kN/m of lateral force per EN 1991 standards. Position them 900–1000mm above tread nosings, with a minimum 50mm clearance from adjacent walls to prevent finger entrapment. Avoid decorative elements that reduce grip surface.
Stringers require 38x235mm lumber or 6mm steel plate for spans exceeding 2.4 meters. For spiral designs, calculate the inner stringer’s radius by subtracting twice the tread width from the outer radius to maintain structural balance.
Non-slip nosings reduce accidents by 60% in wet conditions. Apply abrasive strips or engineered profiles with R11 slip resistance rating. Ensure nosings protrude 15–25mm beyond riser faces but avoid sharp edges that snag clothing.
Landing dimensions should match the stair’s width and extend at least 900mm in depth for wheelchair accessibility. Intermediate landings in long flights (over 12 steps) must incorporate drainage if exposed to weather, preventing ice formation.
Visual contrast between treads and risers enhances visibility for low-vision users. Use 70% light reflectance value (LRV) difference between adjacent surfaces or install LED strip lighting along riser edges, directing beams downward at 10° angle to avoid glare.
How to Identify the Tread in Elevation Designs
Locate the horizontal platform where each foot rests–this is the tread. Measure its depth from front to back, excluding any nosing overhang. Standard residential treads range between 240–300 mm, while commercial builds often require 250–320 mm for compliance with accessibility codes. Check for consistent spacing; variations suggest poor construction or custom modifications.
- Inspect material: wood treads show grain direction; metal or concrete ones may have textured finishes for grip.
- Look for wear patterns–high-traffic areas reveal uneven distribution.
- Compare adjacent steps; treads should align horizontally without gaps exceeding 6 mm.
For spiral or curved designs, trace the central path. The tread widens near the outer edge, narrowing inward–this asymmetry is deliberate. Use a straightedge to verify uniformity; deviations disrupt rhythm and increase tripping hazards. If retrofitting, prioritize treads with anti-slip treatments, especially in outdoor or high-moisture environments.
Key Measurements for Risers in Residential and Commercial Steps
Residential step risers must not exceed 7.75 inches (197 mm) in height to comply with most building codes, while commercial installations require stricter limits–typically 7 inches (178 mm) or less. These constraints ensure safe ascent and descent, particularly under frequent use. For spiral or curved configurations, riser height at the narrowest point should remain within 1.5% of the widest point’s measurement to prevent tripping hazards.
Optimal Human Stride Integration
Average stride length dictates riser-tread ratios: a 7-inch rise pairs with an 11-inch tread for residential applications, balancing comfort and space efficiency. Commercial stairs demand a more gradual approach–risers often shrink to 6.5 inches (165 mm) with treads extending to 12 inches (305 mm) or wider. Deviations beyond 0.5 inches (13 mm) from these proportions disrupt natural gait, increasing fatigue over multiple flights.
Open risers, permitted only in residential settings, must restrict openings to 4 inches (102 mm) or less–verified via the 4-inch sphere test–to prevent entrapment, particularly for children. Closed risers in commercial environments require solid backing to withstand lateral loads (minimum 50 lb/ft² or 2.4 kN/m²) and resist impact from carts or heavy foot traffic. Material thickness for risers (e.g., plywood, concrete) should align with local load-bearing requirements, typically 1.5 inches (38 mm) for wood and 4 inches (102 mm) for concrete.
Consistency in riser height across a single flight is non-negotiable: variations exceeding 0.375 inches (9.5 mm) violate accessibility standards (ADA, ICC). For outdoor or moisture-prone areas, risers must account for thermal expansion–gaps of 0.25 inches (6.4 mm) between materials like steel and concrete prevent buckling. Slope adjustments for landings (max 1:48 gradient) must integrate seamlessly with adjacent risers to avoid abrupt transitions.
Handrail Placement: Building Code Requirements and Practical Tips
Install handrails at a height of 34–38 inches (864–965 mm) from the nosing of the tread to the top of the rail, as mandated by the International Residential Code (IRC) and International Building Code (IBC). For ramps or accessible routes, maintain a consistent 34-inch (864 mm) height. Use continuous rails for flights exceeding four risers, ensuring they extend horizontally 12 inches (305 mm) beyond the top and bottom treads to provide stability. Gaps between the rail and adjacent walls must not exceed 1.5 inches (38 mm) to prevent small objects or body parts from becoming trapped. For circular rails, the minimum graspable diameter is 1.25 inches (32 mm), while non-circular rails require a perimeter of at least 4 inches (102 mm) and a maximum cross-section dimension of 2.25 inches (57 mm).
Additional Safety and Ergonomic Adjustments
Avoid locating rails directly above the base of steps where they could interfere with foot placement. Offset them by 1.5–2 inches (38–51 mm) laterally to improve grip comfort. For outdoor installations, account for thermal expansion by securing rails with slotted mounting plates or flexible anchors. In high-traffic areas, use hardwoods like oak or maple or powder-coated steel to resist wear. Test rail integrity by applying a 200-pound (90.7 kg) lateral load at any point; deflection should not exceed 0.125 inches (3.2 mm). For spiral configurations, ensure the rail follows the inner curve at a height matching standard straight sections to avoid tripping hazards.

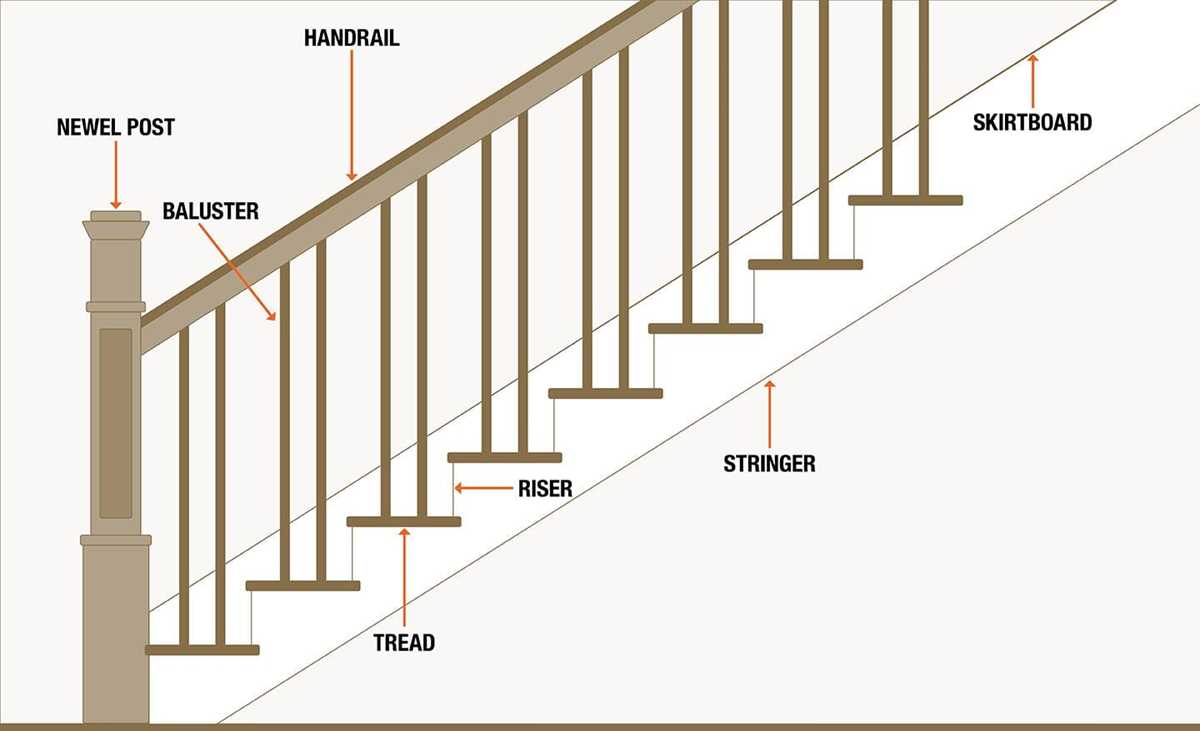

Newel Posts vs. Balusters: Key Functions and Installation Guide
Opt for newel posts at structural anchor points–stair starts, turns, and landings–to bear lateral loads. Use 4×4-inch hardwood (oak, maple) or engineered steel posts rated for 4,000+ lbs shear strength. Secure the base with two ½-inch lag bolts (or epoxy anchors for concrete) embedded 4 inches into the framing, then attach the handrail with a concealed bolt and dowel system to eliminate wobble. Balusters, by contrast, serve as infill; space them ≤4 inches apart (IBC code) using 2×2-inch wood or ¾-inch metal spindles. Pre-drill holes at 30° angles for mortise-and-tenon joinery or use stainless steel brackets for quicker alignment.
Installation sequence differs: newels require precise layout before balusters. Mark post positions on stringers using a plum bob for vertical alignment, then cut mortises ⅓ of the post depth to fit handrail tenons. For balustrades, apply construction adhesive to baluster bases before inserting into routed stringer channels or top/bottom rails. Metal balusters need a threaded insert set into the tread/rail first; torque to 25 ft-lbs to prevent loosening. Below, compare time and tool requirements:
| Component | Tools Needed | Time per Unit | Load Capacity |
|---|---|---|---|
| Newel Post (Wood) | Chisel, drill, ½” lag bolts, level | 45–60 min | 800–1,200 lbs |
| Newel Post (Steel) | Wrench set, epoxy gun, HSS drill bit | 30–40 min | 1,500–2,500 lbs |
| Baluster (Wood) | Router, ⅛” drill bit, clamp | 5–8 min | 50–80 lbs |
| Baluster (Wrought Iron) | Allen wrench, threading tool | 3–5 min | 100–150 lbs |
For angled staircases, newels must resist diagonal thrust: add a diagonal brace or use a knee wall for support. Balusters on curves require custom bending (for metal) or angled routing (for wood) to maintain consistent spacing. Sand all cuts to 120-grit to prevent splinters, then apply two coats of penetrating sealer before topcoat. Failures typically stem from undersized hardware–verify local codes for snow-load adjustments in outdoor applications, where posts may need 3/8-inch anchor plates.
Replace loose balusters immediately: pry old adhesive from the rut with a heat gun, sand, and re-glue with polyurethane. For newels, check for rot at the base annually–if moisture penetrates, remove the post, treat the framing with borate solution, and reinstall with marine-grade epoxy. Avoid composite materials for load-bearing posts; they lack grain strength. Stainless steel balusters resist corrosion but conduct heat–isolate with rubber grommets where handrails connect to prevent galvanic reactions with aluminum railings.
