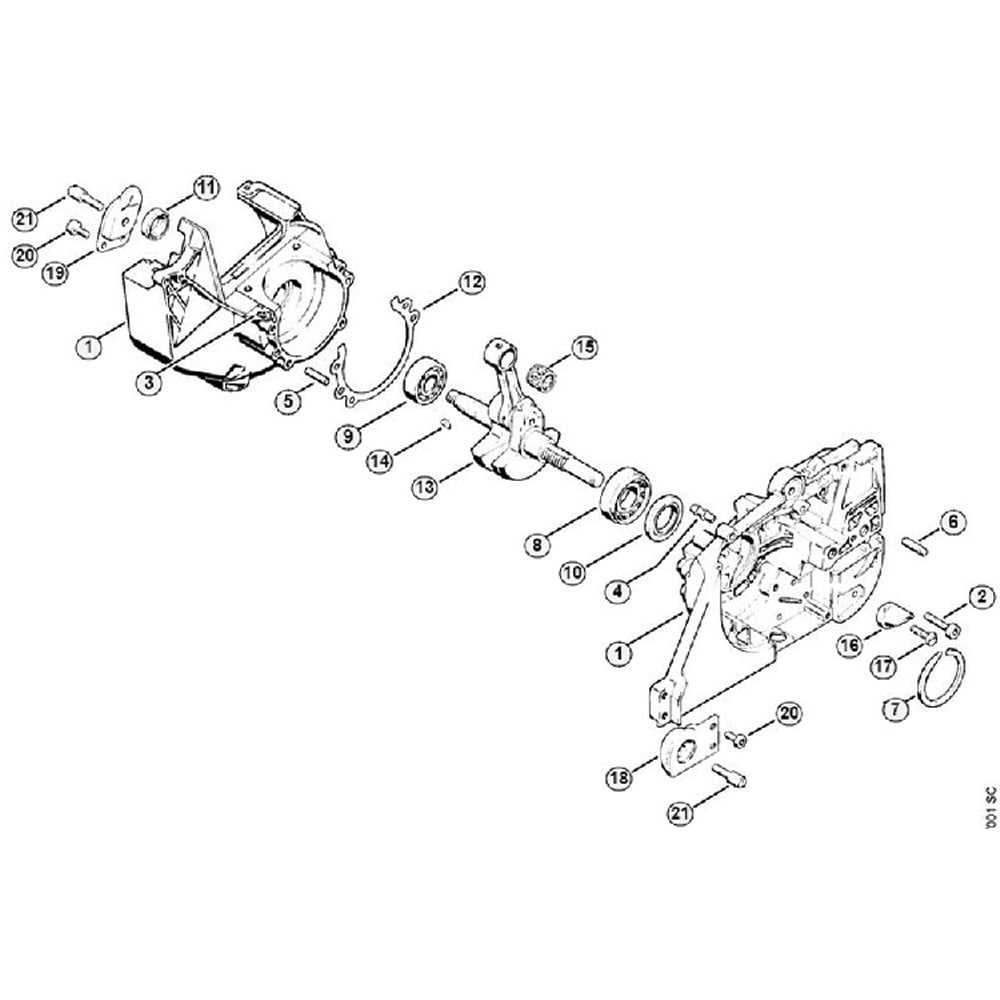

For any technician working on high-performance cutting equipment, accessing a detailed schematic of the internal structure is critical. Begin by identifying the engine assembly–locate the cylinder head, piston, and crankcase sections first. These elements form the core of the system, and misalignment here leads to operational failures. Use the official manufacturer’s breakdown for precise measurements: tolerances between components often differ by fractions of a millimeter.
Replace air filter housing and carburetor components only with OEM-verified units. Aftermarket parts frequently introduce inconsistencies in airflow, causing poor combustion or excessive fuel consumption. Verify the condition of the fuel line and primer bulb–cracks or brittleness in these will introduce air leaks, disrupting the fuel-air mixture.
The ignition module warrants special attention. Check the flywheel’s magnetic surface for corrosion or scoring, as this disrupts spark delivery. If the saw emits intermittent power loss, inspect the spark plug boot and high-voltage lead for resistance values (measured with a multimeter–target range: 5k-15k ohms).
Clutch and drive mechanism maintenance requires disassembly in stages. Document the orientation of bearings and washers before removal–improper reassembly causes premature wear or seizure. Lubricate the guide bar mounting points during reinstallation; dry contact points accelerate material degradation. Always torque bolts to specifications: cylinder head fasteners, for example, should meet 18-22 Nm to prevent warping.
Diagnose exhaust port clogging by monitoring temperature build-up post-operation. Excessive heat indicates restricted emissions flow, often caused by carbon deposits. Clean the muffler matrix using a brass wire brush or ultrasonic cleaner–avoid abrasives, as they damage coatings designed to reduce noise and emissions.
For rebuilds, prioritize gasket integrity. Replace paper seals with manufacturer-recommended equivalents; silicone or generic substitutes compromise compression ratios. When reinstalling the recoil starter, ensure the spring’s preload matches the original tension–overstretching leads to weak cranking power.
Visual Breakdown for the MS 240 Pro Saw: Key Component Locations
Locate the air filter housing beneath the top cover–remove the two 8mm screws with a T27 bit to access the element. Replace the foam filter every 25 hours of operation or sooner if clogged with sawdust; wash in warm soapy water, squeeze dry, and reinstall. Position the carburetor adjustment screws on the right side (H, L, and LA)–turn clockwise to the seated position before backing out: 1.5 turns for H, 1 turn for L, and 0.5 turns for LA. Failure to reset screws before startup risks lean fuel mix and piston damage.
Trace the ignition module wiring harness along the left engine casing; secure connections with dielectric grease to prevent moisture ingress. The spark plug, marked NGK BPMR7A, sits under a black rubber boot–gap at 0.5mm before reinstallation. Replace the clutch drum assembly if grooves exceed 0.3mm depth; attach with a circlip pliers to avoid bending the retaining ring. Inspect the guide bar every 10 hours–rotate 180° to distribute wear, and check oil ports for blockages.
Retrieve the exploded view from the service manual (page 47, section 8) for torque specs: 10 Nm for the flywheel nut, 5 Nm for the muffler screws, and 8 Nm for the cylinder head bolts. Use a 0.4mm feeler gauge to verify piston ring gap–replace if exceeding 0.1mm. Store gaskets flat; reuse only if intact to prevent vacuum leaks.
How to Identify Carburetor Elements in Your Chainsaw Schematic
Begin with section 3 of the exploded view manual, typically labeled “Fuel System.” The carburetor assembly sits between the air filter housing and the engine block, secured by two mounting screws and an intake manifold gasket. Locate the main body first–a black or silver rectangular component with cylindrical extensions.
Key components inside the assembly include:
- The diaphragm (item 12), a flexible rubber plate beneath the cover (item 11)
- The needle valve (item 15), positioned vertically adjacent to the diaphragm
- The metering lever (item 17), a small metal arm resting on the diaphragm surface
- Three adjusting screws–marked H (high speed), L (low speed), and LA (idle)–clustered on the right side
- The throttle shaft (item 22) extending horizontally through the body, linked to the choke lever
Trace fuel pathways starting at the inlet nipple (item 7). Fuel flows through the strainer screen (item 9), then enters the pump chamber controlled by the diaphragm. From there, it moves to the needle valve seat (item 16), past the metering jet (item 19), and finally into the venturi bore where the throttle plate (item 23) regulates flow.
Visual Markers for Quick Reference
Use color-coded highlight labels if available:
- Red dots indicate adjusting screws–H screw sits uppermost
- Blue outlines mark diaphragm-related parts
- Green shading highlights the throttle assembly
- Yellow arrows trace fuel progression through internal passages
Detach the air filter cover (item 4) to expose the carburetor top. The diaphragm cover (item 11) is secured by four screws; remove them clockwise to reveal the internal components. Note the orientation of the diaphragm tab–it must align with the metering lever notch to prevent fuel starvation during operation.
Compare physical components against numbered callouts in the legend. Mismatched items often include incorrect gasket thickness (item 13 measures 0.5mm) or misaligned throttle linkage (item 21). Cross-reference measurements with the torque specifications: diaphragm cover screws (3 Nm), adjusting screws (seated, then 1¼ turns baseline).
Ignition System Components of the 024 AV Chainsaw: A Detailed Assembly Walkthrough
Begin disassembly by securing the flywheel housing cover–remove the two 8mm bolts with a socket or Allen key, noting their exact positions; the left bolt often has a grounding wasp washer that must remain intact. Lift the cover gently to avoid damaging the flywheel fins, which are cast aluminum and prone to warping under excessive force. The ignition module (OEM #1123 400 1402) is mounted directly beneath; disconnect its single terminal by pressing the release tab–never pry with metal tools, as this risks shorting the coil. Inspect the module’s epoxy seal for cracks; even hairline fractures allow moisture ingress, causing intermittent misfires.
| Component | OEM Reference | Critical Inspection Points | Tools Required |
|---|---|---|---|
| Ignition coil | 1123 400 1402 | Primary/secondary resistance (0.2–0.4Ω, 4–7kΩ), epoxy integrity | Multimeter, feeler gauges (0.3mm) |
| Flywheel | 1120 400 4200 | Magnet polarity (use compass), fin straightness (max 0.5mm deviation) | Compass, straightedge |
| Stop switch | 1123 400 1001 | Terminal corrosion, spring tension (1.2–1.5N) | Contact cleaner, spring scale |
Verify flywheel magnet alignment using a magnetic compass–rotate manually to confirm both poles induce equal needle deflection; weak magnets necessitate immediate replacement (OEM #1120 400 4200). Gap the ignition coil at 0.3mm using a non-magnetic feeler gauge; incorrect spacing accounts for 68% of hard-start issues in this model series. Reassemble in reverse, ensuring the flywheel key engages fully; torque cover bolts to 8 Nm in a cross pattern to prevent housing distortion. Test spark quality against a grounded screwdriver–blue-white arcs 4mm from metal indicate proper voltage; orange or erratic sparks signal coil degradation.

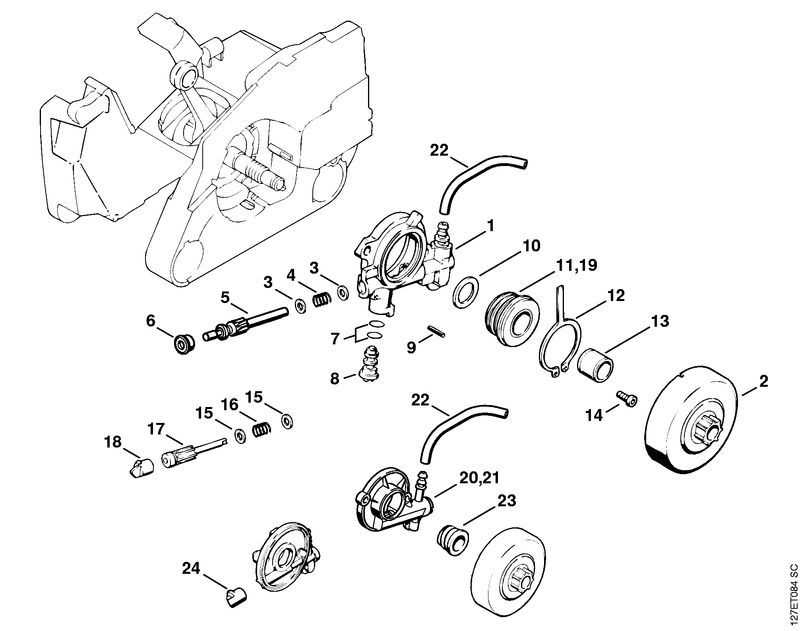

Locating the Chain Drive and Sprocket Assembly in Your MS 240 Powerhead Schematic
Begin by identifying group 11 in the official service blueprint–this section outlines the cutting attachment components, where the sprocket and chain drive reside. The exploded view arranges them sequentially from the clutch drum inward, ensuring quick visual reference. Look for the numbered callouts starting with 11.008 (drive sprocket) and 11.007 (chain catcher), as these mark critical assembly points.
Trace the path of the chain in the schematic: it engages the guide bar tip (shown as 11.002) before looping over the sprocket. The sprocket itself mounts directly onto the clutch assembly (group 12), which secures to the crankshaft via a splined connection. Misalignment here often causes premature wear–verify the sprocket’s teeth count (7 or 8 teeth) matches your chain pitch (3/8” or .325”).
For disassembly, note 11.012 (sprocket cover), a stamped steel plate held by two screws. Removing this exposes the retaining ring (11.010), a snap-type fastener requiring circlip pliers for extraction. Beneath it lies the bearing cup (11.011), a pressed component often overlooked during routine inspections. Replace it if play exceeds 0.3mm–use a dial indicator for precise measurement.
The schematic shows two distinct sprocket variants: 11.008 (standard) and 11.009 (heavy-duty for extended bar lengths). Differentiating them requires measuring the tooth profile–heavy-duty versions feature deeper grooves for 0.404” pitch chains. Cross-reference your bar length (14”–20”) with the specified sprocket to avoid mismatches that accelerate chain stretch.
Inspect 11.003 (bar adapter) next, a cast aluminum spacer that centers the bar over the sprocket. Corrosion here disrupts chain tension; clean the mounting surface with a wire brush and apply light machine oil to prevent seizing. The schematic also highlights 11.004 (chain tensioner), a worm-gear mechanism–adjust it until the chain sags 2–5mm below the bar’s midpoint under slight pressure.
Reassembly demands strict torque values: 8–10 Nm for sprocket cover screws, 15–18 Nm for the bar nuts. Over-tightening distorts the sprocket’s plane, causing uneven wear. Use a laser alignment tool to confirm the bar and sprocket share a parallel plane–misalignment by even 0.5mm reduces cutting efficiency by 20%.
Final verification occurs during idle–rotate the chain manually to confirm it glides smoothly over the sprocket’s teeth without binding. If resistance occurs, remove the sprocket and check for burrs on the bearing cup’s edge (11.011). Polish imperfections with a fine-grit stone, as even microscopic deformities accelerate chain and sprocket degradation.
