Start with the manufacturer’s official exploded view schematics–typically found in the service manual or technical documentation portal. For premium built-in models, these layouts pinpoint every gasket, sensor, evaporator fan, and control board with exact part numbers. Cross-reference these IDs against authorized distributors like AppliancePartsPros or PartSelect, where in-stock components ship within 24 hours.
Prioritize OEM replacements: third-party alternates often lack corrosion-resistant coatings or precision tolerances required for dual-compressor systems. For instance, a genuine damper assembly (PN# 00650191) maintains ±0.5°C accuracy, whereas generic versions cause temperature fluctuations exceeding 3°C. Check the serial number laser-etched on the unit’s rear panel–this decodes production batch specifics needed for compatibility.
For condenser coils or interior lighting assemblies, consult the wiring harness diagrams first. Mistakes here void warranties and risk compressor burnout. Disconnect power before handling PCB modules–static discharge corrupts firmware even when the unit appears off. Replace door seals using a heat gun at 60°C for 30 seconds to activate adhesive, ensuring 0% air leakage post-installation.
When sourcing electronic controls, verify firmware revision compatibility. Some inverter-driven models (e.g., Series RD107) require synchronized controller updates after replacing the main board. Use a USB-A flash drive formatted to FAT32–NTFS triggers upload errors. Test thermistor readings after any repair: platinum-grade sensors should measure 10kΩ at 25°C (±2%); deviations signal faulty wiring or degraded epoxy encapsulation.
Understanding Your High-End Cooling Unit Schematic
Start by locating the exploded view document for your model on the manufacturer’s service portal–search using the product’s serial number for precise component mapping. Most schematics group assemblies into three primary zones: electrical (control board, sensors, relays), mechanical (compressor, evaporator, condenser coils), and structural (door seals, shelving, lighting). Prioritize cross-referencing part numbers with the vendor’s parts list to avoid incompatible substitutions; even minor deviations can disrupt airflow or temperature regulation.
Key Assemblies and Common Failures
| Assembly | Typical Failure Symptoms | Recommended Tools for Diagnosis |
|---|---|---|
| Evaporator Fan Motor | Unusual humming, uneven cooling, frost buildup | Multimeter (resistance check), flashlight for visual inspection |
| Defrost Control Board | Frequent freezer thawing, error codes (e.g., “DF”), ice accumulation | Circuit tester, schematic reference for pin voltages |
| Water Inlet Valve | Slow ice production, dispenser no-flow, leak behind unit | Pressure gauge, continuity tester |
| Door Gaskets | Condensation, warm interior, visible gaps or cracks | Freezer paper test, infrared thermometer |
For components requiring disassembly, note fastener sizes and sequence–many units use torque-sensitive screws (e.g., 7-9 in-lbs for compressor housing). Avoid generic replacements; OEM parts ensure compatibility with smart defrost cycles and adaptive cooling algorithms. Store removed parts in labeled containers (e.g., ziplock bags with masking tape notes) to prevent loss during repairs.
If the schematic lacks detail on newer models, check supplemental service bulletins for retrofit components (e.g., upgraded thermal sensors or LED driver modules). Online forums often archive user-uploaded teardown videos–filter by your exact model number to find step-by-step visual guides. Always disconnect power and discharge capacitors before handling high-voltage sections; retain the service manual’s safety warnings alongside your workspace.
Finding the Serial Number Plate on Your High-End Cooling Unit
Check the left interior sidewall of the main compartment–most models position the identification tag here, often near the upper rear corner. If absent, slide out the lower storage bins or shelves to inspect beneath them, as some variants attach the plate to the cabinet floor. Ensure adequate lighting to spot the etched or adhesive label, which may blend with the interior finish.
For built-in or column-style designs, the plate frequently hides behind the toe kick plate at the base. Remove the front panel by gently prying it off with a flathead screwdriver–most snap into place without screws. The serial number often pairs with model details, printed in small, legible text on a metallic or plastic strip.
Alternative Locations for Less Common Configurations
Side-by-side units occasionally place the tag inside the ice maker compartment or atop the evaporator cover. Remove the ice bucket and examine the back wall for a recessed label. French-door variants might tuck it behind the water filter housing–detach the filter first to reveal any hidden markings. Some premium editions embed the plate inside the door jamb, requiring a flashlight to read.
Built-in bottom-freezer models sometimes relocate the serial number to the rear exterior wall, accessible only after pulling the unit forward. Disconnect power and slide it out carefully–look for a sticker near the compressor or condenser coils. Bulkhead-mounted units may tape the plate to the back of the cabinet; remove the top grille to find it.
If the label is missing or illegible, cross-reference the electronic control panel display. Press and hold the “door alarm” and “temperature up” buttons simultaneously for five seconds to reveal diagnostic codes, including partial serial data. For older units, inspect the original packaging or warranty documentation–retailers often print the number on shipping labels.
Verify the serial number against the manufacturer’s database before ordering replacements. Inputting the wrong digits can delay repairs by weeks if incompatible components arrive. Some third-party suppliers require additional proof, such as photographs of the plate or appliance tags, before processing orders.
How to Locate and Interpret the Inner Assembly Blueprint
Begin by securing the official service manual from the manufacturer’s support portal using your model number–found on a sticker inside the left-side panel or behind the lower kick plate. The blueprint will be under sections labeled “exploded view” or “component breakdown,” typically pages 12–25. If the download is unavailable, cross-reference the model number with third-party schematics from verified appliance schematics databases like AppliancePartsPros or PartSelect–they often archive identical layouts.
Once opened, identify the primary zones:
- Evaporator assembly (upper rear, behind rear panel)–look for numbered coils, fan blades, and thermal sensors.
- Defrost system (near evaporator)–includes heater elements, bi-metal thermostats, and relay switches, often highlighted in red.
- Control board (upper front, behind user interface)–marked with connector pinouts and solder points for voltage testing.
- Compressor bay (lower rear)–contains start capacitor, overload protector, and refrigerant lines, usually encased in insulation.
Navigating Layered Annotations
Zoom into sub-sections where components overlap–brackets with arrows indicate hidden fasteners (e.g., Torx T20 screws securing inner liners). Dashed lines denote wiring harness routes; trace these to avoid misrouting during reassembly. Legends in the corner specify symbols: triangles for thermistors, circles for mounting clips, and arrows for airflow direction. For multi-door units, cross-reference door-specific callouts (hinge mechanisms, air baffles) on separate sheets.

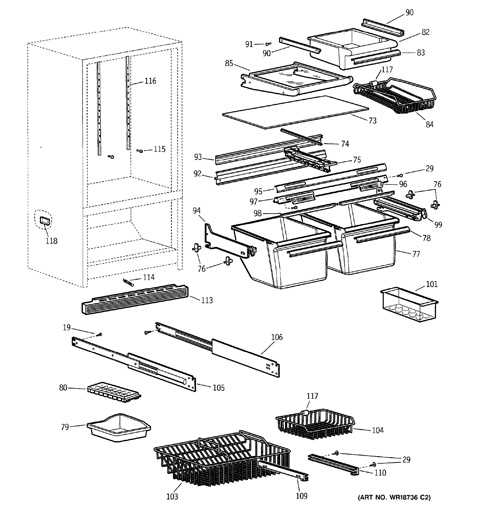

Locating Gaskets, Shelving, and Storage Components via Schematic Breakdowns
Begin by accessing the official service documentation for your cooling appliance model. Most manufacturers host exploded view schematics on dedicated support pages–enter your unit’s serial number to pull up the exact breakdown. For doors seals, locate item numbers tagged near the door liner; these typically appear in the first dozen entries of the document. Measure the existing seal’s length and cross-section before ordering–90° corner gaskets differ from flat perimeter types, and improper fits cause temperature fluctuations.
Trusted Sources for Exact Matches
- Brand-authorized distributors: These vendors maintain stock aligned with OEM specs; verify the part number matches both the schematic and compatibility list. Lead times average 5–10 business days.
- Specialty HVAC suppliers: Narrow search filters to model-specific seals, often sorted by door dimensions (e.g., 18″, 24″). Drawers and tempered glass panels are usually grouped under interior components.
- Online appliance marketplaces: Filter results by “OEM” labels; cross-reference seller ratings to avoid aftermarket variants with inconsistent magnetic strips.
Shelving and crisper replacements require matching edge profiles–clip-on rails, metal rod supports, or snap-in plastic tracks. The schematic labels these as “bin assembly” or “cantilever bracket”; count slots if replacing multiple racks simultaneously. Tempered glass shelves include notch patterns–compare these against the diagram to prevent ordering undersized or oversized pieces. Mistints cascade into clearance gaps or jamming.
- Download the schematic as a PDF; zoom to 200% to read micro-print near terminal blocks.
- Highlight gasket paths in yellow–these snake around latches and hinge anchor points.
- Use calipers to measure drawer runners’ width; tolerance under 1 mm prevents slippage.
- Screen-capture component IDs and email them to authorized dealers for batch quotes.
Salvaged components from recycling centers carry risks–door seals degrade at 7% tensile loss annually regardless of usage, while ABS drawers yellow under UV exposure. Prioritize new-production purchases for critical seals; aftermarket acrylic racks may crack under weight loads exceeding 12 kg. Schematic codes ending in “-B” denote revised versions–check firmware updates that affect seal groove tolerances.
