For accurate repairs or restoration of older firearms like those from H&R, begin with the official exploded views in service manuals. These documents provide precise assembly sequences, part numbers, and positional references–critical for identifying obscure components. If manuals are unavailable, cross-reference serial numbers on specialized forums like GunBroker’s parts directory or Numrich Gun Parts Corporation’s archive, which maintains schematics for discontinued models.
When physical schematics are illegible or incomplete, isolate the firearm’s action group first. Disassemble the trigger mechanism, bolt, and receiver separately, documenting each step with photographs. Use calipers to measure mating surfaces and tolerances–particularly for the sear, hammer, and firing pin–since aftermarket replacements often deviate by ±0.005 inches. For single-shot or break-action designs, focus on the breechblock interface and extractor geometry, as these areas commonly require machining for proper fit.
For hard-to-source components, submit detailed drawings to CNC machinists or 3D-printing services. Specify material (e.g., 4140 steel for high-stress parts) and surface treatments (e.g., Parkerizing or nitride coating). Barrel threads, receiver lugs, and stock inlets demand exact reproductions; deviations risk misalignment or safety hazards. Verify all reproduced parts against original specifications using a depth micrometer and thread pitch gauge before final assembly.
If schematics are fragmented, consult Blue Book Publications’ firearms reference guides or patent archives (USPTO.gov) for technical illustrations. Patents often include detailed engineering drawings, including tolerances and material notes absent in user manuals. For rarer models, reach out to collectors’ groups–they frequently possess proprietary schematics or can advise on compatible parts from similar mechanisms.
Firearm Component Schematics: Finding Accurate Reference Materials
Locate official exploded views for older firearms models through specialized gunsmithing suppliers like Numrich Gun Parts Corporation or Sarco Inc. These vendors maintain archival blueprints for discontinued shotguns and rifles, including chamber assemblies, trigger mechanisms, and barrel locking lugs. Request itemized catalogs by specific model numbers–avoid generic search terms that yield irrelevant results.
Cross-reference physical components with factory manuals whenever possible. Many manufacturers included exact-dimensional drawings in original documentation. These schematics often detail tolerances for firing pins, extractor claws, and breechblock surfaces, critical for functional repairs. If original manuals are unavailable, consult microfiche archives at major public libraries or university engineering collections.
For particularly obscure models, examine patent filings. The United States Patent and Trademark Office database contains technical renderings submitted during initial design phases. Filter searches by inventor names associated with the brand–typically found on receiver markings–or by patent classification codes related to firearm mechanisms.
Utilize 3D scanning software if precise measurements are needed for custom fabrication. Programs like Fusion 360 can generate editable models from existing components, which can then be compared against surviving schematics. This method proves invaluable when replacing eroded parts like magazine followers or ejection port covers.
Compare multiple schematic versions when inconsistencies appear. Early production runs sometimes used different specifications than later models. Note variations in hammer springs, safety selector configurations, or stock attachment methods, as these differences affect functionality.
Avoid relying solely on user-generated forum content. While some enthusiasts post modified replicas, these often lack proper scaling or omit critical details. Instead, verify information through private collector networks–some maintain restricted-access archives of original factory documents.
When sourcing replacement elements, match serial number ranges against compilation guides. Certain models underwent silent revisions (e.g., reinforcement plates added to action screws), making exact compatibility essential. Suppliers may list these variations in their product descriptions if queried directly.
Locating Key Firearm Assembly Elements in Schematics
Begin by locating the trigger assembly at the lower receiver’s center–reference point “T-3” in standard exploded views. Verify the hammer (typically labeled “H-7”) sits directly behind it, ensuring the sear engagement notch aligns with the trigger bar’s pivot. Mismatches here cause unreliable ignition; measure tolerances against the original blueprint specs (0.015–0.020 inches for civilian models). For break-action shotguns, trace the locking lugs from the chamber block to the breech face–misalignment here accelerates wear or prevents proper closure.
| Component | Schematic Label | Critical Check |
|---|---|---|
| Firing Pin | F-12 / FP-A | Protrusion: 0.055″–0.065″ beyond bolt face |
| Extractor | E-9 / EX-4 | Spring tension: 12–15 ft-lbs; replace if grip angle < 70° |
| Bolt Assembly | B-5 / BA-2 | Headspace: 1.620″–1.630″ (0.308 Win) |
| Barrel Retainer | BR-8 | Torque: 45–50 ft-lbs; loosening indicates cracked threads |
Focus on the ejector (usually stamped “EJ-1”)–a worn or improperly installed unit results in stove-piping. Compare the depth of the receiver’s ejector slot against the original schematic: deviations over 0.005 inches require re-cutting. For semi-automatic pistols, confirm the recoil spring guide (often “RSG-2”) lacks lateral play; excessive movement degrades cycling consistency. Replace springs showing compression set under 80% of OEM length.
Step-by-Step Guide to Interpreting Firearm Assembly Blueprints
Locate the reference number next to each component first–this matches the itemized list below the schematic. Verify the sequence by tracing the assembly path from the receiver downward, ensuring pin placements and springs align with the designated order. Misreading this leads to incorrect reassembly, particularly for trigger mechanisms and hammer assemblies where orientation matters.
Check tolerance indicators near screws and detents–these denote torque specifications in inch-pounds or thread direction (left-hand vs. right-hand). Cross-reference bolt carrier groups with the exploded perspective: extractor claws must face the chamber, and firing pins should slide freely without lateral play. Use a magnifying tool for serial numbers on small parts; these confirm compatibility across firearm variants.
Validate the schematic’s legend for symbols like dashed lines (movable parts) or shaded areas (grips/textured surfaces). Test-fit components before final installation–retainers like cotter pins often require bending with pliers at precise angles. If a part deviates from the illustration, consult the manufacturer’s revision notes; early production runs may use thicker or thinner metal stock.
Locating Authentic Firearm Schematic Blueprints for H&R Firearms Variants
For verified original equipment schematics, the manufacturer’s archived resources remain the most reliable source. Numrich Gun Parts Corporation hosts an extensive database featuring detailed exploded views of shotguns, rifles, and handguns, indexed by serial number ranges and model designations. Select the precise firearm type from their search tool–available models span from the early 20th century Sidekick revolvers to late-production Topper shotguns–and download high-resolution PDFs directly. Beadvilled variants, such as the Ultra Varmint rifle series, require cross-referencing nomenclature (e.g., “UV-22” vs. “Model 158”), as discrepancies in early manuals often mislabel internal components.
Alternative repositories include the Sporting Arms and Ammunition Manufacturers’ Institute (SAAMI) technical drawings, though coverage favors modern iterations. For discontinued builds like the M900 series carbines or older trap guns (e.g., Flite-King), specialized forums such as Shotgun World or GunBroker’s reference archives preserve user-contributed scans–filter threads by decade and cross-check markings against residual factory stamps from receivers or barrels.
Interpreting Firearm Component Codes in Schematic Blueprints

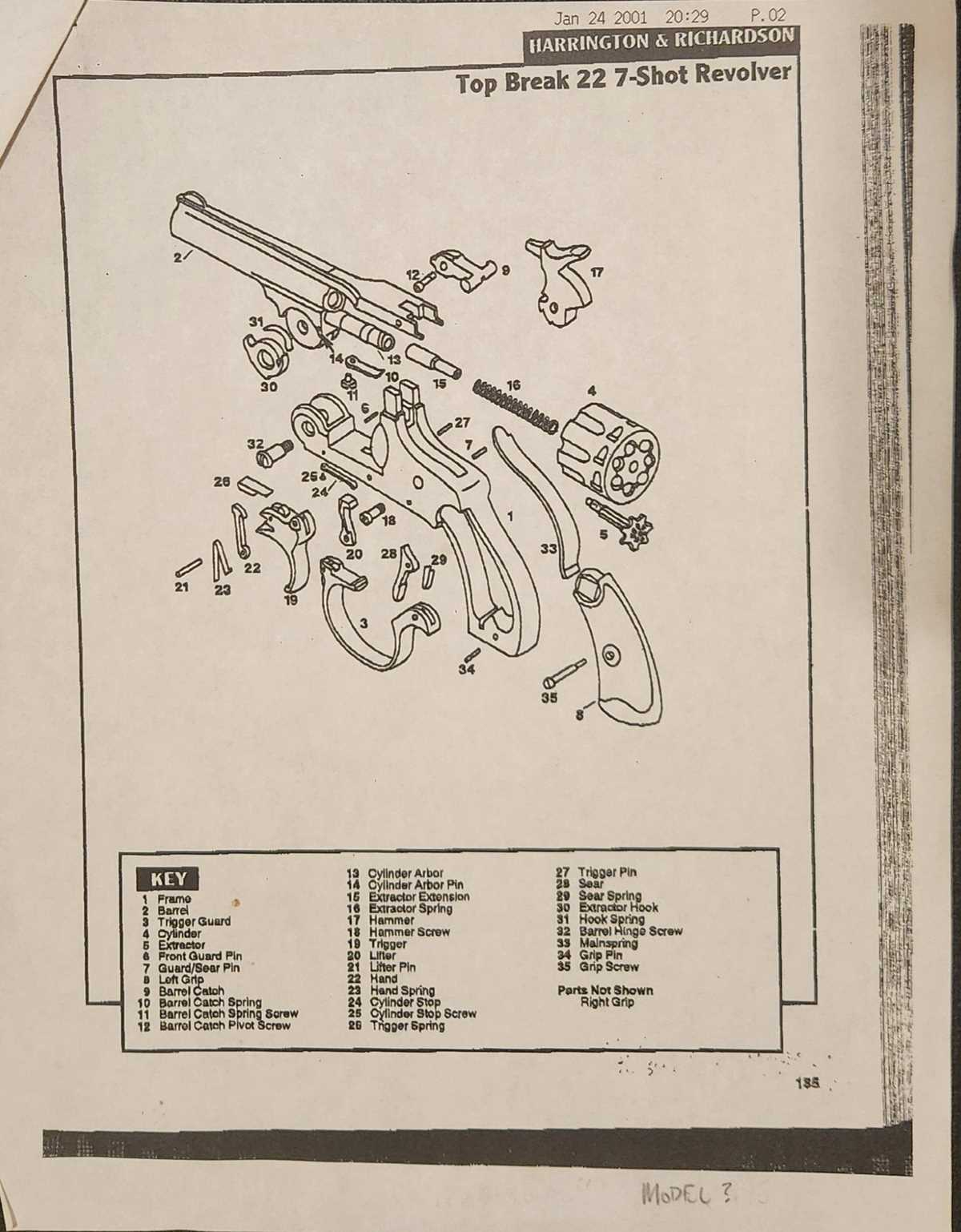

Locate the prefix indicating the model family–common sequences include TO (Top Break revolvers), US (U.S. Repeating rifle series), or FB (Falling Block single-shots). The digits immediately following denote the specific firearm variant; TO-3 identifies a 3″ barrel Top Break, while US-5C signifies a carbine-length U.S. Repeating model. Cross-reference the last two digits with the explosion view’s legend to confirm barrel length, action type, or magazine capacity–FB-14L translates to a 14″ heavy target barrel on a Falling Block platform.
- Serial batch identifiers: Pre-1968 numbers without a letter prefix (>6 digits) belong to early manufacture;
A-12345indicates post-1968 production with “A” designating the first letter series. Post-2000 specimens useHR-followed by 4–6 digits (HR-7890AB). Match these to the date-code chart:B = 2005,F = 2010,XYZ = pre-1940. - Variations by decade:
- 1900–1920: 1–4 digits, no prefix.
- 1921–1946: Letter prefix + 1–5 digits (
R-123). - 1947–1967: 6–7 digits, no prefix.
- Component suffixes:
-1B= blued barrel,-4W= walnut stock,-7N= nickel finish. Magnum chambers appendM;TO-5M= 5″ Top Break in .357 Magnum.
Resolving Schematic Discrepancies
Compare the alpha-numeric strings on the receiver’s flat (left side, beneath the hammer) against the numbered callouts in the exploded diagram–discrepancies often trace to rebarreling: a US-9 marked stock screwed to a US-7 receiver reveals an 8″ to 6″ swap. Use a jeweler’s loupe to spot obscured electro-pencil marks; 1950s production often inked #32-4 directly onto the frame, denoting checkered walnut grip panels.
