Begin with the manufacturer’s official repair manual–OEM document RM1154U covers all structural and mechanical systems. This resource provides labeled exploded views for every assembly, from the front suspension subframe (page 4-27) to the rear differential carrier (page 8-19). If the manual isn’t accessible, use online parts portals like Parts.com or RockAuto; filter by VIN to ensure exact fitment.
For powertrain components, focus on the 2GR-FKS engine subsection. The timing chain cover (part #13510-0E030) and oil pump assembly (part #15100-31050) are frequently misidentified–refer to the section 15-30 in the manual. Aftermarket suppliers often mislabel these; verify with the drive belt routing diagram on page 12-5 to avoid installation errors.
Electrical troubleshooting demands the wiring harness layout found in chapter 16. Key connectors include the engine control module (ECM) at position 1C and the instrument cluster plug at position 3F. Use a multimeter set to 200Ω to check continuity between pins–expected resistance ranges are annotated in the pinout tables on pages 16-14 through 16-22.

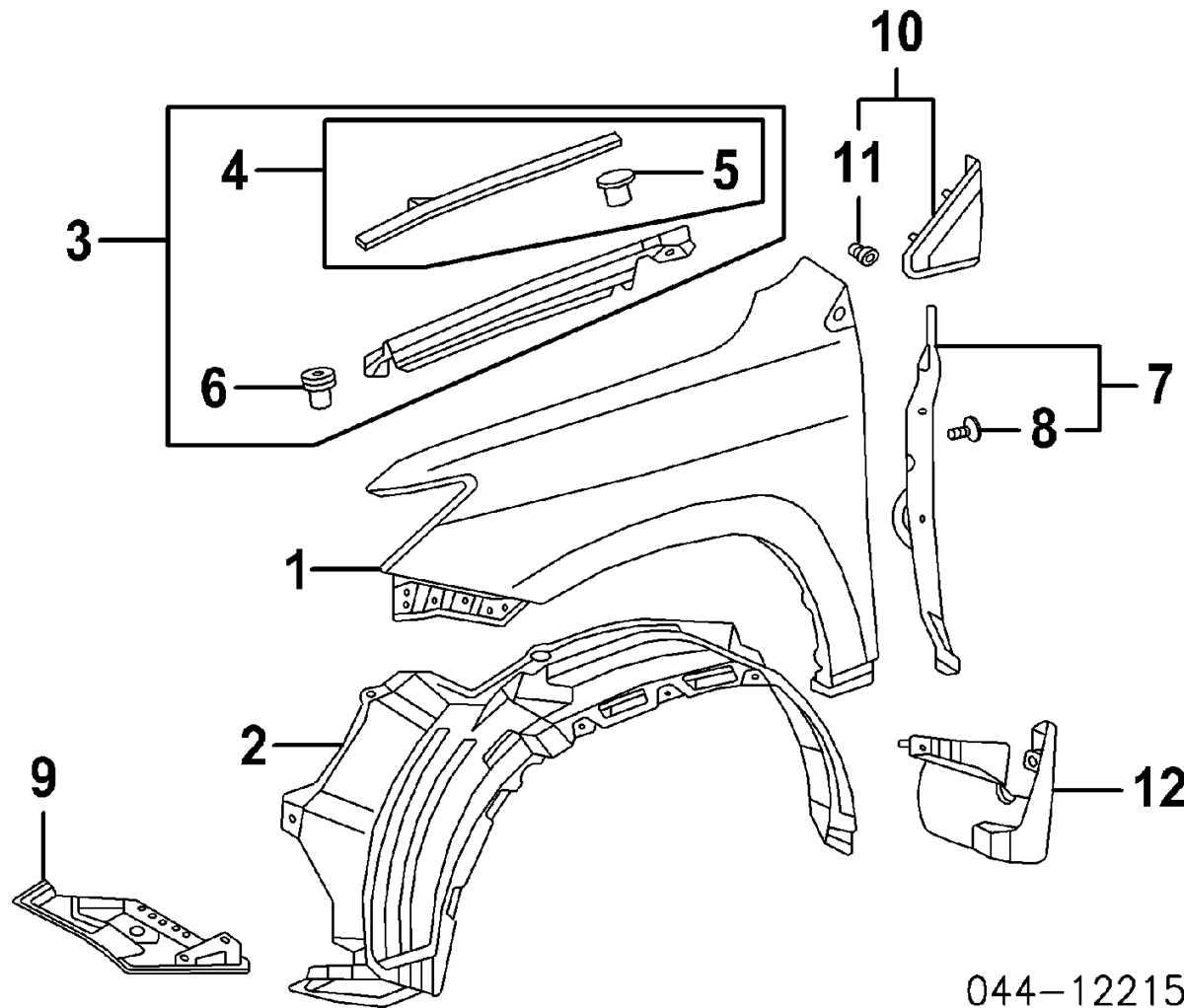

Body panels require precise alignment tools. When replacing the front fender assembly (part #53811-04041), align the locating tabs on the inner wheel well before securing with clip fasteners. Misalignment causes gap variances exceeding 3mm, leading to wind noise at speeds above 50 mph. Torque specifications for bolt-on components are listed in torque charts on pages 21-7.
Where to Find Reliable Schematics for Your Pickup
Start with the manufacturer’s official repair manual–OEM diagrams offer precise labeling of components, connector pinouts, and torque specs critical for reassembly. If the original guide is missing, third-party sites like AlldataDIY or Mitchell1 provide identical schematics with expanded part numbers and cross-referenced aftermarket alternatives. Avoid generic “exploded view” images; verify the document includes section cuts for assemblies like the transfer case or differential housing.
For electrical system repairs, use a multimeter alongside the wiring schematic–trace circuits from fuse block to sensor rather than relying on visual inspection alone. Early model wiring harnesses often degrade near heat sources; look for brittle insulation near the exhaust manifold or transmission. Replace connectors individually if corrosion is visible, matching the original terminal type (e.g., weather-pack for engine bay components).
Locating Underrated Components
Hidden fasteners often stall projects–check behind the tailgate latch mechanism, inside the rear bumper frame, and under the radiator support for bolts frequently overlooked in standard diagrams. Front suspension rebuilds require separating the lower ball joint without damaging the steering rack boot; a pickle fork damages the rubber seal, so rent a ball joint press instead. Rear leaf springs include rebound clips that form part of the axle alignment; mark their position before removal.
Interior trim often detaches with concealed clips–use a plastic trim removal tool at the base of the dashboard panels to avoid cracking brittle plastics. The cargo bed mounting bolts use hardened washers; replace these during reinstallation to prevent bed flex over time. For the 4.0L V6, the thermostat housing sits beneath the intake manifold–access requires removing the alternator bracket, a step absent from most generalized diagrams.
Sourcing Parts Without Guesswork
Cross-reference part numbers using the VIN-specific lookup tool on RockAuto or Toyota’s parts portal–aftermarket suppliers frequently mislabel components like air filter housings or oil pan gaskets. For suspension parts, measure the strut shaft diameter before ordering; some models use 27mm shafts, others 30mm, and mixing them causes premature failure. Fuel injectors carry unique O-rings; apply a light coat of clean motor oil during installation to prevent cuts.
Brake rotors vary by trim–off-road packages include slotted rotors with specific coating requirements, while base models use smooth rotors. Wheel bearings list as “hub assemblies” but include the ABS sensor; removing the sensor separately risks damaging the encoder ring. Replace spark plug wires in sets; individual wire swaps create voltage leaks detectable with an ignition spark tester held 10mm from the coil connection.
Cooling system updates often overlook the radiator side tanks–verify width before purchasing aftermarket replacements, as some differentiate between automatic and manual transmissions. Cabin air filters show two distinct part numbers based on charcoal filtration; installing the wrong type reduces airflow through the HVAC vents. For drivetrain components, mark the driveshaft yokes at disassembly; even slight misalignment creates vibration at highway speeds.
Locating Official Engine Schematics for Your Mid-Size Pickup Online
The manufacturer’s authorized service portal, Toyota’s Technical Information System (TIS), remains the primary source for verified mechanical drawings. Access requires a paid subscription–either a 24-hour pass for $20 or a yearly membership for $120–but grants instant retrieval of OEM blueprints, including exploded views of the 4.0L V6 and 2.7L inline-4 assemblies with torque specs, fluid capacities, and genuine part numbers for filters, belts, and sensors. Free previews of select diagrams appear in owner’s manual supplements hosted by Toyota Owners Online, though these lack interactive features or component-level detail.
Third-party repair platforms like Mitchell1 and ALLDATA DIY offer comparable PDF schematics for $25 per vehicle, bundling them with step-by-step disassembly procedures and aftermarket cross-reference tools. Enthusiast forums such as TacomaWorld and YotaTech archive user-uploaded scans of critical sections–for instance, the timing chain guide layout–though these lack official revisions or warranty-compliant updates.

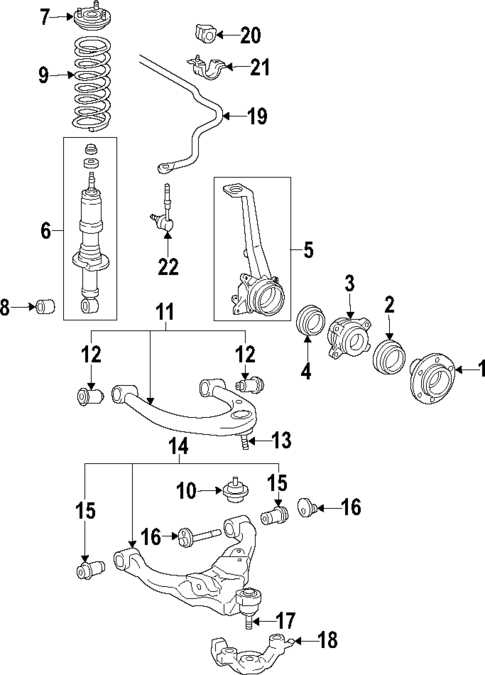

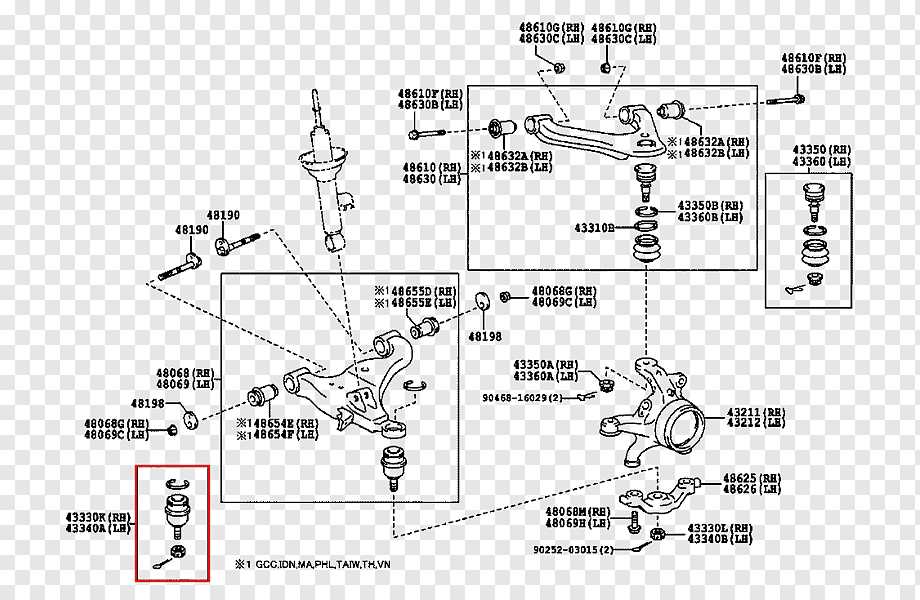

Front Suspension Assembly: Detailed Component Walkthrough for Mid-Size Pickup Models
Begin by securing the vehicle on a stable lift, ensuring the wheels are removed before inspecting the front undercarriage. The upper control arm connects to the frame via two 14mm bolts; marking their position with a paint pen prevents alignment issues during reinstallation.
Inspect the ball joint for wear–preload should not exceed 0.008 inches of play. Loosen the castle nut using a 19mm socket while holding the ball joint stud with an 8mm Allen wrench to prevent rotation. Replace immediately if torn grease boots or excessive vertical movement are detected.
| Component | Torque Spec (ft-lbs) | Wear Indicator |
|---|---|---|
| Lower ball joint | 80-94 | Radial play > 0.012″ |
| Upper control arm bolts | 64-80 | Visible corrosion |
| Stabilizer bar link | 36-50 | Torn bushing |
The coil spring requires specialized compression tools–never use makeshift clamps. Position the tool between the lower control arm and upper spring seat, ensuring both jaws engage the spring coils fully. A single failed compression attempt can deform the spring, reducing ride height by 0.75 inches.
Replace the strut mount if the bearing shows resistance when rotated by hand or emits grinding noises. Use a 17mm deep socket to remove the three upper strut mount bolts; apply thread locker to the new mount before tightening to 36 ft-lbs.
Check the sway bar bushings for cracks, focusing on the inboard edge where stress concentrates. A lubricated bushing reduces NVH by 12%; use synthetic grease formulated for suspension components, avoiding petroleum-based alternatives that degrade rubber.
Calibrate wheel alignment after reassembly–camber adjustments require removing the upper control arm bolt and inserting tapered shims between the arm and frame. Each 0.040-inch shim alters camber by 0.25 degrees; always verify with a digital gauge before final torque.
Retorque all fasteners after 50 miles–initial preload relaxation averages 8-12%. Inspect for leaks at the strut piston seal; a single drop per minute indicates seal failure requiring full strut replacement.
Troubleshooting Dashboard Electrical Faults with Schematic Charts
Locate the fuse box schematic inside the owner’s manual or affixed to the underside of the fuse panel cover. Cross-reference each fuse number with the corresponding circuit listed–focus on positions marked “INST” (instrument cluster) or “GAUGE” (gauge assembly). Use a multimeter set to continuity mode to test fuses; a reading above 0.5 ohms indicates a blown fuse requiring replacement with the exact amp rating specified.
Disconnect the battery negative terminal before probing the wiring harness behind the dashboard. Remove the lower dash trim using a trim removal tool–avoid prying near T20 Torx screws securing the cluster bezel. Trace the wiring harness from the back of the instrument panel to the bulkhead connector. The 22-pin connector (white or blue, depending on trim) typically carries gauge, warning light, and tachometer signals.
Identify wire colors in the schematic using the legend: solid colors (e.g., “R” for red), striped wires (e.g., “R-Y” for red with yellow stripe). Probe the connector pins with a multimeter set to DC voltage mode while a helper activates the ignition or relevant switch. Expected readings: 12V at pin 1 (battery feed), 5V at pin 12 (sensor reference), ground at pin 19 (black wire). Deviations point to corroded terminals, chafed wires, or faulty sensors.
Check for voltage drop across ground connections by probing between the battery negative terminal and the chassis grounding points listed in the chart. A drop exceeding 0.2V suggests a corroded or loose ground–clean the connection with a stainless-steel brush and apply dielectric grease. Pay special attention to the G501 ground near the left kick panel, a common failure point for intermittent dashboard issues.
For warning light failures, test the LED bulbs or resistors by removing the cluster assembly–access requires removing the upper steering column shroud and three 10mm bolts behind the instrument panel. Use a 12V power probe to verify bulb functionality. If the bulbs test good, trace the wires to the corresponding control module (e.g., ABS for brake warning, PCM for check engine), checking for open circuits or shorted wires near heat sources like the exhaust manifold.
Diagnose erratic gauge behavior by back-probing the sender unit wires while monitoring resistance changes. For the fuel gauge, insert a multimeter into the circuit at the sender connector (pink and white wires) and move the float manually–resistance should vary smoothly between 3-160 ohms. A sudden jump indicates a failing sender or loose connection within the tank assembly, requiring fuel pump module removal for inspection.
Inspect the printed circuit board behind the speedometer for cracked solder joints or burnt traces, especially near the stepper motor connectors. Reflow suspicious joints with a soldering iron (60/40 rosin-core solder), then clean with isopropyl alcohol. For intermittent backlighting, test the dimmer control wire (light green with white stripe) at the headlight switch–voltage should vary between 0-12V as the dimmer knob is turned.
If all components test within spec, verify the CAN bus signals between the instrument cluster and ECU using an oscilloscope. At key-on, data packets should appear as differential square waves between 1.5-2.5V on the CAN-H (orange) and CAN-L (orange with black stripe) wires. Absent or distorted signals indicate a faulty ECU, damaged wiring harness, or a failing instrument cluster–replace or reflash modules as needed, ensuring the new unit matches the original calibration codes stored in the VIN.
