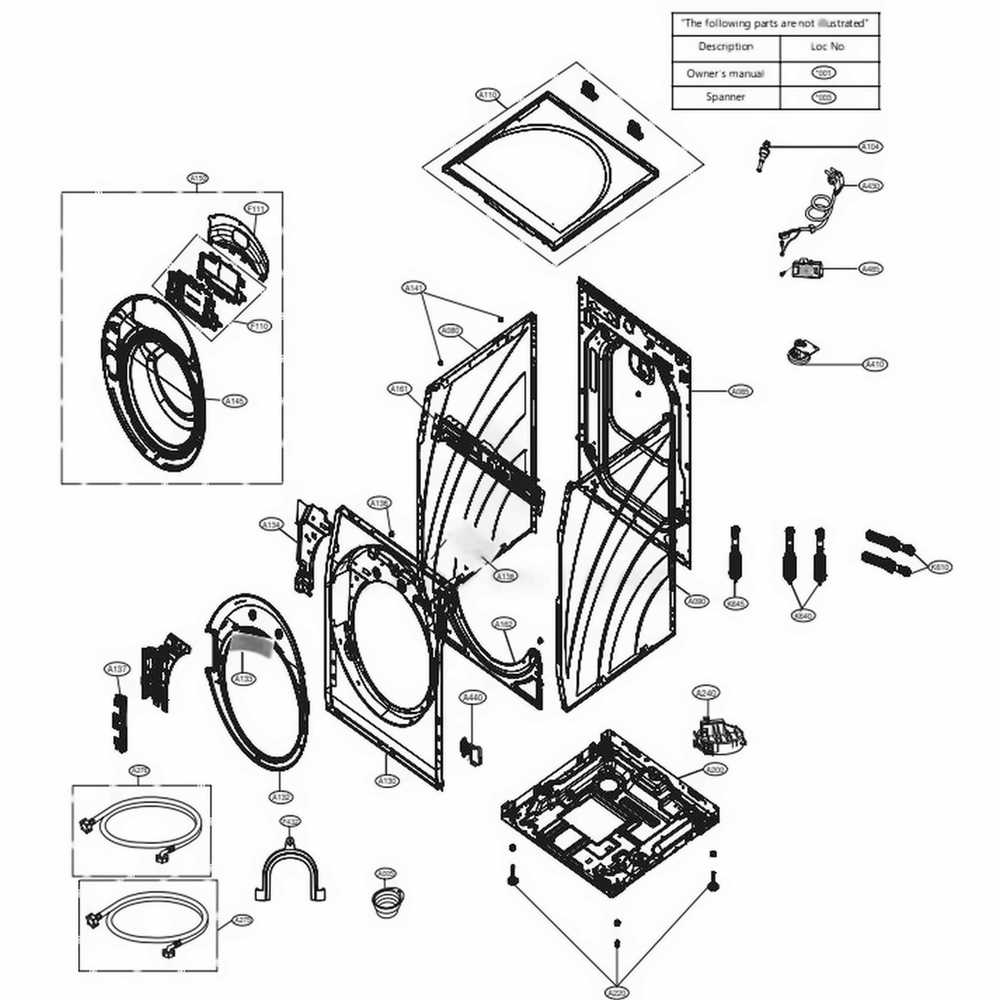

Start with the official manufacturer’s exploded view schematic–this document is the most reliable source for identifying components in your electric or gas-powered laundry machine. For units matching prefix series 110, search for “OEM service manual PDF” using the full serial number stamped on the appliance’s interior door frame or rear panel. Third-party diagrams often omit critical details like wiring harnesses or thermal fuses, so prioritize files from the original brand’s support portal.
Key sections to isolate in the schematic include the drum support assembly, blower housing, and control console. Use a highlighter to trace the airflow path: lint screen → vent pipe → exhaust duct. Pay special attention to sub-assemblies like the idler pulley and motor mounting bracket–these are frequent failure points in older machines and rarely stocked by generic suppliers. For exact replacement IDs, cross-reference the part number printed on the physical component with the exploded view.
If the schematic lacks labels, photograph each disassembled component against a clean background before removal. Compare these images to the diagram’s numbered callouts to avoid misplacement. Commonly overlooked details: door switch microswitch alignment (critical for safety interlocks) and belt tensioner spring orientation. For gas models, the igniter coil and flame sensor are vulnerable to corrosion–verify their continuity with a multimeter before ordering spares.
To source replacements, input the exact serial number into the Sears PartsDirect or ReliableParts databases. Avoid eBay or Amazon generic listings unless they include the original part number and a photo of the manufacturer’s stamp. For cost savings, consider refurbished drum rollers or rebuilt thermostats from certified repair vendors–these often include 90-day warranties. Always disconnect power and gas supply before handling internal assemblies.
Locating Key Components for Your Laundry Appliance
Start by referencing the official schematic, typically found on the manufacturer’s support portal under document number W10386007 for base variants. This layout splits internal mechanisms into three primary zones: heating assembly (rear), drum support (central), and control panel (top). Verify the belt tensioner–marked as part WP341241–before disassembly; misalignment accelerates wear on pulleys. If resistance checks on thermal fuse (WP3392519) exceed 0 ohms, replace it immediately to prevent overheating cycles.
Common failure points vary by usage patterns:
| Component | Part Number | Failure Signs | Replacement Notes |
|---|---|---|---|
| Motor assembly | WP279827 | Grinding noises, slow spin | Check capacitor (WP3388233) first; swap only if humming persists |
| Igniter (gas units) | WP338930 | No heat, error codes E1/F2 | Test continuity–replace if >50 ohms or cracked ceramic |
| Door switch | WP3406107 | Machine stops mid-cycle | Bypass wires temporarily to confirm; adjust latch alignment |
Ventilation components demand quarterly inspection. Remove the exhaust duct to clear lint buildup–focus on the 90-degree elbow (WP486433), a frequent choke point. For electrical models, examine the coil heater element (WP3387756); discoloration indicates imminent failure. Disconnect power, then probe terminals with a multimeter–values between 10-50 ohms confirm operational status. Replace gaskets (WP8542792) if moisture appears around the bulkhead.
Secure the blower wheel (WP694089) directly to the motor shaft using a 1/4″ socket; hand-tightening risks slippage. If cycles run abnormally long, recalibrate the timer knob (WP3407205) by advancing it past the “cool down” position–this resets internal cams. Store removed fasteners in labeled bags, matching each step to the exploded view’s numbered callouts. Skip generic equivalents for control boards (WPW10974627); third-party units lack voltage regulation, risking surge damage.
Finding the Official Breakdown Schematic for Your Appliance
Search the manufacturer’s support portal using the exact serial number from the ID plate inside the door frame. Sears PartsDirect hosts verified schematics; enter the product code 110.XXXXXXXX (replace X’s with your digits) in their search bar to filter authentic results. Avoid third-party sites claiming free downloads–they often embed malware or display outdated revisions.
Use these precise URLs: partsdirect.searshomeservices.com (official Sears repository), repairclinic.com (cross-referenced inventory). Both require serial entry; forget generic queries–spam-heavy forums rank first on general searches. Bookmark the schematic PDF immediately; expiration links reset after 24 hours.
If the portal redirects to a generic landing page, refresh the browser cache or switch devices–corporate firewalls sometimes interfere. Mobile devices work better than desktops: the responsive interface loads schematics faster. Enable pop-up blockers only after the PDF opens; some portals use temporary windows for direct access.
For offline use, right-click the schematic image and select “Save Image As” once loaded. Rename files with serial_model_variant (e.g., EL2940_RevB) to avoid confusion later. Cloud storage syncs across devices; USB backups prevent re-searching if the portal archives old schematics.
Alternative Search Tactics
Search Google Images with site:searshomeservices.com filetype:pdf “exploded view”–quotes force exact matches. Scroll past sponsored links to avoid counterfeit vendors. Check YouTube for tear-down videos; uploader descriptions often include direct schematic links. Private Discord repair communities archive rarer documents; request access via verified channels only.
Critical Elements in the Heating Appliance Replacement Guide
Begin repairs by sourcing the thermal fuse (product code 3392519), positioned near the blower housing–failure here cuts power entirely, mimicking a dead unit. Replace the heating element assembly (279816) only after confirming continuity via multimeter; visual inspections miss internal fractures. The cycling thermostat (3977767) regulates drum temperatures; swapping it unnecessarily risks overheating or prolonged cool-down phases. Always disconnect power before handling these components to prevent short circuits or electric shock.
- Drum rollers (12001985) wear silently–listen for grinding noises during operation. Apply 10 drops of high-temperature lubricant (LPS 1 or equivalent) to each roller shaft, never the bearing surface.
- Belt tension must measure 3/8″ deflection at midpoint–adjust the idler pulley (691366) if slack exceeds this margin.
- Door switches (3406107) degrade over 1,500 cycles; test with a continuity check before assuming motor failure.
Prioritize the blower wheel (694089) inspection for lint buildup; obstructions reduce airflow efficiency by up to 40%, skewing drying times. Verify the drum support bearing (349241) hasn’t seized; discoloration on the rear bulkhead signals imminent failure and cross-contamination risks. Coil the wire harness (8538051) away from moving parts to avoid abrasion–exposed wires trigger error codes F01 (inlet thermistor) or F02 (motor overload).
Hardware Kits & Common Pitfalls
- Maintenance kit (WKT-3): Bundles rollers, belt, and idler pulley–cost-effective for units over 5 years old but omit critical sensors.
- Ignition coils (3387772): Replace as a set if gas models exhibit intermittent heat; single-coil replacement risks repeat failure within 90 days.
- Front and rear seals: Peel-and-stick silicone seals (279391, 279442) degrade faster than vulcanized models–upgrade to Teflon-coated versions if available.
Document serial numbers before ordering–component variations exist between production runs (e.g., early 2000s builds use a 240V thermal cutoff, while late 2010s transitioned to 120V). Avoid aftermarket belt kits with kevlar reinforcement; these increase tension beyond OEM specifications, accelerating drum wear. Store removed fasteners by size (M5 for housing screws, M6 for panel attachments) in labeled containers to prevent cross-threading during reassembly.
Step-by-Step Guide to Removing the Rear Housing for Component Access
Unplug the appliance from the electrical outlet before touching any internal elements. Locate the screws securing the back cover–typically six or eight, arranged in a circular or rectangular pattern near the edges. Use a 1/4-inch nut driver or a standard Phillips screwdriver to remove them, keeping the fasteners in a small container to prevent loss. Some units may have hidden clips along the perimeter; gently pry the panel away with a flathead tool if resistance is felt.
Lift the rear panel straight upward to avoid damaging the vent hose or wiring harness connected to the motor or heating assembly. If the panel feels stuck, check for additional screws near the base or top–certain variants include extra securing points. For units with a rear-mounted lint filter housing, detach the filter first to reveal concealed screws. Tilt the panel slightly to disengage any overlapping tabs before fully removing it.
Set the panel aside on a protected surface to avoid scratching. Inspect the exposed components immediately: the blower wheel may collect debris, while the thermal fuse or thermostat often sits along the exhaust path. Label any disconnected wires with masking tape to simplify reassembly. If accessing the drum rollers or idler pulley, note their orientation–some require a 5/16-inch socket for removal.
Reinstall the rear cover by aligning it with the mounting holes first, then hand-tighten the screws to ensure even pressure. Torque them to 8-10 ft-lbs using a clockwise pattern to prevent warping. Reconnect the vent hose and lint filter housing before restoring power. Run a test cycle to confirm proper airflow and operation–unusual noises may indicate misaligned components or loose fasteners.
