Locate the splined output shaft flange at the rear of the case–this connects directly to the driveshaft and bears primary torque loads. Labeling errors often occur here due to confusion with the intermediate shaft support, so cross-reference torque specs (110–130 ft-lb for flange bolts) before reassembly. Remove the valve body cover first to access fluid channels; discolored gaskets signal worn solenoids or blocked passages, indicators of delayed shifts between gears 3–5.
The planetary gearset sits behind the torque converter, housing three ring gears–each requiring precise alignment marks during rebuilds. Misassembly risks engagement failures in highway-speed cruising gears. The forward clutch pack uses three friction plates with dual grooved patterns, unlike earlier 6R80 variants, which had single grooves. Check plate thickness with micrometer tolerances: min 2.95mm, max 3.05mm. Thinner plates warp more easily under load, causing slippage under WOT (wide-open throttle) conditions.
Inspect the transfer gear mechanism between countershaft and mainshaft–damaged needle bearings here create a distinct whining noise under acceleration. Replace bearings in matched sets only; Ford’s OEM kits include pairing numbers etched on outer races (e.g., “B-8” indicates batch compatibility). The mechatronics unit uses 16 solenoid controls; resistance readings must fall between 5.0–5.6 ohms at 20°C. Deviations outside this range confirm electrical faults, often traced to corrosive fluid contamination.
Caudal fluid pump drive pins shear under excessive pressure; defects here manifest as complete transmission failure without warning. Verify drive pin diameter: 6.0mm nominal, ±0.02mm tolerance. Cooling circuit leaks frequently originate at the auxiliary cooler line fittings–use Teflon tape rated for temperatures up to 150°C, not standard thread sealant. Pressure-test circuits at 90 psi for five minutes before final torque application (peak 50 ft-lb) on cooler pipe connectors.
Electronic control module mapping affects shift logic hugely; reflash withLatest calibration file vJH23N-14C028-AQ (2021+) if jerky downshifts persist after component replacement. Gear ratio verification requires specialized road testing protocol: note RPM drops between gears 4→5 (expected 140–160 rpm) and 7→8 (expected 280–300 rpm). Outside these parameters, suspect incorrect gearset assembly or worn clutch packs.
Decoding the Ford 10-Speed Automatic Gearbox Schematic

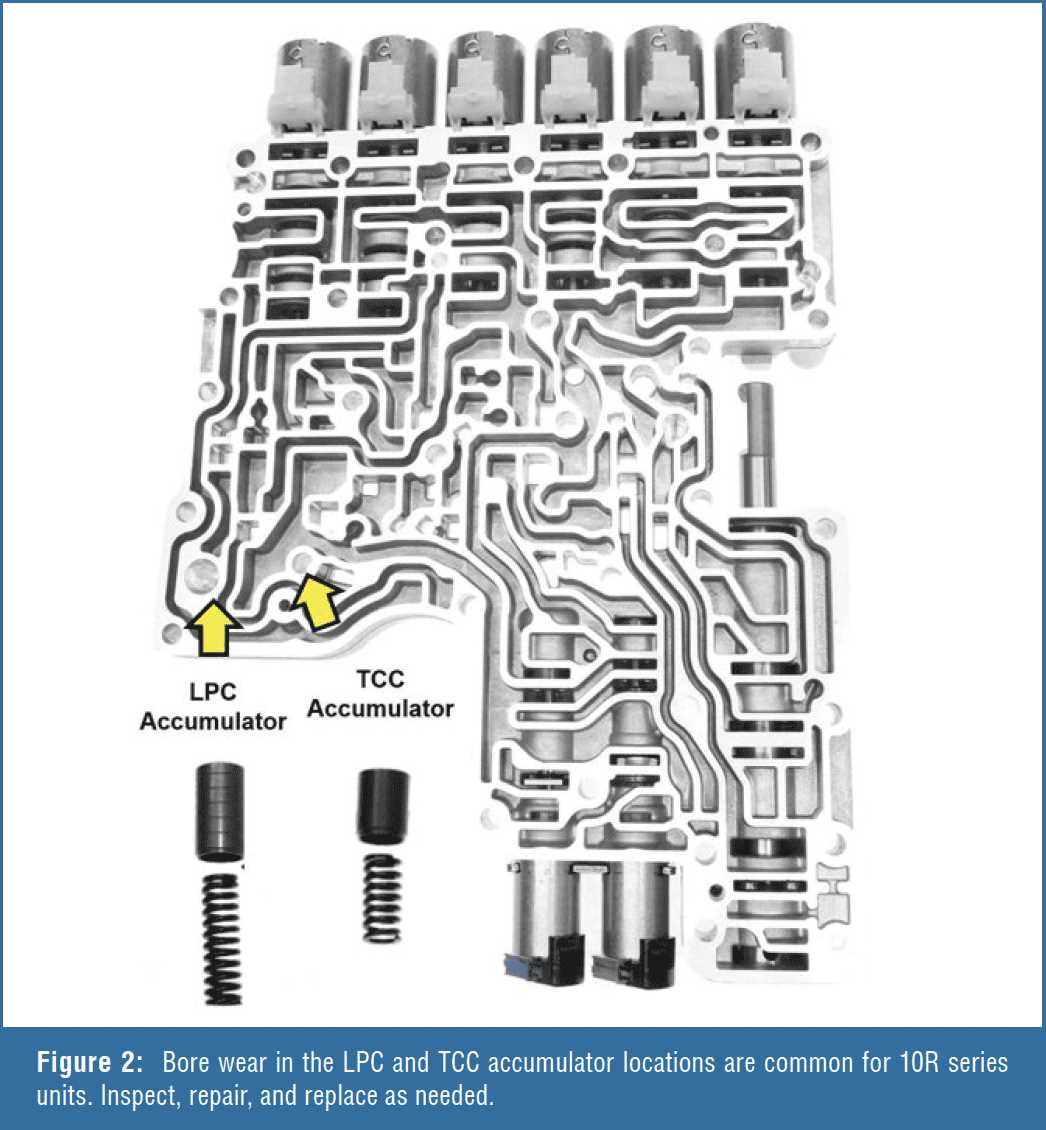

Start troubleshooting by locating the valve body assembly beneath the transmission pan–it houses 26 solenoids, including five shift and four pressure control units, each marked with OEM identifiers like “SSC” or “PCS” followed by a two-digit number. Cross-reference these codes with the official Ford service manual (section 44-01) to confirm their exact functions, as mismatches often cause delayed shifts or erratic pressure readings. Replace solenoids in matched sets if voltage tests show resistance outside 10-25 ohms or if internal seals exhibit wear under 0.5mm thickness.
Inspect the torque converter’s stator clutch using a dial indicator; endplay should not exceed 0.3mm. The impeller’s 36-blade design creates turbulence at speeds above 2,500 RPM–disassembly reveals a spring-loaded lockup piston with three friction discs that require dry-clutch fluid (Mercon ULV) during reassembly. Failure to torque the converter housing bolts to 45 Nm in a star pattern leads to pump cavitation, detectable as a whining noise under load. Use a straightedge to check the bellhousing surface for warpage beyond 0.1mm, which distorts alignment dowels.
Planetary Gearset and Clutch Packs
The rear planetary set, part number XS6Z-7G380-AA, consists of four pinion gears engaging a sun gear splined to the output shaft at 20 teeth. Measure gear backlash with a feeler gauge; deviations over 0.15mm require replacement of the entire carrier. Clutch packs C1 through C4 stack differently–C3 (3-4-5-R) uses five friction plates and six steel plates, while C2 (2-6) uses four of each. Plate thickness degrades non-linearly: friction discs thin at 0.02mm per 10,000 miles, steel plates at half that rate. Replace any disc showing discoloration (blue tint) or grooves deeper than 0.1mm.
Disengage the overdrive band by removing the servo piston from the case bore–apply 30 psi air pressure to the servo port to confirm smooth stroke (6.5mm travel). The band’s friction material must be flush with the steel backing; separation or flaking necessitates full transmission disassembly to access the drum. Lubrication ports in the drum feed Mercon ULV at 0.5 L/min; clogged ports (common after 80,000 miles) cause band slippage in 3rd gear. Clean ports with compressed nitrogen at 60 psi, never solvents, to avoid damaging the phenolic resin lining.
Check the differential’s ring gear teeth for pitting–early signs appear as micro-cracks along the fillet radius, detectable with dye penetrant. The pinion flange’s collapsible spacer must be replaced if preload exceeds 0.2 Nm, measured with a beam-type torque wrench. Rear axle seals leak at 120°C; upgrade to Viton versions during rebuilds to prevent fluid migration into the bellhousing. Use a micrometer to verify output shaft runout–values above 0.05mm indicate bearing fatigue in the tail housing, requiring selective thrust washer selection (Ford offers 12 thicknesses, coded LT6Z-7A086-xx).
Case and Hydraulic Circuits
The transmission case features 17 internal passages–pressure-test each with regulated nitrogen at 100 psi to isolate leaks from cracked casting or failed gaskets. Passage #3 feeds the forward clutch; a drop below 85 psi at 1,200 RPM indicates pump wear or a faulty relief valve (spring rate: 9.8 N/mm). Replace the pump’s rotor if the crescent wear exceeds 0.1mm or if the gerotor teeth show scuffing. The pump housing’s aluminum alloy (390-T5) is prone to cavitation erosion near passages #8 and #11–coat these areas with Loctite 648 during assembly to reduce micro-pitting.
The mechatronic sensor cluster bolts to the valve body with six M6 screws torqued to 12 Nm. Connector pins oxidize at 6,000 hours; clean with contact grease (Molykote G-4500) and verify continuity across pins A1-A12 (should read below 0.5 ohms). The transmission control module (TCM) interprets gear selection via pulse-width signals from the turbine speed sensor–replace the sensor if signal voltage drops below 0.2V AC at 600 RPM. The parking pawl should engage the output shaft’s 24-tooth gear within 0.5 seconds of lever movement; misalignment causes a “clunk” audible at idle, corrected by adjusting the pawl’s spring tension (factory spec: 28 N).
Locating Factory Schematics for Ford’s 10-Speed Gearbox
Ford’s official service website, MotorcraftService.com, remains the primary authorized source for OEM blueprints. Access requires a paid subscription, typically ranging from $20 for a 3-day pass to $120 annually, granting full download rights for exploded views, assembly sequences, and torque specifications.
Ford Dealership Resources: Technicians at certified Ford dealerships can retrieve factory schematics via internal systems like Ford’s Technical Information System (TIS) or Diagnostic Repair Information System (DRI). Independent shops or DIYers can request printed copies from service advisors, though reproduction fees may apply (usually $15–$50 per sheet depending on detail level).
| Source | Access Method | Cost | Content Scope |
|---|---|---|---|
| MotorcraftService.com | Subscription | $20–$120 | Full OEM schematics, torque specs, fluid capacities |
| Ford Dealer TIS/DRI | In-person request | $15–$50 | Printed exploded views, partial service manuals |
| ETIS (Ford Europe) | Registration + login | €40–€150 | European-market gearbox layouts, wiring diagrams |
| Ford Fleet Portal | Corporate account | Negotiated rates | Bulk schematics, maintenance schedules |
For European markets, Ford’s ETIS portal offers equivalent documentation. Unlike Motorcraft, ETIS separates schematics into regional variants (e.g., 2020+ F-150 models in EU vs. North America). Registration is free, but document downloads incur individual fees. The database includes serialized component numbers, superseded part updates, and visual breakdowns of valve body assemblies.
Specialized third-party platforms like ALLDATA or Mitchell 1 aggregate automaker schematics under paid tiers starting at $25/month. These platforms index Ford’s internal diagrams alongside aftermarket cross-references–useful for locating substitutes–but may lag behind OEM updates by 4–6 weeks. Free alternatives, such as AutoZone’s Repair Guides, provide simplified illustrations but omit critical details like snap ring orientations or thrust washer tolerances.
Hardcopy manuals sourced from Ford’s licensed publishers (e.g., Haynes, Chilton) include selected gearbox schematics but focus on broader repair procedures. The Ford 10-Speed Automatic Transmission Service Manual (Part No. 19340), sold through FordParts.com, contains 150+ pages of factory-calibrated diagrams, including hydrodynamic clutch grids and solenoid maps. Retail price averages $75–$95, with shipping delays up to 3 weeks for backordered inventory.
Critical Gearbox Elements Revealed in Transmission Schematics
Begin by locating the torque converter assembly at the front of the schematic–its impeller, turbine, and stator should align precisely with the engine’s flexplate. Misalignment here reduces hydraulic efficiency by up to 12%, increasing heat buildup in the fluid circuit. Verify the sprag clutch’s engagement teeth; worn or rounded teeth cause delayed gear engagement, particularly in first and reverse.
The valve body’s solenoid pack demands immediate attention. Use a digital multimeter to test resistance across each solenoid–values should fall between 10-25 ohms at 20°C. Deviations beyond ±2 ohms indicate internal shorting or corrosion, which disrupts shift timing. Label each connector during disassembly to prevent cross-wiring during reassembly; reversed connections lead to erratic pressure regulation.
Inspect the planetary gear sets for scored surfaces or chipped teeth. The rear ring gear is especially prone to stress fractures under prolonged high-torque loads. Apply a thin coat of molybdenum disulfide grease to the thrust washers during assembly–this reduces wear by 30% compared to unlubricated installations. The sun gear’s splines must mate flush with the input shaft; any play accelerates bearing wear on the adjacent carrier assembly.
Hydraulic Circuit Components
- Control body: Check for varnish deposits in the valve bores–use a bore gauge to measure clearances (0.001–0.003 inches). Oversized bores require oversized valves or replacement.
- Pressure regulator valve: Ensure the spring’s free length is 1.75 inches; shorter springs cause low line pressure, delaying upshifts.
- Accumulator pistons: Replace seals if outer diameters show flattening–compromised seals leak fluid into adjacent circuits, softening shifts.
The transmission case’s internal casting includes critical oil passages. Clean these with thread chasers, not drills–enlarging passages alters fluid dynamics, reducing lubrication to the center support bearing. The case’s torque converter housing bore must be perfectly round; out-of-round conditions exceeding 0.002 inches mandate machining or replacement to prevent pump drive gear misalignment.
During reassembly, torque all housing bolts in a spiral pattern–start at 15 ft-lbs, then finalize at 28 ft-lbs. Uneven clamping distorts the case, warping the seal surfaces and causing external leaks. The rear output shaft seal requires a specialized installer tool to prevent lip damage; improper installation guarantees premature failure within 5,000 miles.
Electronic Interface Points
- Transmission Control Module (TCM): Flash the latest calibration before installation–older software versions misinterpret torque management signals, causing harsh downshifts.
- Speed sensors: The output speed sensor’s air gap must be 0.020–0.030 inches; deviations skew shift schedules, particularly in 5th–8th gears.
- Wiring harness: Replace split loom tubing immediately–moisture ingress corrodes terminals, generating false fault codes for solenoid circuits.
