Begin by isolating the combustion chamber assembly in the layout–typically positioned near the base, identifiable by its heat-resistant insulation and flame sensor connections. Use a multimeter set to 20kΩ to verify resistance across the ignition electrodes; values outside 40–120 Ω indicate degradation and necessitate replacement of the ceramic probes. The gas valve cluster (located adjacent to the pilot assembly) must be cross-referenced with manufacturer-specific torque specifications–over-tightening by even 5 Newton-meters can warp the seal surface and cause intermittent lockout errors.
Trace the condensate drain path from the secondary heat exchanger to the neutralizer block–clogs here elevate acidity levels, corroding the stainless steel coils within 12–18 months if pH drops below 4.5. Label each sensor wire before disconnecting the control module: the outdoor reset probe (red/black) interfaces with the main logic board via a two-wire, 10VDC signal, while the low-water cutoff float switch (blue/white) triggers at 0.3 PSI differential. Replace both probes if baseline voltage fluctuates beyond ±0.2 VDC during the self-diagnostic sequence.
Inspect the venting components before reassembly–corrugated aluminum vent pipes should never exceed a 45° bend at any single joint, as pressure drops beyond 2.1 inches WC activate safety relays. The draft inducer motor’s impeller must spin freely; resistance readings above 35 Ω across its windings confirm bearing wear. Secure the pressure switch hose connections with Teflon tape and verify a minimum 3-second delay between inducer activation and ignition sequence–shorter intervals indicate a faulty relay on the PCB.
Calibrate the modulating valve stepper motor by cycling through 0–100% output while monitoring the manifold pressure with a digital gauge–deviations exceeding 0.1 PSI at any interval require recalibration via the unit’s maintenance menu. Install replacement gaskets between the primary and secondary exchangers only if the originals show visible cracking or a durometer reading below Shore A 60, as substandard seals compromise heat transfer efficiency by up to 18%.
Understanding Heat System Component Layouts
Start by locating the combustion chamber schematic–usually marked near the base of the unit. This section identifies critical safety mechanisms like the high-limit switch and flame sensor, which must be inspected every six months for corrosion or misalignment. Ignoring these can lead to incomplete ignition cycles or gas leaks, posing fire risks.
Reference the thermal regulator label adjacent to the heat exchanger. Modern models integrate a dual-stage valve here, allowing gradual pressure adjustments instead of abrupt spikes. If replacement is needed, ensure the new regulator’s BTU rating matches the original within a 5% tolerance to prevent inefficient fuel consumption or overheating.
The circulating pump housing often includes an exploded view of its impeller and volute. Check the arrow etched on the casing–it indicates proper water flow direction. Reverse installation will reduce efficiency by up to 40%, causing persistent temperature fluctuations in radiators further along the network.
Electrical schematics for ignition systems appear on a small decal near the control module. Look for three key symbols: the transformer coil (often red), safety relay (blue), and thermostat connections (green). Wires should be secured with heat-resistant sleeves, especially where they pass within two inches of the exhaust vent.
Gaskets and seals around the expansion tank require annual inspection for brittleness. A failed diaphragm here allows air into the water loop, creating persistent gurgling noises and reduced heat output. Replace immediately if leak tests show drops exceeding 1 PSI per hour–standard issue kits include both the bladder and flange assembly.
Venting pathways merit close attention; consult the side-mounted airflow guide for precise diamond-shaped baffle placement. Incorrect installation causes condensation pooling, leading to premature corrosion of stainless steel flue liners. Carbon steel alternatives last 40% longer but necessitate annual acidic cleaning to remove buildup.
Documentation includes a troubleshooting flowchart, typically printed on waterproof paper inside the front panel. Use it to cross-reference error codes–flashing LED patterns correspond to specific faults like blocked sensors or failed safety switches. Store digital backups of these charts, as originals degrade after consistent exposure to heat and humidity.
Locating Authorized Heating System Component Schematics
The manufacturer’s dedicated support portal remains the most reliable source for authentic schematics. Visit the official website and navigate to the “Technical Resources” section, where exploded views and assembly blueprints are organized by model number and production year. Registration may be required, but access is granted within 24 hours of submission.
Local distributors holding authorized dealerships often maintain physical archives of equipment layouts. Contact branches with service departments–some provide in-person consultations or digital copies upon verifying ownership. Larger chains like Ferguson or Hajoca typically stock current documentation for supported product lines.
Manufacturer-Authorized Repair Centers
Certified service providers receive direct updates to technical manuals and component mappings. Use the official locator tool on the brand’s site to find nearby centers; many offer same-day access to schematics during scheduled maintenance visits. Third-party workshops without factory authorization rarely have complete or updated materials.
Industry-specific forums such as HVAC-Talk and ContractorTalk host user-uploaded renditions of installation drawings and wiring layouts. While not official, these resources often include annotated versions with troubleshooting notes from experienced technicians. Verify uploaded files against recent product serial numbers before use.
Public libraries in urban centers and trade schools frequently subscribe to technical databases like Mitchell1 or ProDemand, which house exact replicas of OEM schematics. Library cards or institutional credentials grant full access; remote availability varies by region. Some platforms allow temporary downloads for offline reference.
Obsolete Model Resources
Discontinued unit schematics can be recovered through specialized online repositories like ManualsLib or ManualsOnline, which archive decommissioned product documentation. Licensed plumbers and HVAC engineers also maintain private collections–professional associations sometimes facilitate connections to verified sources. Always cross-check dated schematics with newer model revisions to avoid compatibility errors.
Original equipment packaging occasionally includes QR codes linking to mobile-friendly assembly guides or partial breakdowns. If retaining the original box, scan the code with a phone for immediate access. Retailers like Home Depot and Lowe’s stock replacement element documentation within their in-store kiosks for select legacy systems.
For critical repairs, contacting the manufacturer’s engineering department directly may yield supplemental annotations not released publicly. Provide the exact model variant and build date; responses typically arrive within 3–5 business days. This route is reserved for complex cases where standard schematics lack sufficient detail.

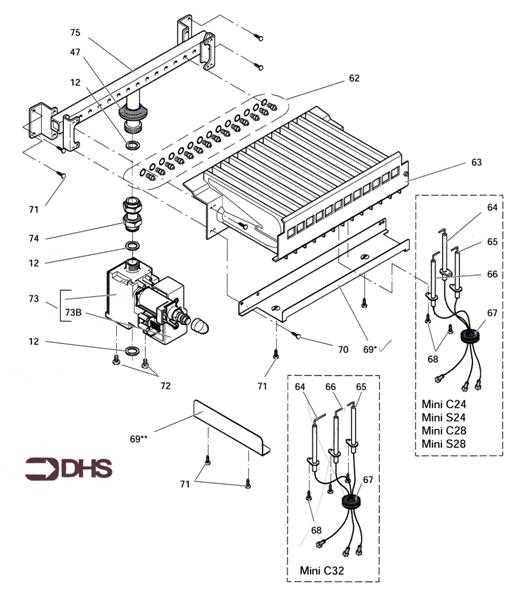

Step-by-Step Guide to Reading an Exploded View for Heating Units
Locate the reference number for each component in the schematic–typically printed near the item’s illustration. Cross-check these numbers against the accompanying list, which details specifications like thread size, material, and pressure ratings. For example, gaskets marked “A-12” might require EPDM rubber, while fasteners labeled “B-8” could specify corrosion-resistant alloy steel. Missing or misaligned numbers often indicate revisions; always verify against the latest documentation version.
- Identify the assembly’s core structure first: heat exchanger, burner assembly, or control module.
- Trace connecting tubes or wires in the sequence shown, noting directional arrows for flow or current.
- Measure clearances if the exploded view includes dimensional callouts–critical for tight spaces like combustion chambers.
- Highlight brittle or high-wear pieces (e.g., seals, electrodes) with a different color to prioritize inspection.
Compare the virtual layout to the physical unit by checking orientation–left-side components in the drawing rarely match right-side placements on the actual device. Use calipers for precision if tolerances exceed ±0.5mm. For rebuilt units, isolate removed items in a labeled bin; mixing 3/8″ NPT fittings with 1/2″ variants risks leaks. Document any deviations between the schematic and real-world condition, as third-party modifications can void certifications.
Critical Heating System Elements Frequently Swapped Out
Ignition electrodes rank as the most replaced component–oxidation and micro-fractures reduce efficiency within 12–18 months, particularly in units operating above 180°F. Replace with OEM-specified high-nickel alloys to extend lifespan by 40%; generic alternatives corrode 3x faster under cyclic thermal stress. Inspect gap alignment at 0.12–0.18 inches during annual maintenance to prevent hard starts and intermittent flame failures.
Circulator pumps fail primarily due to bearing wear, detectable via high-pitched whining or shaft play exceeding 0.005 inches. Seal kits rarely solve long-term issues–full pump replacement costs $180–$250 but prevents system-wide pressure loss and uneven heat distribution. Prioritize models with brass impellers and ceramic bearings; plastic variants deform at sustained 220°F flows.
Pressure relief valves leak prematurely when mineral deposits accumulate–test quarterly by lifting the lever for 3–5 seconds. If discharge exceeds 1 psi above setpoint (typically 30 psi), replace immediately regardless of visible corrosion. Low-water cutoff probes corrode internally despite appearing intact; bench-test with a multimeter (resistance below 1kΩ indicates failure) every six months to avoid dry-fire damage costing $800–$1,200 in repairs.
