Air-cooled heat exchangers rely on precise internal layouts to function. Start by identifying the compressor assembly–typically a cylindrical or oval component with refrigerant lines extending from its base. Check the capacitor, often a metal cylinder or rectangular box, mounted near the compressor. Verify its voltage rating (commonly 35–50 µF for single-phase units) and wiring connections before disassembly. Label wires with masking tape to avoid misplacement during reassembly.
The evaporator coil sits behind the blower fan, shaped like a serpentine grid. Clean it with a soft brush or low-pressure compressed air–high-pressure sprays can damage delicate fins. Examine the thermal expansion valve (TXV) for proper flow; a faulty TXV causes erratic cooling and requires system-level pressure checks (target: 70–90 psi low side, 200–250 psi high side). Replace it if frost accumulates unevenly.
Inspect the fan motor assembly next. Brushless DC motors dominate modern units; test resistance across leads (expect 10–50 Ω). Lubricate bearings with a single drop of SAE 20 non-detergent oil–over-oiling attracts dust and accelerates wear. For belt-driven fans, adjust tension to ½ inch of deflection per 12 inches of span. Use a laser alignment tool to prevent premature pulley wear on systems with external drive shafts.
Drain the condensate line with a ¼-inch vinyl tube; blockages cause water backup into ducts. Flush with a 50/50 vinegar-water mix every 6 months. Replace the air filter (MERV 8–13) if airflow drops below 400 CFM–clogged filters reduce efficiency by up to 15%. For variable-speed blowers, calibrate motor RPM settings via the control board (default: 350–1200 RPM). Mark all fasteners with a torque wrench: 12–18 ft-lbs for sheet metal screws, 25–35 ft-lbs for compressor mounts.
Test refrigerant levels with a manifold gauge set. Low pressure indicates leaks–use UV dye injected via the service port to pinpoint breaches. Charge with R-410A in liquid form (never vapor) through the low-side port while the unit runs. Add refrigerant in ¼-lb increments until subcooling reaches 8–12°F. Isolate leaks with a nitrogen bubble test (pressurize to 150 psi) before evacuation.

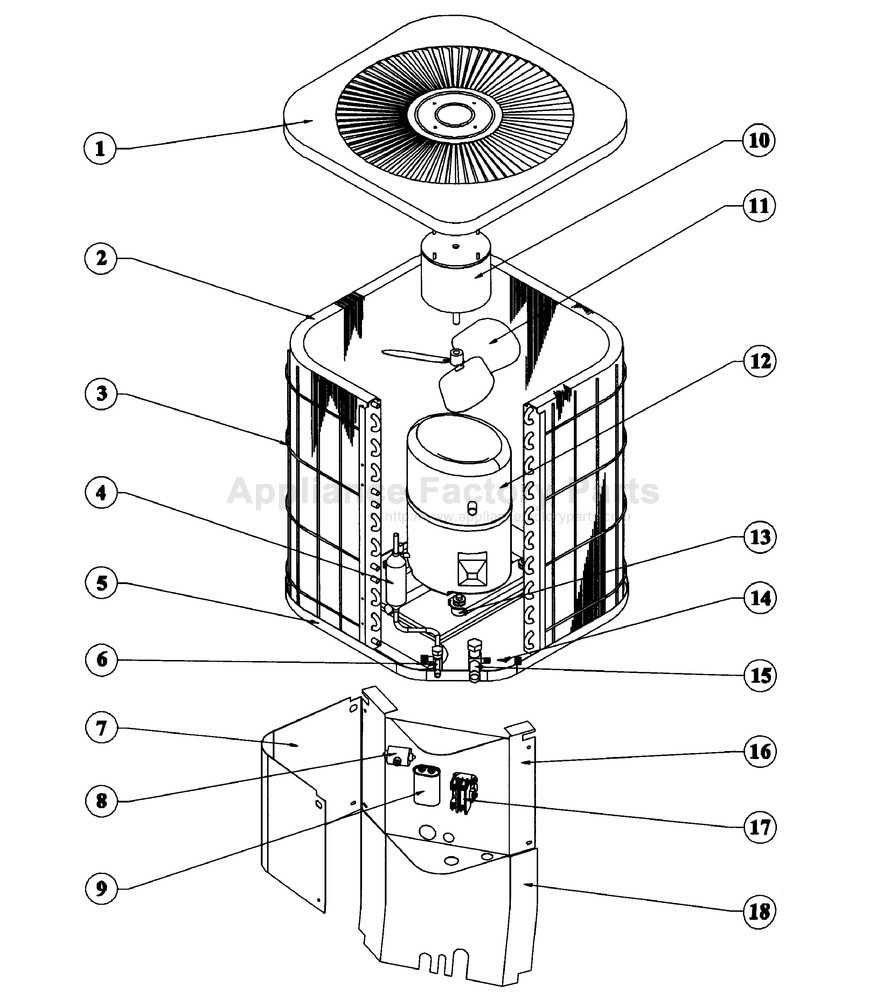

AC Outdoor Unit Component Breakdown: A Field-Ready Reference
Start diagnostics by checking the fan blade assembly for alignment–misalignment causes drag, reducing airflow by up to 22%. Use a straightedge tool to verify blade curvature against the manufacturer’s spec (typically ±0.5mm tolerance). Replace blades if chipped or bent beyond repair; even minor damage cuts efficiency by 8-12%.
Inspect the compressor discharge line for oil stains–these indicate refrigerant leaks. Pressurize the system with nitrogen (follow EPA guidelines) and apply soapy water to joints. Bubbles confirm leaks; braze them shut with a 15% silver alloy rod. Avoid over-torquing threaded connections–max 25 Nm for 1/4″ copper fittings.
Measure the capacitor’s microfarads with a digital multimeter before powering the unit. A 3-5% drop from rated value (e.g., 35μF vs. 37μF) signals imminent failure. Replace with an exact match; mismatched capacitors overheat and risk compressor burnout. Label replacements with installation date–capacitors degrade at 5% annually.
Heat Exchange Coil Maintenance
Clean the aluminum fin array with a nylon brush at 45° angles to avoid bending. For stubborn debris, use a fin comb (12-15 FPI) set to ±0.1mm clearance. Pressure wash coils at 1200-1500 PSI max–higher forces distort fins, reducing heat transfer by 17%. Apply a hydrophobic coating post-cleaning to repel dust (lifespan: 18-24 months).
The expansion valve (TXV or piston) must be matched to the refrigerant type. R-410A valves tolerate ±3°F superheat; R-22 systems need ±5°F. Adjust superheat via the valve’s stem–turn clockwise 1/8 turn per 2°F increase. Avoid guessing: use a manifold gauge set for precise readings. Clogged valves? Backflush with nitrogen (10-second bursts at 200 PSI).
Examine the defrost control board in heat pump models for corrosion–replace if resistors show discoloration. Reprogram boards using manufacturer software (e.g., Daikin’s AC Smart) to update defrost cycles; outdated firmware causes ice buildup, cutting performance by 25%. Secure wiring with heat-shrink tubing near the board–vibration loosens connections, causing intermittent faults.
Refrigerant Circuit Troubleshooting
Trace the liquid line from the outdoor coil to the indoor unit–kinks restrict flow, spiking compressor amperage. Use a 3/8″ tube bender for repairs; avoid sharp bends (min radius: 2x pipe diameter). Check insulation for gaps–exposed lines sweat, reducing cooling by 10%. Splice insulation with vinyl tape, not duct tape (degrades at 110°F).
Verify the reversing valve’s solenoid with a hearing test: a quiet “click” confirms activation. No sound? Test voltage (24V AC) at the terminal; replace coil if resistance exceeds 100Ω. Lubricate the valve’s piston annually with ester oil–halocarbon oil causes sticking. For hard starts, install a potential relay (e.g., 5-2-40) to reduce compressor strain by 30%.
Key Elements of an Outdoor Cooling System: What to Look For

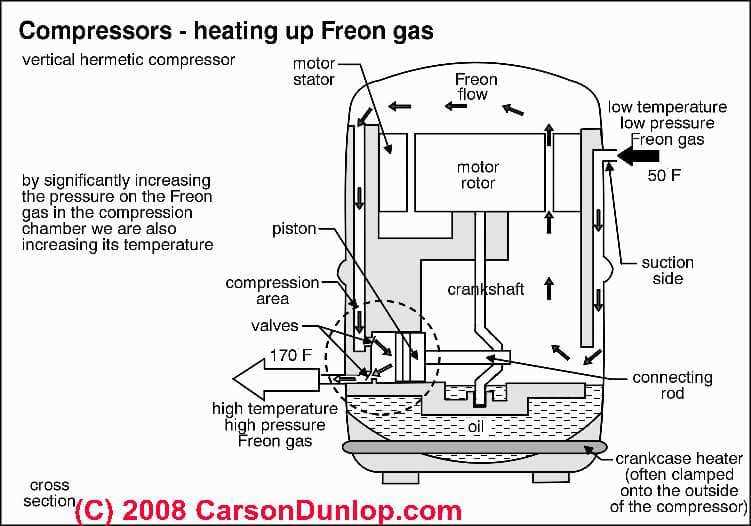

Begin by locating the compressor–the cylindrical or square metal block at the unit’s base. Check for a label displaying refrigerant type (e.g., R-410A or R-32) and amperage ratings (typically 10–30A). Unusual humming or clicking indicates potential bearing failure or electrical issues requiring immediate replacement. Measure fin spacing on the heat-exchange coil: 12–18 FPI (fins per inch) is standard; bent fins reduce efficiency by up to 25% and should be straightened with a comb.
Critical Electrical and Airflow Components
- Capacitor: Round or oval component with dual terminals. Test with a multimeter: 5–7.5 µF for start capacitors, 25–70 µF for run capacitors. Swollen or leaking caps signal failure.
- Fan assembly: Blade diameter (20–26″) matches the metal housing. Verify rotation direction (counterclockwise when facing the unit) and listen for bearing whine–lubrication ports should be checked annually.
- Contactor: Inspect for pitted contacts or melted insulation. Voltage drop across terminals should not exceed 0.5V during operation.
Inspect the thermal expansion valve (TXV) or fixed orifice for proper sizing–incorrect refrigerant flow drops cooling capacity by 10–15%. Look for frost buildup on the suction line, signaling low charge or blockage. Clean the base pan drains: clogged outlets cause water backup, corroding internal components at a rate of 0.3mm/year in humid climates. Use a chemical-resistant sealant on gasket seams to prevent refrigerant leaks, detectable via electronic sniffers set to 0.5 oz/year sensitivity.
Step-by-Step Guide to Identifying Components on Cooling Unit Schematics
Locate the compressor at the base of most outdoor AC assemblies–it typically bears a cylindrical or oval shape with refrigerant piping extending from its terminals. Check the model’s technical manual for specific markings: Copeland Scroll units (e.g., ZR series) list suction/discharge ports labeled S and D, while reciprocating types use color-coded wirings (blue for common, red for run). Measure the diameter of the copper tubes connected to it–¼” for residential systems, ⅜” for commercial–to confirm correct component mapping.
Labeling Fan and Coil Assemblies
Trace the fan blade to its motor housing, usually mounted behind a protective grille. Note the blade pitch and hub diameter–12-18″ for standard units, 20″+ for industrial variants–as these dictate airflow rates (measured in CFM). Adjacent to the fan, identify the heat exchange grid by its serpentine finned design; most grids use aluminum fins spaced 12-20 FPI (fins per inch). Cross-reference the fin density with the unit’s BTU rating: 3-5-ton systems require 14-16 FPI for optimal thermal transfer, while smaller units may use 10-12 FPI to prevent icing.
Verify the capacitor–oval or round, dual-run models show microfarad values (e.g., 30/5 µF) stamped on the casing–and match these to the fan motor’s label. Single-acting capacitors will lack the secondary rating. For defrost controls, scan the refrigerant line for a sensor bulb clamped to the tubing (typically on the liquid line near the coil’s base); its capillary tube should terminate at a mechanical or electronic defrost board, often marked DEF or HI/LO.
Diagnosing Common Failures with an External Unit Schematic
Inspect the fan motor by locating its connections on the wiring layout–blackened terminals or melted wires indicate overheating. Use a multimeter to test resistance between the motor windings; readings above 200 ohms or an open circuit signal internal failure. Replace the motor if the impeller spins freely but lacks torque during manual rotation tests.
Capacitor Troubleshooting Steps
Check the run capacitor’s capacitance values against the label–most units require 35-50 μF for single-phase motors. A bulging top or oily residue confirms dielectric breakdown. Test with a capacitor analyzer or substitute known good values to observe fan spin-up speed; sluggish startups reveal degraded capacity. Always discharge stored voltage before handling.
| Component | Symptom | Test Method | Fault Indicator |
|---|---|---|---|
| Contactors | Clicking without engagement | Measure coil voltage (24V typical) | Burned contacts or open coil |
| Reversing valve | No heat mode | Check solenoid voltage (240V) | Stuck spool or faulty coil |
| Thermal expansion block | Short cycling | Compare inlet/outlet pressure | Clogged orifice or improper sizing |
Examine the compressor relay by tracing the power path from L1/L2–burn marks on the switch plate confirm arcing. Jump the relay contacts temporarily to verify compressor operation; if it starts, replace the relay. Listen for a loud hum without startup, which suggests locked rotor or tripped overload. Check windings with an insulation tester–readings below 10MΩ indicate ground faults.
Clean the fin coil array using low-pressure water (max 100 psi) at a 45° angle to avoid bending the aluminum fins. Straighten crushed sections with a fin comb to restore airflow–every 5% reduction in coil efficiency increases energy use by 8%. Verify refrigerant charge after cleaning; bubbles in the sight glass at idle temperatures signal low fluid levels.
Pressure Switch Diagnostics
Attach manifold gauges to the service ports–high-side pressure exceeding 450 psi during normal operation points to a blocked liquid line or failed metering device. Low-side pressure below 50 psi when running suggests compressor suction valve failure. Reset switches manually after repairs, but replace if cycling persists; thermal fatigue can crack internal diaphragms.
